Pentair SuperFlo & WhisperFlo VS/VST Motor Drive Cover | 353123
Couldn't load pickup availability
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

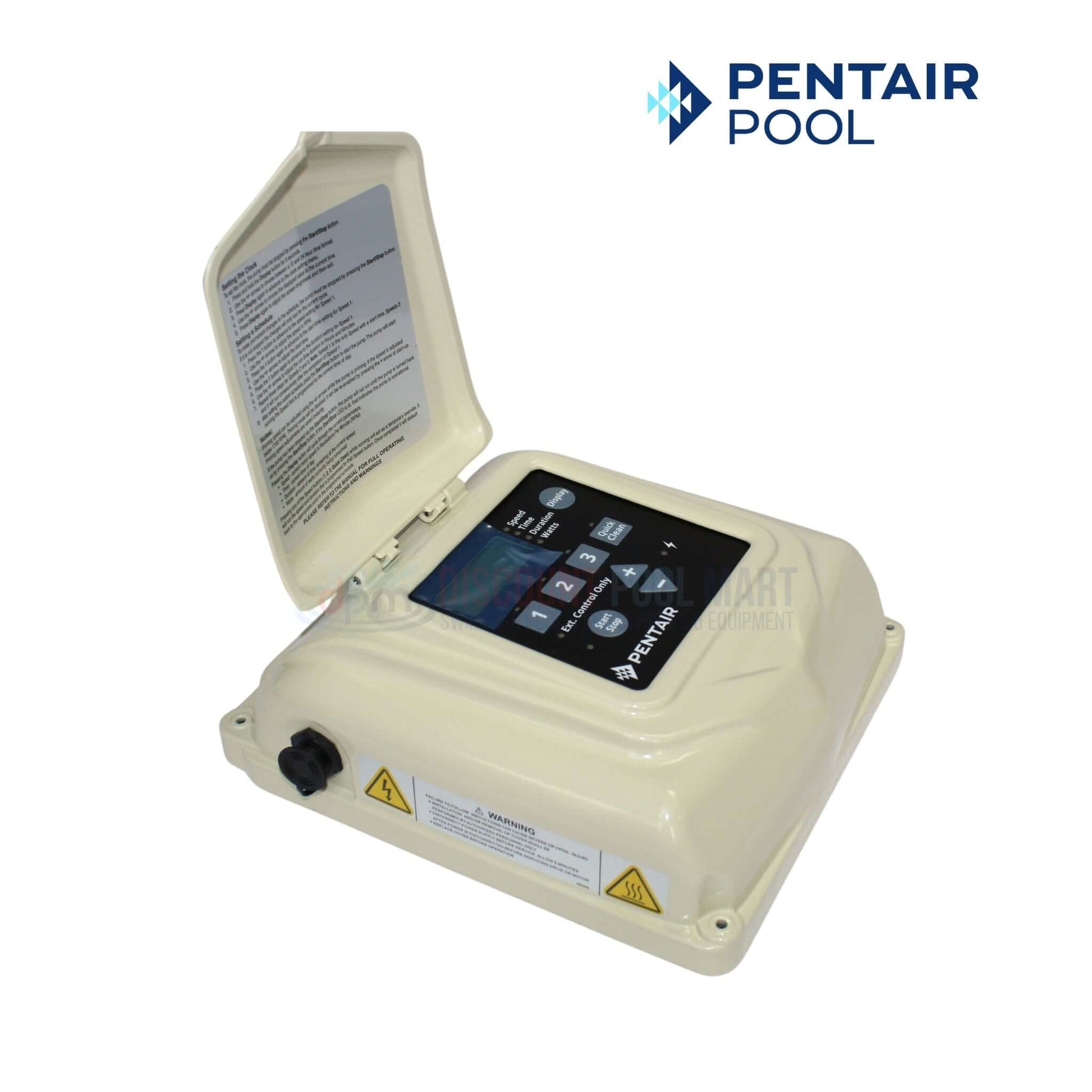

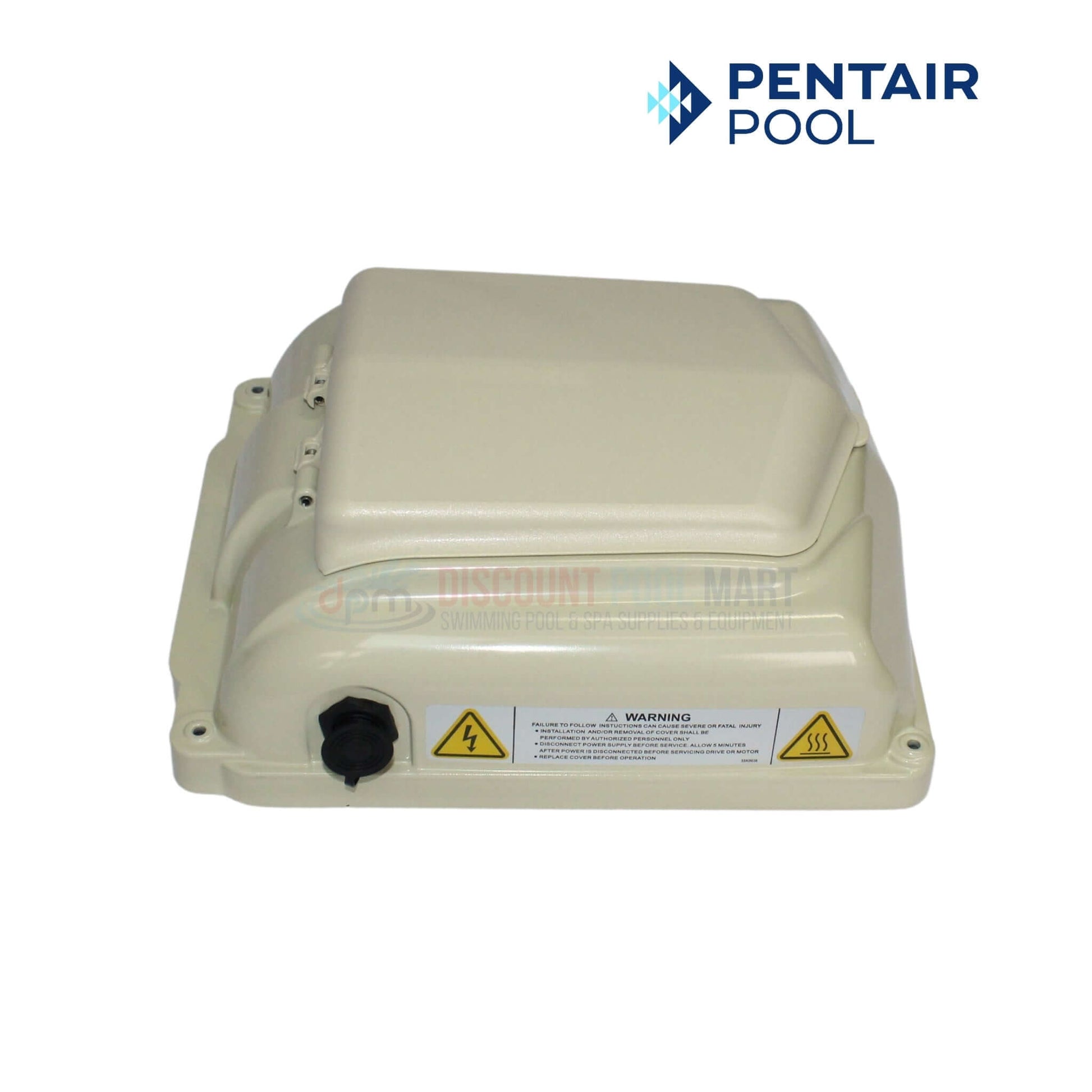

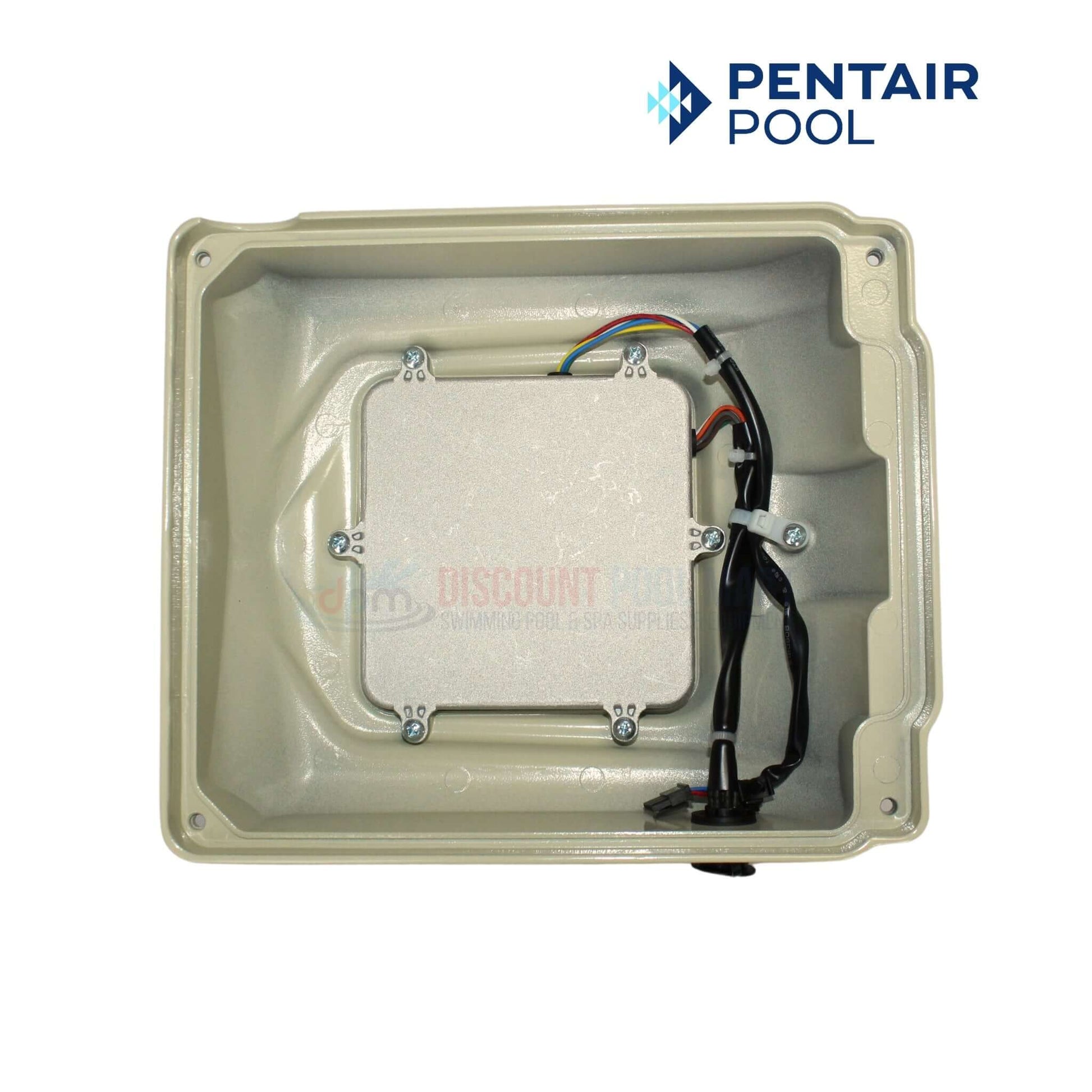

The OEM Pentair SuperFlo & WhisperFlo VS/VST Motor Drive Cover with Control Panel Display, part number 353123, is designed to protect and house the control panel of the pump. It is part of the broader range of components available for the Pentair SuperFlo & WhisperFlo VS/VST pumps manufactured before 11/02/20, ensuring a seamless integration and consistent aesthetic with an almond finish. This cover not only secures the control components but also complements the pump’s setup, enhancing both functionality and appearance.
Note: This is NOT the complete drive assembly.

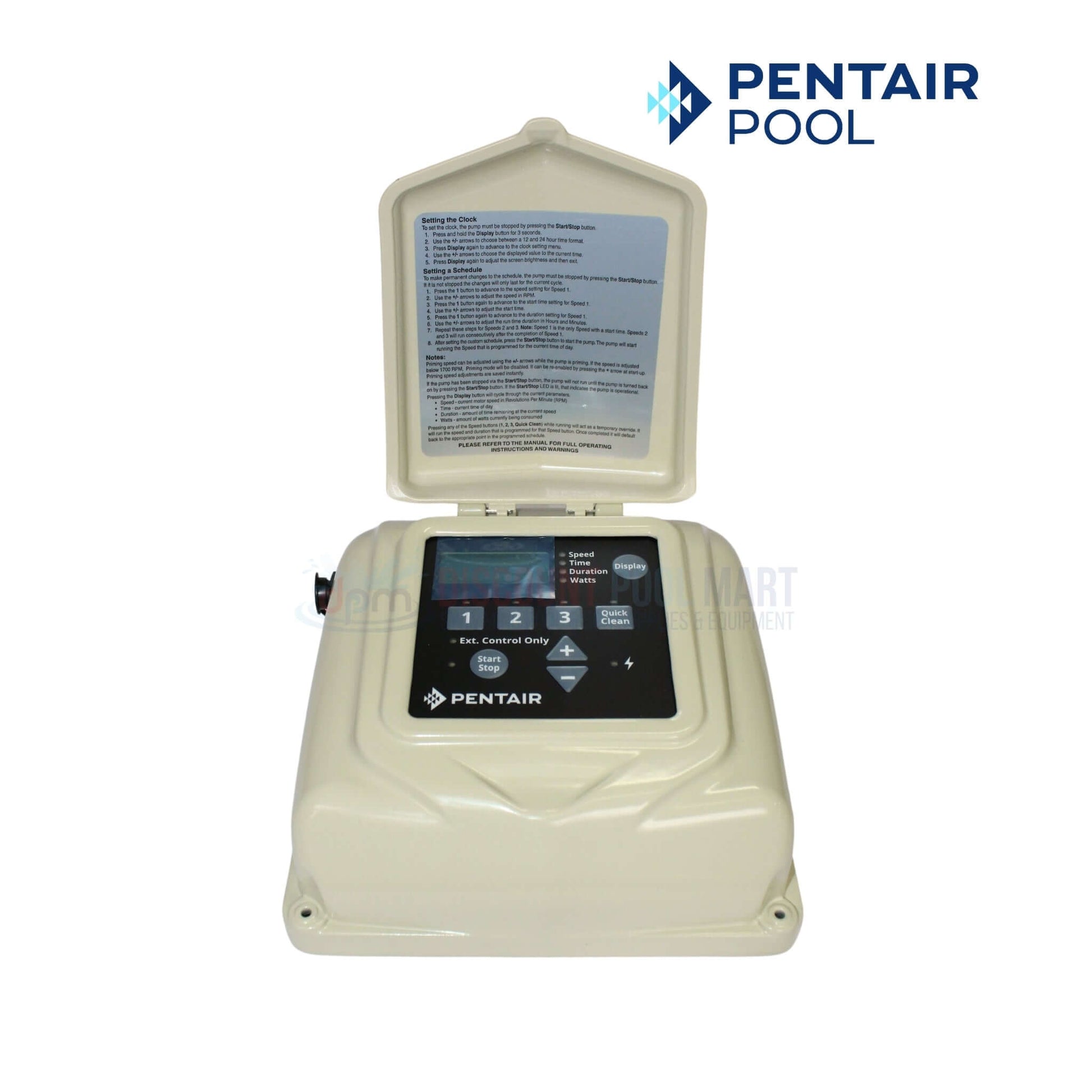

- Speed Buttons (SPEED 1, SPEED 2, SPEED 3) - Used to select the desired SPEED program. The LEDs above the Speed Buttons will illuminate when that SPEED is being edited or is currently running. A blinking LED indicates that an External Control is active on that SPEED channel.
- External Control Only LED Indicator - Indicates whether the pump is operating in External Control Only mode. When LED is illuminated the internal schedule is disabled and the pump is being controlled by a control system
- or other external control.
- Start/Stop Button - Used to start and stop the pump. When the pump is stopped and the LED is not illuminated, the pump is unable to run from any type of input.
- Display Mode LED Indicators - An illuminated LED indicates the information being displayed on screen. A blinking LED indicates that the parameter is currently being edited.
- Display Button - Used to toggle between the different available display modes. This button is also used to set the 24-hour clock and screen resolution.
- Quick Clean Button - Used to run the programmed speed and duration for Quick Clean. When the corresponding LED is illuminated the pump is running.
- Power LED Indicator - An illuminated LED indicates that there is power being supplied to the pump.
- “+” and “-” Buttons - Used to make adjustments to pump settings. The “+” button increases the value of a given setting, while “-” decreases the value of a given setting. Pressing and holding down either button will increase or decrease incremental changes faster.
- Simple User Interface: The cover includes an easy-to-operate control interface, making it user-friendly and accessible for managing pool pump settings.
- UV and Rain-Proof Enclosure: Designed to withstand the elements, this cover protects the motor drive from UV rays and rain, ensuring durability and longevity.
- Onboard Time of Day Schedule: Allows for daily scheduling of operations, providing convenience and efficiency in managing pool pump times.
- Adjustable Priming Mode: Offers flexibility in pump operation by allowing the adjustment of priming settings according to specific needs.
- Programmable Quick Clean Mode: Facilitates quick cleaning cycles, enhancing the ease of maintenance.
- Pump Alarm Display and Retention: Alerts you to any issues with the pump and retains alarm logs for troubleshooting and maintenance checks.
- Voltage Flexibility: Accepts input power of 115-230V, 50/60Hz, accommodating various electrical setups.
- Auto Power Limiting Protection Circuit: Provides safety features that prevent overloading and potential damage to the pump.
- 24-Hour Clock Retention for Power Outages: Ensures that settings are saved and operations resume normally after power disruptions.
- Keypad Lockout Mode: Prevents unintended changes to settings, securing your programmed preferences.

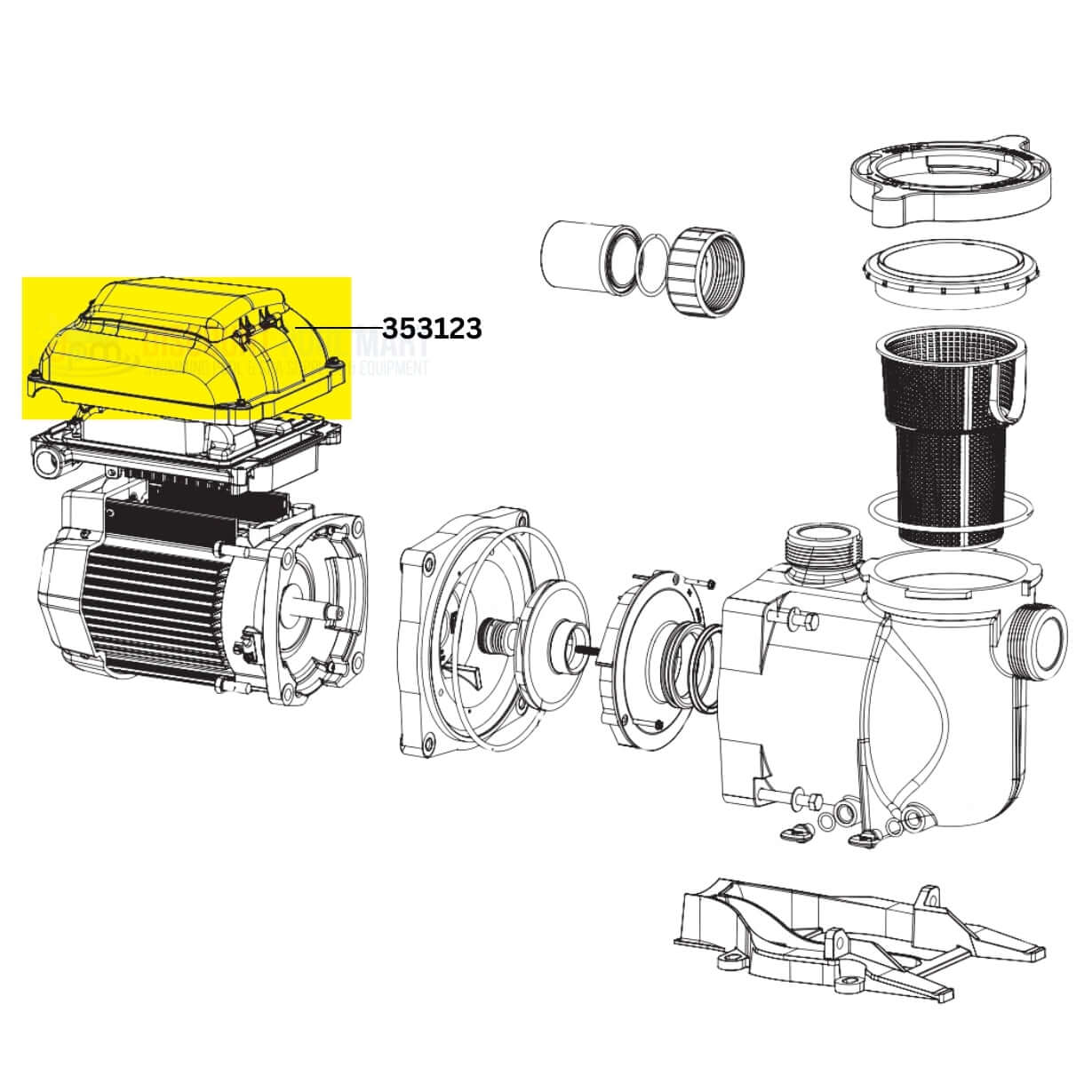

This Pentair pump drive cover with control panel display is used for the following Pentair pump models
- Pentair SuperFlo VS VST Pumps before 11-2020
- Sta-Rite SuperMax VS Pumps before 11-2020
