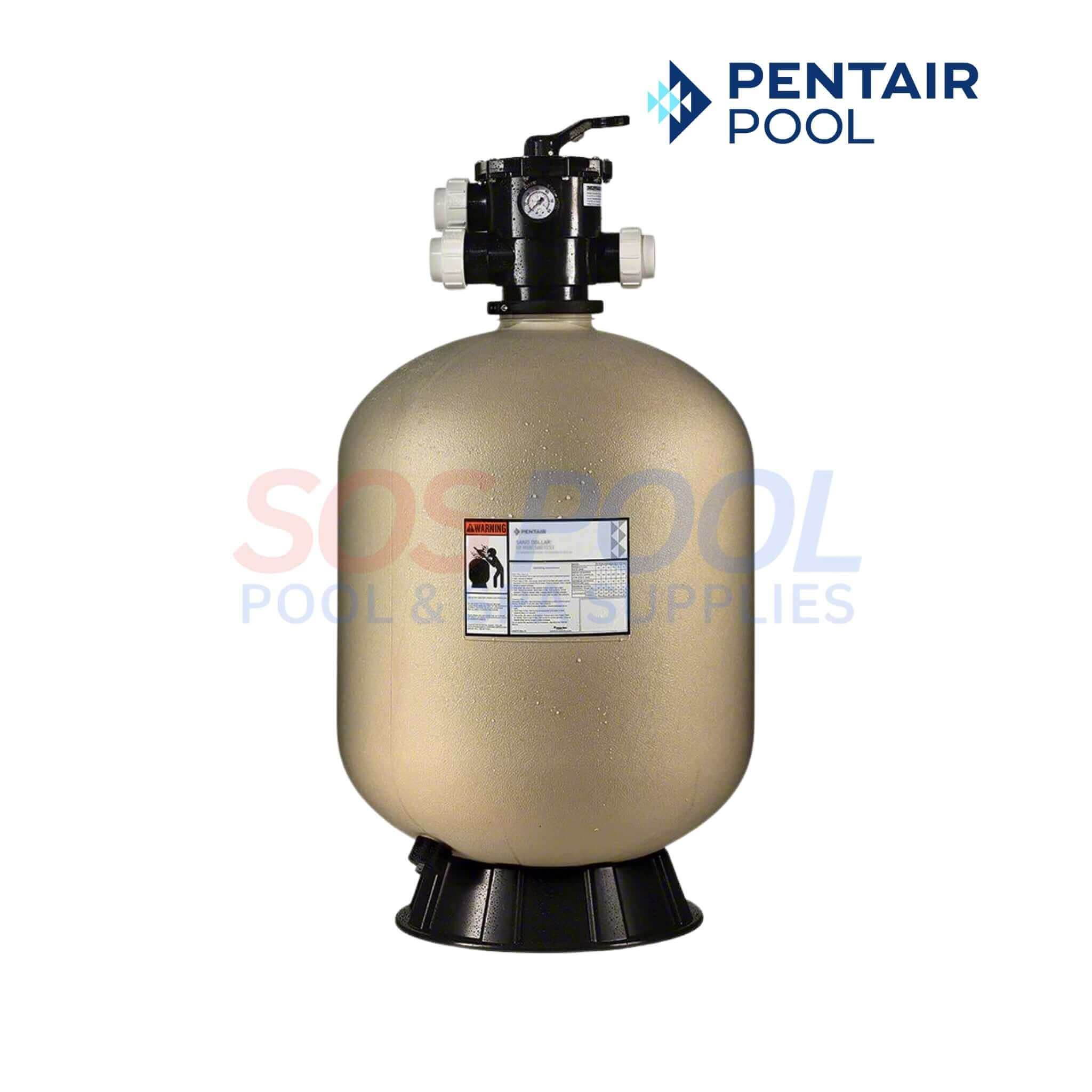

The Pentair Sand Dollar EC-145333 SD80 Top Mount Sand Filter is designed for simple operation, dependable performance, and long-lasting reliability. With a flow rate of 75 GPM and a filtration area of 3.5 sq. ft., it is built for larger residential pools that require efficient turnover and consistent clarity. Constructed with a one-piece thermoplastic tank, the SD80 offers exceptional strength, corrosion resistance, and long service life even in harsh pool environments.

Using #20 silica sand as the filter media, water is routed through the sand-filled tank where microscopic debris is trapped between sand particles. When pressure rises, the multi-port valve makes it easy to backwash by simply reversing the water flow to clear out dirt and restore efficiency. The six-function, 1½" or 2" top-mount valve includes a pressure gauge and manual air relief for precise control. With a vertical clearance of 74", a diameter of 26", and a 350 lb. sand requirement, the SD80 provides reliable performance and user-friendly service for pools up to 54,000 gallons.

Note: Pool water is routed through the sand-filled pressure vessel. The sand traps particles so small they are undetectable to the naked eye. Over time, dirt accumulates in the spaces between the sand particles, causing the pressure in the vessel to rise. This signals you to "backwash" the filter by simply reversing the water flow and "knocking out" the dirt.

Key Features of the Pentair Sand Dollar SD80 EC-145333 Filter

• 3.5 Sq. Ft. Filtration Area with 75 GPM Flow: Large sand surface area supports steady circulation and dependable water clarity for bigger residential pools.

• High Turnover Capacity: Handles up to 36,000 gallons in 8 hours, 45,000 gallons in 10 hours, or 54,000 gallons in 12 hours for reliable system sizing.

• One-Piece Thermoplastic Tank: Corrosion-resistant tank is engineered for strength and long service life under harsh outdoor and chemical conditions.

• Six-Function Multi-Port Valve: Top-mount 1½" or 2" valve features a pressure gauge and manual air relief for efficient filtration and easy control.

• Efficient Sand Media Filtration: Uses #20 silica sand to trap fine particles invisible to the naked eye, providing consistently clear water.

• Simple Backwashing Process: Built-in multi-port valve allows easy backwashing—just rotate the handle to restore performance in minutes.

• Combination Water and Sand Drain: Designed for easy draining, servicing, and winterizing without unnecessary hassle or disassembly.

• Proven Pentair Reliability: Backed by Pentair’s reputation for durable, user-friendly filtration systems that deliver clarity year after year.

Specifications

• Sand Required: 350 pounds of #20 silica sand (sold separately)
• Flow Rate: Maximum flow rate of 75 gallons per minute (GPM)
• Weight: Approximately 76 pounds
• Filtration Area: 3.5 sq. ft.

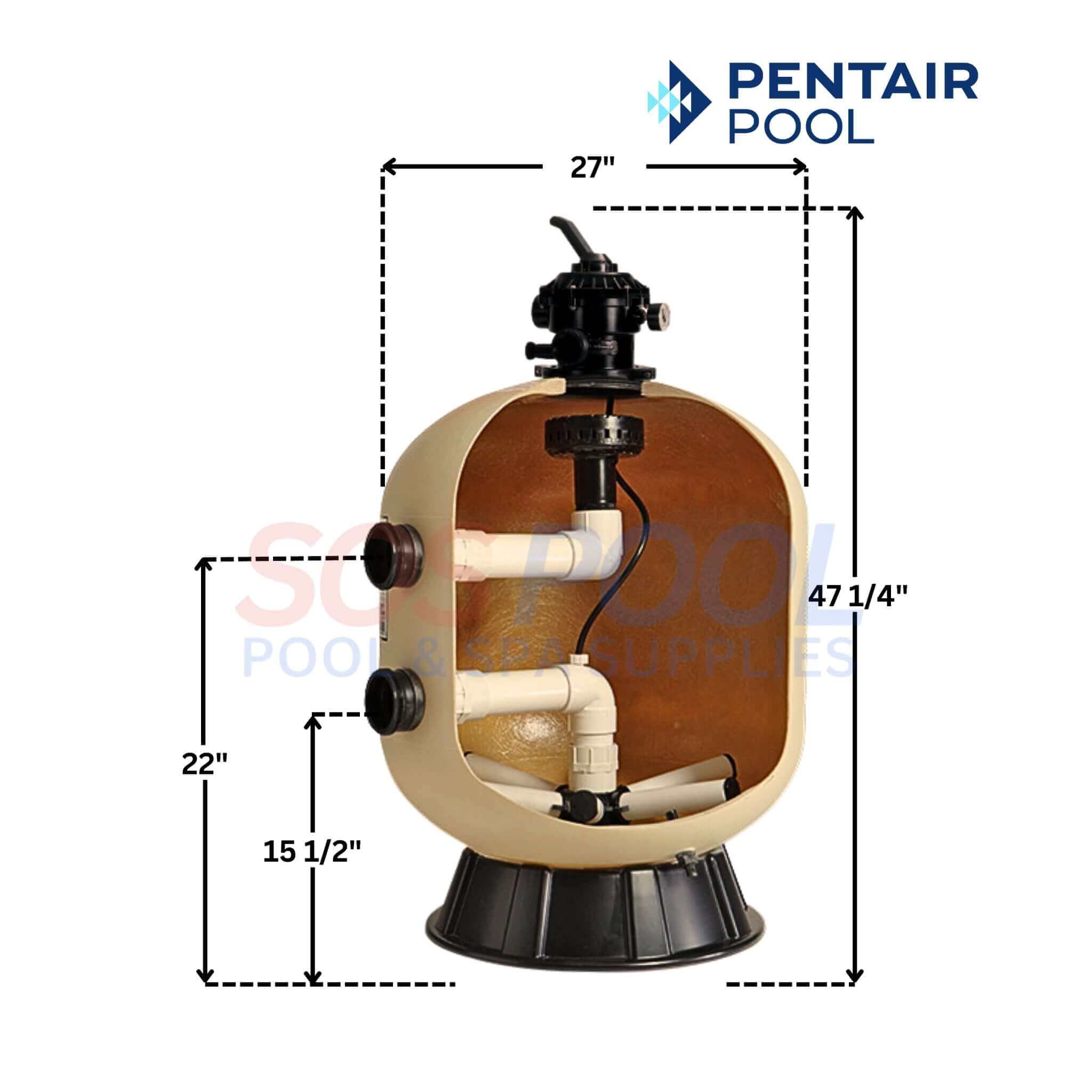

• Dimensions: 27" inches in diameter and 47" inches in height
• Vertical Clearance: 74"

Includes

• (1) Pentair EC-145333 Sand Dollar Filter
• (1) 6 Function 1.5" multi-port valve- 262506
• (1) Clamp Assembly- 152165
• (1) Pressure Gauge and manual air relief- 190059

*See manual page 17 for complete list
