Pentair Quad DE 80 Sq Ft Cartridge Pool Filter | EC-188593

Pentair Quad DE 80 Cartridge Style Pool Filter | EC-188593

The Pentair Quad DE 80 EC-188593 Cartridge Style Filter combines the superior water clarity of a traditional DE filter with the convenience and easy maintenance of a cartridge system. Featuring 80 sq. ft. of effective filter area, this innovative hybrid design uses four cartridge-style DE elements that deliver maximum debris-trapping capability with crystal-clear results. The large-capacity tank and high flow performance make it ideal for larger residential pools and spas that demand top-quality water clarity.

Unlike standard DE filters that require backwashing, the Quad DE 80 allows users to simply remove and rinse the four cartridges with a hose, saving both water and time. Its clamp-ring design allows quick, tool-free access for servicing, while the rugged, fiberglass-reinforced polypropylene tank construction ensures long-lasting durability even in tough outdoor environments. Designed for hydraulic efficiency, it delivers reliable circulation while minimizing resistance across the system.

By combining DE’s unmatched clarity with cartridge-style convenience, the Pentair Quad DE 80 is a top choice for pool owners who want the cleanest water possible with simplified service and long-term performance.

Key Features of the Pentair Quad DE 80 EC-188593 Filter

• 80 Sq. Ft. Effective Filter Area: Provides superior filtration capacity for medium-to-large residential pools, delivering sparkling water clarity with each cycle.

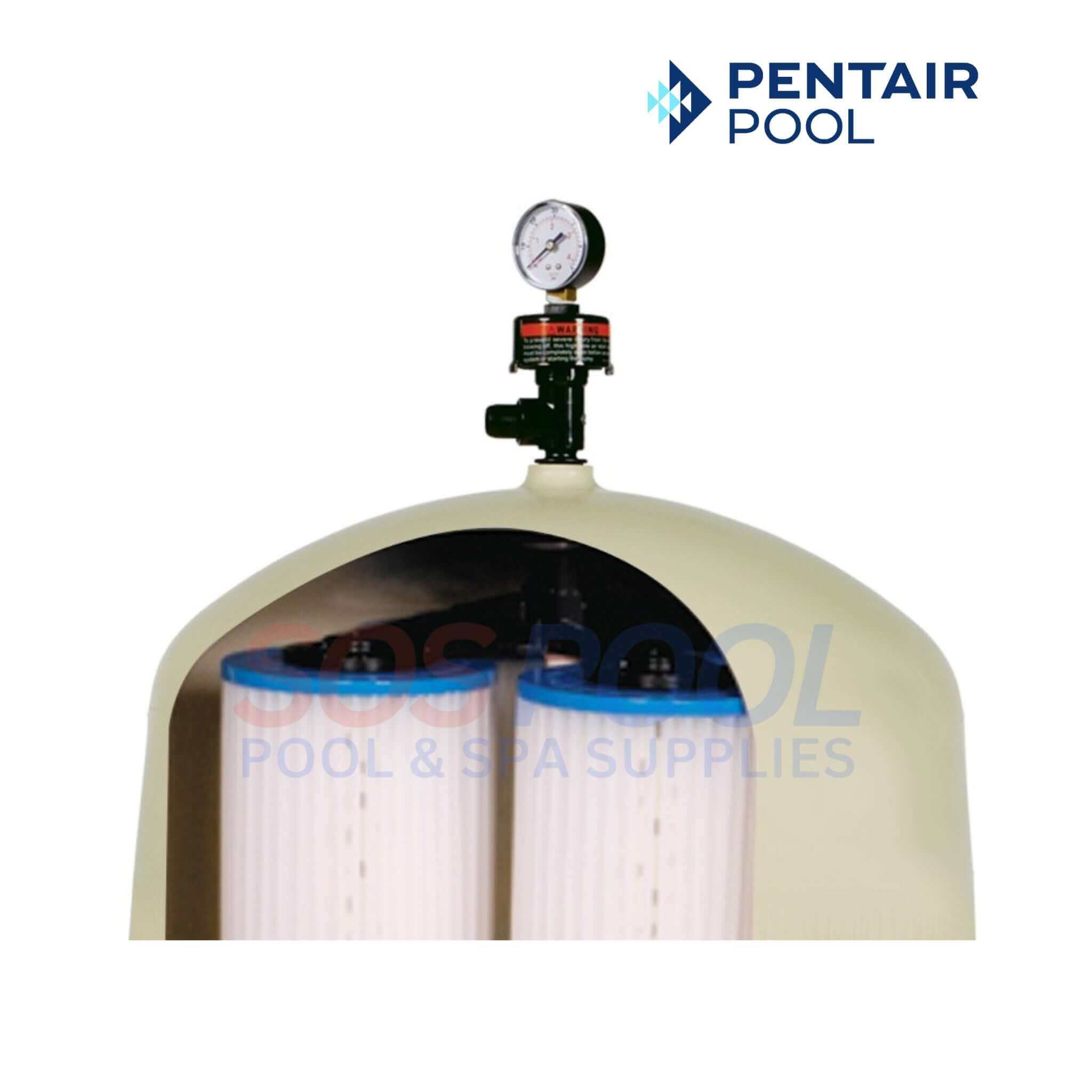

• Cartridge-Style DE Elements: Uses four cartridge-style DE grids that combine the strength of cartridge construction with the fine filtration of diatomaceous earth.

• Exceptional Water Clarity: DE media filters out the smallest particles for crystal-clear water that outperforms standard sand and cartridge systems.

• Convenient Maintenance Design: Cartridges can be removed and rinsed with a hose instead of backwashing, saving water and reducing service time.

• Durable Tank Construction: Fiberglass-reinforced polypropylene body provides excellent strength, corrosion resistance, and long-term reliability outdoors.

• Easy-Access Clamp Ring: Secure clamp ring design allows the tank top to be removed quickly without tools, streamlining filter servicing and cleaning.

• Hydraulic Efficiency: Engineered for strong water flow with minimal resistance, improving circulation while reducing system strain.

• Pentair Reliability: Backed by Pentair’s reputation for building durable, service-friendly pool equipment that ensures long-lasting performance.

Specifications

• Model Number: EC-188593
• Filtration Area: 80 square feet

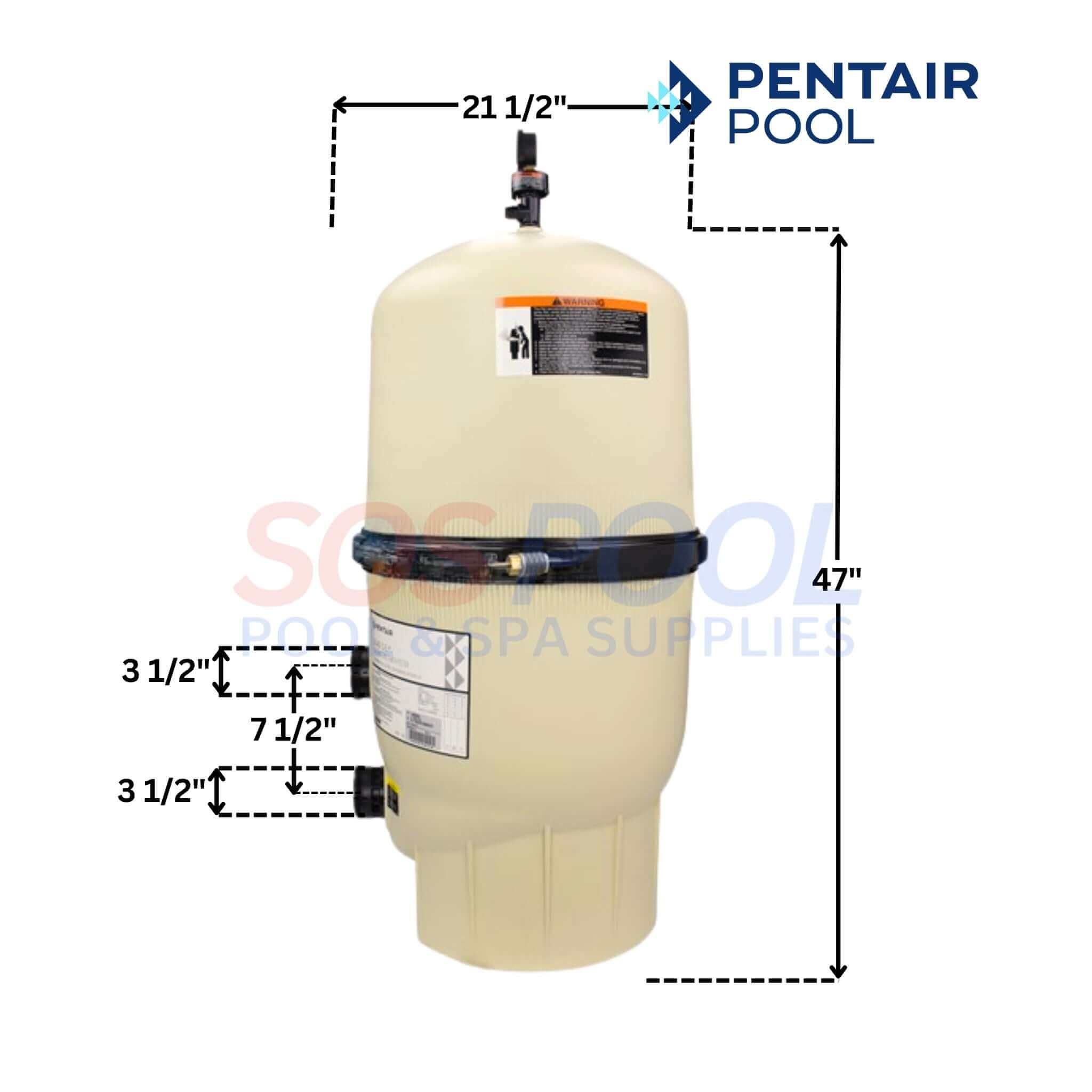

• Dimensions: 21.5 inches in diameter and 47 inches in height
• Vertical Clearance: 68"
• Weight: Approximately 72 pounds when empty
• Flow Rate: Maximum flow rate of 160 gallons per minute (GPM)
• DE Required: Uses about 8 pounds of diatomaceous earth (DE)
• Material: Chemical-resistant, fiberglass-reinforced polypropylene tank

Compatibility

Compatible with the following valve models *all sold separately

• 1.5" MPV (Multiport Valve): 261173
• 2" PVC Slide Valve: 263079
• 2" HiFlow Valve with no plumbing required: 261049
• 2" HiFlow Valve with plumbing: 261050
• 2" MPV (Multiport Valve): 261055
• Push Pull Valve, 7.5" Center: 263064

 Includes

• (1) Pentair EC-188593 Quad DE 80 sq ft
• (4) D.E. Filter Cartridges
• (1) Pressure Gauge
• (1) Manual Air Relief Valve
• (1) Drain and Waste Port
