Pentair Quad DE 100 Sq Ft Cartridge Pool Filter | EC-188594

Pentair Quad DE 100 Cartridge Style Pool Filter | EC-188594

The Pentair Quad DE 100 EC-188594 Cartridge Style Filter offers the perfect balance of diatomaceous earth (DE) filtration clarity and cartridge-style convenience. With 100 sq. ft. of filter area, this system is engineered for large residential pools and spas, delivering outstanding water clarity with reduced maintenance requirements. By using four cartridge-style DE elements, it combines the fine particle filtration of DE with the easy cleaning process of a cartridge filter.

This hybrid design eliminates the need for messy backwashing. Instead, pool owners can simply remove the cartridges, hose them off, and reinstall—saving water, reducing service time, and lowering overall maintenance costs. The EC-188594 is constructed with a fiberglass-reinforced polypropylene tank that resists corrosion and harsh environmental conditions. A heavy-duty clamp ring provides tool-free access for servicing, while hydraulic-efficient engineering ensures reliable circulation and system performance.

Trusted by pool owners and professionals alike, the Pentair Quad DE 100 is an advanced filtration system that provides superior clarity, durable construction, and easy-to-manage maintenance for long-term pool care.

Key Features of the Pentair Quad DE 100 EC-188594 Filter

• 100 Sq. Ft. Effective Filter Area: Large filtration capacity designed for residential pools and spas that require strong performance and consistent water clarity.

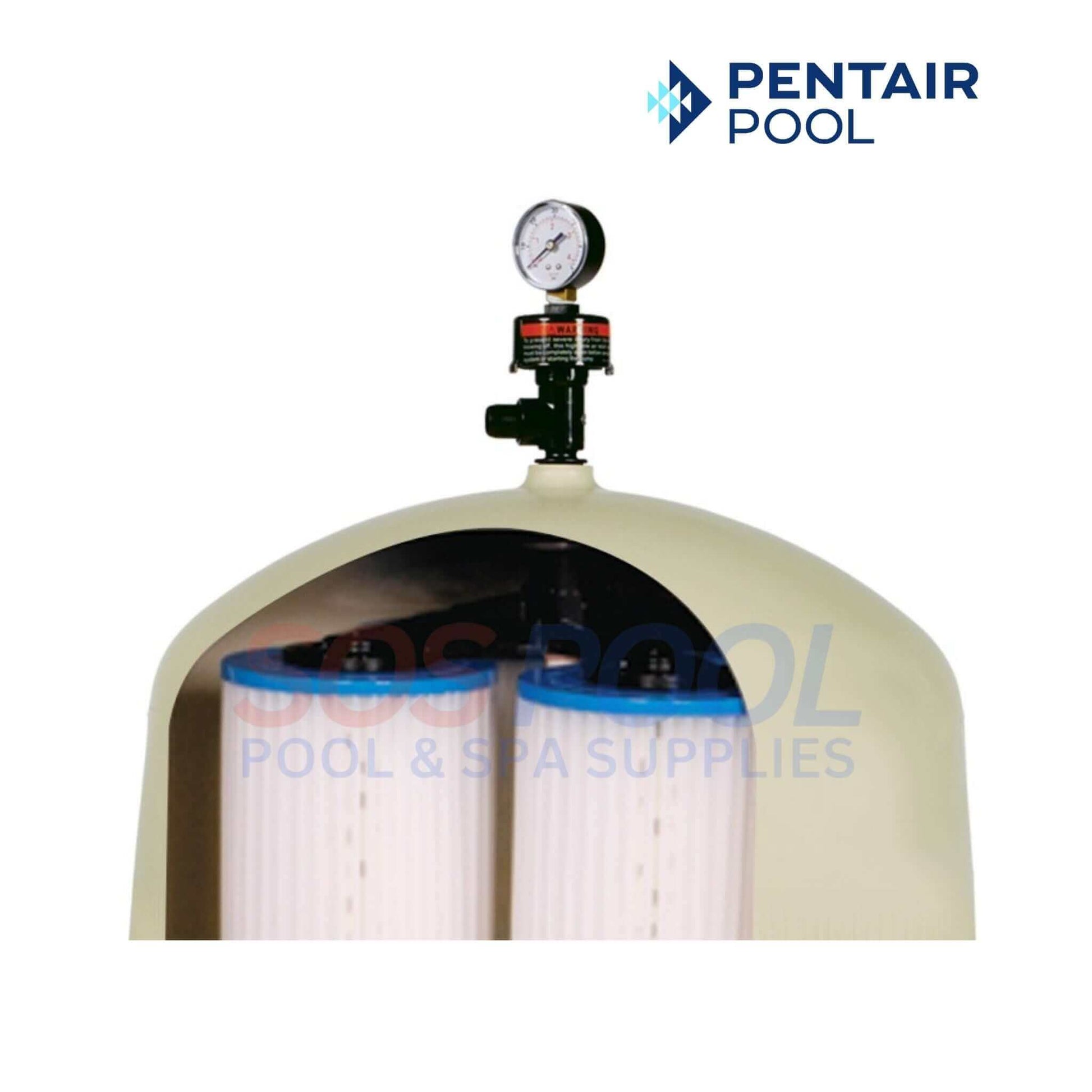

• Four DE Cartridge Elements: Unique hybrid system uses four DE-style cartridges that provide the finest particle capture while offering easy cartridge-style service.

• Superior Water Clarity: DE media filters out microscopic debris that standard sand or cartridge systems cannot, leaving water visibly cleaner and healthier.

• No Backwashing Required: Cartridges can be quickly removed and rinsed with a garden hose, conserving water and making maintenance simple.

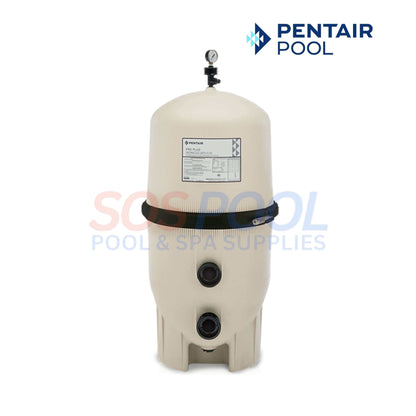

• Reinforced Tank Construction: Fiberglass-reinforced polypropylene body is built for strength and durability, resisting corrosion and environmental wear.

• Service-Friendly Clamp Ring: Heavy-duty clamp ring allows the tank top to be removed quickly without tools, giving fast access to cartridges for cleaning.

• Hydraulic Efficiency: Designed to maximize water flow while minimizing resistance, improving overall circulation and system performance.

• Pentair Quality and Reliability: Backed by Pentair’s reputation for delivering dependable, service-friendly, and long-lasting pool equipment.

Specifications

• Model Number: EC-188594
• Filtration Area: 100 square feet
• Dimensions: 21.5 inches in diameter
• Vertical Clearance: 74"
• Material: Chemical-resistant, fiberglass-reinforced polypropylene tank

Compatibility

Compatible with the following valve models *all sold separately

• 1.5" MPV (Multiport Valve): 261173
• 2" PVC Slide Valve: 263079
• 2" HiFlow Valve with no plumbing required: 261049
• 2" HiFlow Valve with plumbing: 261050
• 2" MPV (Multiport Valve): 261055
• Push Pull Valve, 7.5" Center: 263064

 Includes

• (1) Pentair EC-188594 Quad DE 100 sq ft
• (4) D.E. Filter Cartridges

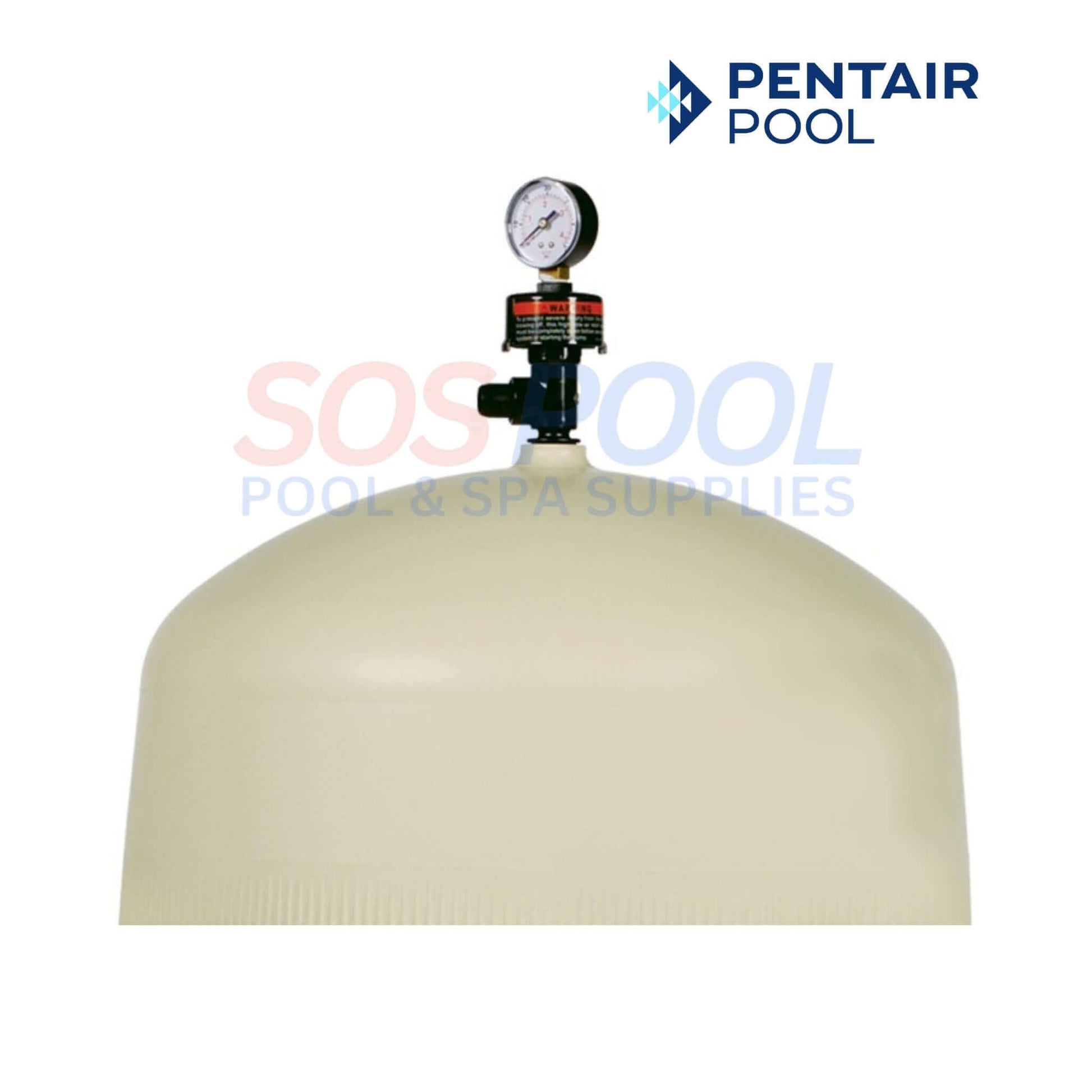

• (1) Pressure Gauge
• (1) Manual Air Relief Valve
• (1) Drain and Waste Port
