Pentair Manifold Kit for MasterTemp and Max-E-Therm 400 Heaters | 77707-0016
Fits these models (6)
+2 more models
Pickup, delivery and shipping times are estimates, not guarantees.
Couldn't load pickup availability
● 4 in stock30-day returns Secure checkout
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

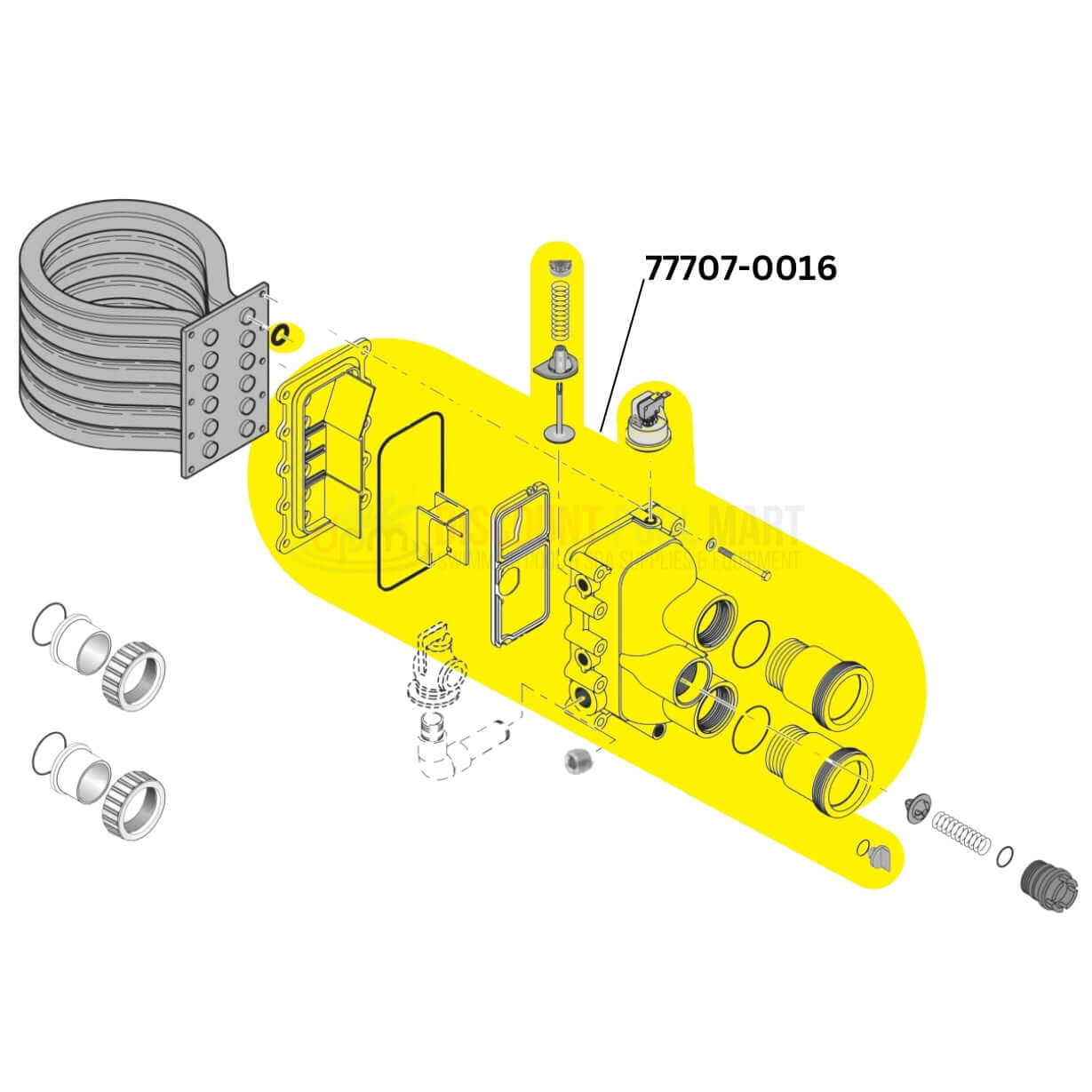

On the Pentair MasterTemp 400 460736 Heater diagram
This part
Open the full interactive diagram →
Other parts on the same Pentair MasterTemp 400 460736 Heater

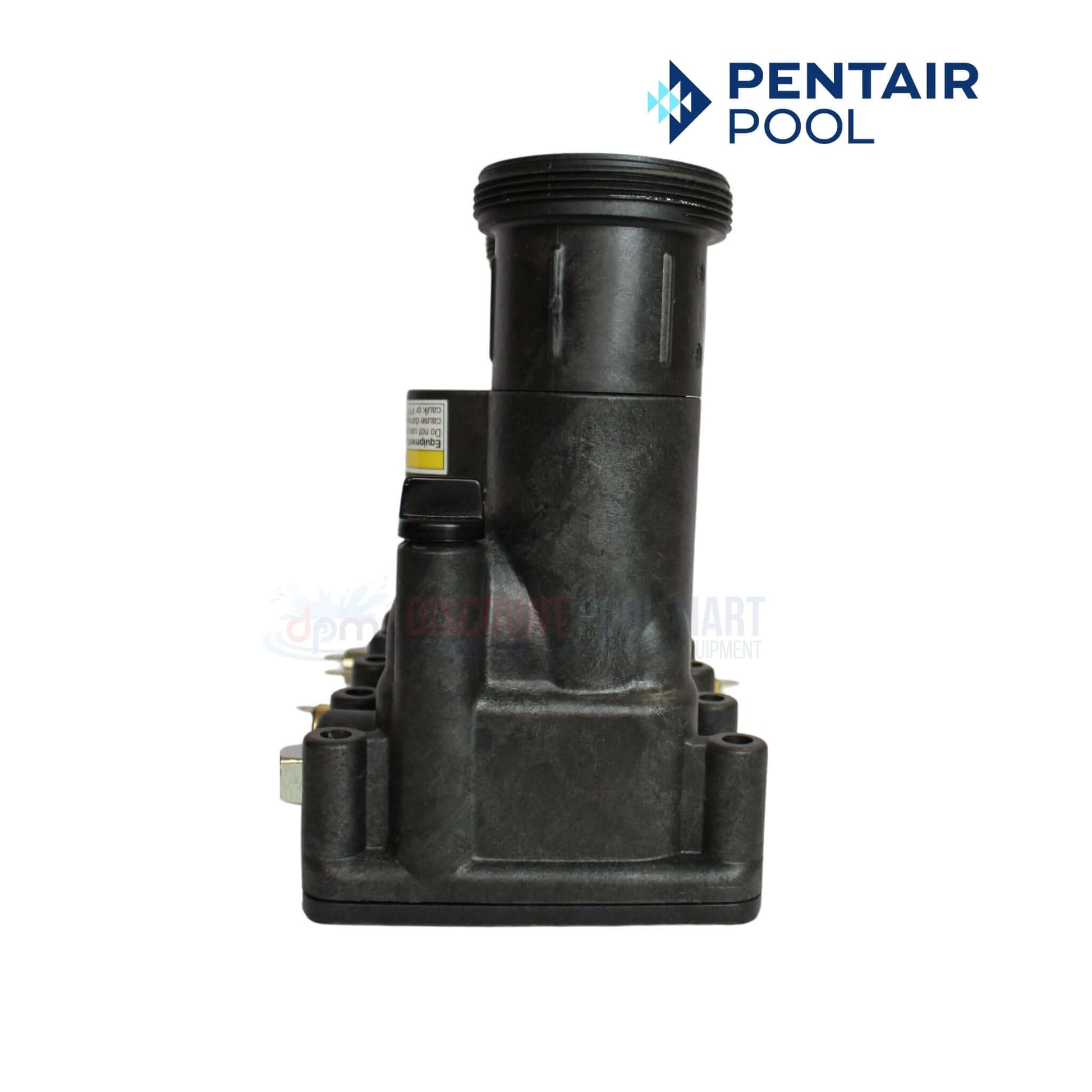

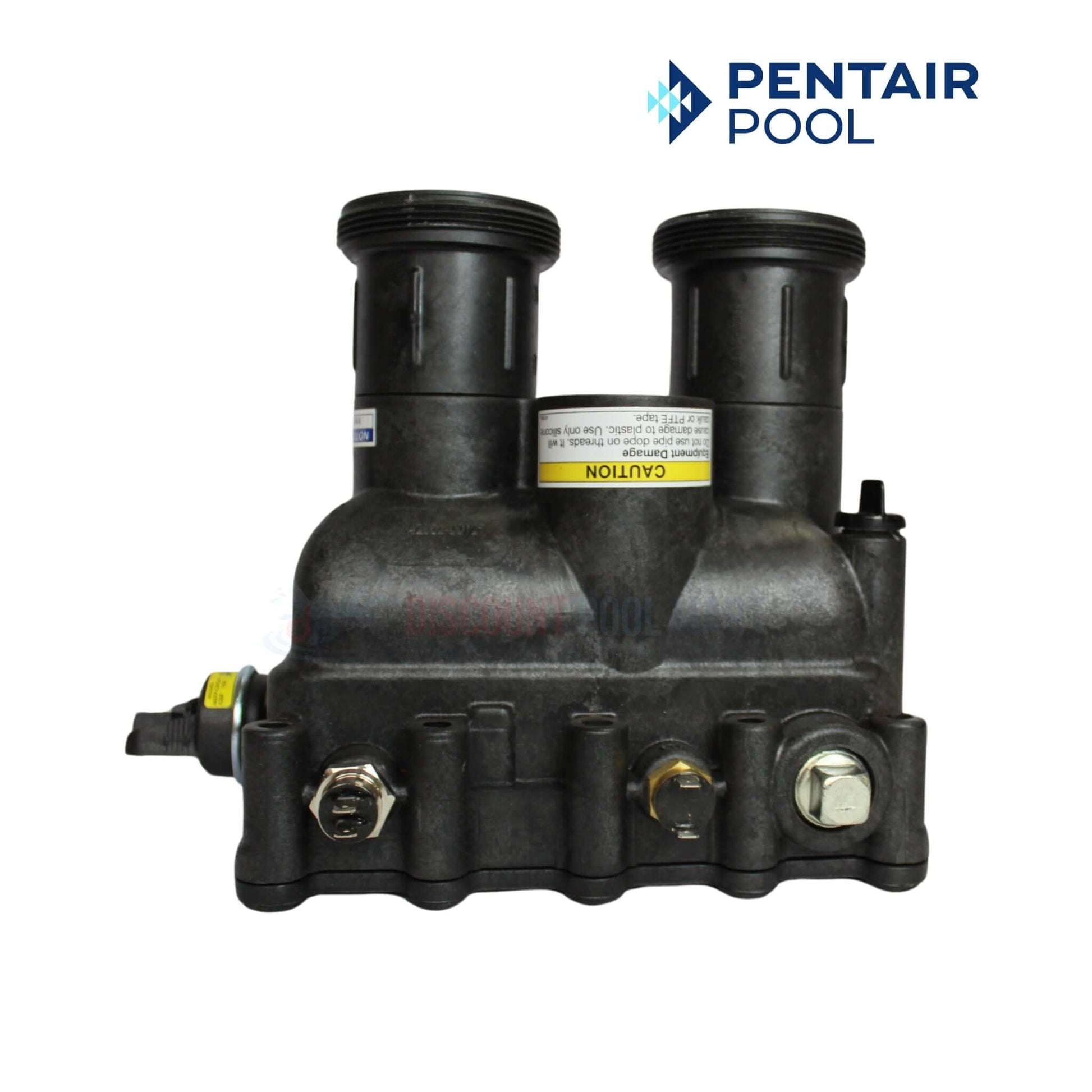

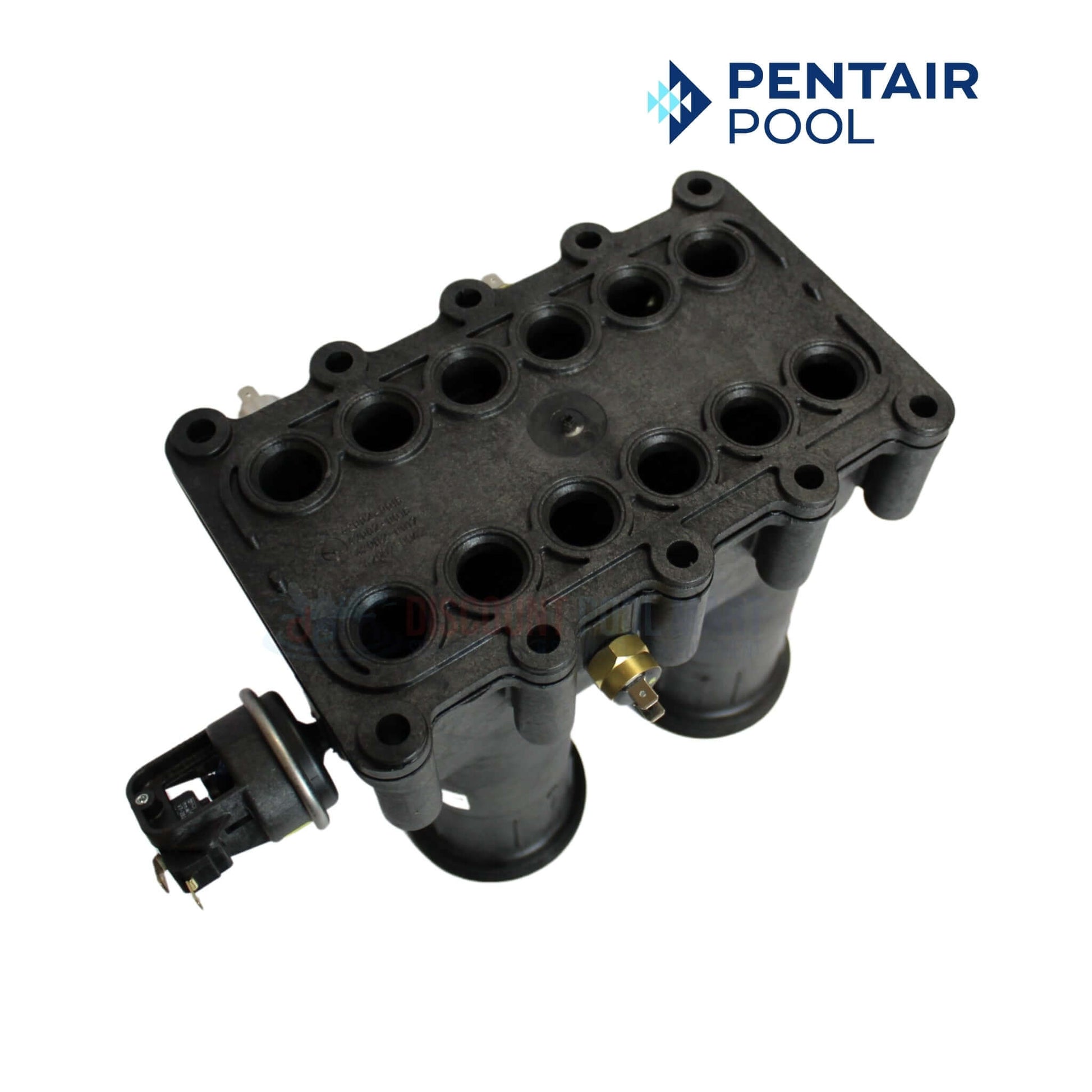

This manifold is a crucial component bolted to the side of the combustion chamber. It serves as a hub for inlet and outlet water connections and houses various important features, including the thermal regulator, internal bypass valve, psi switch, ags switch, hi-limit switch, thermistor, and psi relief valve.
- Crucial Water Connection Hub: Serves as a vital hub for both inlet and outlet water connections, ensuring efficient and reliable water circulation.
- Comprehensive Feature Integration: Houses essential components such as the thermal regulator, internal bypass valve, psi switch, ags switch, hi-limit switch, thermistor, and psi relief valve, providing extensive functionality in one unit.
- Enhances System Efficiency: Significantly improves the efficiency and performance of the combustion chamber by regulating and controlling critical operational parameters.
- Robust and Accessible Installation: Bolted securely to the side of the combustion chamber, offering a sturdy and easily accessible setup for maintenance and inspection.
- Ensures Safety and Protection: Equipped with multiple safety switches and valves, including a psi relief valve and hi-limit switch, to protect the system from overheating and overpressure, ensuring safe and reliable operation.

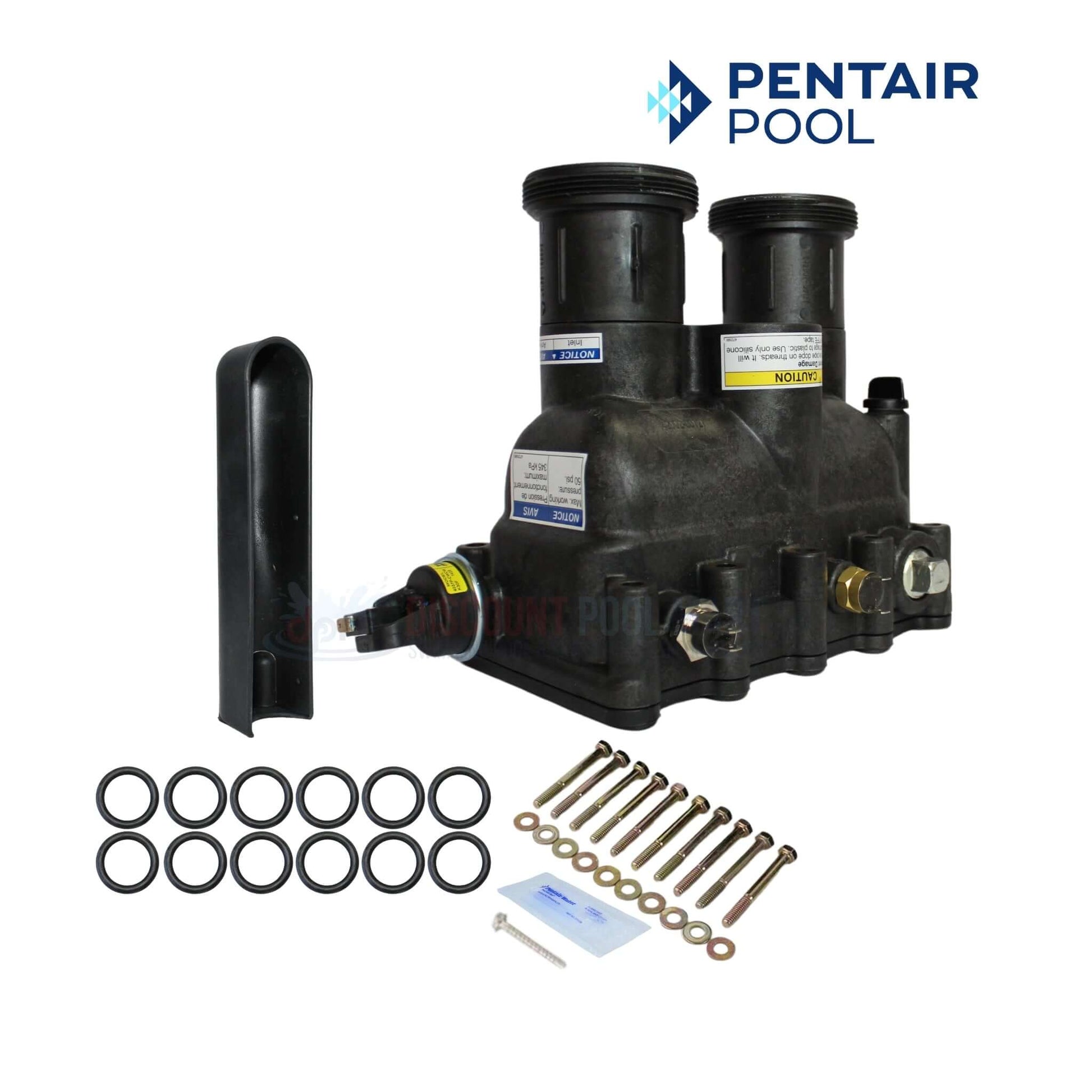

- (1) Pentair Manifold Kit
- (1) Pentair Small Lube and Sealant Package
- (1) Pentair Water Pressure Switch
- (1) Screw
- (12) Pentair Tube Sheet Coil O-Rings
- (10) Bolts
- (10) Washers
- Pentair MasterTemp Heaters Models: 400NA and 400LP
- Pentair Sta-Rite Max-E-Therm Heater Model: 400
