196024S | Pentair Diverter Assembly Retro Kit For Quad DE Filters

Regular price $79.99
Regular price $86.99 Sale price $79.99
-$7.00
Shipping calculated at checkout.
Brand: Pentair
SKU: 196024S

CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

Found In These Collections


  • Pentair pool equipment and products featuring basket, valves, and accessories from Discount Pool Mart (DPM).

    All Pentair Equipment Products & Parts

    Collection
  • Pentair Quad DE Cartridge 188594 Filter Replacement Parts Diagram from Discount Pool Mart DPM for pool maintenance.

    Pentair Quad DE 100 188594 Filter Replacement Parts Diagram

    Collection
  • Pentair Quad DE Cartridge 188592 filter replacement parts diagram from Discount Pool Mart DPM for pool maintenance.

    Pentair Quad DE 60 188592 Filter Replacement Parts Diagram

    Collection
  • Pentair Quad DE Cartridge 188593 Filter parts diagram from Discount Pool Mart DPM, detailing essential replacement components.

    Pentair Quad DE 80 188593 Filter Replacement Parts Diagram

    Collection
  • Filter parts collection from Discount Pool Mart (DPM) including pump, filter, and components for efficient pool maintenance.

    Pool Filter Parts & Repair Accessories

    Collection

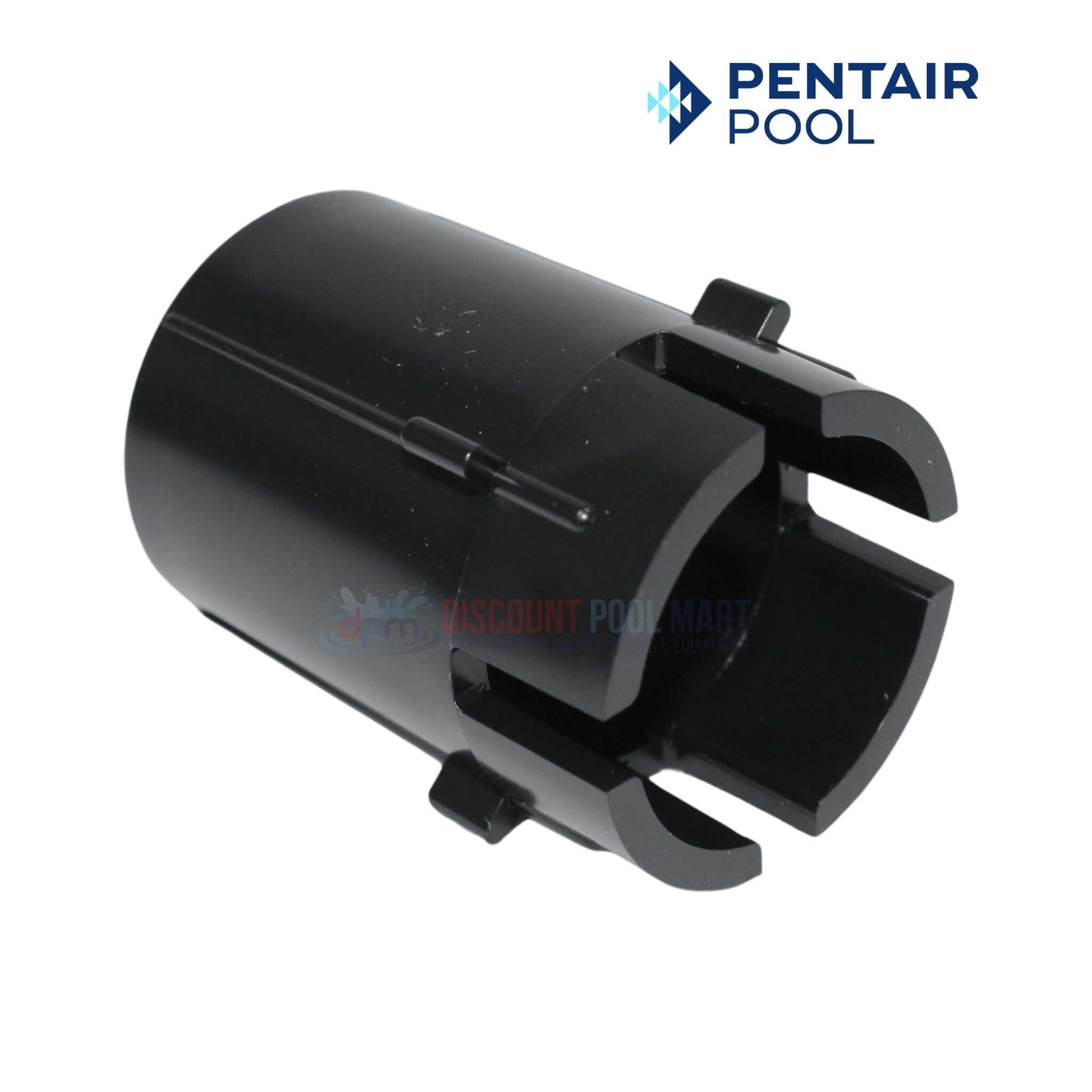

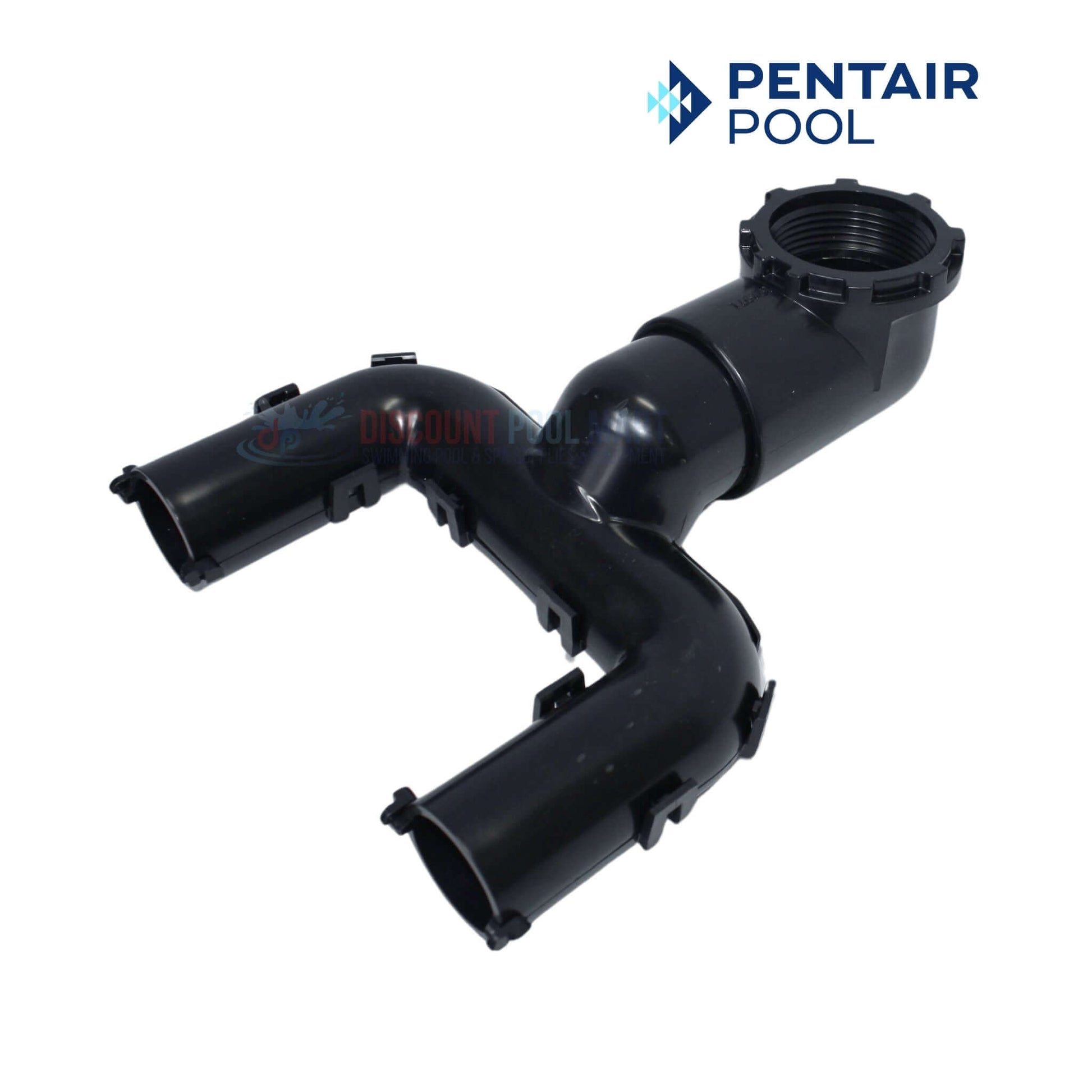

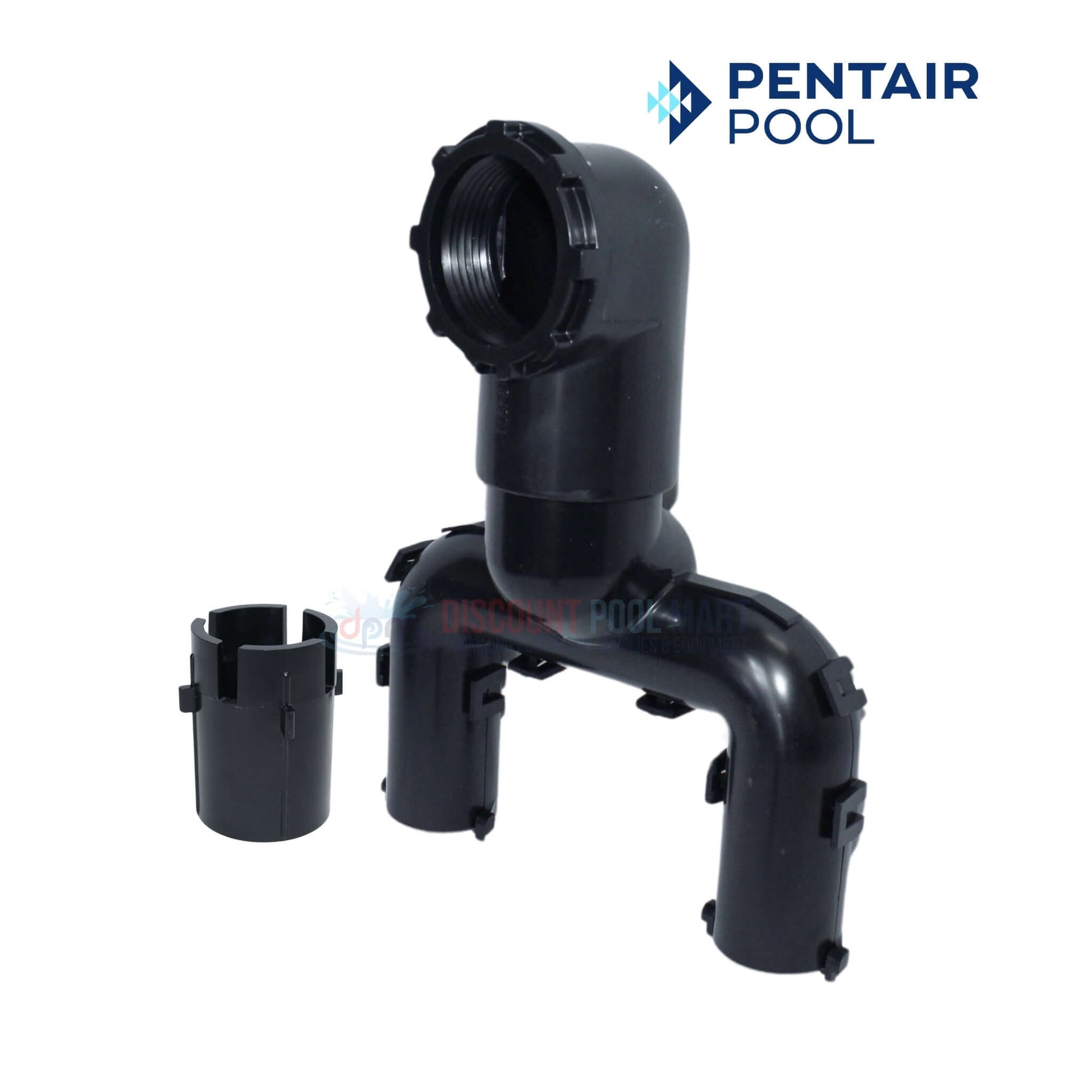

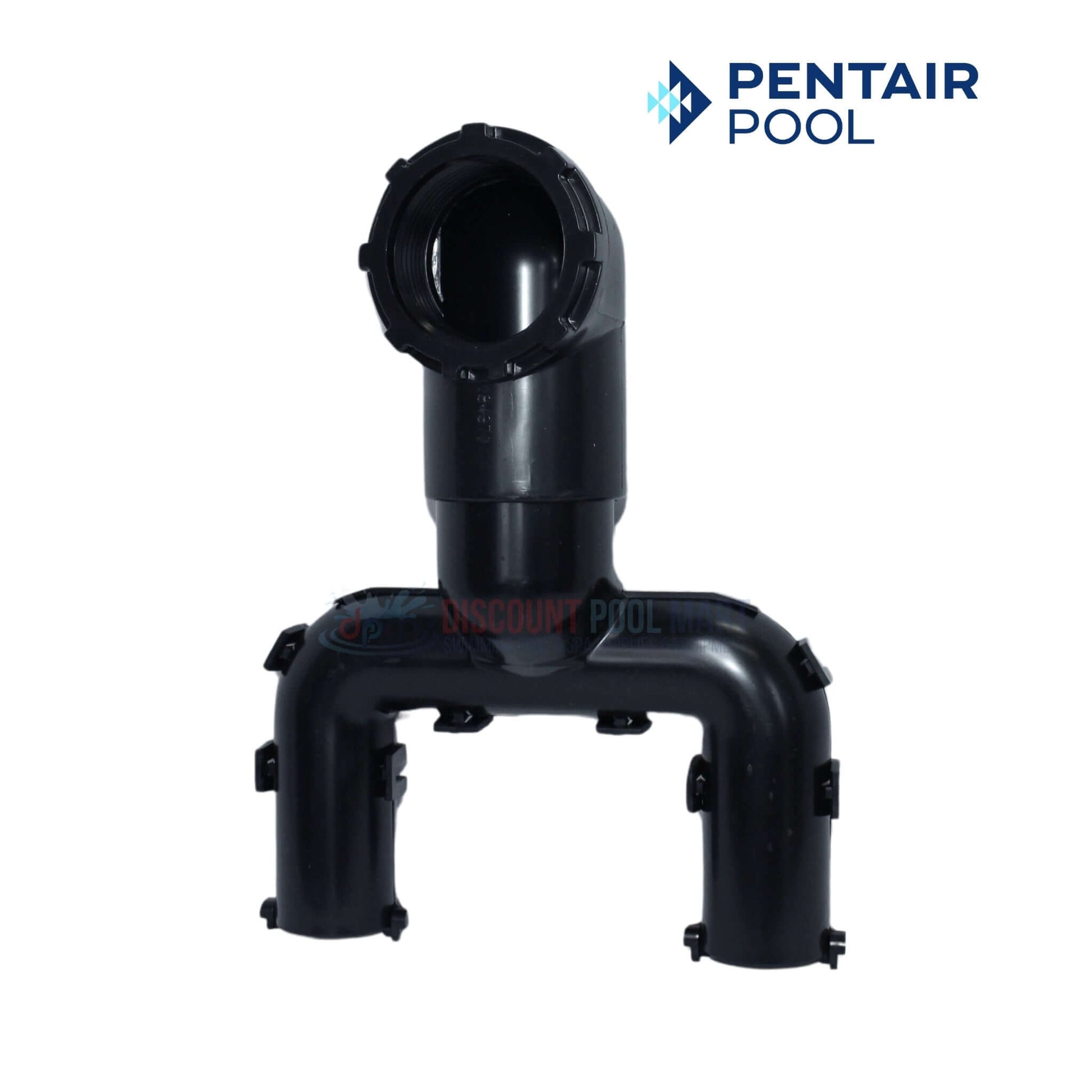

The Pentair Diverter Assembly Retro Kit 196024S is an OEM replacement part designed for Quad DE filters, improving the way diatomaceous earth (D.E.) is distributed across the filter cartridges. By redirecting water flow toward the bottom of the filter, the diverter prevents buildup at the base, ensuring an even coating of D.E. on the media. This retrofit kit replaces the standard baffle assembly on the inlet side of the filter, with the diverter positioned downward for optimal operation. The result is better water circulation inside the housing, which enhances filtration efficiency and contributes to cleaner pool water. Built to Pentair standards, the 196024S assembly provides lasting performance for reliable system operation.

Highlights

  • Efficiency Enhancement: The Pentair 196024S diverter kit is engineered to boost system efficiency by correcting water flow patterns inside the Quad DE filter, reducing uneven buildup that can hinder filtration.

  • Even D.E. Distribution: By rerouting incoming water to the bottom of the filter, the diverter ensures diatomaceous earth coats the cartridges evenly, maintaining steady pressure and maximizing filter surface use.

  • Improved Filtration: Optimized water and debris distribution results in more effective contaminant capture, giving pool owners cleaner water clarity and more consistent filter performance over time.

  • Easy Replacement: Designed as a retrofit solution, the diverter assembly replaces the original baffle on the inlet side and installs downward, providing a simple yet impactful system upgrade.

  • Reliable Performance: Built as an OEM Pentair part, the diverter withstands long-term use and helps maintain a healthy filtration system, ensuring your pool remains balanced and inviting.

Compatibility

  • Pentair Quad DE Filters

Additional Info

Need help with the Pentair 196024S Diverter Assembly Retro Kit for Quad DE filters? This section covers installation, troubleshooting, and in-store availability so you can keep your pool water clean and properly filtered.

Installing the Pentair 196024S Diverter Kit

Learn how to correctly replace the existing baffle assembly with the retro diverter to improve water and D.E. distribution.

How do I install the Pentair 196024S diverter assembly in my Quad DE filter?

Can I buy the 196024S kit in-store at Discount Pool Mart?

Do I need special tools to install the diverter kit?

How do I confirm the diverter faces downward when installed?

Troubleshooting Filter Issues

This section explains how the diverter helps solve problems like uneven D.E. coverage or clogged cartridges.

Why does my Quad DE filter show uneven D.E. distribution?

Can a missing diverter cause D.E. to settle at the filter base?

How do I know if my filter needs the retro kit upgrade?

Can staff in-store verify if the 196024S fits my filter?

Finding the Right Part In Store

Ensure you get the correct Pentair replacement part with compatibility checks before leaving the store.

How do I confirm the 196024S diverter kit fits my Quad DE filter?

Is the diverter assembly available for same-day pickup?

Can Discount Pool Mart staff match the part to my filter model?

What other Quad DE replacement parts are stocked locally?

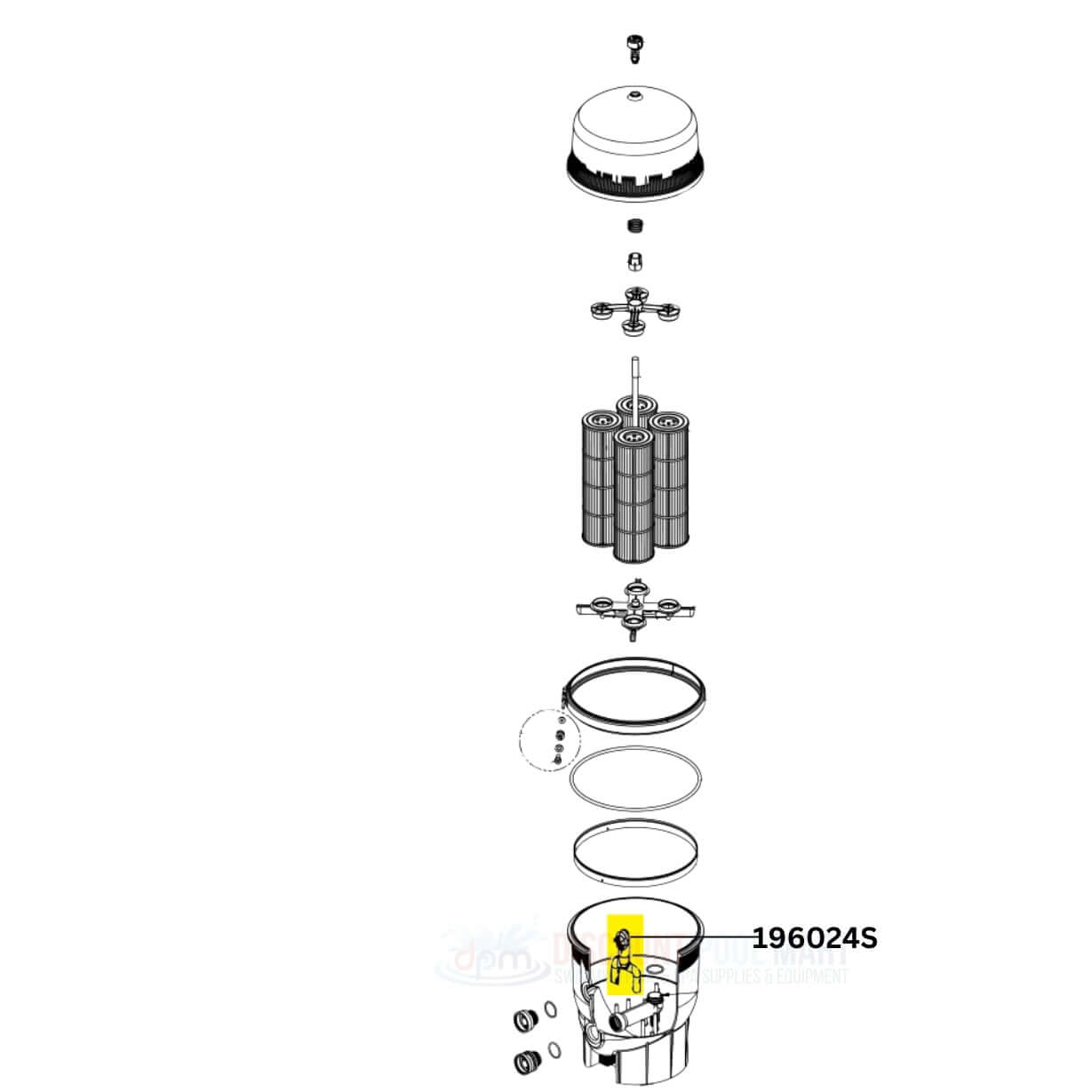

Diagram
