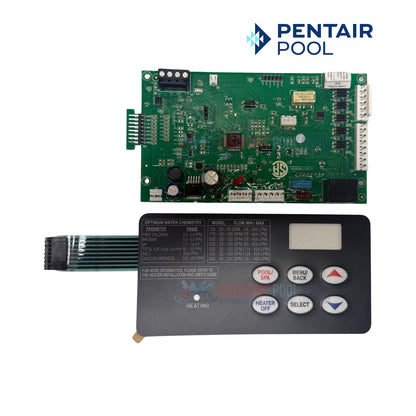

Pentair Control Board with 6 Button Pad For MasterTemp and Max-E-Therm Heaters | 42002-0007S | 461105
Fits these models (12)
+8 more models
Pickup, delivery and shipping times are estimates, not guarantees.
Couldn't load pickup availability
● 48 in stock30-day returns Secure checkout
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.

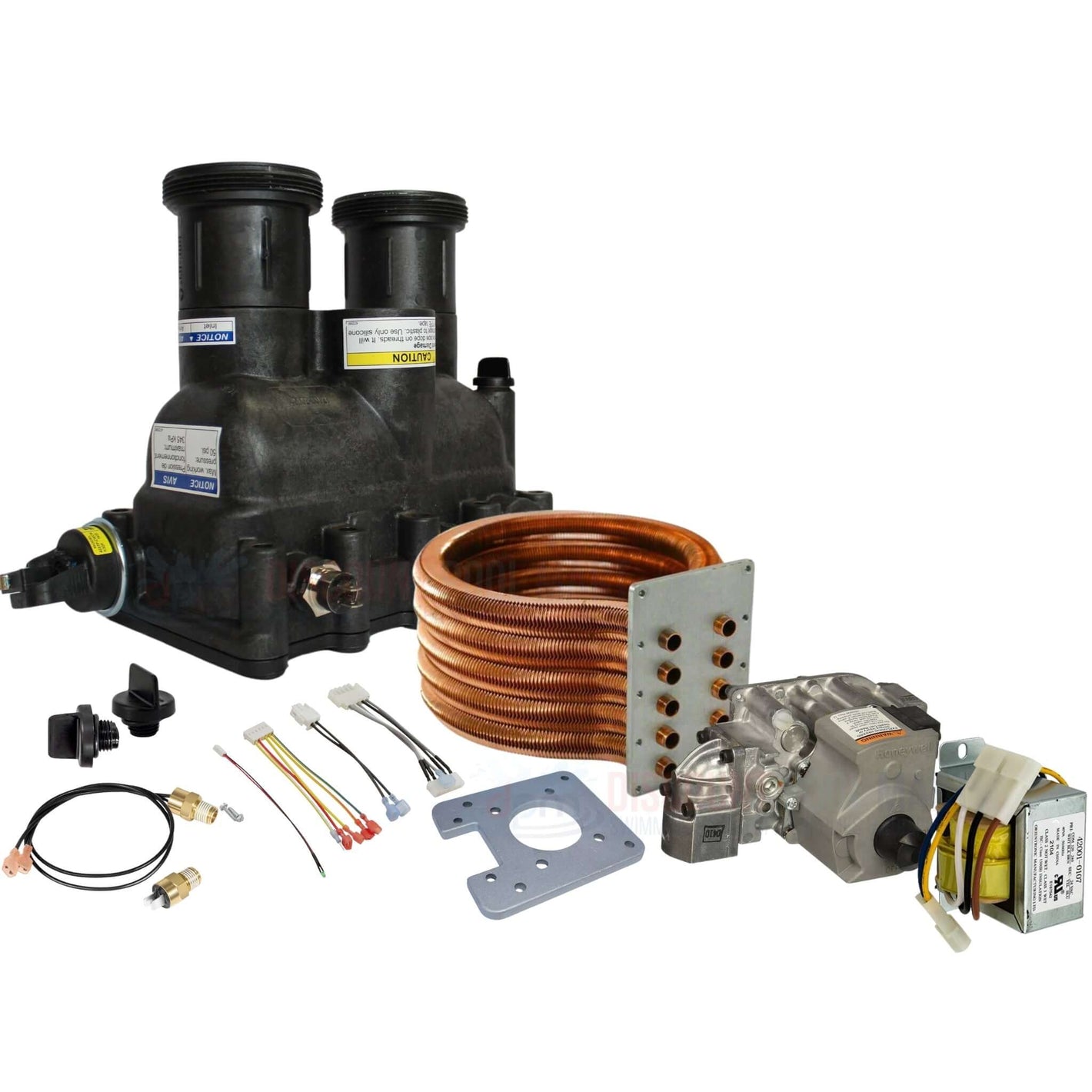

Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

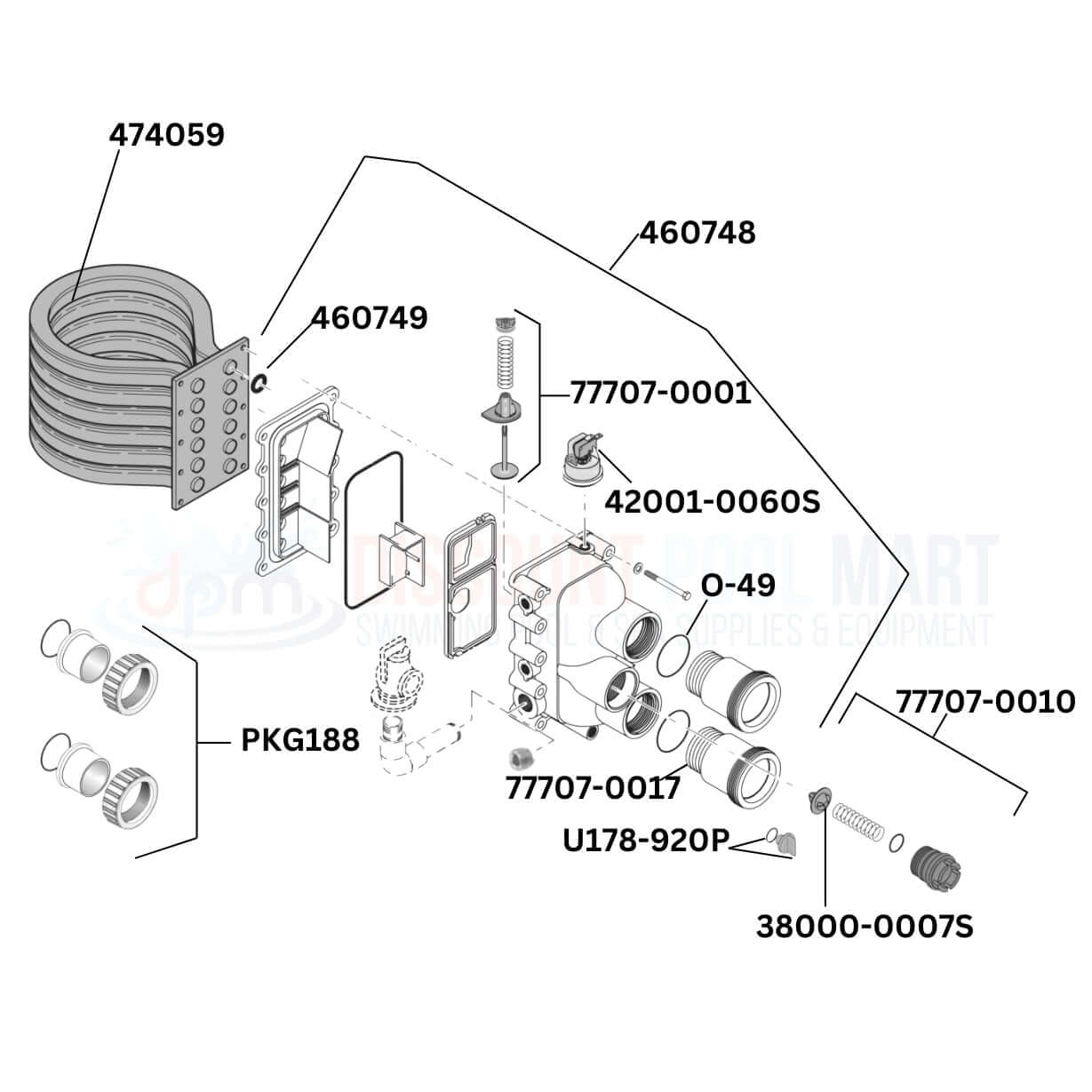

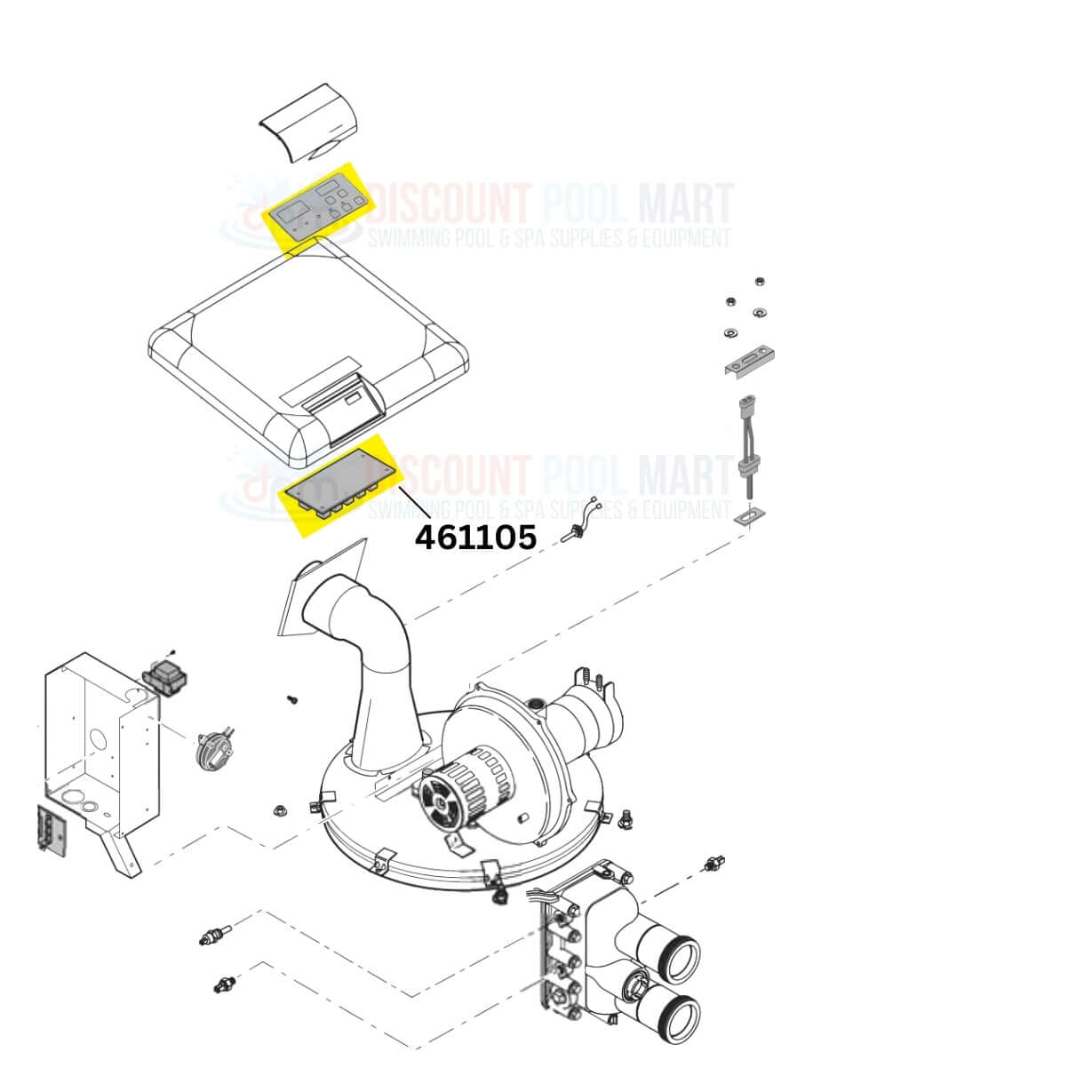

On the Pentair MasterTemp 125 461059 Heater diagram
This part
Open the full interactive diagram →

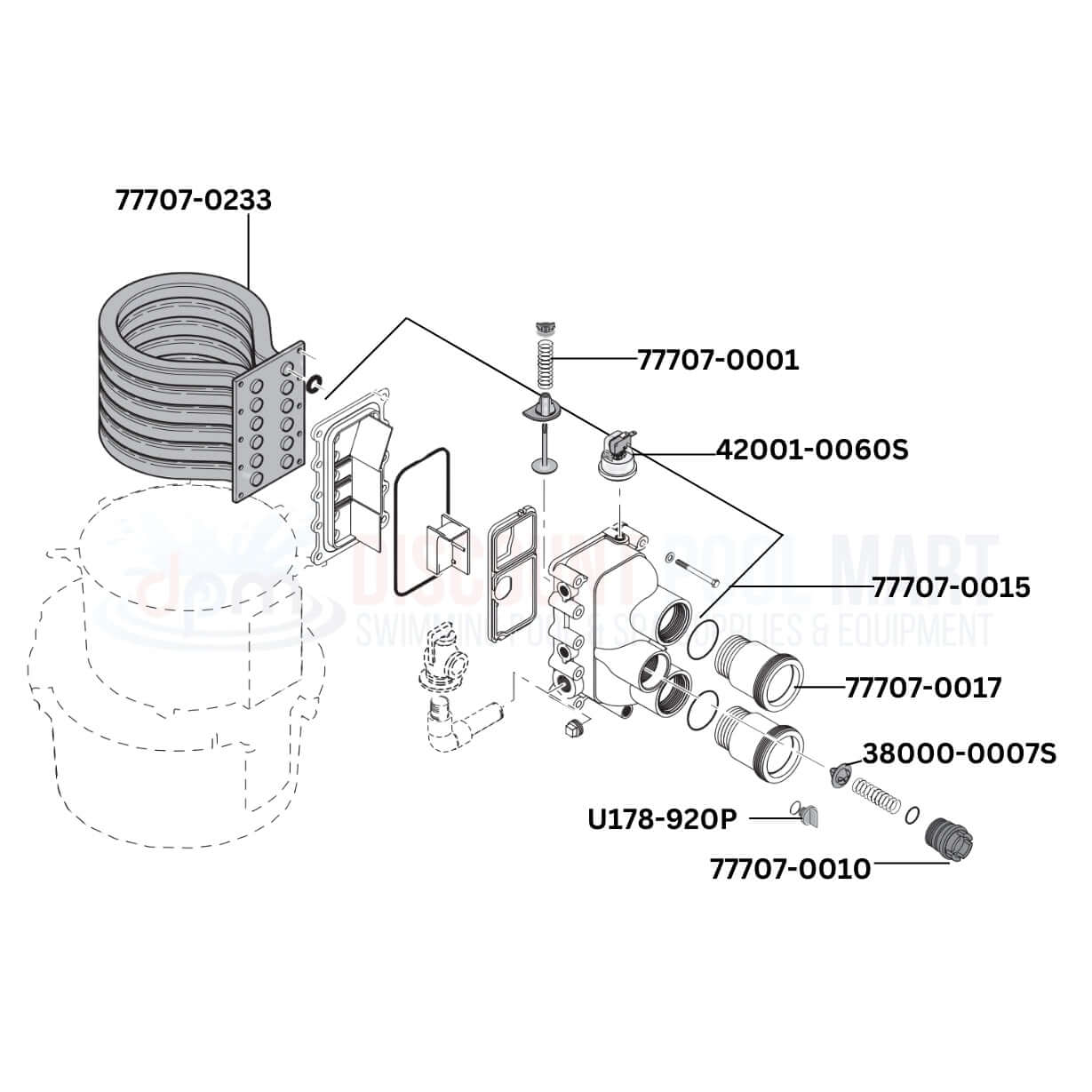

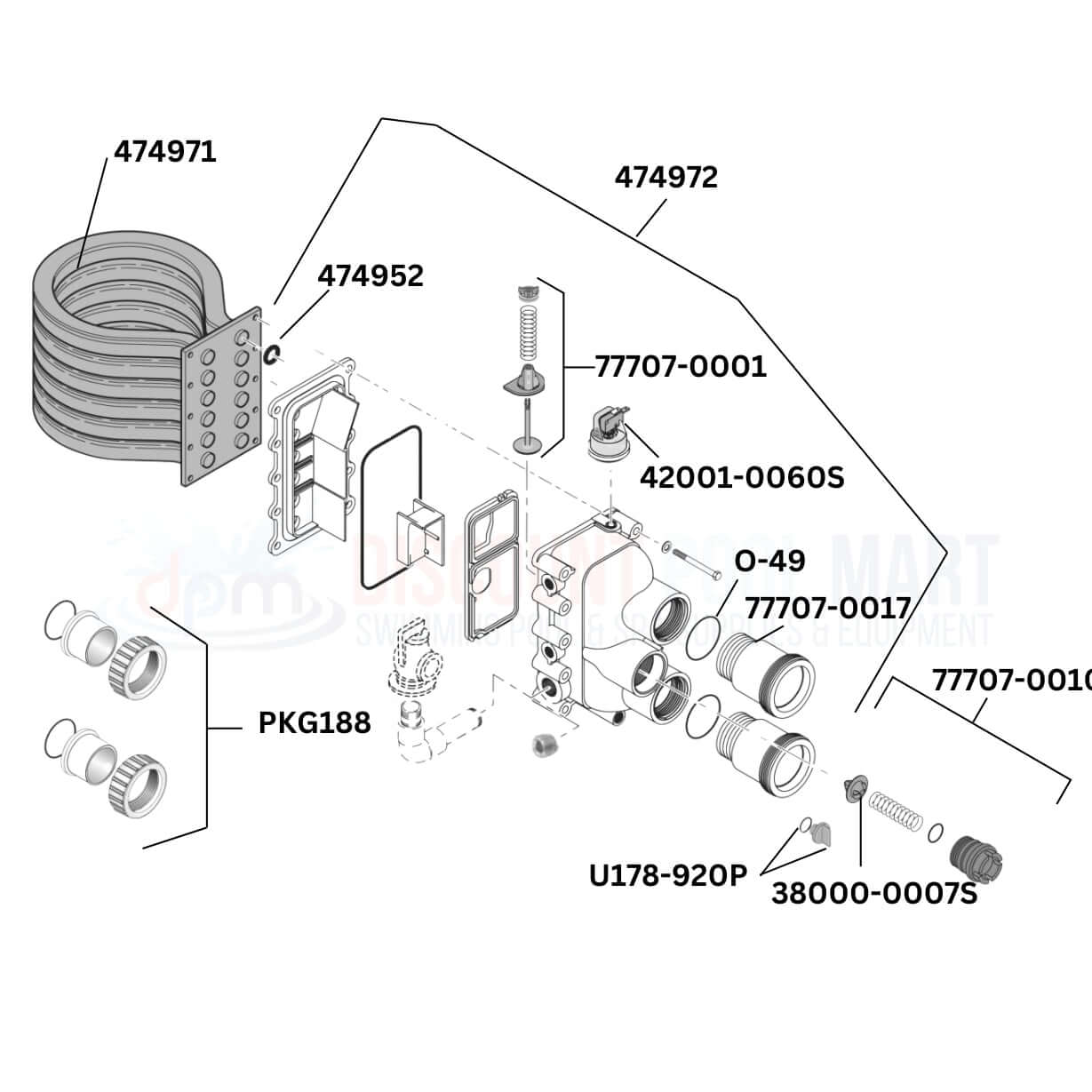

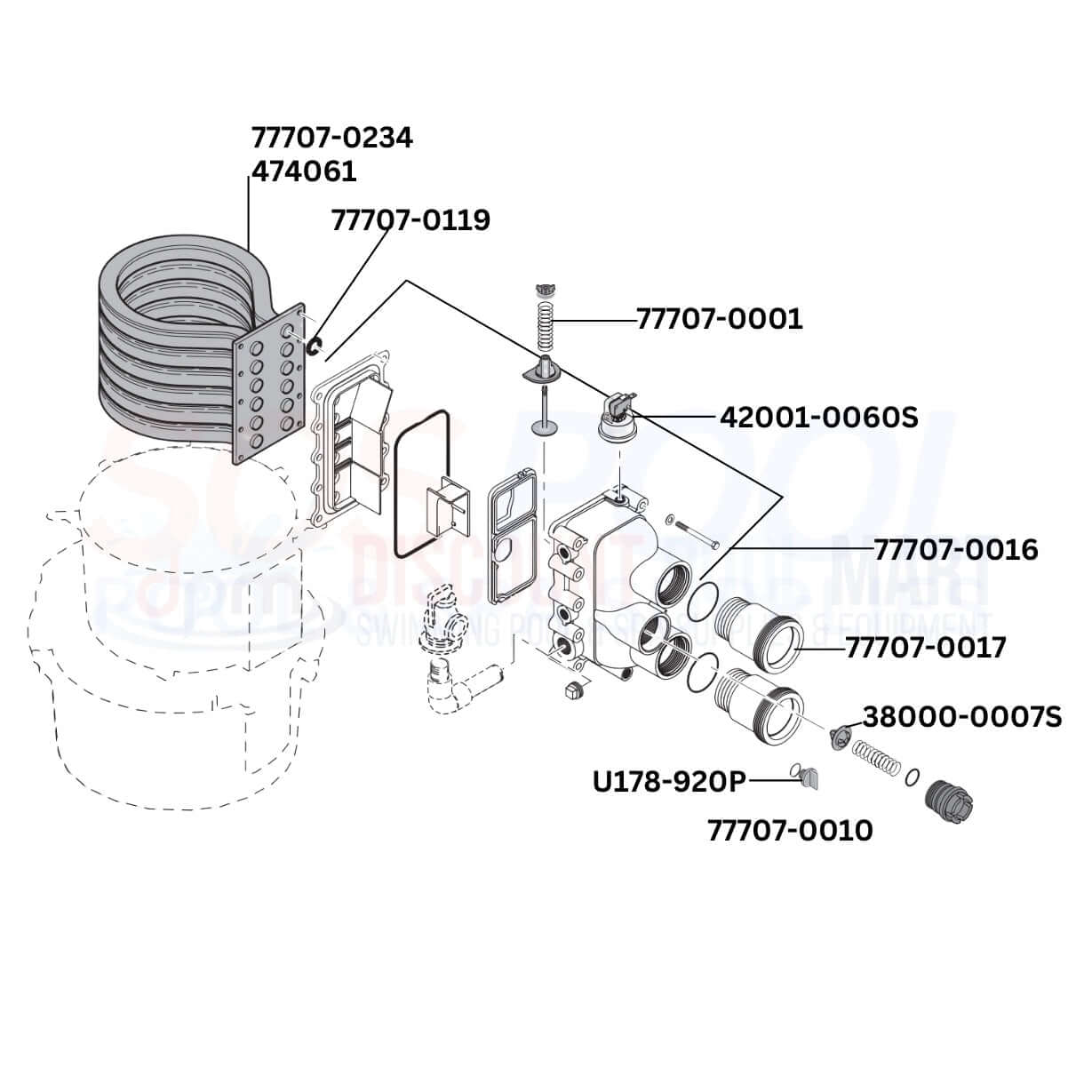

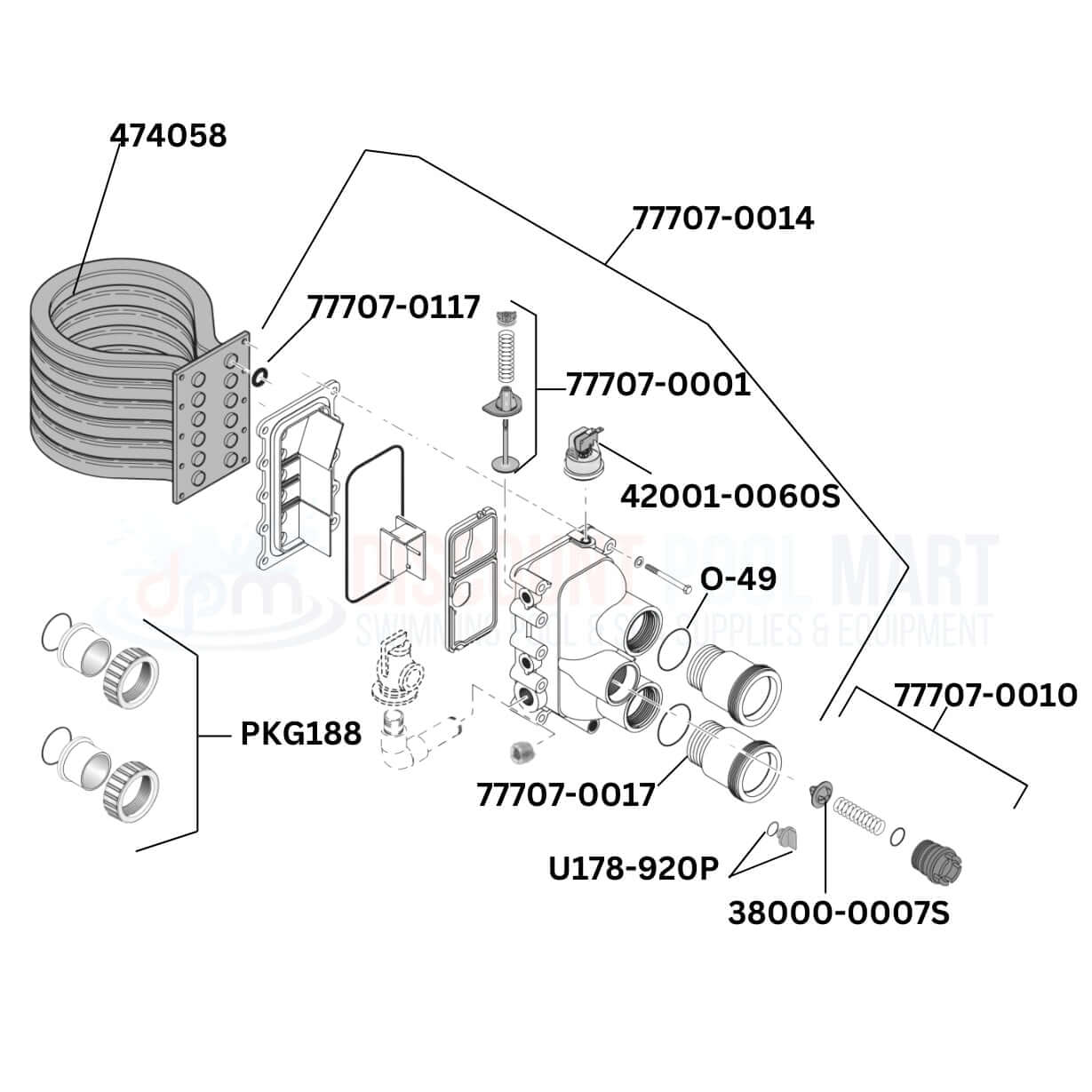

Other parts on the same Pentair MasterTemp 125 461059 Heater
The OEM Pentair part 461105, formerly 42002-0007S, is a vital component for optimizing your Pentair MasterTemp or Sta-Rite Max-E-Therm pool heater. This control board kit includes everything needed for efficient operation and precise temperature control. Compatible with both heater models, it features a membrane pad with six buttons for easy settings adjustment and RS-485 connectivity for seamless integration into your pool automation system. With straightforward installation instructions included, this kit ensures hassle-free setup, whether you're replacing a worn-out board or upgrading for enhanced functionality. Trust Pentair for top-quality components, keeping your pool or spa running smoothly year-round.
- Efficient Temperature Control: The control board kit ensures precise temperature regulation for your pool or spa, optimizing the performance of your Pentair MasterTemp or Sta-Rite Max-E-Therm heater.
- Seamless Integration: With RS-485 connectivity, this kit seamlessly integrates into your pool automation system, enhancing overall functionality and control.
- Straightforward Installation: Equipped with clear installation instructions, the kit simplifies setup, whether you're replacing an old board or upgrading for enhanced performance, ensuring a hassle-free experience.
Control Board Kit for the following Heaters:
- Pentair MasterTemp
- Sta-Rite Max-E-Therm
Note:
- *Formerly known as 42002-0007S
- For use with both Natural Gas and Propane heaters. Pentair OEM Product. Control PCB/Membrane Pad Replacement.

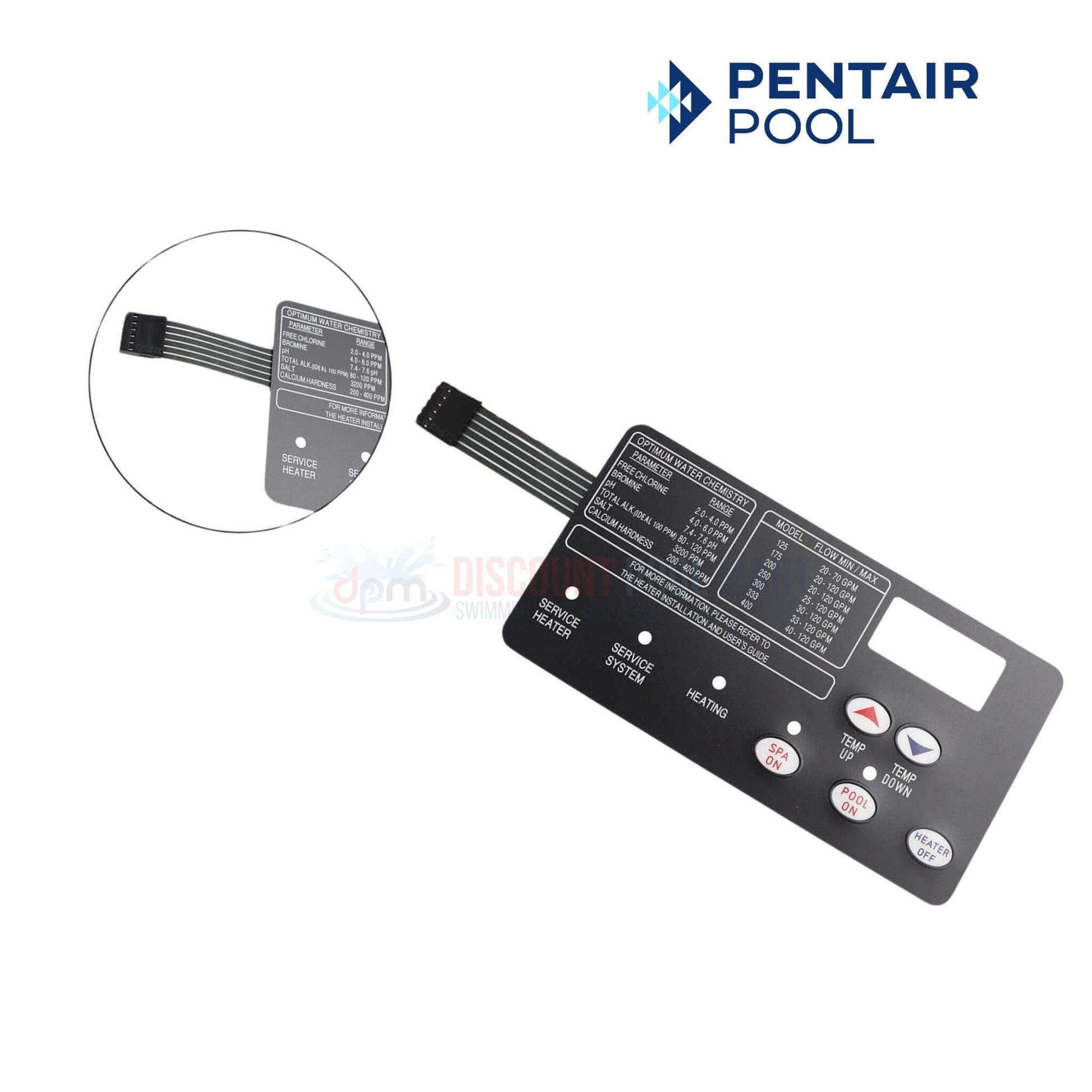

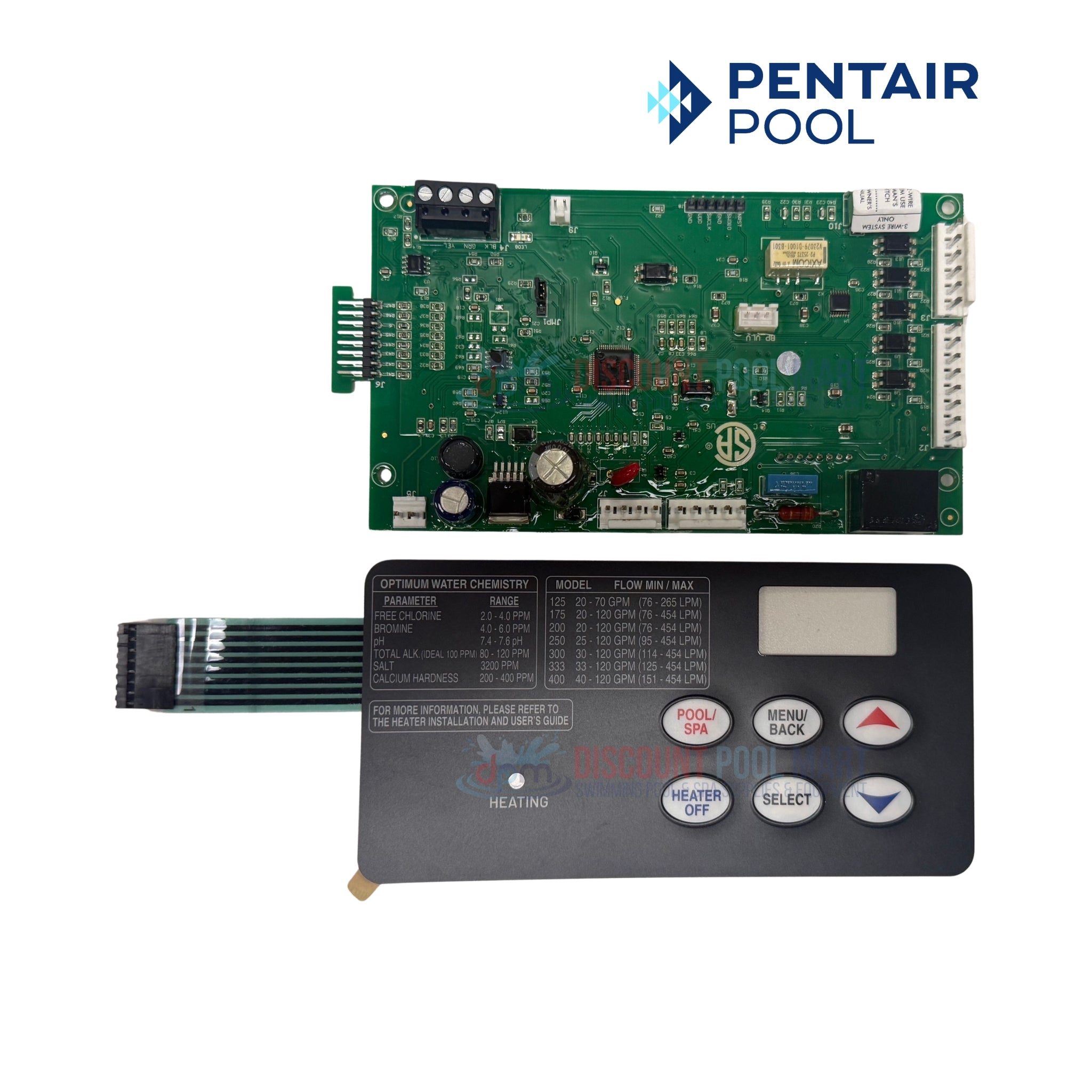

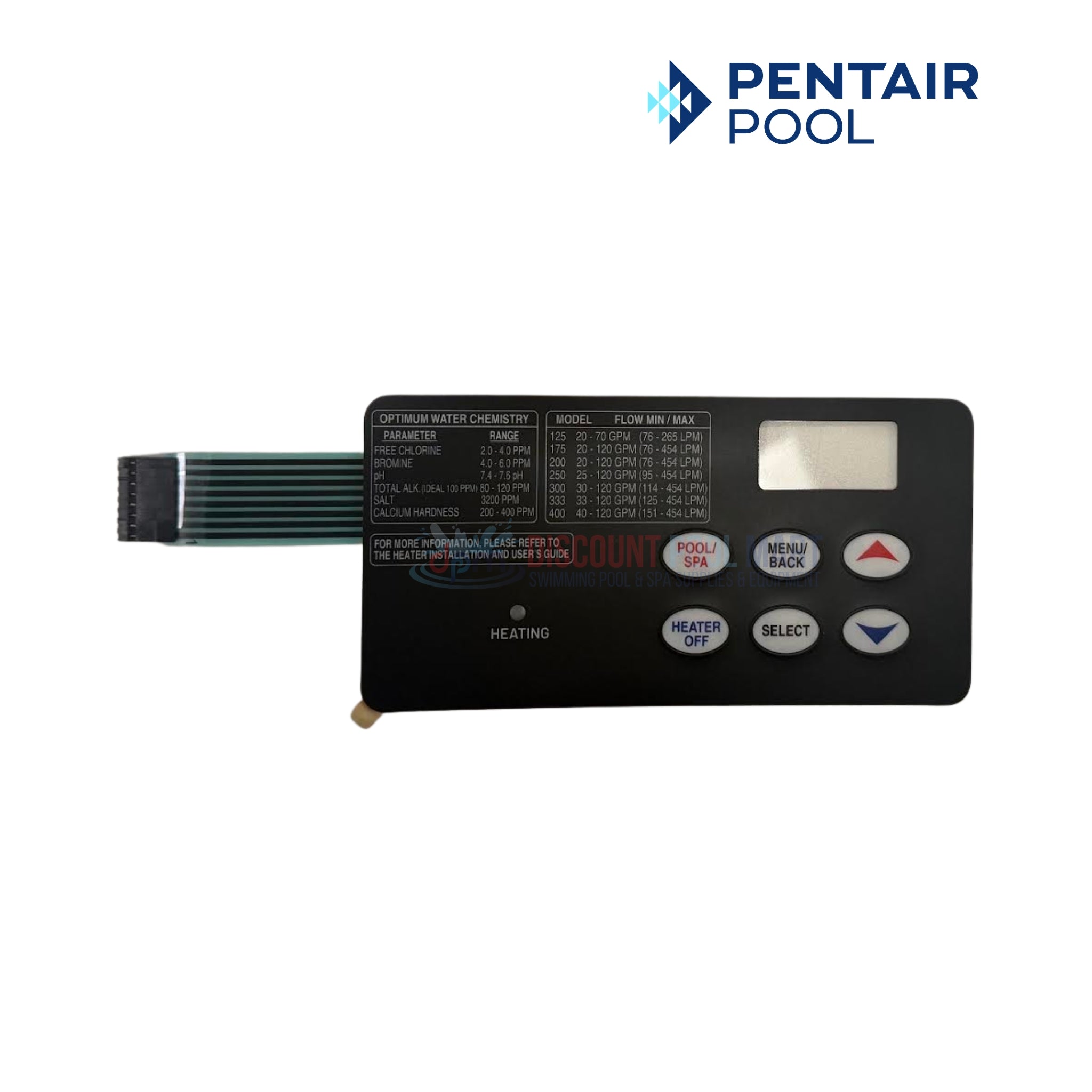

- (1) MEM Pad MT 6 Buttons - 476201

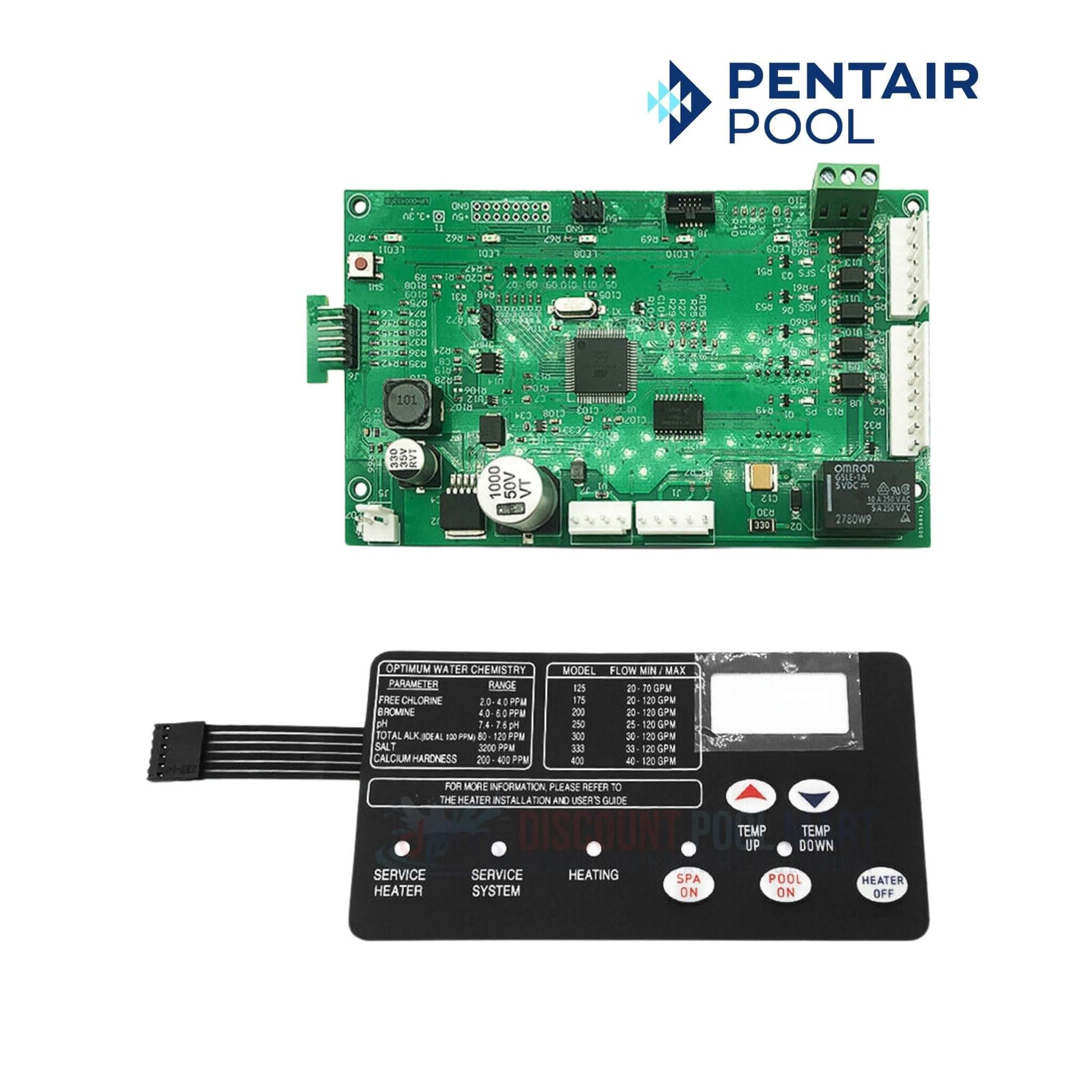

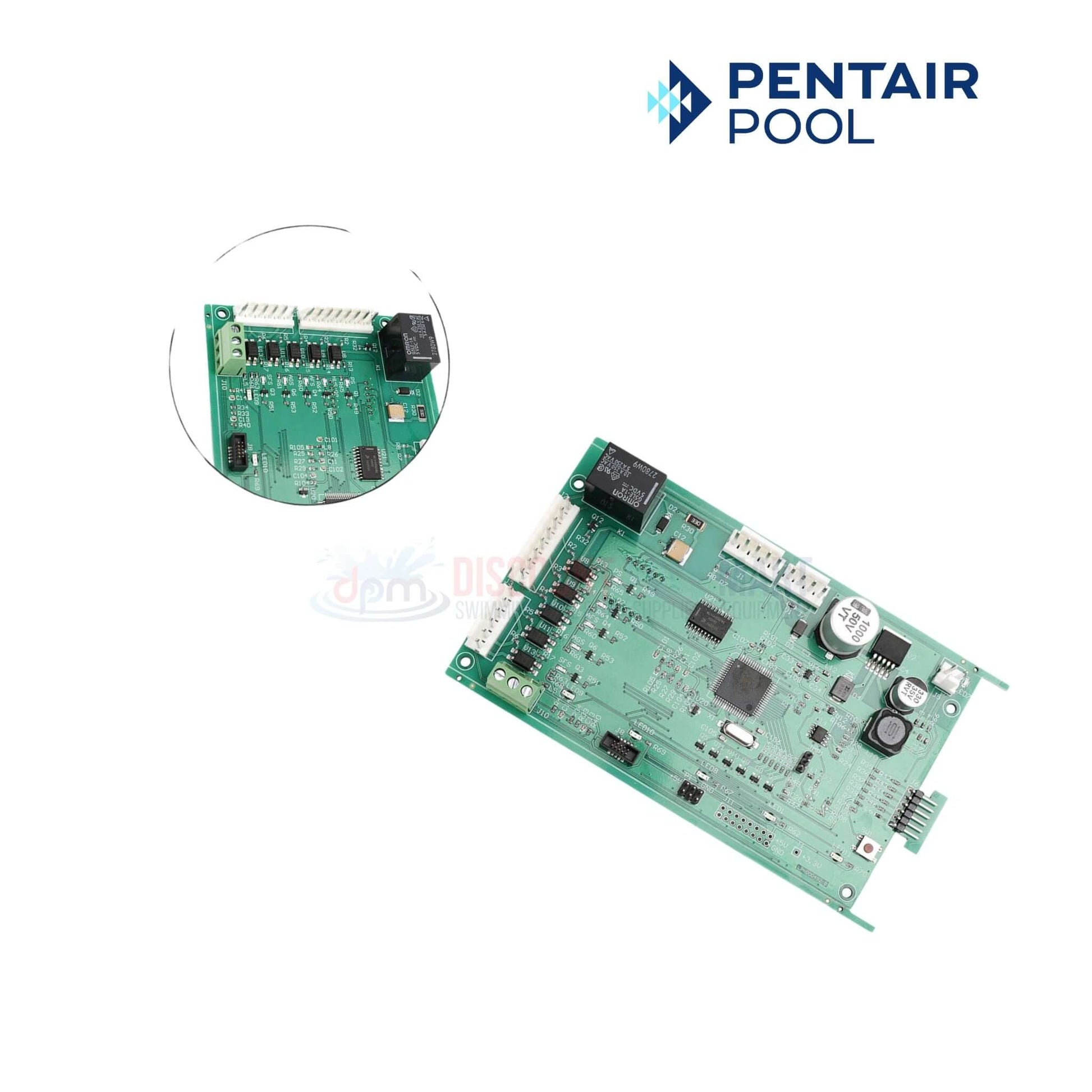

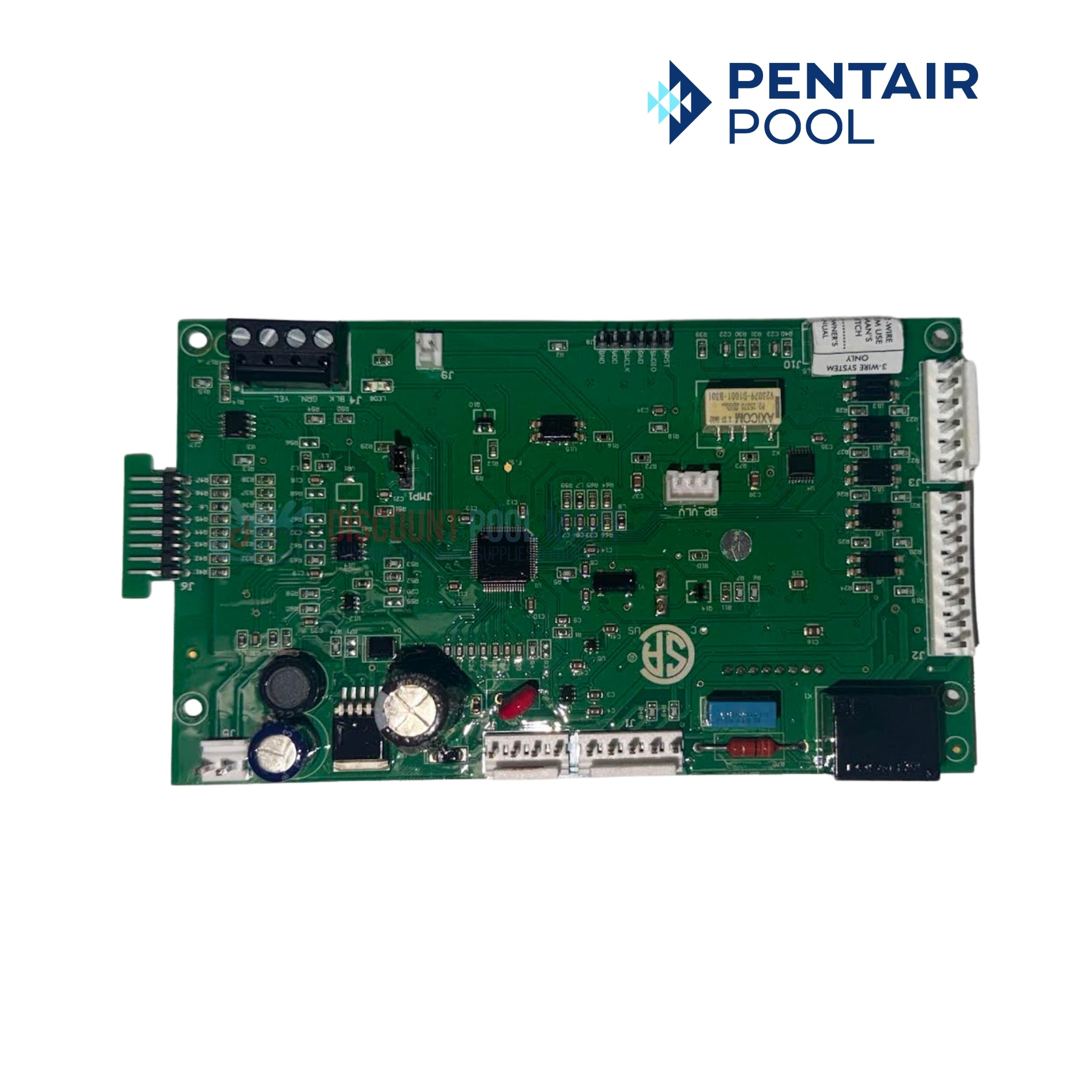

- (1) PCBA MT/MET Heater with RS-485 - 476199

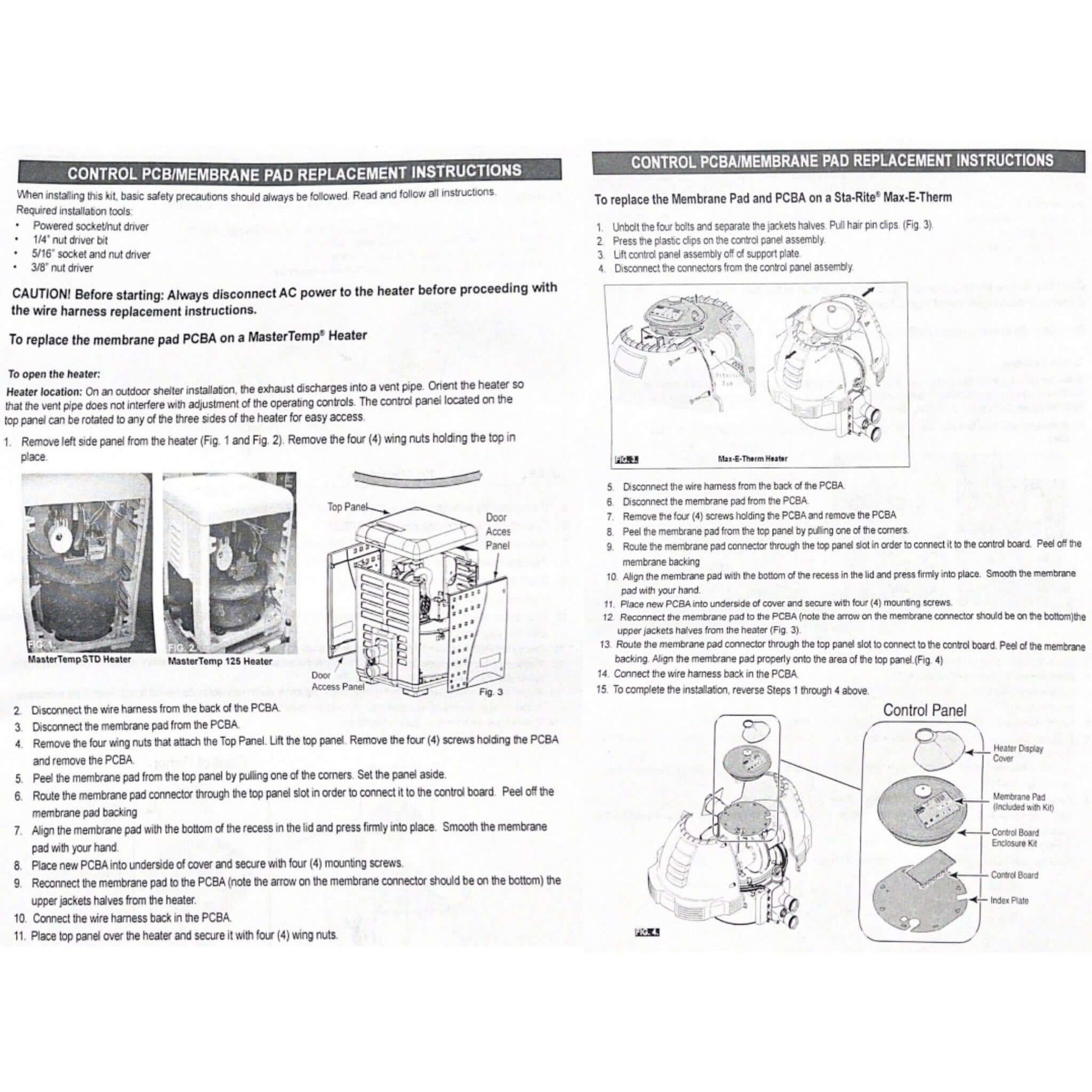

- (1) Installation Instructions - 476248
