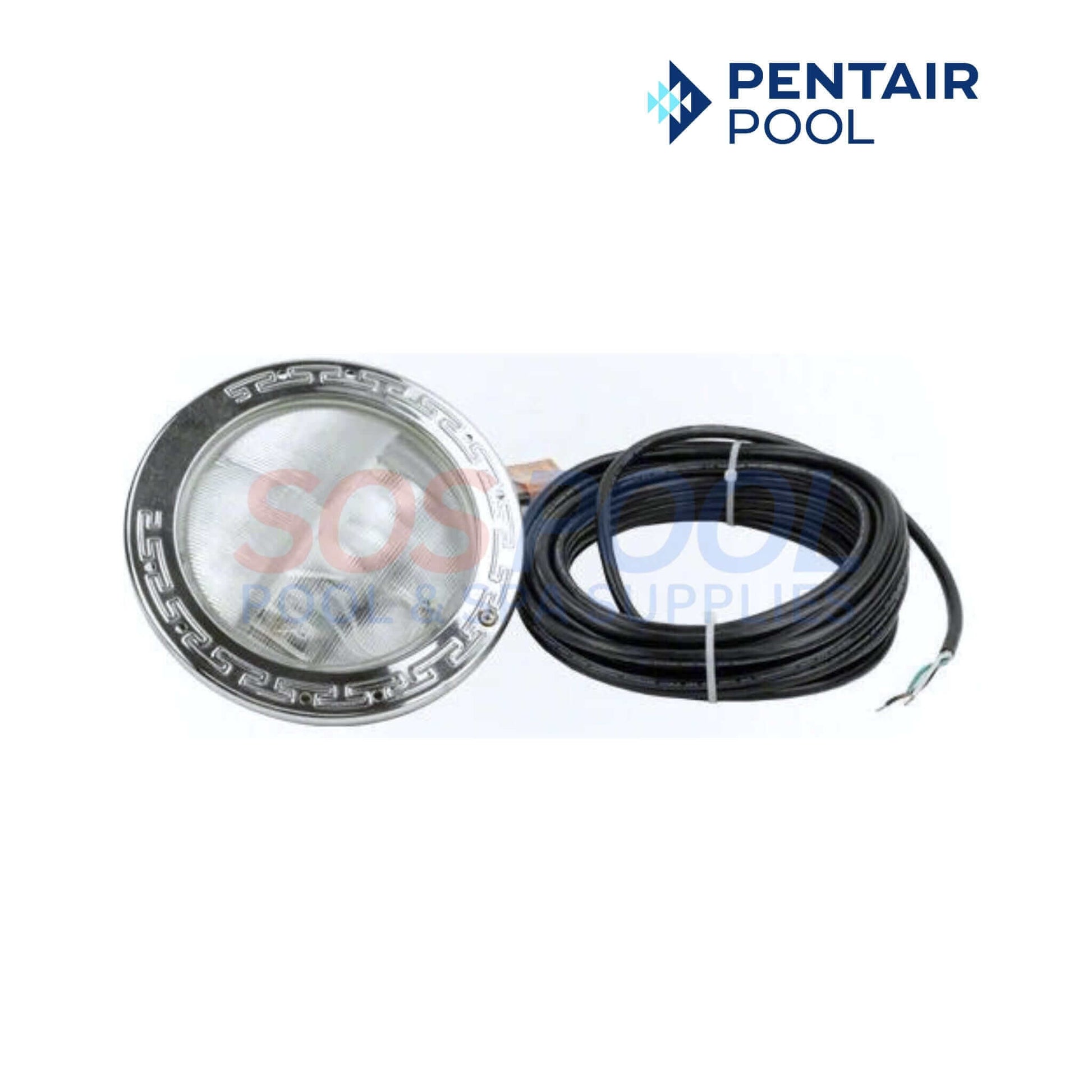

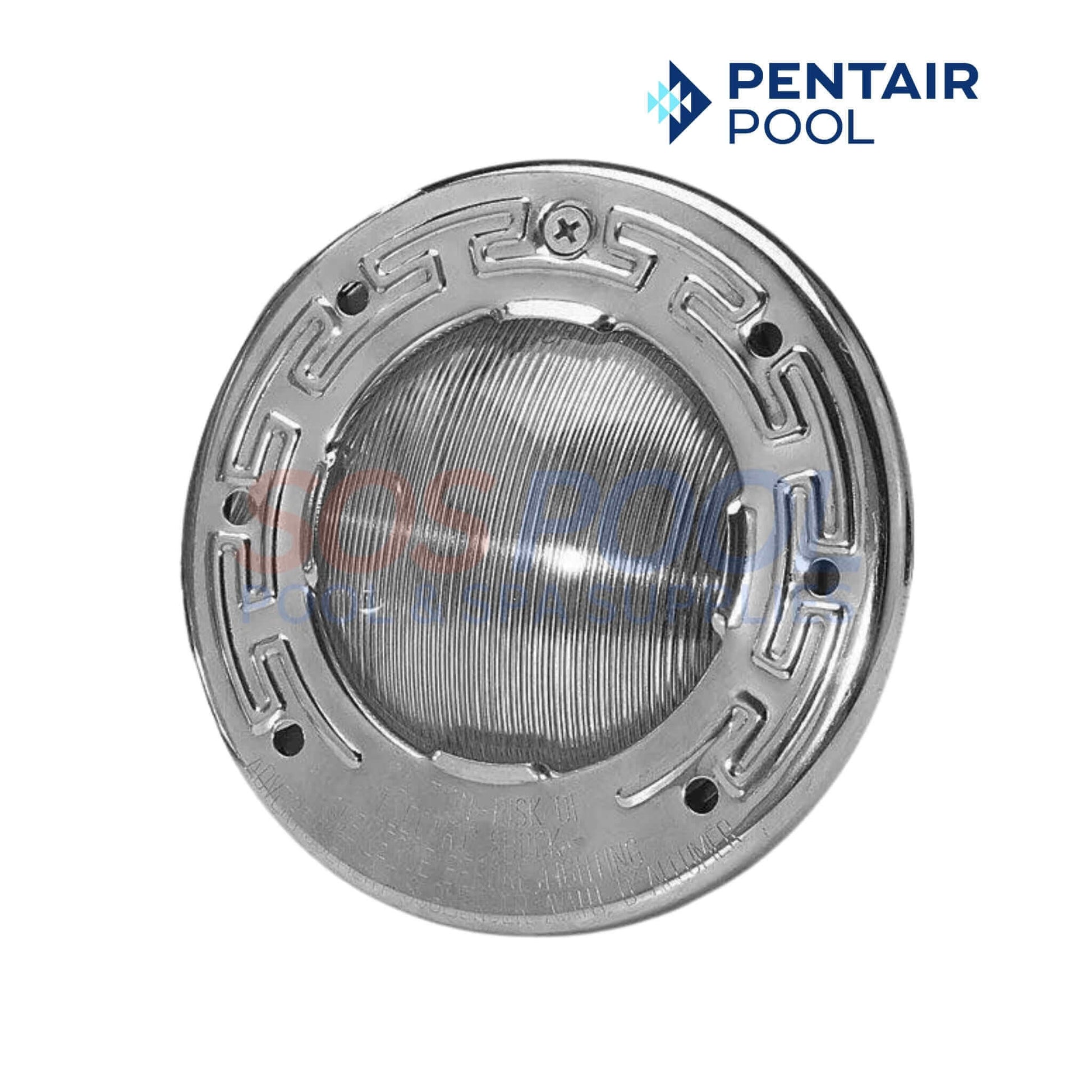

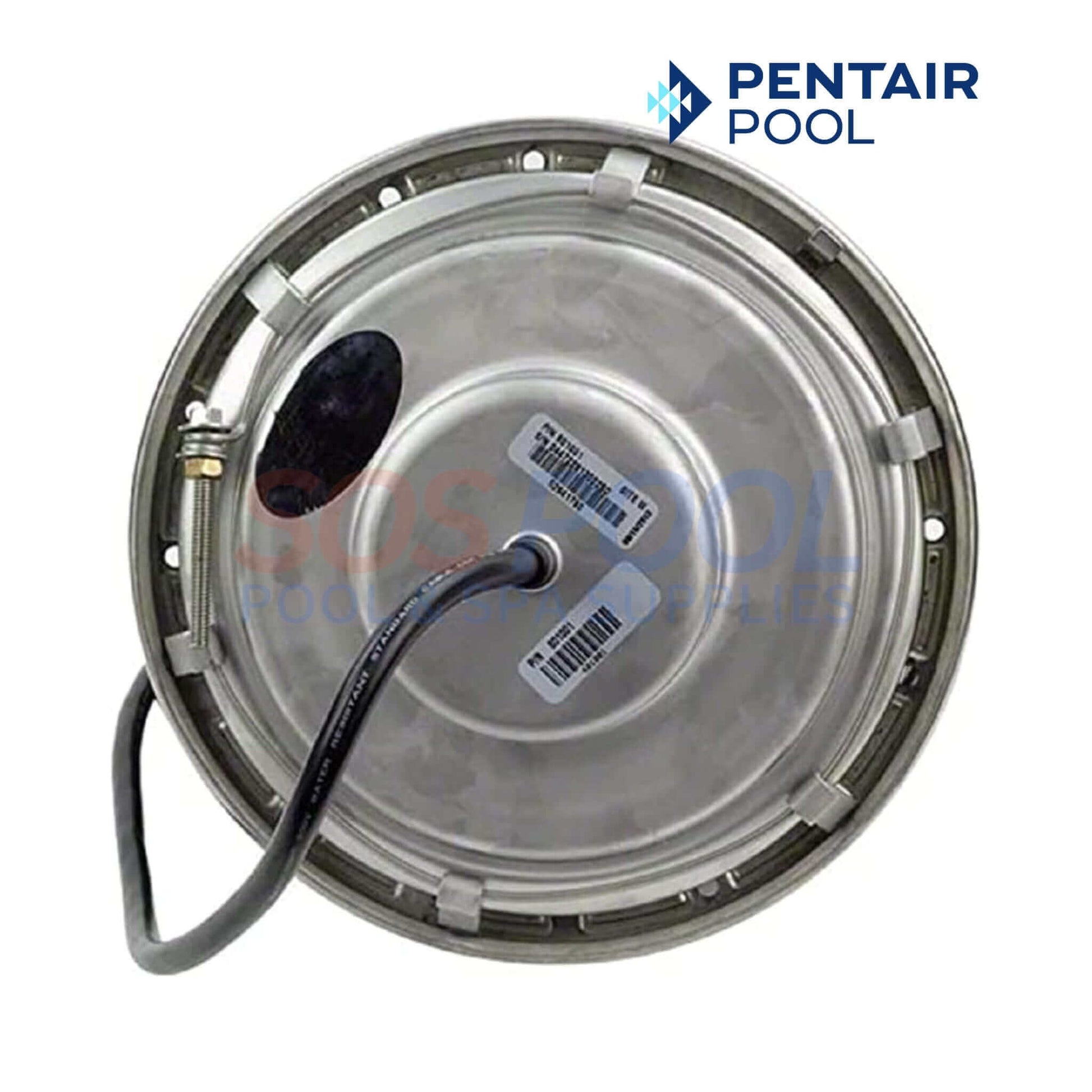

Pentair EC-602124 IntelliBrite 5G 12V Color LED Pool Light
The Pentair IntelliBrite 5G EC-602124 Color LED Pool Light delivers brilliant underwater illumination with advanced efficiency and vivid color performance. Designed to replace 400W incandescent fixtures, this 28W LED light produces a vibrant, energy-saving display that enhances the beauty and atmosphere of any pool. With Pentair’s engineered LED optics, the IntelliBrite 5G creates a dynamic lighting experience through precise color control, offering five fixed colors and seven preprogrammed light shows that transition smoothly across the pool.
Built for durability and long-term performance, the IntelliBrite 5G features a corrosion-resistant stainless-steel face ring and a prismatic lens that maximizes light coverage and color depth. The 100-foot cord allows for flexible installation across various pool layouts, while its 12V low-voltage design ensures safe and efficient operation. Whether creating a tranquil mood or energizing a nighttime swim with vibrant color effects, the IntelliBrite 5G brings professional-grade lighting and exceptional energy efficiency to any pool environment.
Key Features of the Pentair IntelliBrite 5G EC-602124 Pool Light
-
400W Equivalent Output Using Only 28W: Advanced LED efficiency provides brilliant brightness with a fraction of the energy use.
-
Five Fixed Colors and Seven Light Shows: Includes blue, green, magenta, white, and red, plus seven automated lighting effects for any mood.
-
12V Low-Voltage Operation: Ensures safe and reliable functionality while maintaining bright, consistent illumination across the pool.
-
Stainless-Steel Face Ring: Corrosion-resistant finish provides both durability and a polished, professional aesthetic.
-
Prismatic Tempered Glass Lens: Distributes light evenly to create smooth color transitions and wide coverage without glare.
-
Energy-Efficient LED Design: Consumes roughly 90% less energy than comparable incandescent bulbs, lowering operating costs.
-
100-Foot Power Cord: Offers flexibility for various pool sizes and installation configurations.
-
Built for Reliability: Constructed to withstand harsh pool environments while maintaining consistent brightness and long-term color performance.
Compatibility
Compatible with most automation systems by Pentair and Jandy
- IntelliTouch Control System
- EasyTouch 8 Function EC520545 Control System Without Salt System
- EasyTouch 8 Function EC520545 Control System With IC 40 Salt System
To ensure this light is compatible with your automation system please check owners manual.
Recommended Parts
All Sold Separately
Transformers
- TPX100
- TPX300
GFCI Circuit Breakers
- QF220- 240V
- QF120- 120V
Controls
- IntelliBrite Controller 600054 / 618031
- EasyTouch EC-522104 iPhone controller
Specifications
- Cord Length: 100 ft.
- Volts: 12 V
- Power: 28 W
- Incandescent Power Equivalent: 400W
- Light Color: 5 vibrant pre determined colors (blue, green, magenta, white, and red) and 7 pre-programmed light shows
- Type: LED
- Range: Rotatable to 180 degrees wide beam or narrow beam
- Consumption: About 50% less energy consumption
Diagram
