Pentair IntelliBrite 5G Color LED Pool Light | 120V 28W 100' Cord | EC-602122

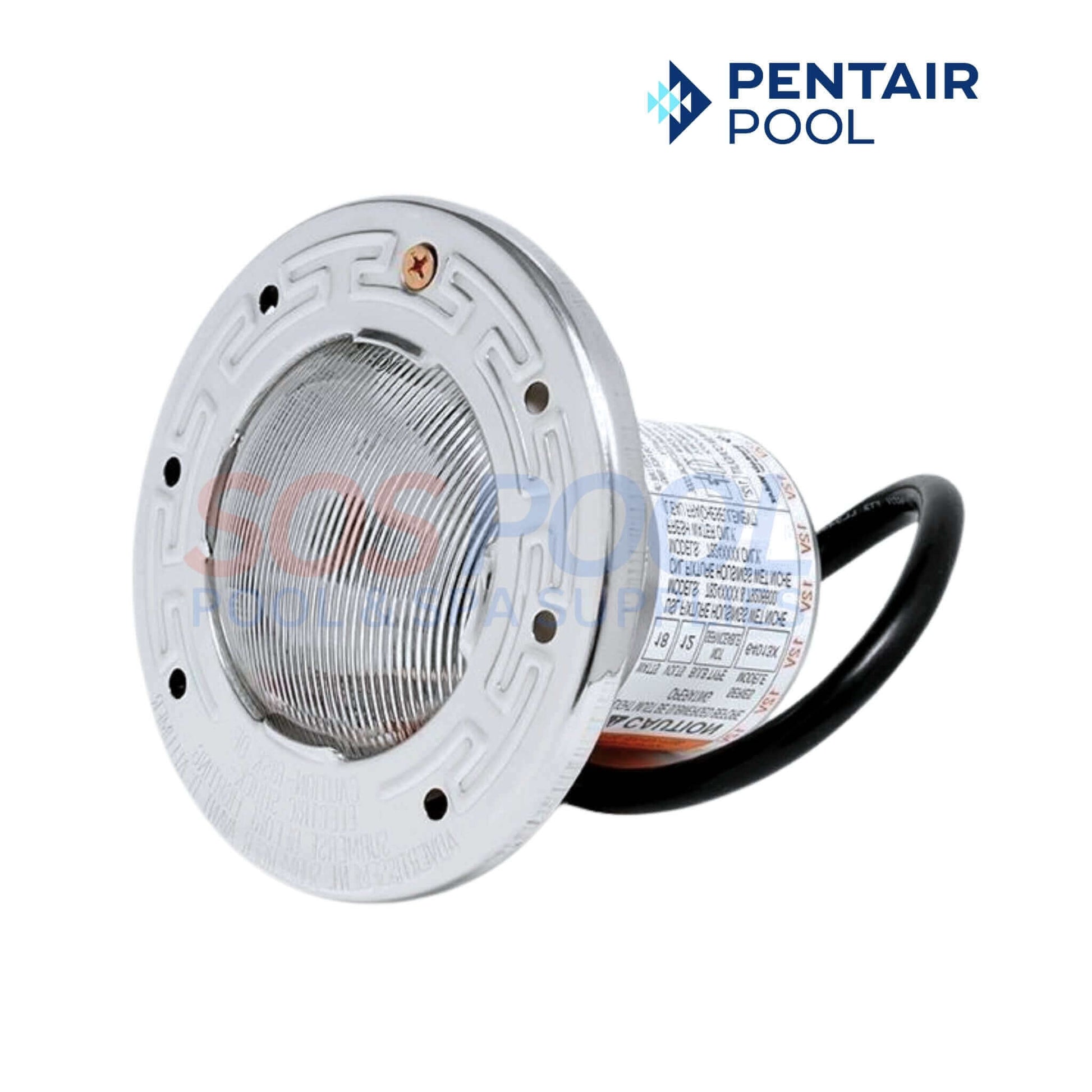

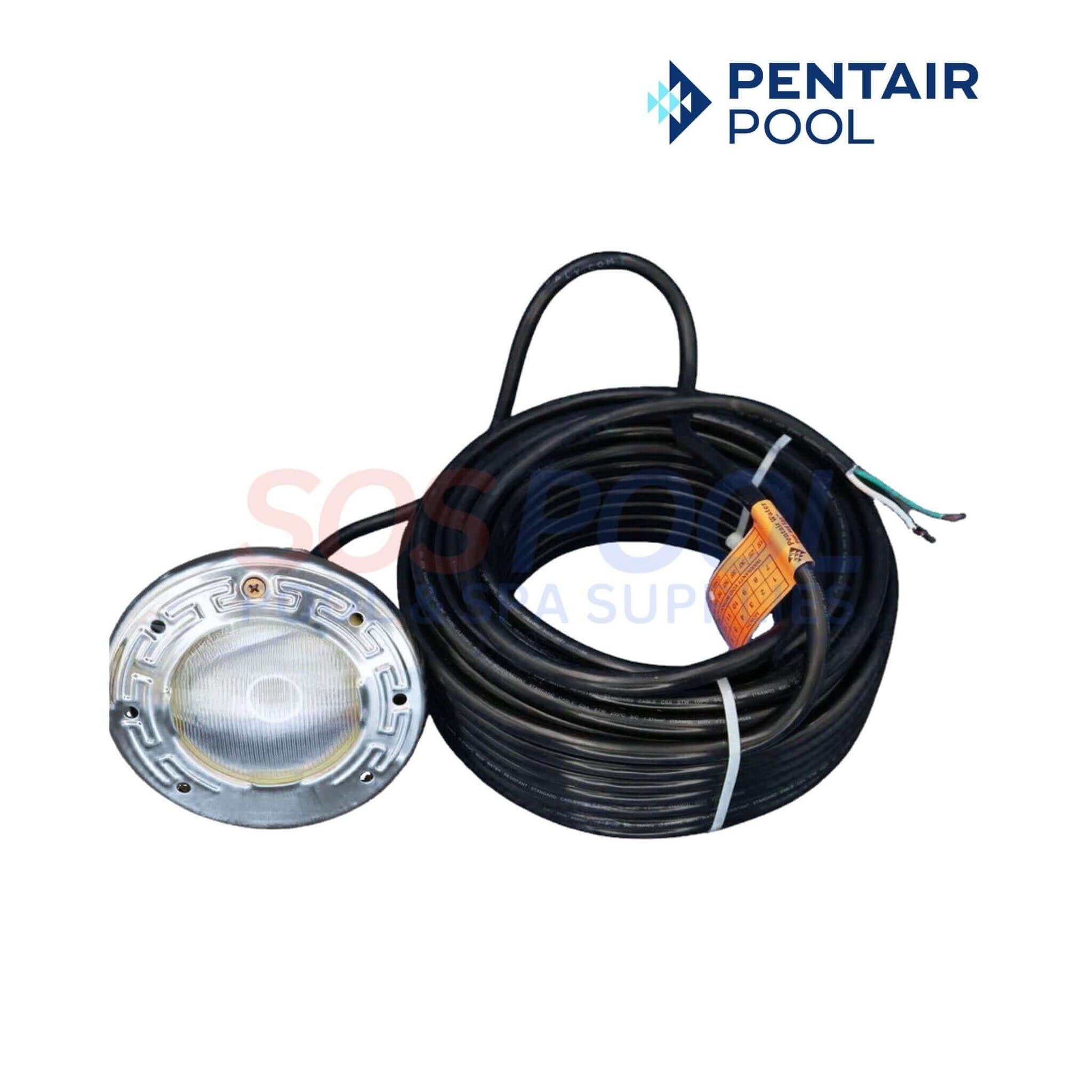

Pentair EC-602122 IntelliBrite 5G 120V Color LED Pool Light

The Pentair IntelliBrite 5G EC-602122 Color LED Pool Light delivers vibrant illumination with advanced energy efficiency and exceptional color performance. Designed to replace 400W incandescent fixtures, this 120V, 28W LED light produces bold, vivid colors that elevate pool ambiance while consuming a fraction of the energy. IntelliBrite’s precision-engineered LED optics provide five brilliant fixed colors—blue, green, magenta, white, and red—and seven dynamic light shows, all designed to enhance poolside atmosphere and bring your backyard to life.

Built with durability and reliability in mind, the IntelliBrite 5G features a corrosion-resistant stainless-steel face ring and a prismatic tempered glass lens that ensures even light distribution and rich color depth. The 100-foot cord provides flexible installation for a wide range of pool layouts, while Pentair’s solid-state LED design offers superior longevity and consistent performance. Whether creating a tranquil glow for evening swims or colorful displays for entertaining, the IntelliBrite 5G combines visual brilliance, energy savings, and long-term dependability.

Key Features of the Pentair IntelliBrite 5G EC-602122 Pool Light

• 400W Equivalent Output Using Only 28W: Energy-efficient LED design delivers bright illumination while drastically reducing power usage.

• Five Fixed Colors and Seven Light Shows: Choose from blue, green, magenta, white, and red hues, plus seven preprogrammed lighting effects.

• 120V Power Rating: Standard voltage connection provides simple installation for residential pool electrical systems.

• Stainless-Steel Face Ring: Polished and corrosion-resistant finish enhances strength, style, and long-term durability.

• Prismatic Tempered Glass Lens: Distributes light evenly, providing vivid color blending and smooth illumination across the pool.

• Energy-Saving LED Technology: Consumes far less energy than incandescent lights, offering cost-effective, long-lasting operation.

• 100-Foot Cord Length: Provides installation flexibility for pools of varying sizes and layouts.

• Built for Long-Term Reliability: Designed for underwater endurance and consistent color performance season after season.

Compatibility

Compatible with most automation systems by Pentair and Jandy

• IntelliTouch Control System
• EasyTouch 8 Function EC520545 Control System Without Salt System
• EasyTouch 8 Function EC520545 Control System With IC 40 Salt System

To ensure this light is compatible with your automation system please check owners manual.

Recommended Parts

All Sold Separately

Transformers

• TPX100
• TPX300

GFCI Circuit Breakers

• QF220- 240V
• QF120- 120V

Controls

• IntelliBrite Controller 600054 / 618031
• EasyTouch EC-522104 iPhone controller

Specifications

• Cord Length: 100 ft.
• Volts: 120 V
• Power: 28 W
• Incandescent Power Equivalent: 400W
• Light Color: 5 vibrant pre determined colors (blue, green, magenta, white, and red) and 7 pre-programmed light shows
• Type: LED
• Range: Rotatable to 180 degrees wide beam or narrow beam
• Consumption: About 50% less energy consumption

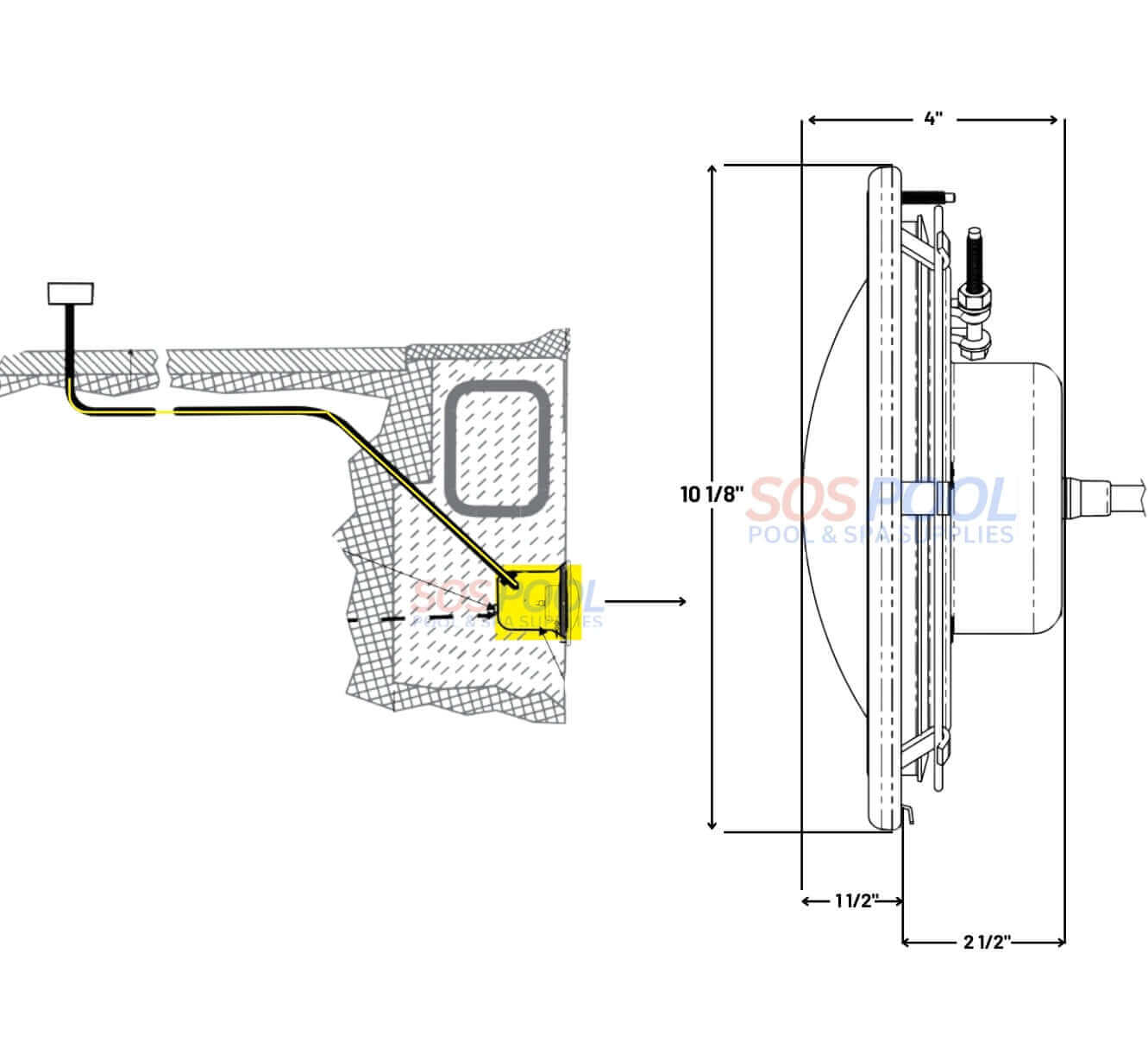

Diagram
