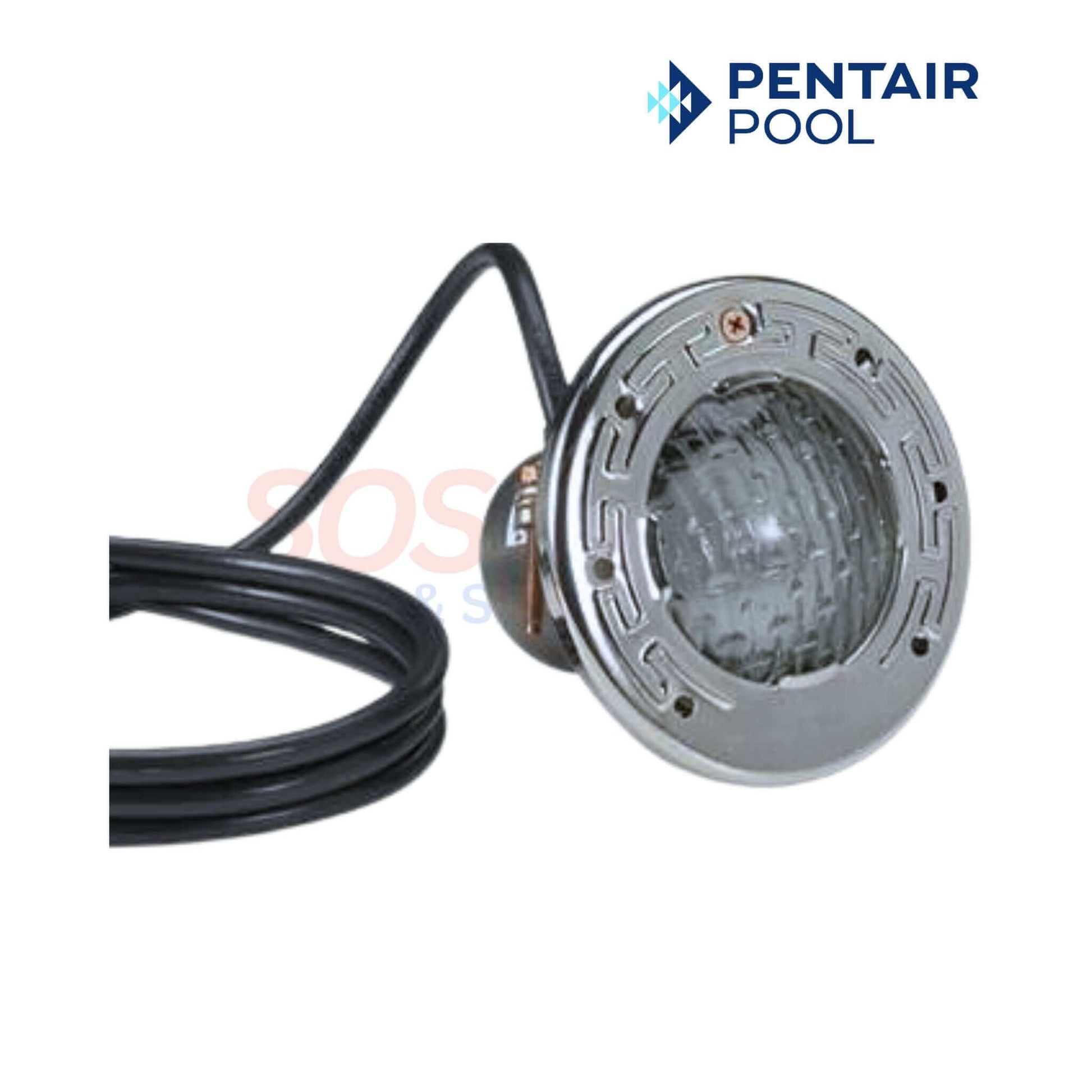

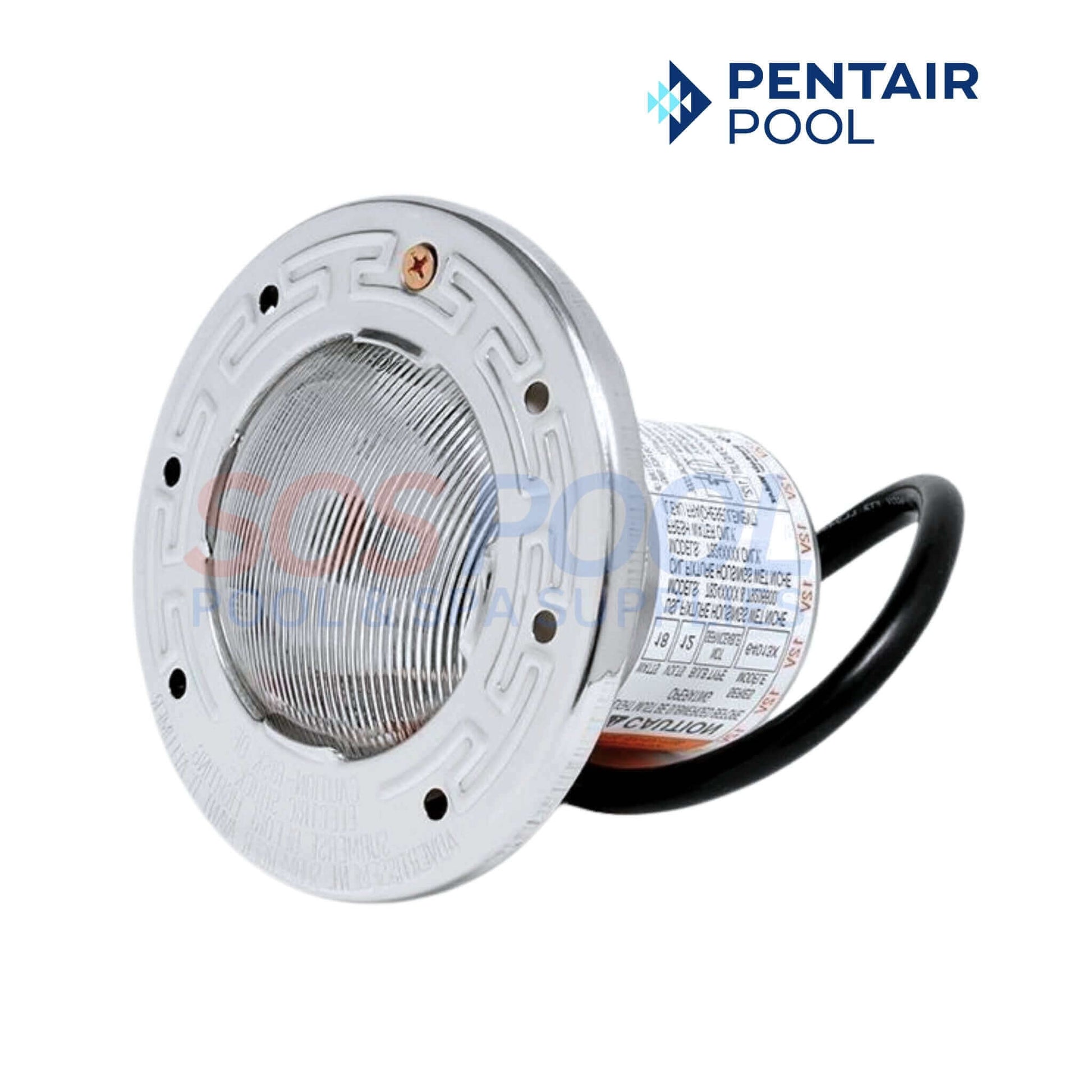

Pentair IntelliBrite 5G Color LED Spa Light | 120V 18W 100' Cord | EC-640122
The Pentair IntelliBrite 5G EC-640122 Color LED Spa Light delivers stunning illumination and energy-efficient performance in a compact, low-voltage design. With a 100W incandescent equivalent output while using only 18 watts of power, this 120V LED light transforms spas and small pools with five brilliant fixed colors—blue, green, magenta, white, and red—and seven pre-programmed light shows. The advanced LED technology produces rich, vivid hues and smooth color transitions, creating an eye-catching ambiance for any backyard setting.
Engineered for reliability and long-lasting performance, the IntelliBrite 5G features a rotatable lens that adjusts up to 180 degrees for either wide or narrow beam coverage. Built from corrosion-resistant materials, it withstands harsh pool environments, ensuring consistent clarity and brightness season after season. The included 100-foot cord allows for flexible installation across a variety of pool configurations. Consuming about 50% less energy than traditional incandescent lighting, the IntelliBrite 5G provides exceptional efficiency, brilliant illumination, and the long-term dependability that Pentair lighting is known for.
Key Features of the Pentair IntelliBrite 5G EC-640122 Color LED Spa Light
-
120V 18W Power Rating with 100W Output Equivalent: Produces bright, vivid color illumination while minimizing energy consumption.
-
Five Vibrant Colors and Seven Light Shows: Offers blue, green, magenta, white, and red hues plus pre-programmed lighting effects for dynamic ambiance.
-
Adjustable Beam Design: Rotatable lens provides up to 180° adjustment, allowing users to choose between wide or narrow beam distribution.
-
Energy-Efficient Operation: Consumes about 50% less power than incandescent lighting, reducing energy costs without compromising brightness.
-
Advanced LED Technology: Delivers deep color saturation and reliable long-term illumination with smooth transitions and fade effects.
-
100-Foot Cord for Easy Installation: Long cord allows for flexible mounting options and positioning within most spa and pool layouts.
-
Durable, Corrosion-Resistant Build: Constructed to resist chemical exposure and moisture for dependable performance and longevity.
-
Brilliant Poolside Atmosphere: Creates relaxing, colorful illumination for unwinding or vibrant light shows for entertaining guests.
Compatible with most automation systems by Pentair and Jandy
- IntelliTouch Control System
- EasyTouch 8 Function EC520545 Control System Without Salt System
- EasyTouch 8 Function EC520545 Control System With IC 40 Salt System
To ensure this light is compatible with your automation system please check owners manual.
All Sold Separately
Transformers
- TPX100
- TPX300
GFCI Circuit Breakers
- QF220- 240V
- QF120- 120V
Controls
- IntelliBrite Controller 600054 / 618031
- EasyTouch EC-522104 iPhone controller
- Cord Length: 100 ft.
- Volts: 120 V
- Power: 18 W
- Incandescent Power Equivalent: 100W
- Light Color: 5 vibrant pre determined colors (blue, green, magenta, white, and red) and 7 pre-programmed light shows
- Type: LED
- Range: Rotatable to 180 degrees wide beam or narrow beam
- Consumption: About 50% less energy consumption
