Pentair Clean & Clear RP 150 Sq. Ft. Cartridge Filter | EC-160355

Pentair Clean & Clear RP 150 Cartridge Pool Filter | EC-160355

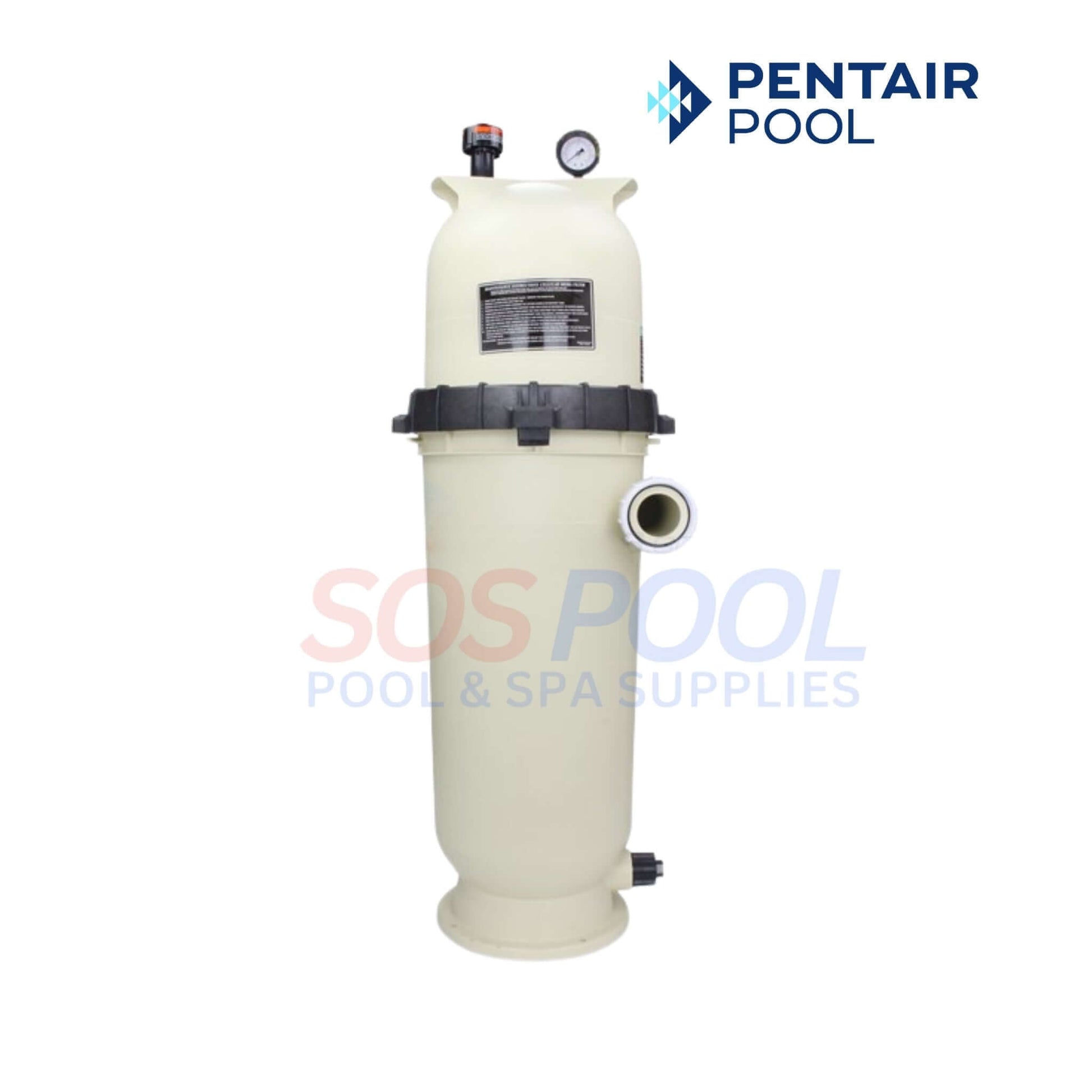

The Pentair Clean & Clear RP EC-160355 Cartridge Filter combines powerful performance with a compact, service-friendly design. With 150 sq. ft. of effective filtration area and a maximum flow rate of 150 GPM, this filter is built for small-to-medium residential pools and spas that need clear water and reliable turnover. Its fiberglass-reinforced, chemical-resistant tank ensures long-lasting durability while maintaining strength under constant exposure to pool environments.

Ease of maintenance is central to the RP series. The quick-connect lock ring provides tool-free access to the cartridge for cleaning or replacement, simplifying routine service. Unlike sand or DE systems, no backwashing is required, helping save water while cutting down on maintenance time. The High Flow™ manual air relief valve, paired with continuous internal air relief, ensures trapped air is quickly purged during startup and circulation.

Engineered with oversized unions, a side-entry port, and large drain openings, the EC-160355 delivers excellent hydraulic efficiency and straightforward installation. Compact yet durable, it provides pool owners with season-after-season reliability and clear water quality.

Key Features of the Pentair Clean & Clear RP 150 EC-160355 Filter

• 150 Sq. Ft. Filtration Area: Large cartridge surface captures dirt and debris efficiently, delivering consistently clear water for residential pools and spas.

• 150 GPM Maximum Flow Rate: Strong hydraulic capacity supports dependable turnover for pools up to medium size, ensuring effective circulation and water quality.

• Reinforced Tank Construction: Fiberglass-reinforced, chemical-resistant housing is engineered for long-term strength and resistance to harsh pool environments.

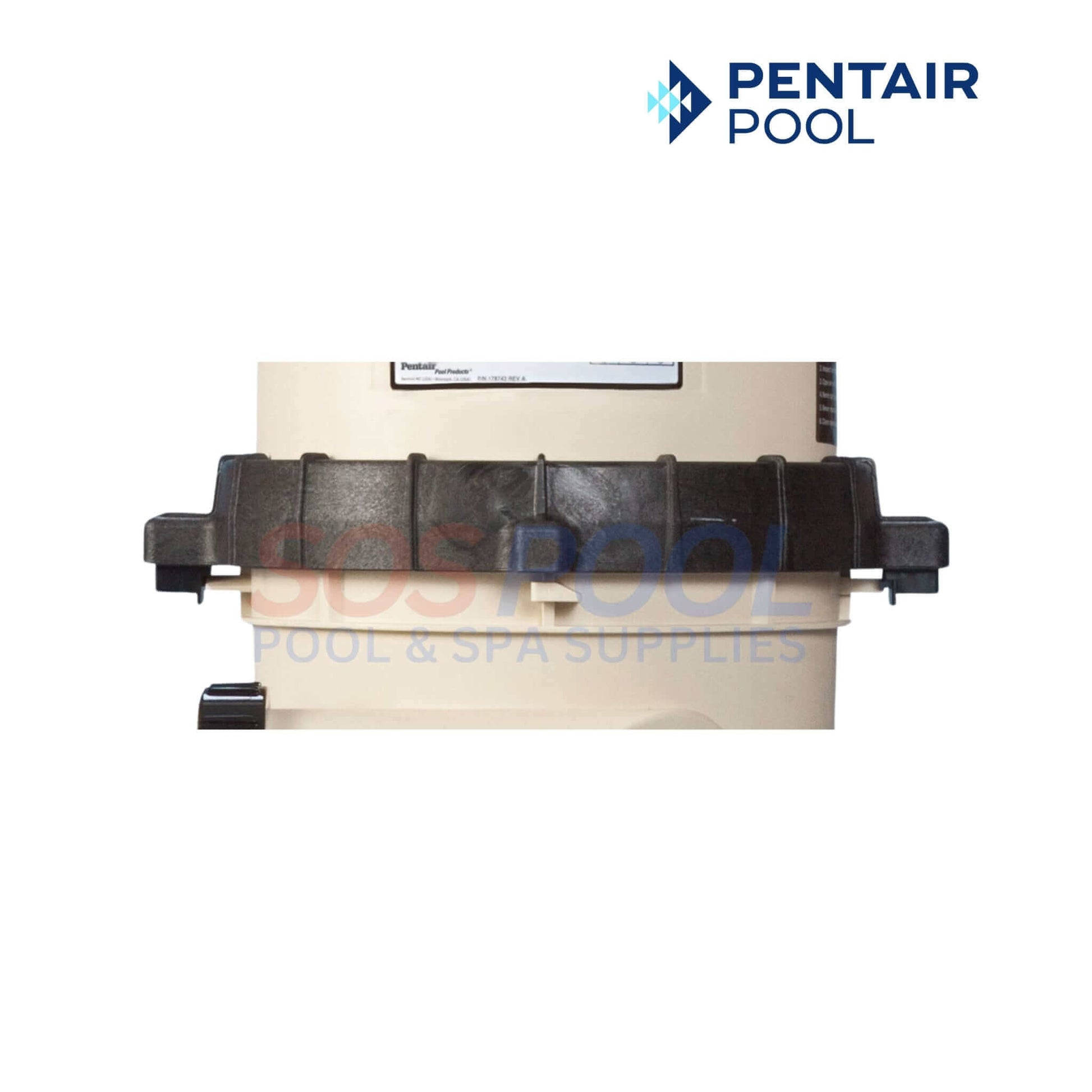

• Quick-Access Lock Ring: Low-force locking system allows tool-free entry, making cartridge removal and cleaning fast and easy for pool owners or service pros.

• No Backwashing Needed: Cartridge element eliminates the need for messy backwashing cycles, saving water and reducing regular maintenance tasks.

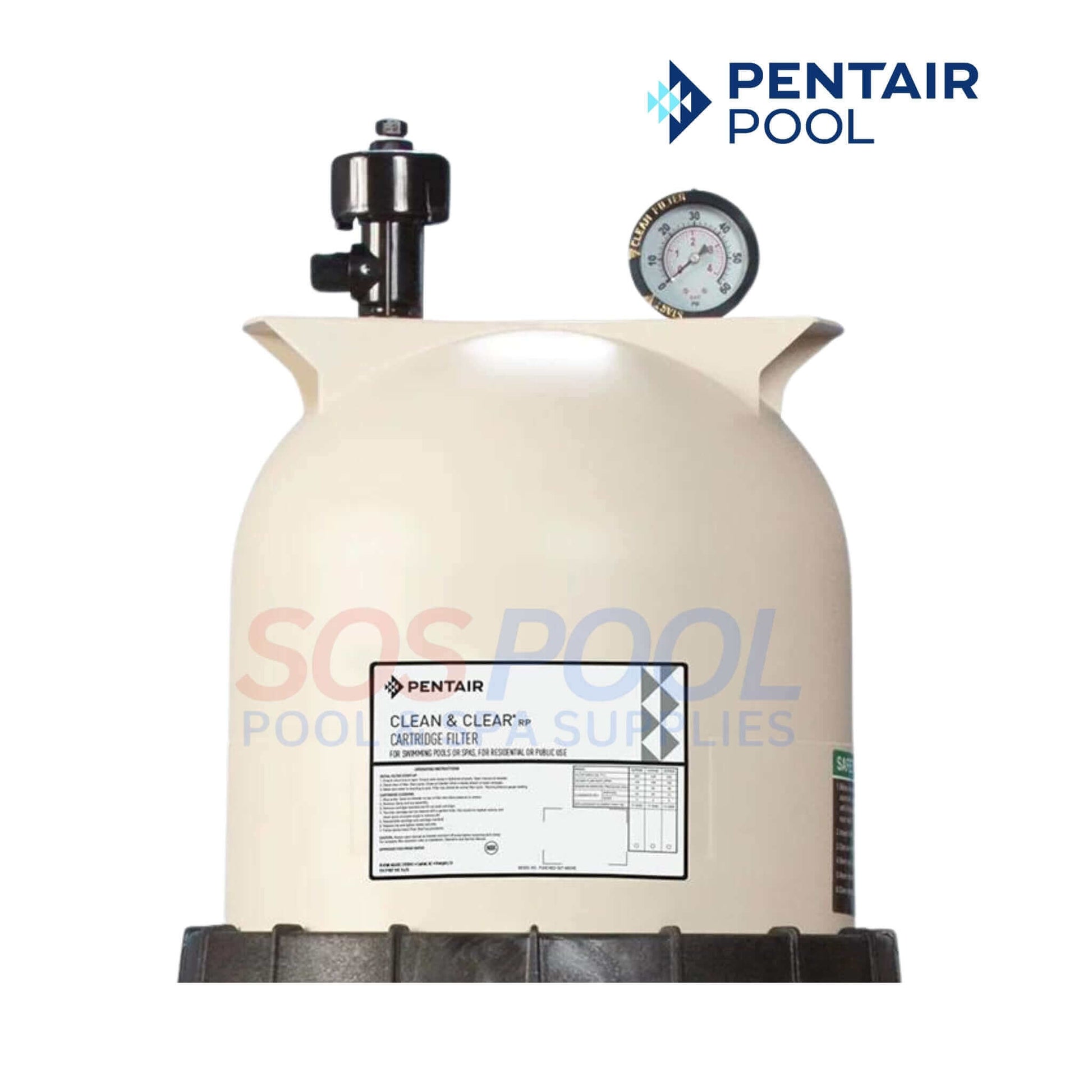

• High Flow™ Air Relief Valve: Manual valve combined with internal continuous relief quickly removes trapped air during startup, improving system efficiency.

• 2" × 2.5" Unionized Connections: Large, versatile plumbing unions with side-entry port improve flow, energy efficiency, and simplify installation on equipment pads.

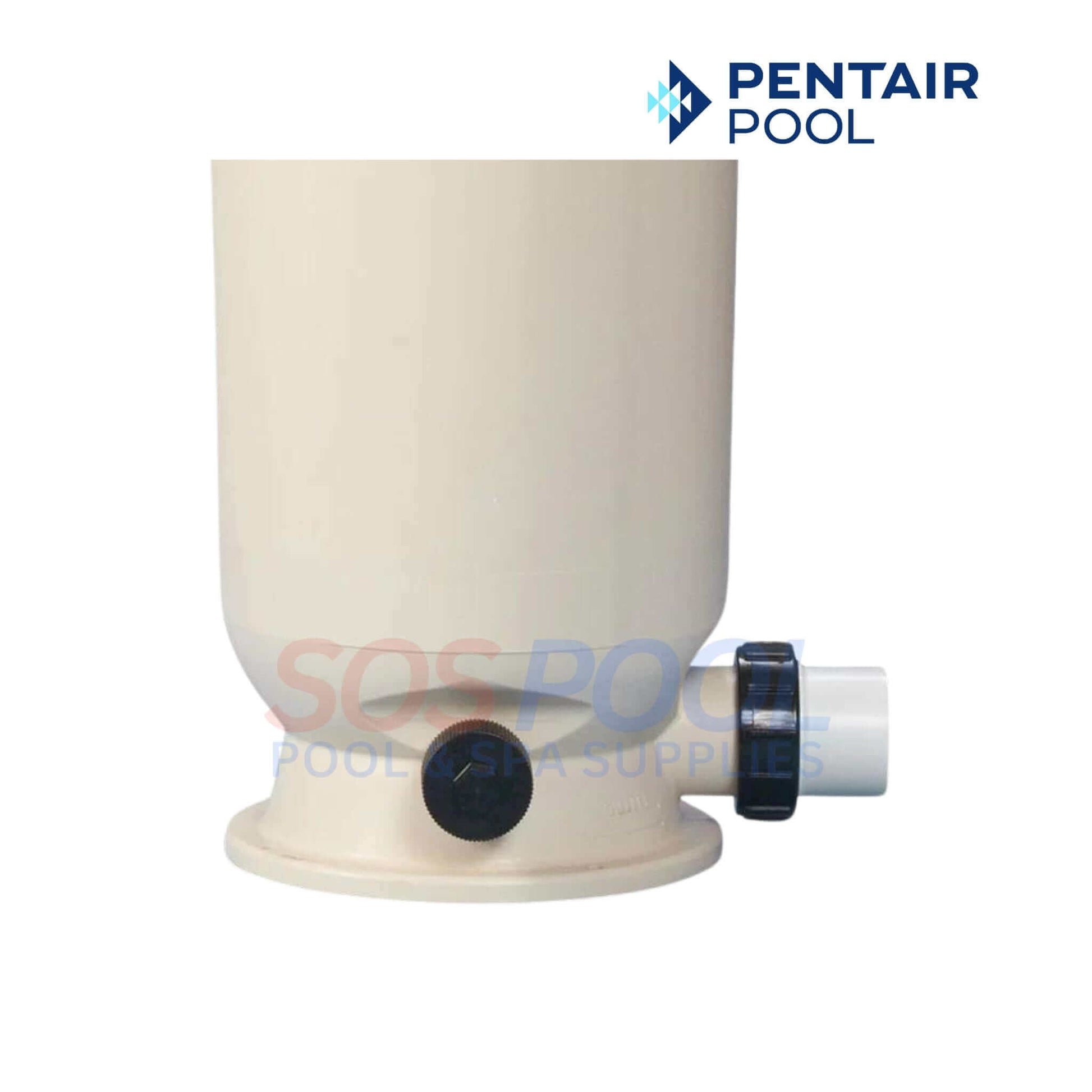

• Large Drain Port: Oversized drain opening makes servicing and winterization straightforward, speeding up seasonal maintenance.

Specifications

• Maximum Filtration Size: Filters out particulates as small as 20 microns
• Filtration Area: 150 square feet

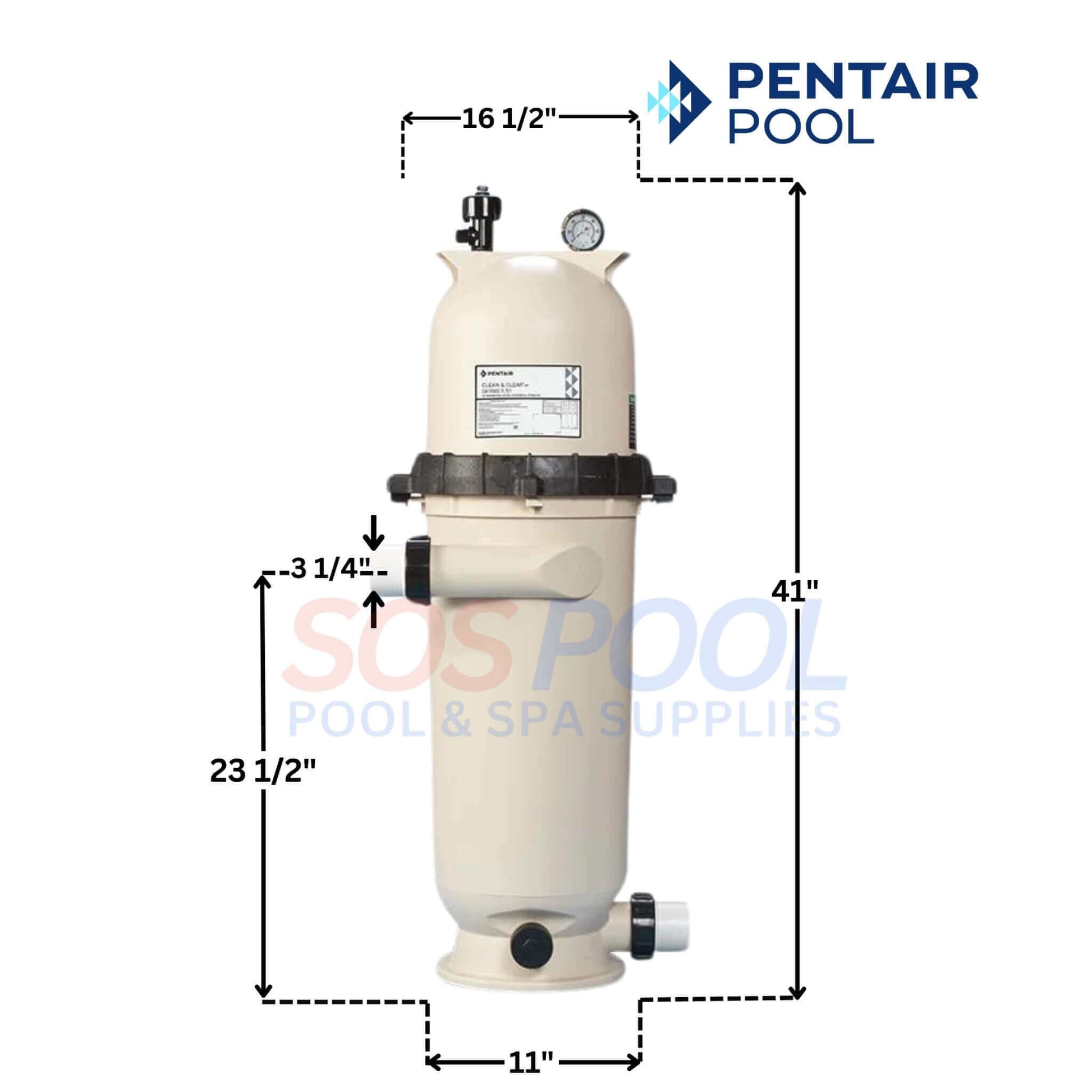

• Dimensions: 16.5" inches in diameter and 41" inches in height
• Vertical Clearance: 76"
• Weight: Approximately 35 pounds
• Installation: 2 inch plumbing connections and 1-1/2 inch drain port
• Flow Rate: Maximum flow rate of 150 gallons per minute (GPM)
• Material: Chemical-resistant, fiberglass-reinforced polypropylene tank
• Efficiency: About 50% more efficient than other cartridge filters
• Maximum Working Pressure: 50 pounds per square inch

Includes

• (1) Pentair EC-160355 Clean & Clear RP Cartridge Filter
• (1) Filter Cartridge- R173216
• (1) Lock Ring-59052900
• (1) High Flow Manual Air Relief Valve- 98209800
• (1) Pressure Gauge- 53003201
