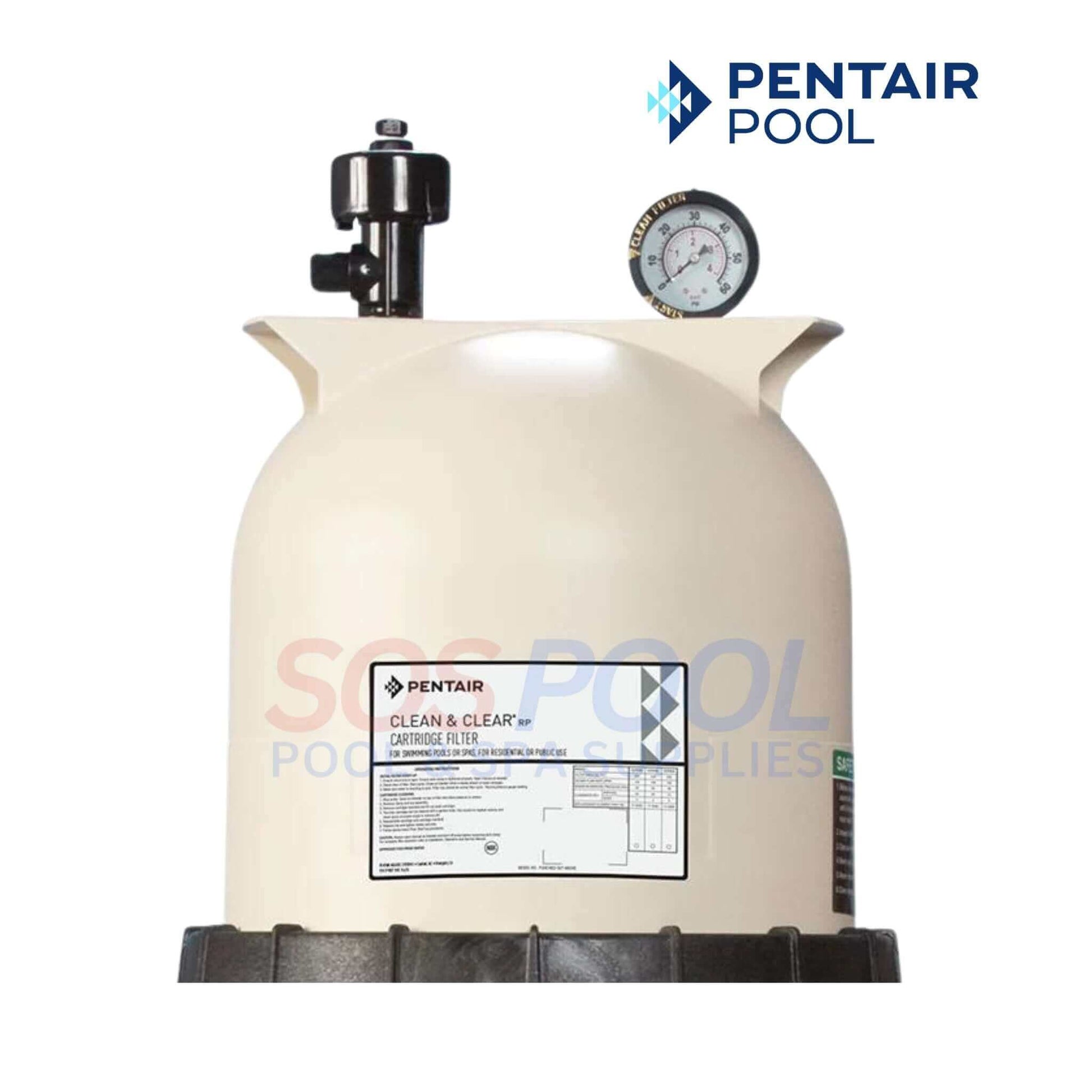

Pentair Clean & Clear RP 100 Cartridge Pool Filter | EC-160354
The Pentair Clean & Clear RP EC-160354 Cartridge Filter is designed to deliver powerful filtration performance in a compact footprint. With 100 sq. ft. of cartridge surface area and a maximum flow rate of 100 GPM, it is ideal for small residential pools and spas that demand consistent clarity and reliability. Its fiberglass-reinforced tank construction resists corrosion and harsh outdoor conditions, ensuring long-lasting durability and dependable operation season after season.
This filter is engineered for efficiency and easy service. The low-force, quick-connect lock ring provides tool-free access to the cartridge, making cleaning and replacement fast and simple. Unlike sand or DE filters, the cartridge design requires no backwashing, saving both water and maintenance time. A built-in High Flow™ manual air relief valve, along with continuous internal air relief, ensures trapped air is quickly purged during startup. With oversized plumbing unions and a large drain port, the RP 100 delivers excellent hydraulic efficiency and straightforward installation.
Compact yet effective, the EC-160354 combines Pentair’s trusted reliability with user-friendly features, making it a strong choice for pool owners who want clean water without complicated maintenance.
Key Features of the Pentair Clean & Clear RP 100 EC-160354 Filter
-
100 Sq. Ft. Filtration Area: Provides reliable filtration capacity for small pools and spas, capturing fine debris for consistently clear water.
-
100 GPM Maximum Flow Rate: Strong hydraulic performance supports dependable circulation and effective turnover in compact residential systems.
-
Durable Tank Construction: Fiberglass-reinforced, chemical-resistant housing is built for long-term strength in demanding pool environments.
-
Quick-Access Lock Ring: Low-force, tool-free design makes servicing the cartridge simple and fast, cutting down maintenance time.
-
No Backwashing Required: Cartridge filtration conserves water and streamlines upkeep compared to sand or DE filter systems.
-
High Flow™ Air Relief Valve: Manual and continuous internal relief quickly remove trapped air, improving efficiency during operation.
-
2" × 2.5" Plumbing Connections: Large, unionized connections with side-entry port maximize flow and provide flexible installation.
-
Convenient Drain Port: Oversized drain opening makes draining and winterizing the filter straightforward and efficient.
Specifications
- Maximum Filtration Size: Filters out particulates as small as 20 microns
- Filtration Area: 100 square feet

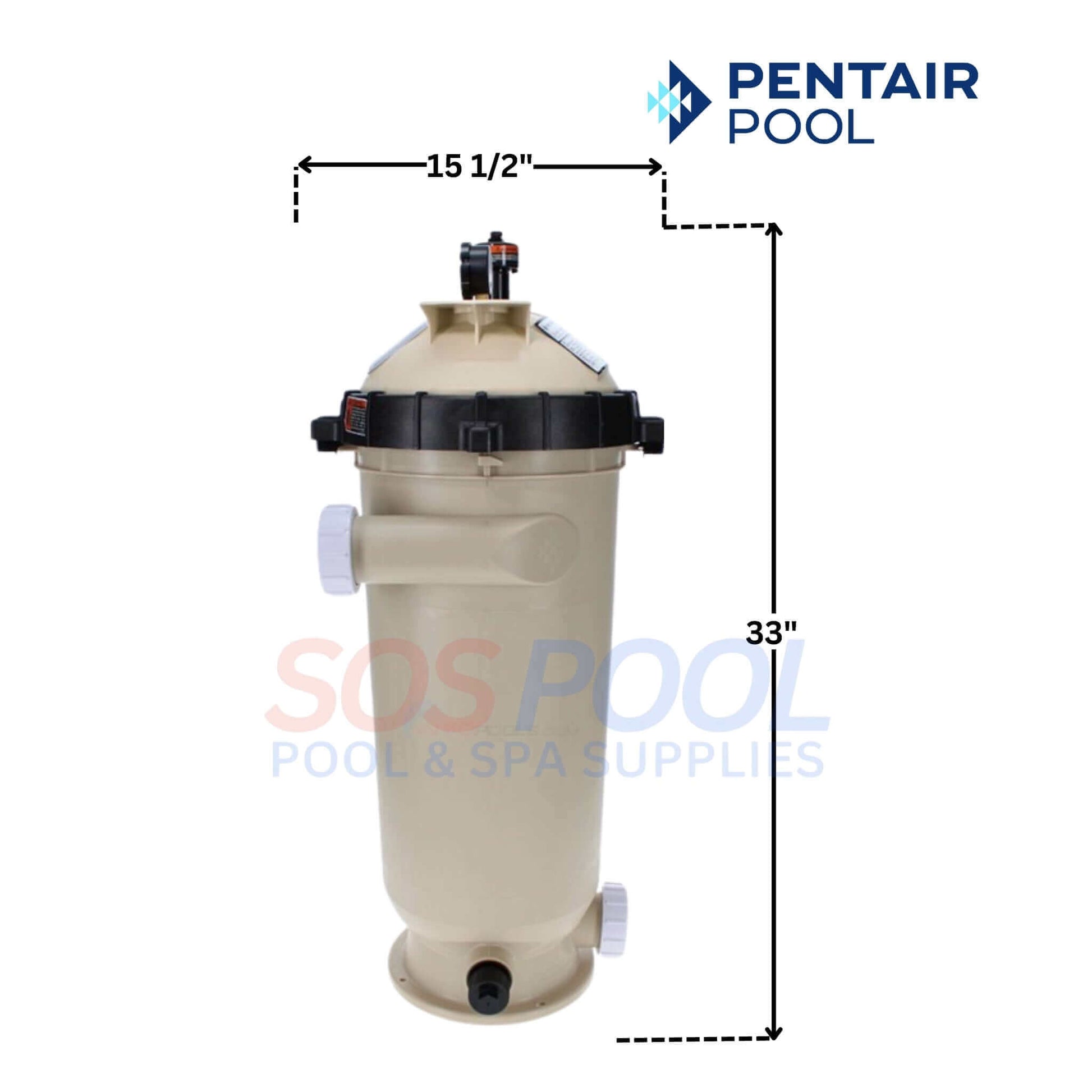

- Dimensions: 15.5" inches in diameter and 33" inches in height
- Vertical Clearance: 61"
- Weight: Approximately 35 pounds
- Installation: 2 inch plumbing connections and 1-1/2 inch drain port
- Flow Rate: Maximum flow rate of 100 gallons per minute (GPM)
- Material: Chemical-resistant, fiberglass-reinforced polypropylene tank
- Efficiency: About 50% more efficient than other cartridge filters
- Maximum Working Pressure: 50 pounds per square inch
Includes
- (1) Pentair EC-160354 Clean & Clear RP Cartridge Filter
- (1) Filter Cartridge- R173215
- (1) Lock Ring-59052900
- (1) High Flow Manual Air Relief Valve- 98209800
- (1) Pressure Gauge- 53003201
