Pentair Clean & Clear Plus Cartridge Filter | 420 sq ft | 160301
Available In Store Only
Visit your nearest Discount Pool Mart for pricing and availability.
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov
Find your parts diagram
Sticker on the pump body (the part with the basket), not on the motor. Motor labels from Century, A.O. Smith or Regal won't match parts.
Label on the side of the tank near the base. Size is in sq ft, e.g. 420 sq ft = C4030 or CCP420.
Rating plate inside the front access panel. Note the BTU and gas type (NG or LP).
Molded into the body or printed on top. Robotic cleaners: on the power supply.
Still not sure? Call (818) 818-6559 and we'll find it for you.

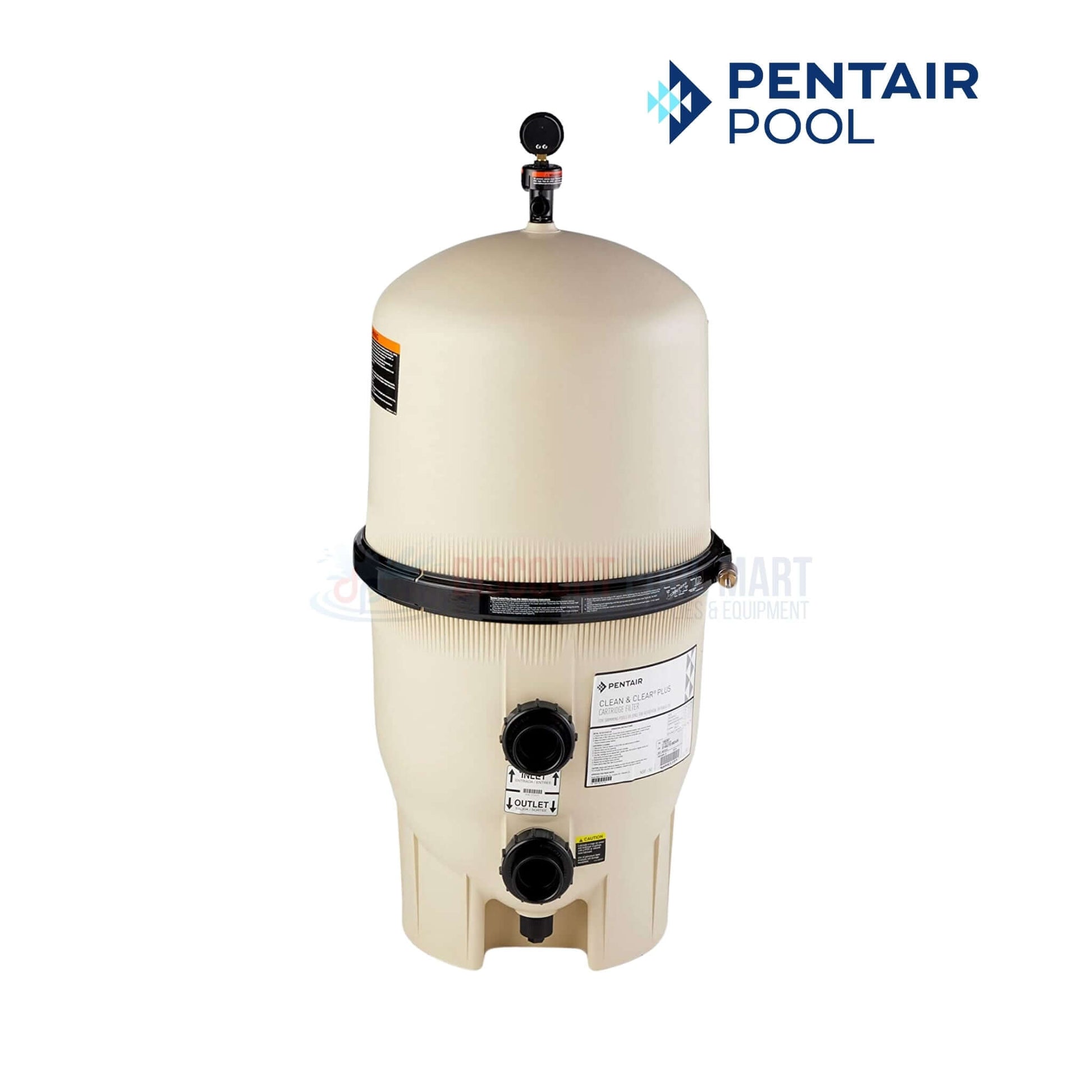

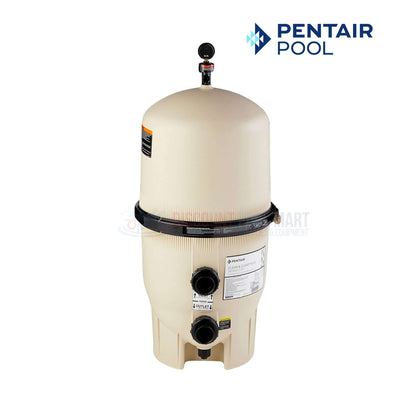

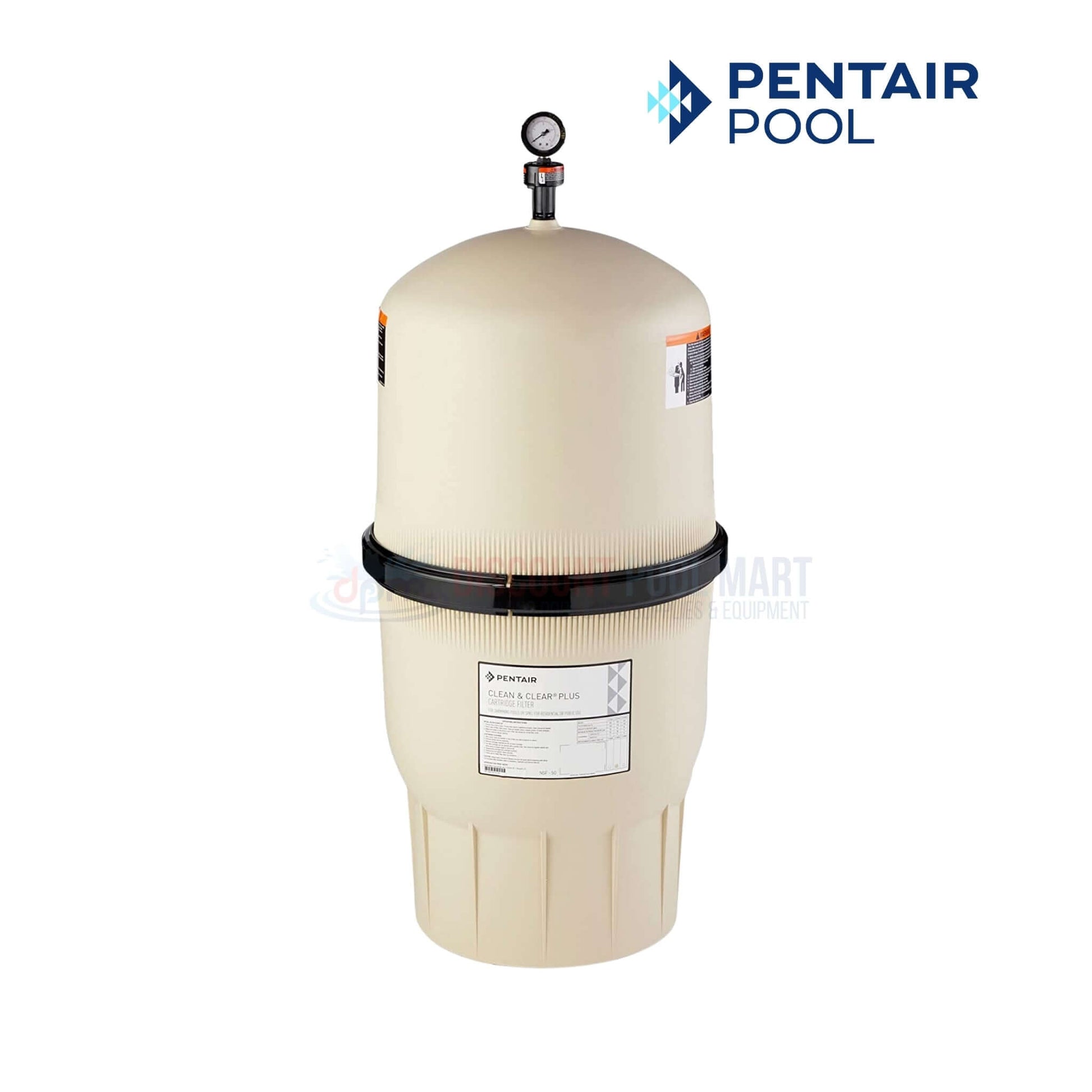

The Pentair Clean & Clear Plus Cartridge Filter 160301 is designed to deliver high-level water filtration for your pool. Offering an expansive filtration area of 420 sq. ft., this filter provides thorough and effective water cleaning. The filter features easy-to-clean, non-woven, polyester cartridges and a chemical resistant tank. Designed for compatibility with all pool systems, it integrates effortlessly with existing Pentair equipment. The Clean & Clear Plus simplifies installation and ensures easy cartridge removal for cleaning. Protected by a one-year warranty, this high-performing filter is your answer to consistently clean and clear pool water.
- Expansive Filtration Area: With a 420 sq. ft. filtration area, this filter offers thorough and effective water cleaning, ensuring that pool water remains crystal clear and clean throughout the season.
- High-Quality Cartridges: It features easy-to-clean, non-woven, polyester cartridges that efficiently trap debris and impurities. The chemical-resistant tank adds durability, allowing the filter to withstand various pool chemicals and conditions.
- Universal Compatibility: Designed to seamlessly integrate with all pool systems, this filter works perfectly with existing Pentair equipment, simplifying the installation process and ensuring efficient operation.
- User-Friendly Maintenance: The Clean & Clear Plus is engineered for easy use, including a straightforward process for cartridge removal and replacement, making routine maintenance quick and hassle-free.
- Maximum Filtration Size: Filters out particulates as small as 20 microns
- Filtration Area: 420 square feet

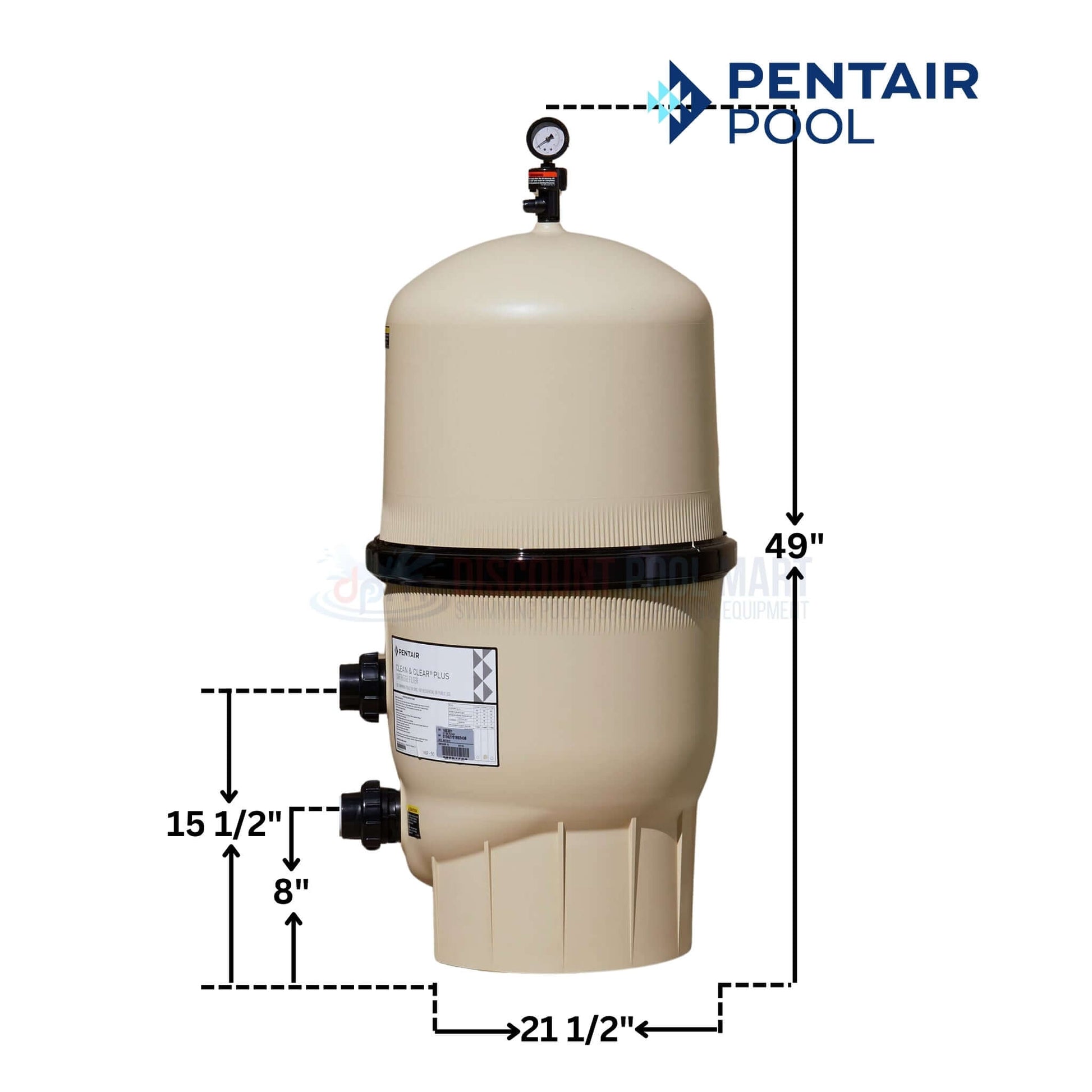

- Dimensions: 21.5" inches in diameter and 49" inches in height
- Vertical Clearance: 68"
- Cartridge: 4 Required (Included)
- Weight: Approximately 75 pounds

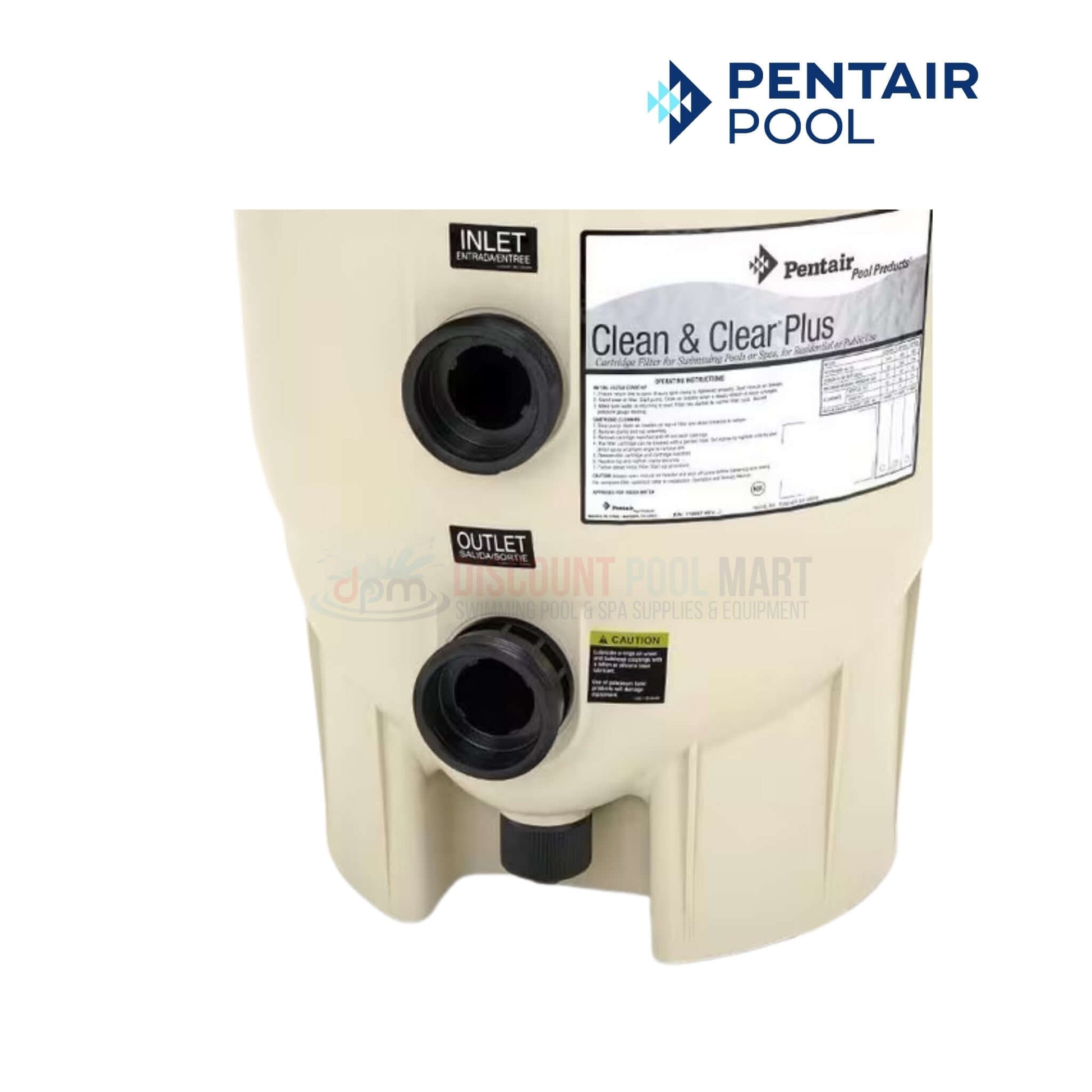

- Installation: 2 inch plumbing connections and 1-1/2 inch drain port
- Flow Rate: Maximum flow rate of 150 gallons per minute (GPM)
- Material: Chemical-resistant, fiberglass-reinforced polypropylene tank
- Maximum Working Pressure: 50 pounds per square inch
- (1) Pentair 160340 Clean & Clear Plus Cartridge Filter
- (4) Filter Cartridge- PCC105-PACK4
- (1) High Flow Manual Air Relief Valve- 98209800

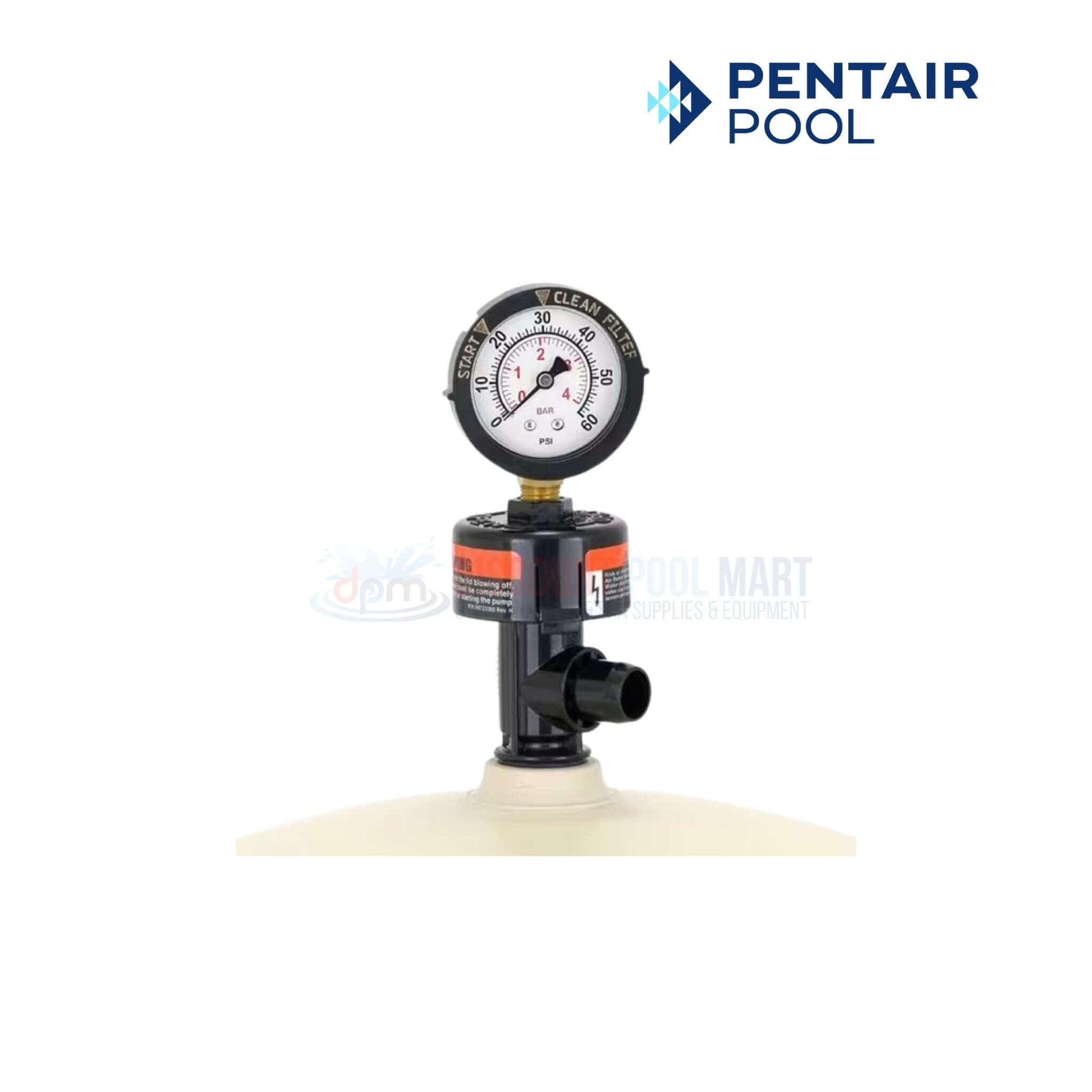

- (1) Pressure Gauge- 190058
- (1) Clamp Ring Kit- 190003
- (1) Drain Plug with O-Ring- 190030
*See manual page 17 for complete list
