Pentair Clean & Clear 75 Cartridge Pool Filter | EC-160315

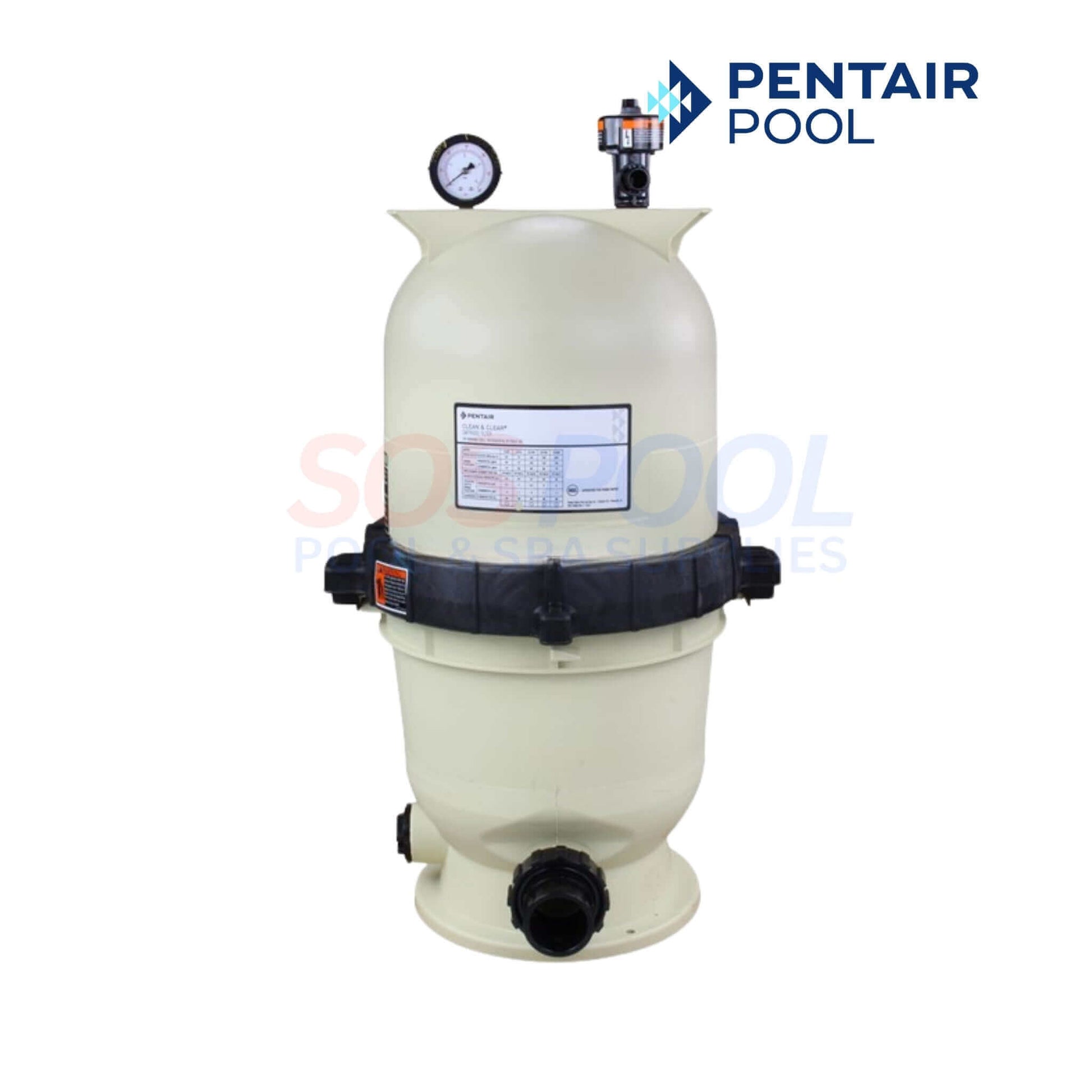

The Pentair Clean & Clear EC-160315 Cartridge Filter is a compact, service-friendly solution for spas and small residential pools. With 75 sq. ft. of effective filtration area and a maximum flow rate of 75 GPM, this model provides efficient circulation and dependable water clarity while fitting into the tightest equipment pad spaces. Its fiberglass-reinforced, chemical-resistant tank ensures durability and long-term strength, making it a practical choice for homeowners looking for reliability in a small footprint.
Maintenance is quick and easy with Pentair’s Easy-Lok™ ring design, which allows the tank’s top half to be removed with a simple half-turn for fast cartridge access. Cleaning requires no backwashing—just remove the cartridge, rinse with a hose, and reinstall—saving both water and service time. The filter also features a High Flow™ manual air relief valve and continuous internal air relief for improved startup efficiency. A large 1½" drain cap with washout makes seasonal servicing and winterization straightforward and convenient.
Compact yet capable, the EC-160315 delivers professional-quality filtration in a small package, ensuring spa owners and small pool systems enjoy consistently clear, inviting water.
Key Features of the Pentair Clean & Clear 75 EC-160315 Filter
-
75 Sq. Ft. Cartridge Filtration with 75 GPM Flow: Sized for spas and small pools, providing efficient debris capture and dependable water clarity in compact systems.
-
Fiberglass-Reinforced Tank Construction: Rugged polypropylene body resists corrosion and chemical wear, ensuring long service life outdoors.
-
Easy-Lok™ Tool-Free Ring System: Quick half-turn locking ring secures the tank top while allowing easy access for cartridge removal and cleaning.
-
Water-Saving Cartridge Maintenance: Eliminates the need for backwashing—cartridges are simply rinsed clean, conserving water and reducing upkeep.
-
High Flow™ Air Relief Valve: Combined with continuous internal relief, it quickly removes trapped air during startup to improve system efficiency.
-
Convenient 1½" Drain Cap with Washout: Oversized drain makes servicing and winterization easier, speeding up seasonal maintenance tasks.
-
Compact Footprint for Tight Pads: Slim profile fits easily into small equipment areas, making it ideal for installations with limited space.
-
Trusted Pentair Quality: Part of the Clean & Clear line, recognized for durable construction, service-friendly design, and reliable filtration performance.
Specifications
- Maximum Filtration Size: Filters out particulates as small as 30 microns
- Filtration Area: 75 square feet
- Dimensions: 15.5" inches in diameter and 25-1/2" inches in height
- Vertical Clearance: 39"
- Cartridge: 1 Required (Included)
- Weight: Approximately 35 pounds
- Installation: 2 inch plumbing connections and 1-1/2 inch drain port
- Flow Rate: Maximum flow rate of 75 gallons per minute (GPM)
- Material: Chemical-resistant, fiberglass-reinforced polypropylene tank
- Maximum Working Pressure: 50 pounds per square inch
Includes
- (1) Pentair EC-160315 Clean & Clear Cartridge Filter
- (1) Filter Cartridge- R173214
- (1) High Flow Manual Air Relief Valve- 98209800
- (1) Pressure Gauge- 190058
- (1) Locking Ring- 59052900
*See manual page 7 for complete list
