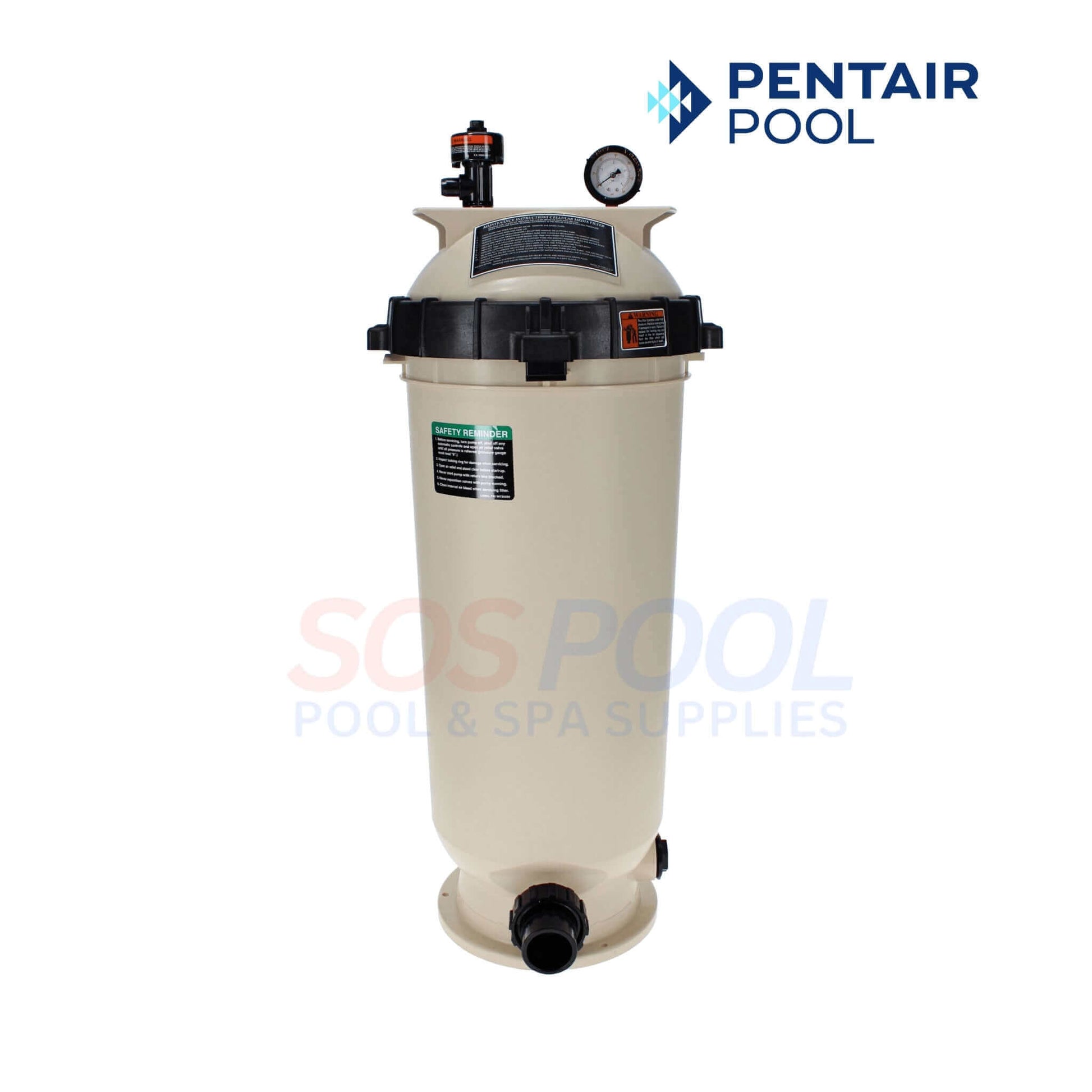

Pentair Clean & Clear 150 Cartridge Pool Filter | EC-160317
The Pentair Clean & Clear EC-160317 Cartridge Filter is built to deliver crystal-clear water with low-maintenance operation. Featuring 150 sq. ft. of effective cartridge surface area and a maximum flow rate of 150 GPM, it is engineered for medium-sized residential pools and spas. Designed with durable fiberglass-reinforced polypropylene, the tank withstands chemical exposure and harsh outdoor conditions, ensuring long-lasting reliability and performance.
Servicing the Clean & Clear 150 is fast and straightforward. Its innovative locking ring system allows the top half of the tank to be removed with a simple half-turn, giving easy access to the cartridge. Cleaning requires no backwashing—just remove the element, hose it off, and reinstall—saving both water and time. A built-in High Flow™ manual air relief valve with continuous internal relief improves system efficiency by quickly purging trapped air, while the 1½" drain cap makes maintenance and winterization more convenient.
With its compact footprint, strong turnover capability, and ease of use, the Pentair Clean & Clear 150 Cartridge Filter is an excellent choice for homeowners seeking dependable filtration and long-term value.
Key Features of the Pentair Clean & Clear 150 EC-160317 Filter
-
150 Sq. Ft. Cartridge Area with 150 GPM Flow: Provides reliable filtration for medium pools and spas, capturing dirt and debris to maintain consistently clear water.
-
Strong Turnover Performance: Processes 72,000 gallons in 8 hours, 90,000 gallons in 10 hours, and 108,000 gallons in 12 hours, ensuring balanced water quality.
-
Fiberglass-Reinforced Polypropylene Tank: Rugged, chemical-resistant body delivers strength and long-term durability under demanding pool conditions.
-
Innovative Locking Ring System: Requires just a half-turn for leak-proof sealing and easy tool-free access to the cartridge for fast maintenance.
-
No Backwashing Required: Cartridge system saves water and reduces mess, allowing simple hose cleaning for quick, hassle-free service.
-
High Flow™ Manual Air Relief Valve: Combined with continuous internal air relief, it ensures efficient startup by removing trapped air for smoother operation.
-
Convenient 1½" Drain Cap and Washout: Oversized drain makes water removal, maintenance, and winterization more efficient and service-friendly.
-
Compact, Service-Friendly Design: Space-efficient filter with a narrow 15.5" diameter and tall profile fits easily onto equipment pads with limited space.
Specifications
- Maximum Filtration Size: Filters out particulates as small as 30 microns
- Filtration Area: 150 square feet
- Dimensions: 16.5" inches in diameter and 40.5" inches in height
- Vertical Clearance: 76"
- Cartridge: 1 Required (Included)
- Weight: Approximately 35 pounds
- Installation: 2 inch plumbing connections and 1-1/2 inch drain port
- Flow Rate: Maximum flow rate of 150 gallons per minute (GPM)
- Material: Chemical-resistant, fiberglass-reinforced polypropylene tank
- Maximum Working Pressure: 50 pounds per square inch
Includes
- (1) Pentair EC-160317 Clean & Clear Cartridge Filter
- (1) Filter Cartridge- R173216
- (1) High Flow Manual Air Relief Valve- 98209800
- (1) Pressure Gauge- 190058
- (1) Locking Ring- 59052900
