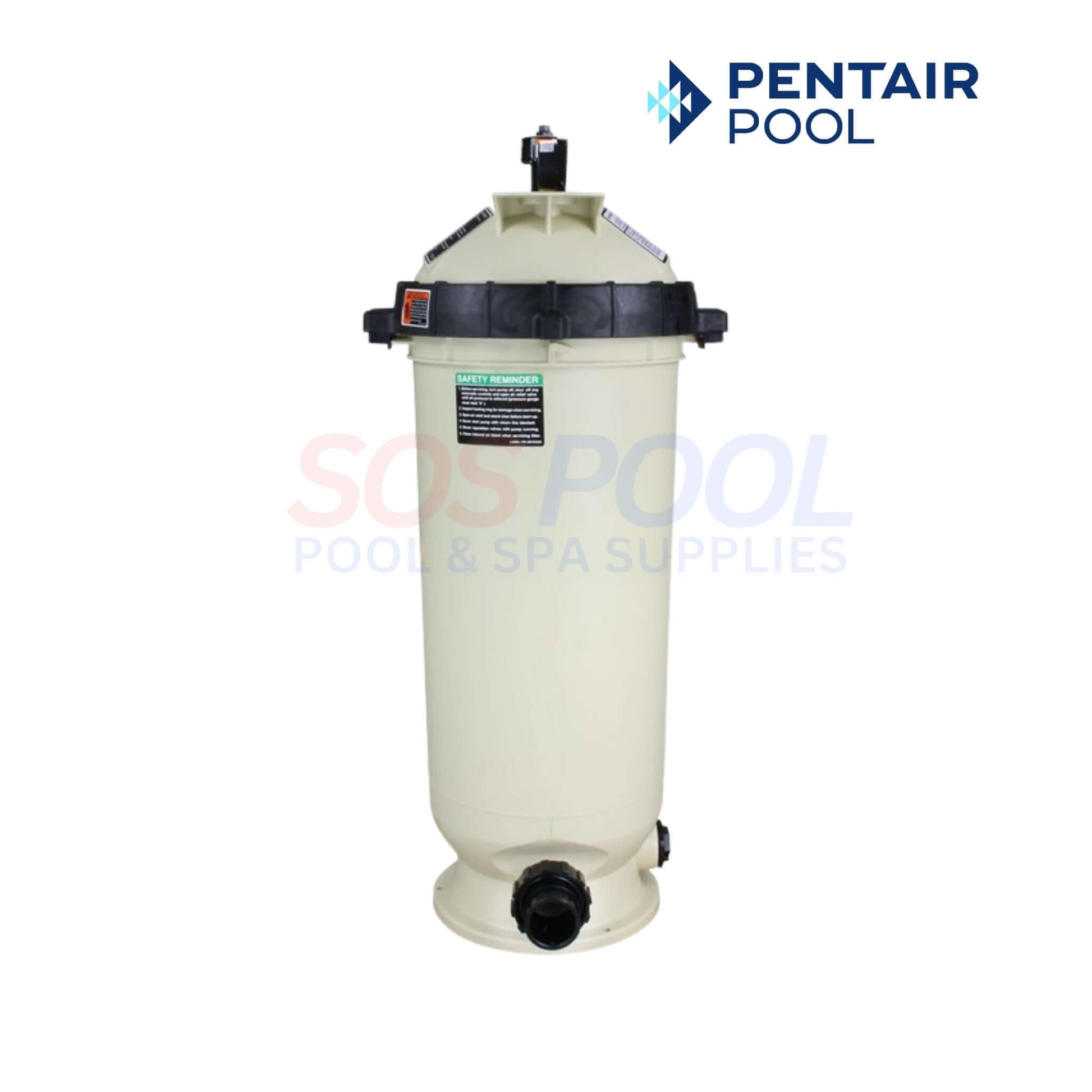

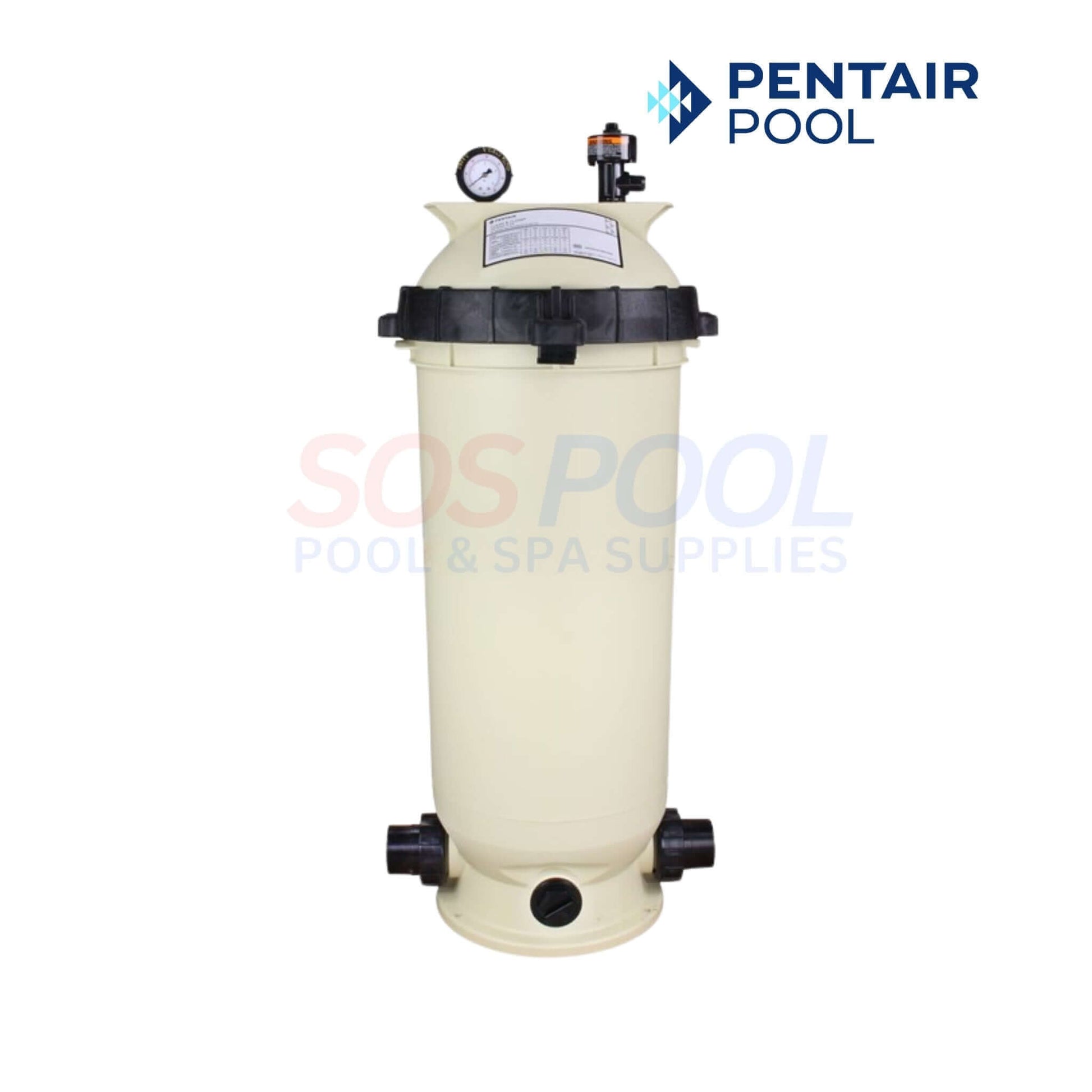

Pentair Clean & Clear 100 Cartridge Pool Filter | EC-160316
The Pentair Clean & Clear EC-160316 Cartridge Filter is a compact and efficient option for small residential pools and spas. With 100 sq. ft. of effective filtration area and a maximum flow rate of 100 GPM, this filter provides dependable performance while fitting easily into equipment pads with limited space. Its fiberglass-reinforced polypropylene tank is chemical resistant and built to handle harsh outdoor conditions, ensuring strength and long service life.
Servicing the Clean & Clear 100 is simple thanks to its Easy-Lok™ ring design, which allows the tank’s top to be removed with a quick half-turn for easy cartridge access. Cleaning requires no backwashing—just remove the cartridge, hose it off, and reinstall—saving water and reducing maintenance time. The filter also includes a High Flow™ manual air relief valve paired with continuous internal air relief for improved efficiency during startup and operation. A 1½" drain cap with washout makes winterization and water removal fast and convenient.
Small but powerful, the Pentair Clean & Clear 100 is engineered to provide consistently clear water with minimal effort, making it a reliable choice for spa owners and small pool systems.
Key Features of the Pentair Clean & Clear 100 EC-160316 Filter
-
100 Sq. Ft. Cartridge Filtration with 100 GPM Flow: Designed for spas and small pools, delivering clear, sparkling water through efficient debris removal.
-
Compact Size for Tight Equipment Pads: Small 15.5" diameter footprint makes it an excellent choice where space is limited without sacrificing performance.
-
Durable Fiberglass-Reinforced Tank: Rugged polypropylene tank resists corrosion and pool chemicals, ensuring long-lasting use in outdoor environments.
-
Easy-Lok™ Ring Access System: Quick half-turn locking ring allows tool-free entry to the tank, simplifying cartridge removal and cleaning.
-
No Backwashing Required: Cartridge design conserves water and reduces routine maintenance compared to sand or DE filter systems.
-

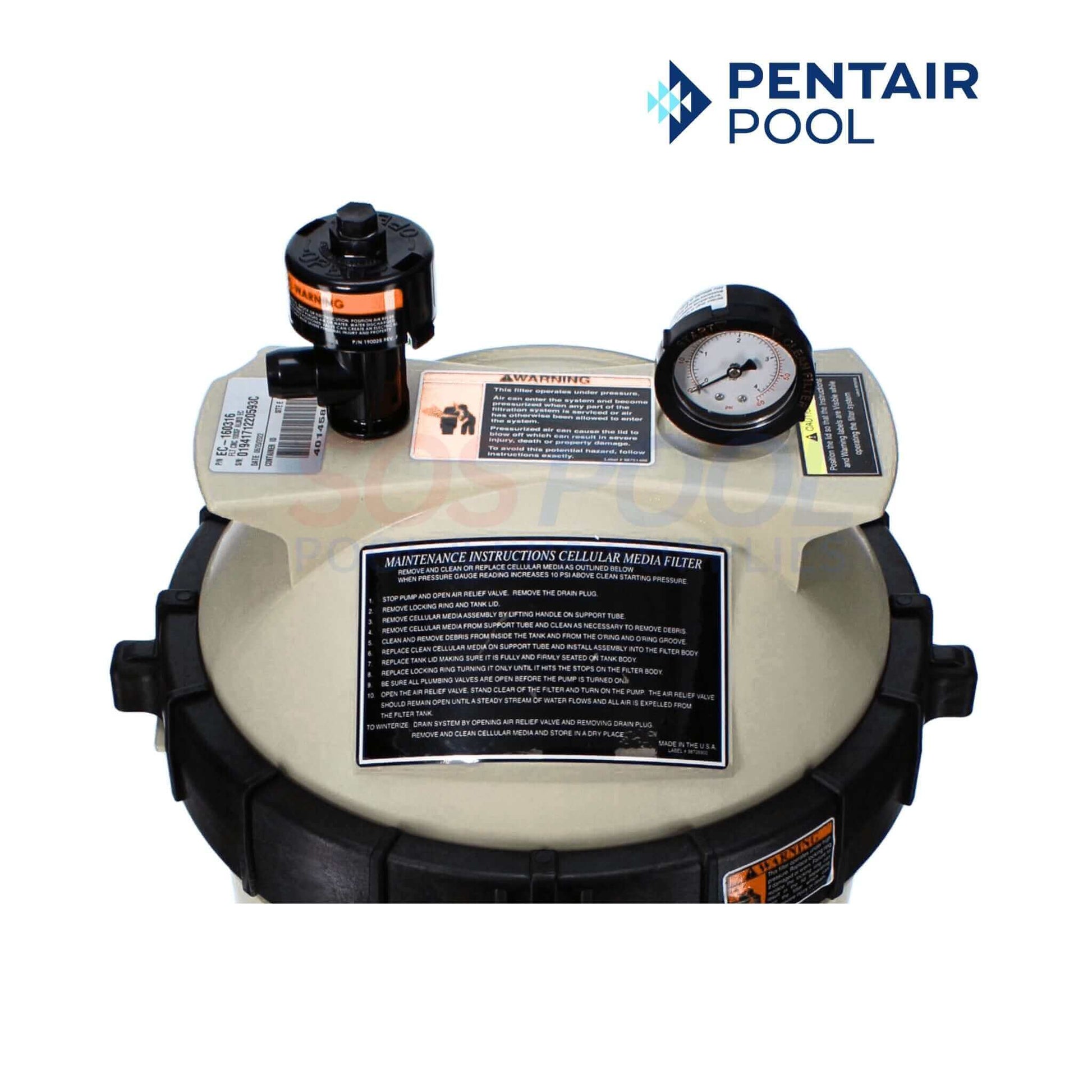

High Flow™ Manual Air Relief Valve: Combined with continuous internal air relief to purge air efficiently, enhancing flow and system performance.
-
1½" Drain Cap with Washout: Large drain opening makes servicing, draining, and winterization faster and more convenient.
-
Proven Clean & Clear Reliability: Part of Pentair’s trusted Clean & Clear series, built for durability, service-friendly design, and long-term water clarity.
Specifications
- Maximum Filtration Size: Filters out particulates as small as 30 microns
- Filtration Area: 100 square feet
- Dimensions: 15.5" inches in diameter and 33" inches in height
- Vertical Clearance: 61"
- Cartridge: 1 Required (Included)
- Weight: Approximately 35 pounds
- Installation: 2 inch plumbing connections and 1-1/2 inch drain port
- Flow Rate: Maximum flow rate of 100 gallons per minute (GPM)
- Material: Chemical-resistant, fiberglass-reinforced polypropylene tank
- Maximum Working Pressure: 50 pounds per square inch
Includes
- (1) Pentair EC-160316 Clean & Clear Cartridge Filter
- (1) Filter Cartridge- R173215
- (1) High Flow Manual Air Relief Valve- 98209800
- (1) Pressure Gauge- 190058
- (1) Locking Ring- 59052900
*See manual page 7 for complete list
