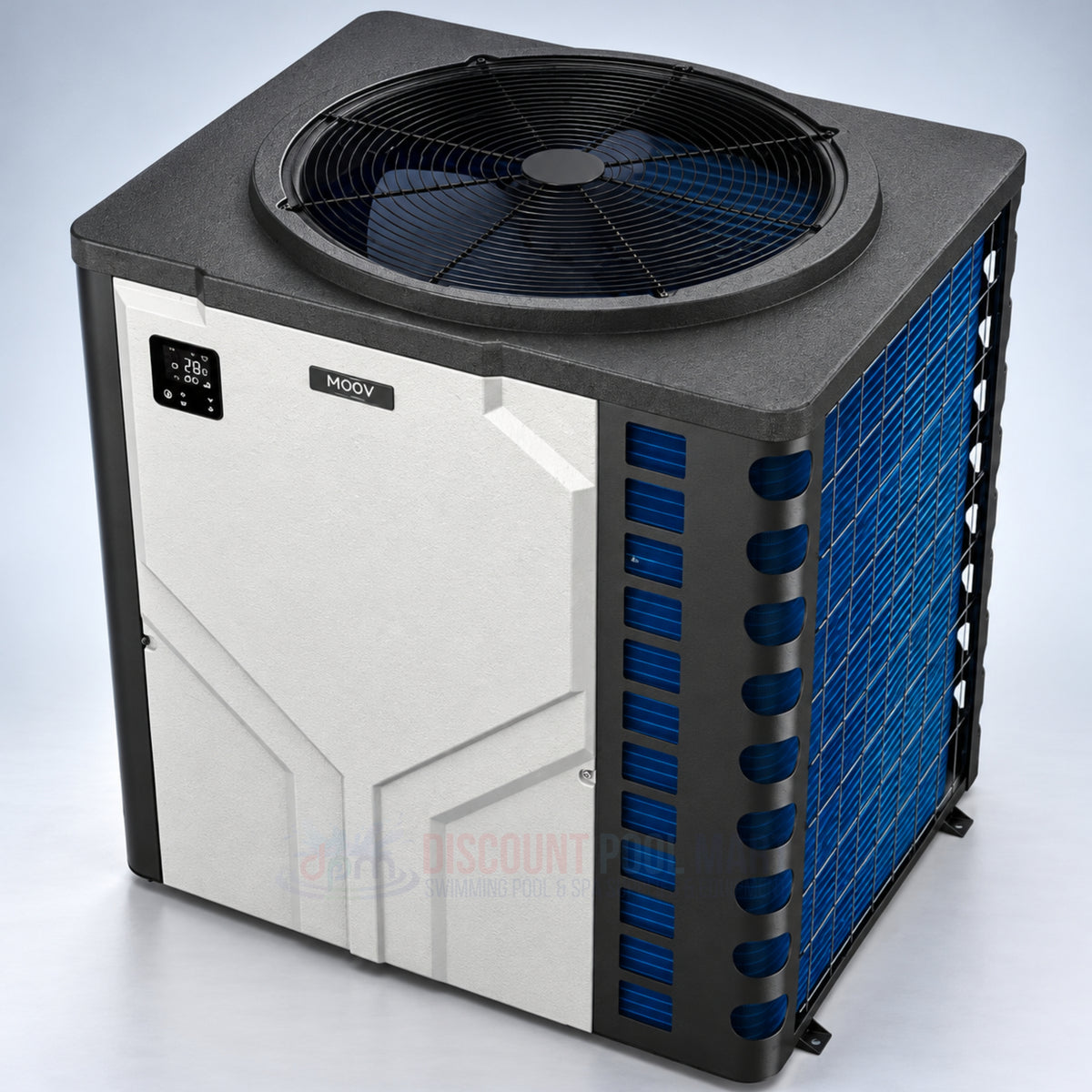

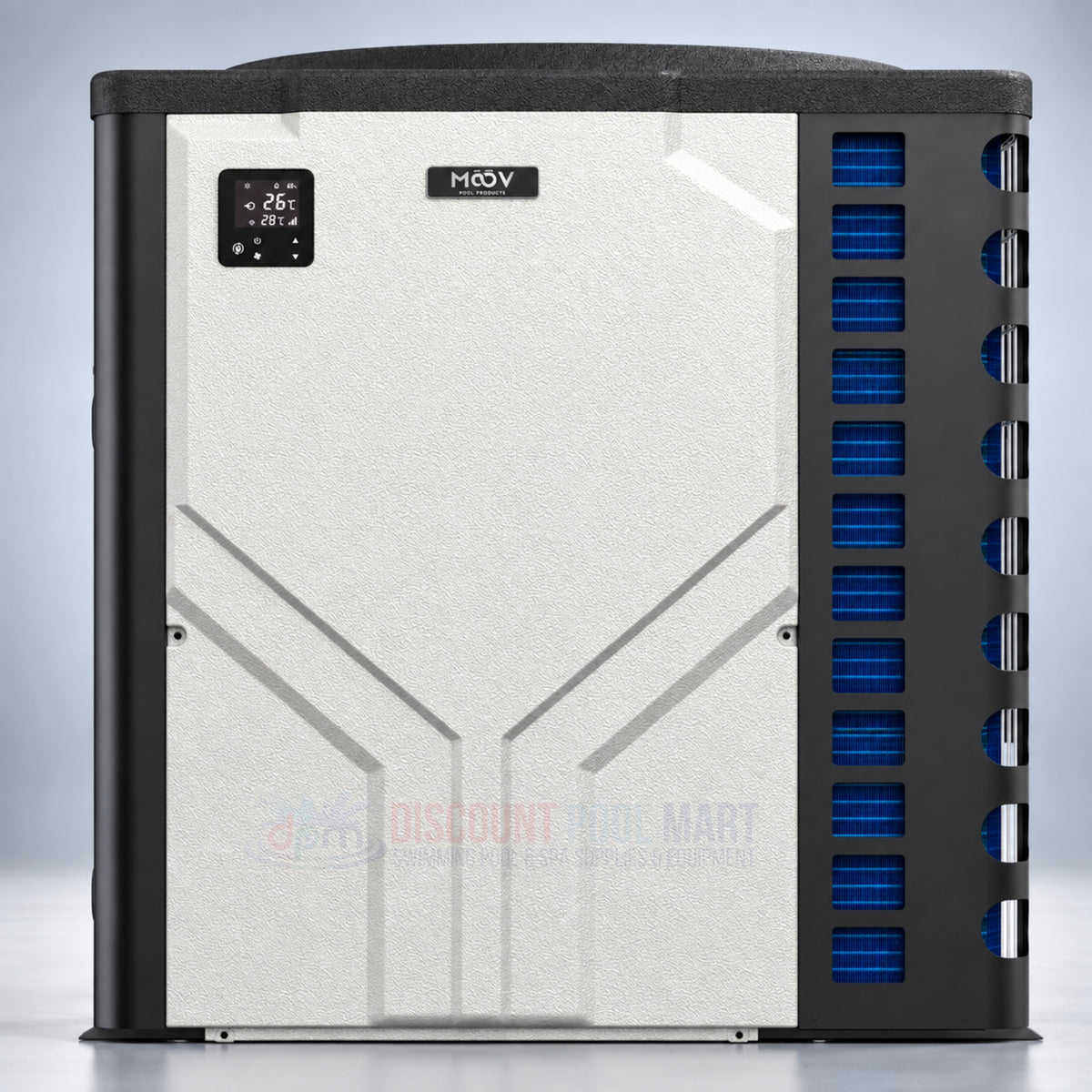

Moov Inverter Variable Speed Pool Heat Pump - 110k-140k BTU
Couldn't load pickup availability
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov
Built InSet temperature, schedule, and switch modes from the Moov app.
Whatever the Pool Needs. Two rotors share the load so the compressor runs balanced at any speed with no shaking. Cold water at the start of the season, it runs wide open. Once you are at temperature it settles into a low-speed hum that sips power. Smart mode picks the speed for you. Silence mode caps it for nights and early mornings.
- Full-inverter compressor and fan, both variable speed
- Smart mode for fastest heat-up, Silence mode for quiet hold
- Reversible-valve defrost keeps it heating down to 32°F air
- AHRI-tested performance
Ten-Year Warranty to Back It. The heat exchanger is a titanium spiral sealed in PVC with 30% more surface area than a straight tube. Salt water, high chlorine, low pH, none of it touches metal that can corrode. The housing is ABS and metal, rated IPX4, with a top-discharge fan that pushes hot air up and away from your equipment pad.
- Titanium-in-PVC spiral exchanger, safe for salt pools
- 2-inch unions, 40 or 50 amp breaker depending on model
- Top-fan vertical discharge, 20 in clearance around, 39 in above
- R410A refrigerant, 208-230V single phase
Go by pool volume first. The MI1100 is rated for pools up to 32,000 gallons and the MI1400 up to 42,000. If you are near the top of the MI1100 range, run a screen enclosure, or want to swim in the shoulder season in Southern California, step up to the MI1400. Undersizing a heat pump means it runs at 100% more of the time, which erases the inverter savings.
Moov rates the Inverter at 30 to 50 percent lower seasonal energy use than a single-speed heat pump of the same BTU. The savings come from holding temperature at low speed instead of cycling on and off at full power. Actual numbers depend on your climate, pool cover use, and set temperature.
Yes. The heat exchanger is titanium sealed in PVC, which does not corrode from salt or chlorine. That is what the 10-year exchanger warranty is backing.
No plug. Both models are hard-wired 208-230V single phase. The MI1100 needs a 40 amp breaker and the MI1400 a 50 amp, both on 8 AWG wire. A GFCI is not required for the unit to run, but if your local code requires one, some GFCI breakers nuisance-trip on variable-speed equipment, so confirm the breaker type with your electrician. Installation must be done by a licensed professional to keep the warranty.
Moov rates it at 48 dB(A) in Silence mode and 50 dB(A) or less at 10 feet. That is quieter than a household refrigerator. A single-speed heat pump of this size typically runs 65 dB or more, which is closer to a window air conditioner.
The MI1100 and MI1400 are heat-only. Moov makes the MIC1100 and MIC1400 with the same body and specs plus a cooling mode. If you want a chiller function, ask us about the MIC versions.
