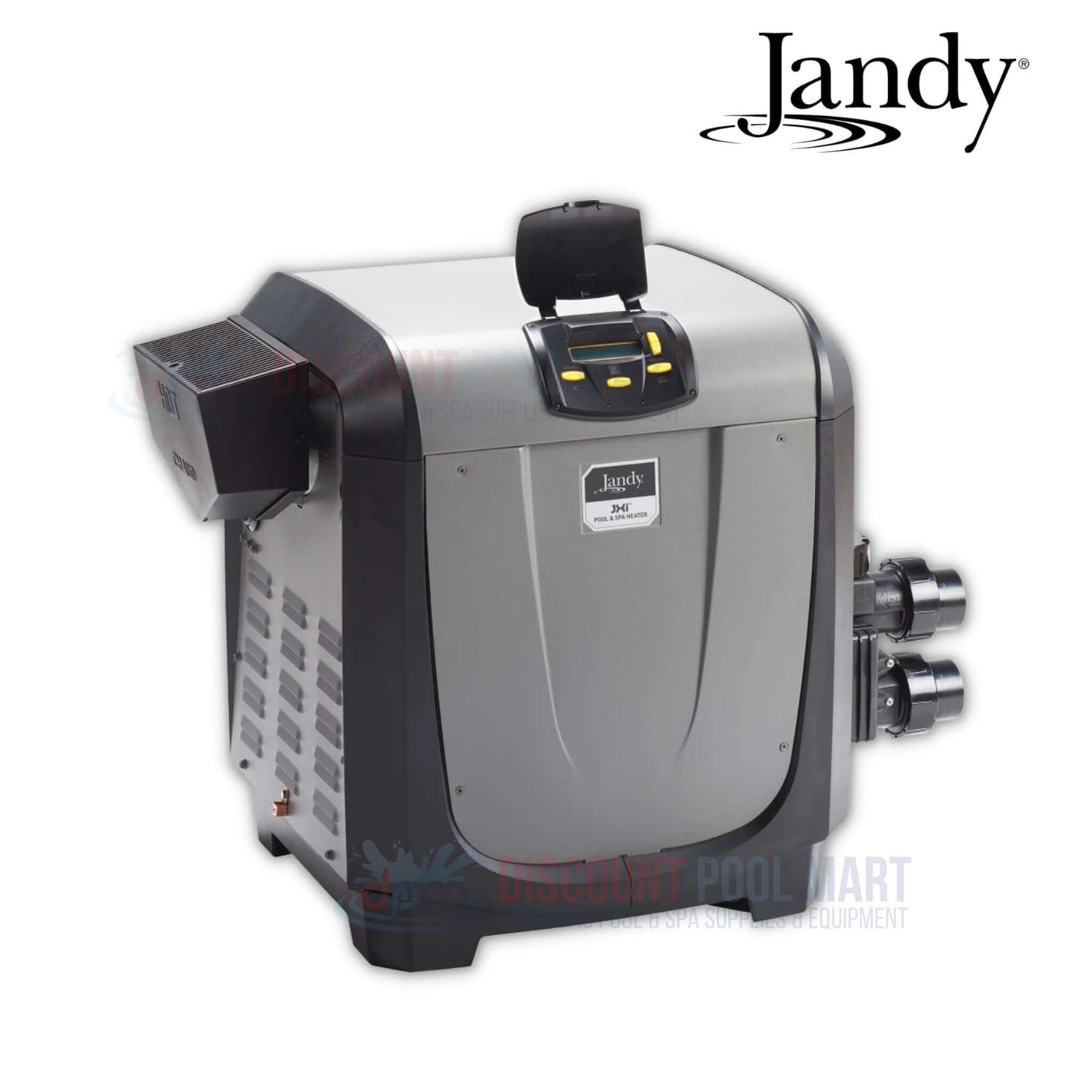

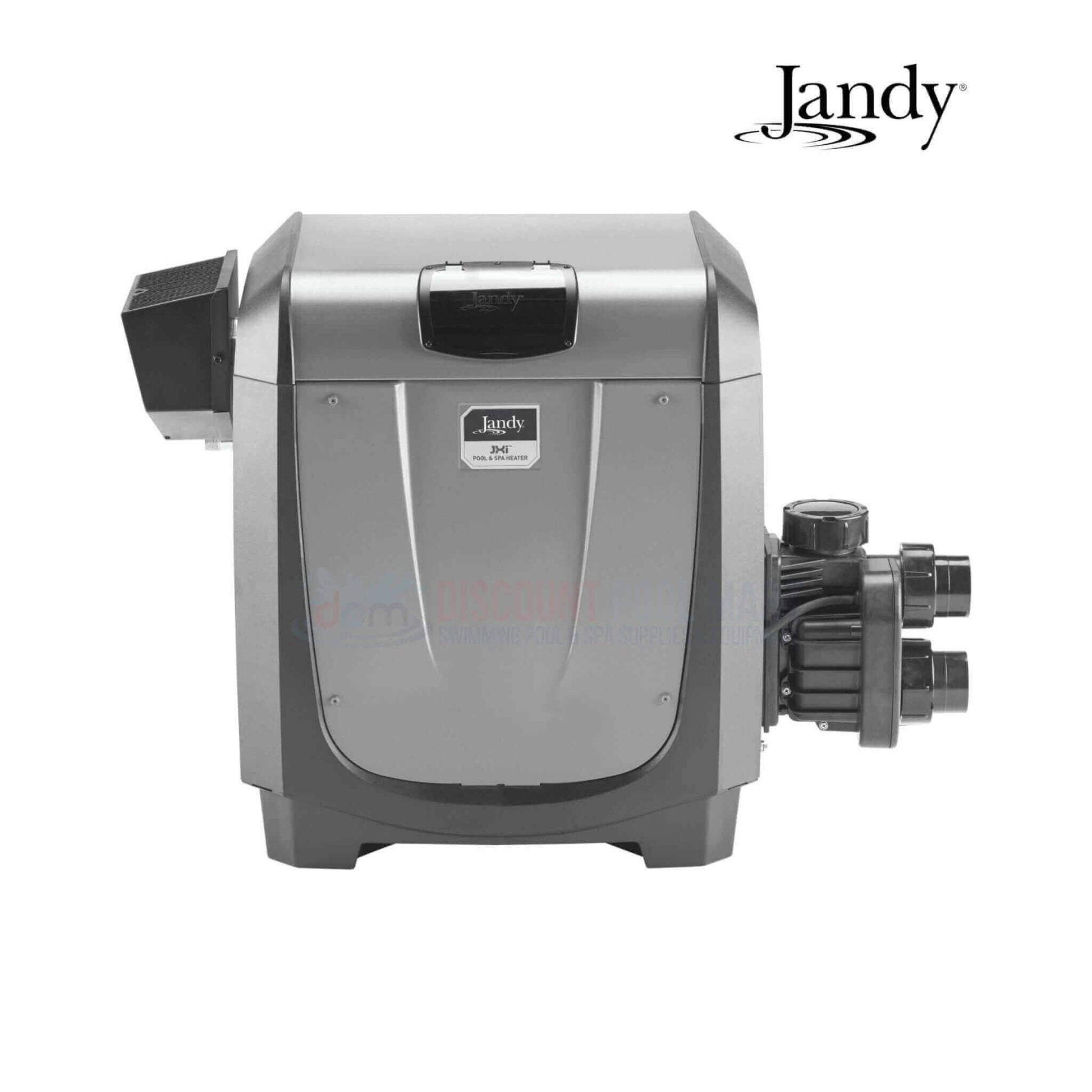

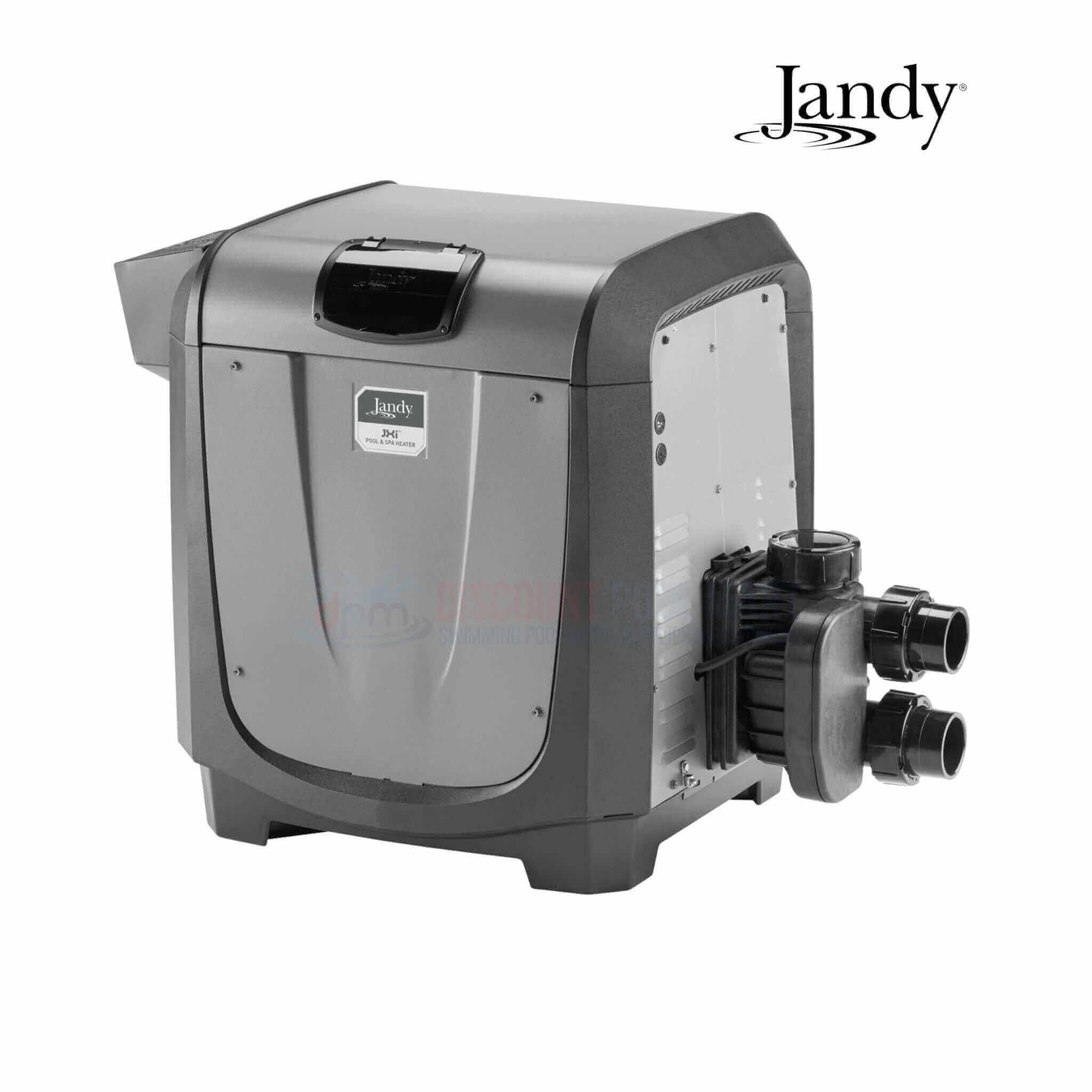

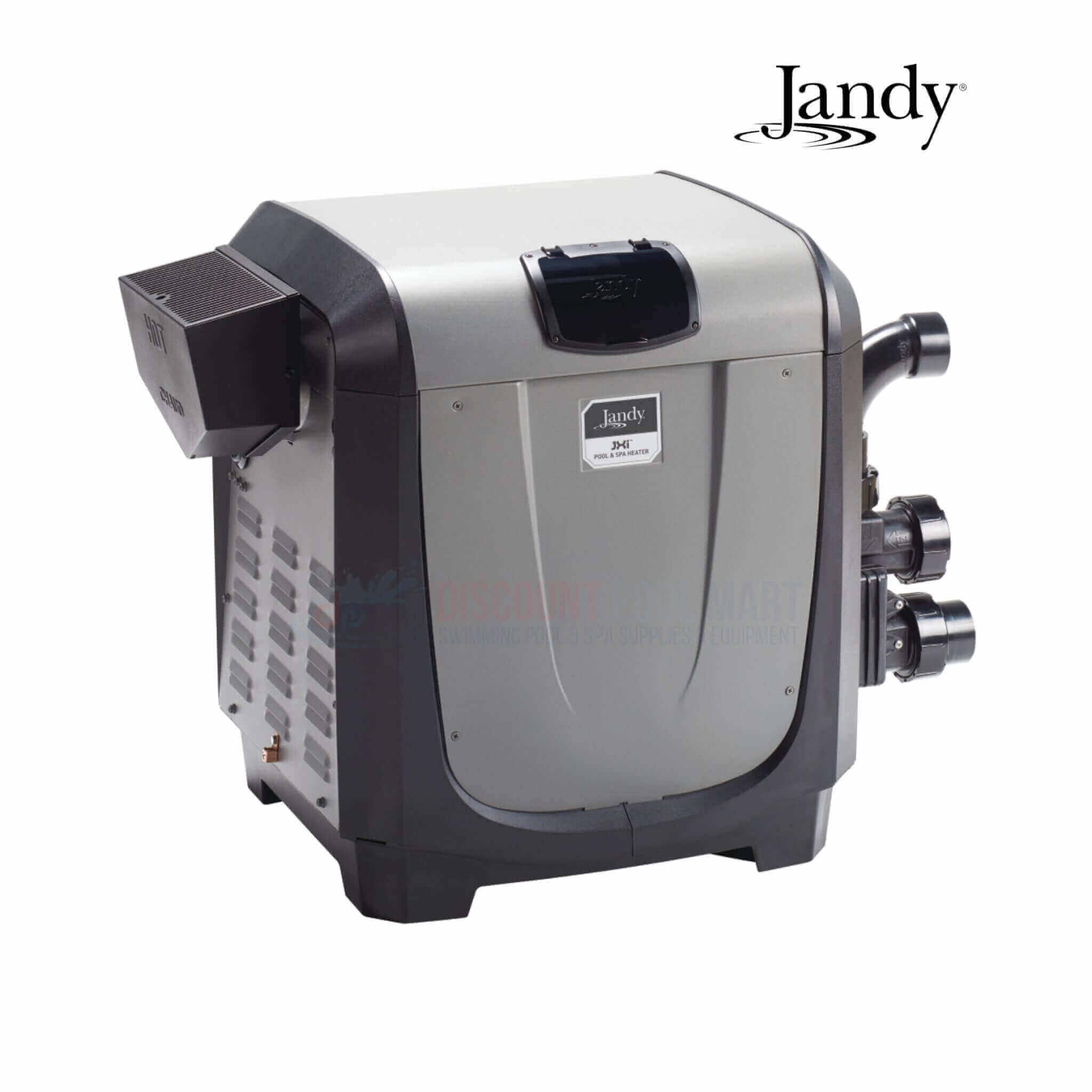

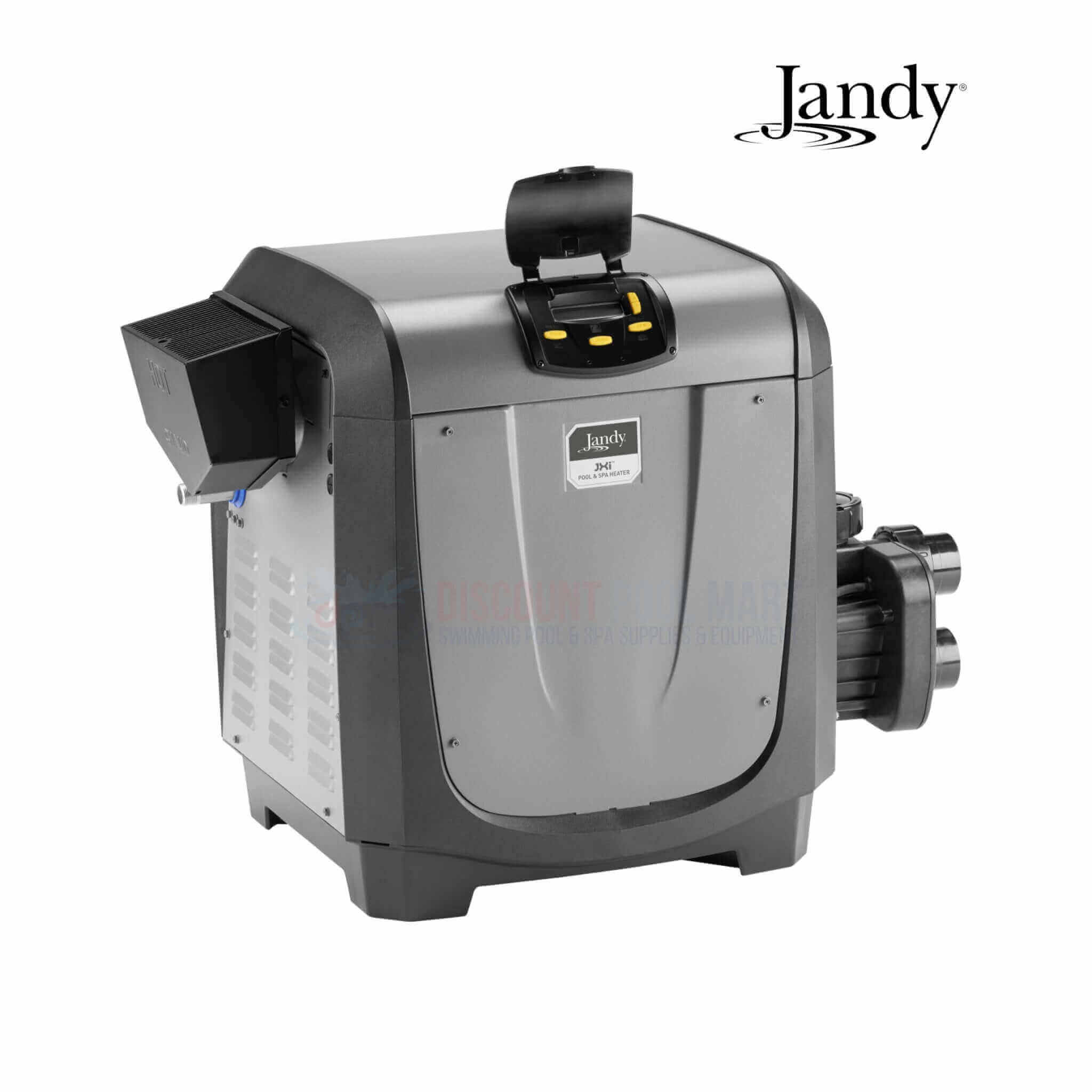

OEM Jandy JXi 400P Propane Pool & Spa Heater | 399,000 BTUs | Low-NOx | Automation Ready. The Jandy JXi 400P Propane Pool & Spa Heater delivers 399,000 BTUs of powerful and energy-efficient heating in an ultra-compact design. With an 84% thermal efficiency rating and low-NOx emissions, it meets strict DOE energy standards while offering eco-friendly performance for both residential and commercial pools and spas.
Weighing approximately 126 pounds and measuring just 22.1" D x 21.6" W x 26.5" H, the JXi 400P is perfect for fast installations and retrofits—often replacing heaters like MasterTemp® or Max-E-Therm® without plumbing modifications. It's fully automation-ready, compatible with Jandy’s AquaLink® systems and the iAquaLink® app for convenient remote control. Models with optional VersaFlo™ Integrated Bypass technology offer even greater energy efficiency.

Energy-Efficient Heating
84% thermal efficiency rating and low-NOx design surpasses strict DOE Energy Efficiency requirements.
Automation-Ready
Compatible with AquaLink® automation systems for anytime, anywhere control from your mobile device using the iAquaLink™ app.


Ultra-Compact Lightweight Design
Easy to store, transport, and install, JXi easily fits on a 2’ x 2’ pad and is 38% lighter with a 28% smaller footprint
Best Retrofit Option
Plumbing flexibility for quick Mastertemp® and Max-E Therm® replacement that requires no plumbing adjustments.


Flexible Installation
Top can be easily removed for increased accessibility and rotated 180 degrees so you never need to rotate headers. Also includes a flip up electrical panel for convenient setup and service.
Versa Plumb® -Ready
Installation in the Versa Plumb system reduces plumbing costs and increases energy efficiency, all while using the smallest footprint available.

Specification
- Includes Versaflo Bypass - No
- Depth - 22.1"
- Efficiency - 84%
- Energy Star - No
- Exchanger - Copper
- Fuel Tipe - Propane
- Headers - Hi-Temp Poly
- Height - 26.5"
- Input Rate Bruh - 399K BTUH
- Max. GPM - 100
- Min. GPM - 30
- Pool Surface Area - up to 600sft
- Professional Installation Required - Yes
-
Smart Product - Automation Compatible
- Vent Diameter - 8"
- Weight - 126 lbs
- Width - 22.9"
Highlights
-
High-Efficiency Heating: 399,000 BTUs with an 84% thermal efficiency rating
-
Ultra-Compact Footprint: Installs easily in tight equipment pads and retrofit applications
-
Low-NOx Technology: Reduces emissions while meeting DOE standards
-
Automation Ready: Integrates with Jandy AquaLink® and iAquaLink® for remote operation
- Optional VersaFlo™ Bypass: Improves hydraulic efficiency and reduces energy consumption
