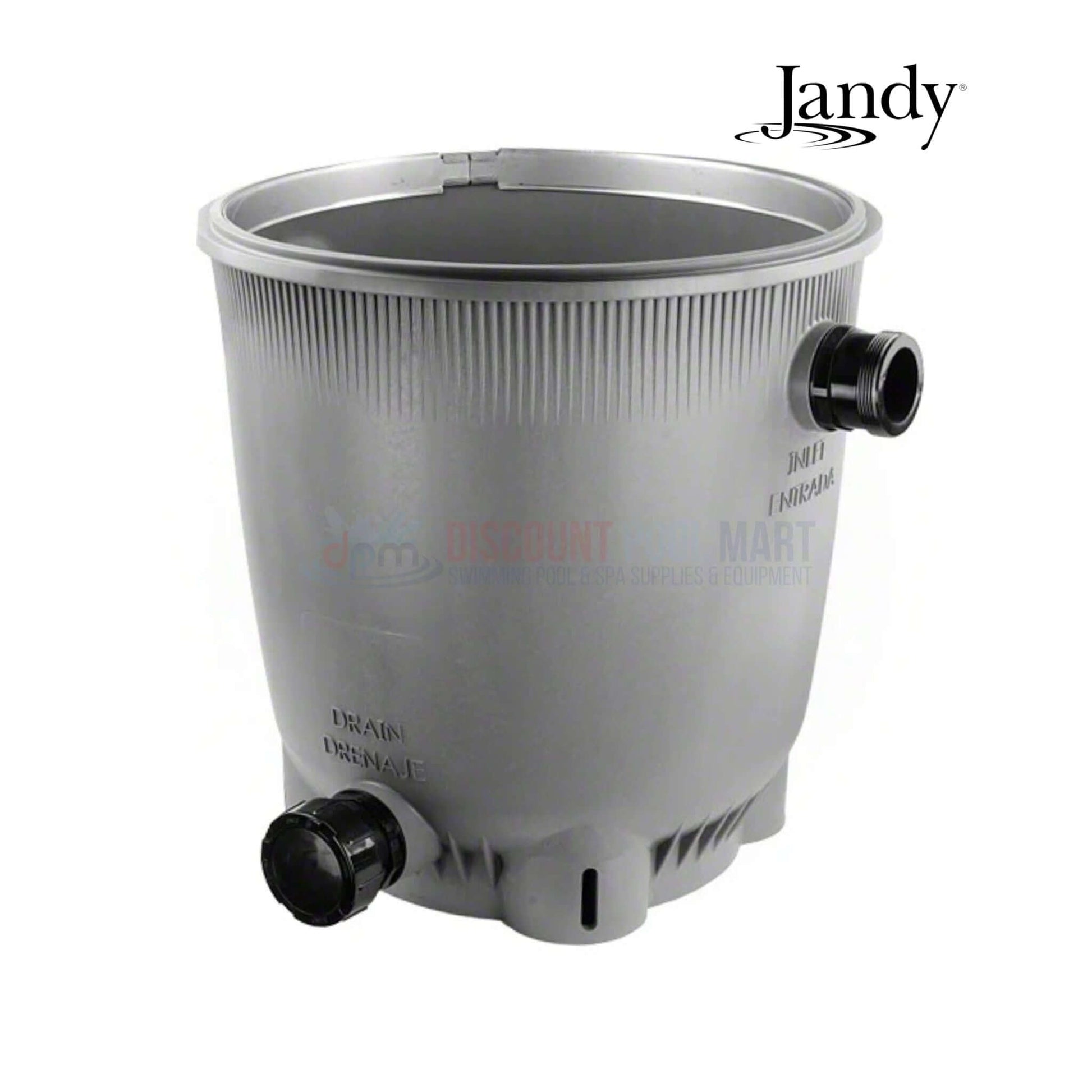

This Jandy R0465400 Tank Bottom Assembly is a comprehensive replacement base section designed for use with Jandy CV-series cartridge filters (models CV340, CV460, CV580). It includes the lower tank body, bulkhead assemblies with O-rings, inlet elbow and drain cap assembly, tank O-ring, retaining ring and union set—delivering an all-in-one solution for replacing a worn or damaged filter base. Manufactured from durable, corrosion-resistant materials, this assembly restores structural integrity and leak-free operation, extending the life of your filtration system while avoiding the cost of complete unit replacement.
-
Complete Replacement Kit: Includes bottom tank, bulkheads with O-rings, inlet elbow, drain cap assembly, tank O-ring and retaining ring, plus union set—everything needed to replace the base of the CV series filter.
-
Fits Major CV Series Models: Compatible with Jandy CV340, CV460 and CV580 filters, making this an ideal solution for repairs or rebuilds of those cartridge systems.
-
Built for Heavy Pool Duty: Constructed with high-quality polymer materials engineered to resist pool chemicals, pressure and environmental exposure for long-term performance.
-
Designed for Side-Inlet/Outlet Flow: Specifically for the CV series configuration with opposite side inlet/outlet ports, ensuring proper hydraulic compatibility and flow restoration.
-
Service-Friendly Setup: By replacing the bottom assembly rather than the full tank, you save time and cost while restoring full function—ideal for technicians and DIY installers alike.

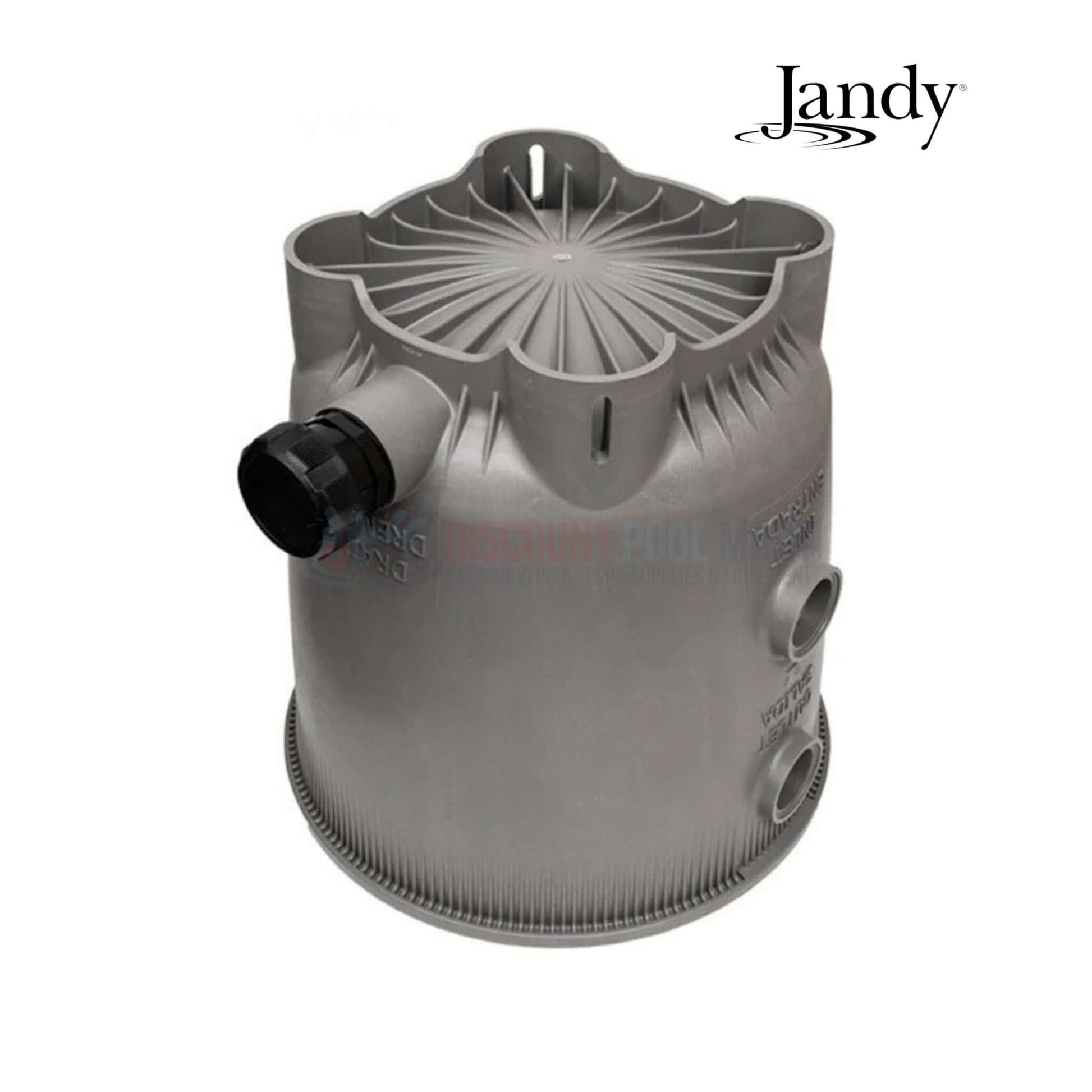

- (1) Jandy Filter Tank Bottom

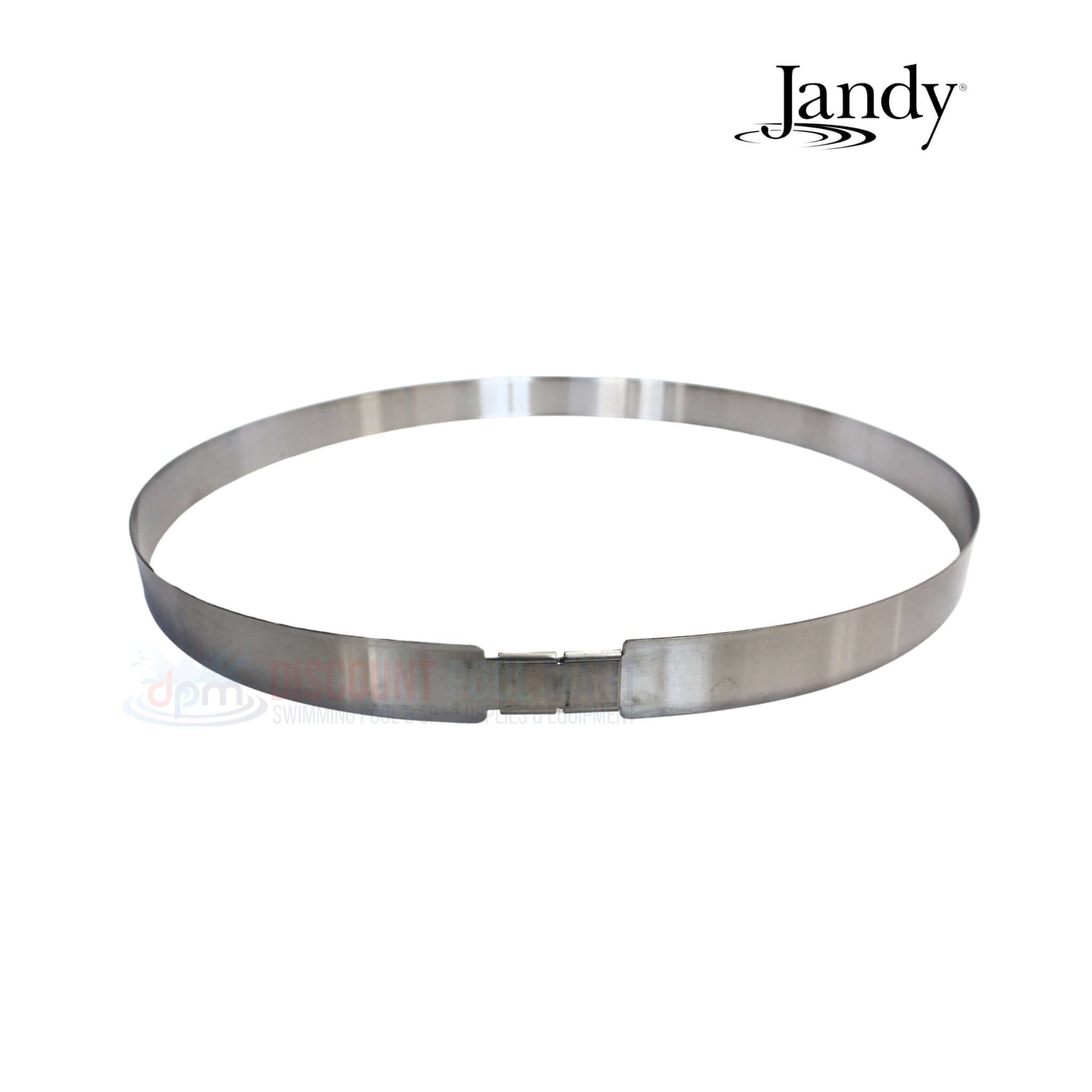

- (1) Retaining Ring R0405200
- (1) Tank O-Ring R0357800
- (1) Drain Cap Assembly R0523000
- (3) BulkHead Assembly With O-Rings R0465600

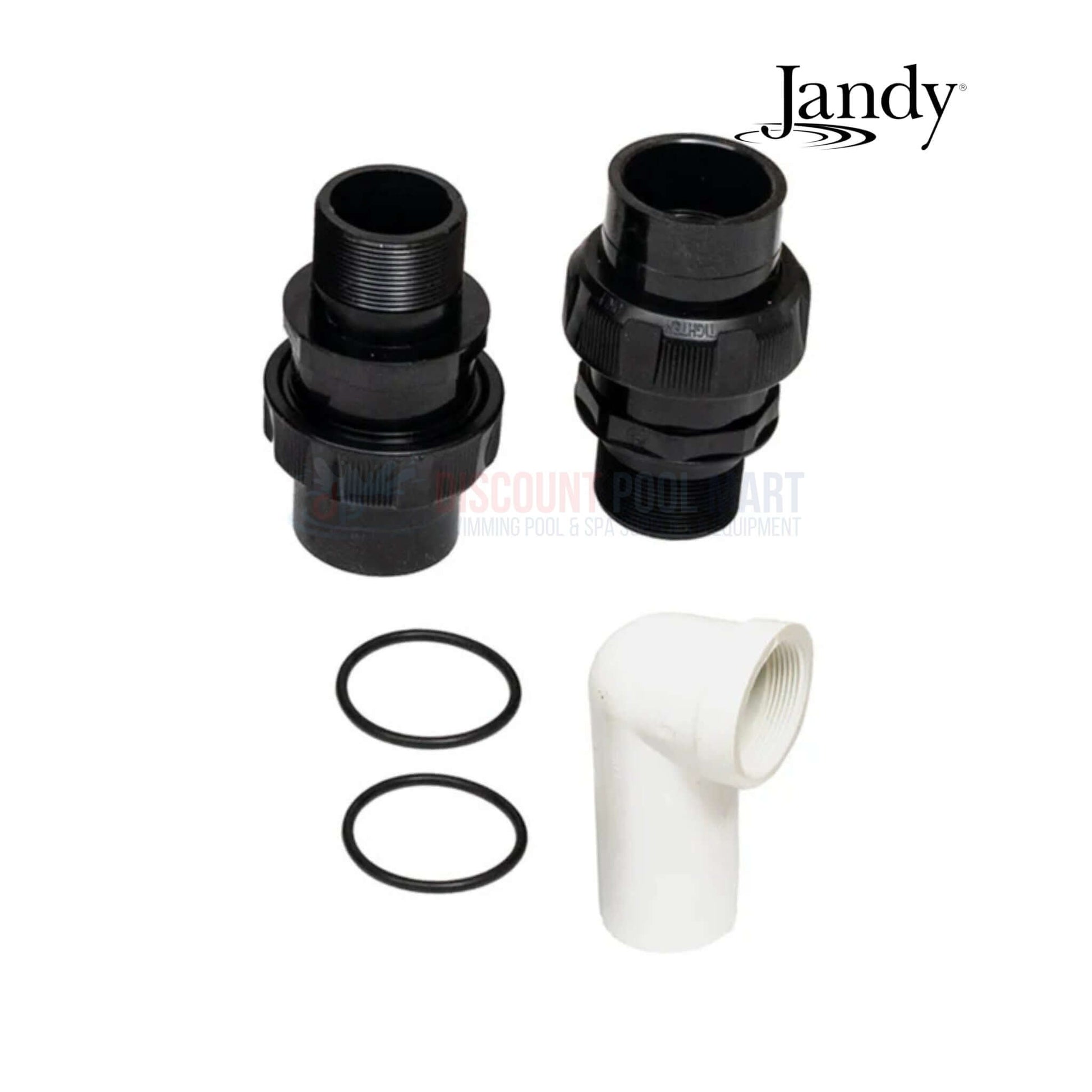

- (2) Universal Union Set R0522900 and R0461800
- (1) Inlet Elbow with O-Ring R0358400
- Jandy CV series cartridge pool and spa filter models: CV340, CV460, CV580
This FAQ helps in-store customers verify CV-series compatibility, understand what’s included in the R0465400 package, and prepare for installation before picking up the part at Discount Pool Mart. It also explains what to bring for fast counter confirmation.
Filter Compatibility, Included Components & Fitment Checks
These answers help walk-in shoppers confirm the assembly matches their Jandy filter.
How do I confirm the R0465400 fits my filter?
Check your filter label for CV340, CV460, or CV580. Bringing a photo of your filter’s model sticker to the store helps staff verify compatibility instantly.
What comes with this tank bottom assembly?
It includes the lower tank body, bulkheads with O-rings, inlet elbow, drain cap assembly, tank O-ring, retaining ring, and the union set—everything required for a full base replacement.
Does this assembly fit side-inlet/outlet CV filters?
Yes. It is specifically engineered for CV-series filters with opposite-side inlet and outlet ports.
Installation Expectations, Leak Prevention & Component Behavior
These answers help customers understand performance once installed.
Does replacing the bottom assembly stop small leaks?
Yes. Most leaks on older CV filters occur at the tank seam or bulkheads. Replacing the full bottom assembly usually restores leak-free operation.
Do I need to replace the top half too?
Not unless it is cracked. Many Discount Pool Mart customers replace only the bottom to restore structural integrity without buying a full filter.
Will the new bulkheads improve plumbing alignment?
Yes. The included bulkhead assemblies typically tighten and align better than worn originals.
In-Store Pickup, Prep Tips & Part Verification
Helpful guidance for Discount Pool Mart customers before visiting.
What should I bring to confirm fitment?
Bring photos of your filter label, plumbing layout, and bottom tank condition to help staff verify the correct model.
Can I inspect the assembly in store?
Yes. You can review the bulkheads, union set, and tank O-ring before purchasing.
Is the assembly ready for installation after pickup?
Yes. Once the old base is removed and the bulkheads are sealed and tightened, the system is ready to reassemble.
