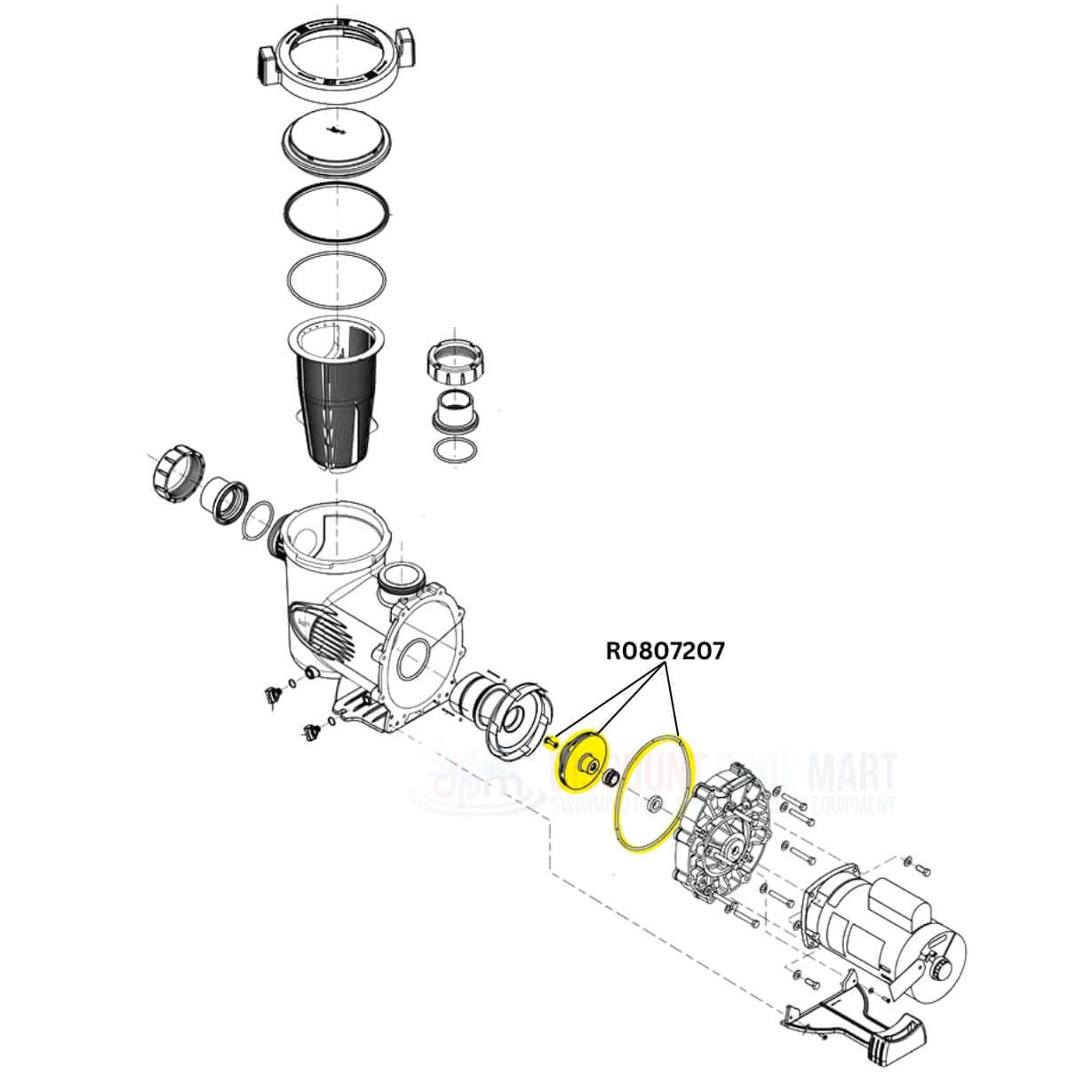

On the Jandy Stealth SHPF/SHPM Single Speed Pump diagram
This part
Open the full interactive diagram →
Other parts on the same Jandy Stealth SHPF/SHPM Single Speed Pump

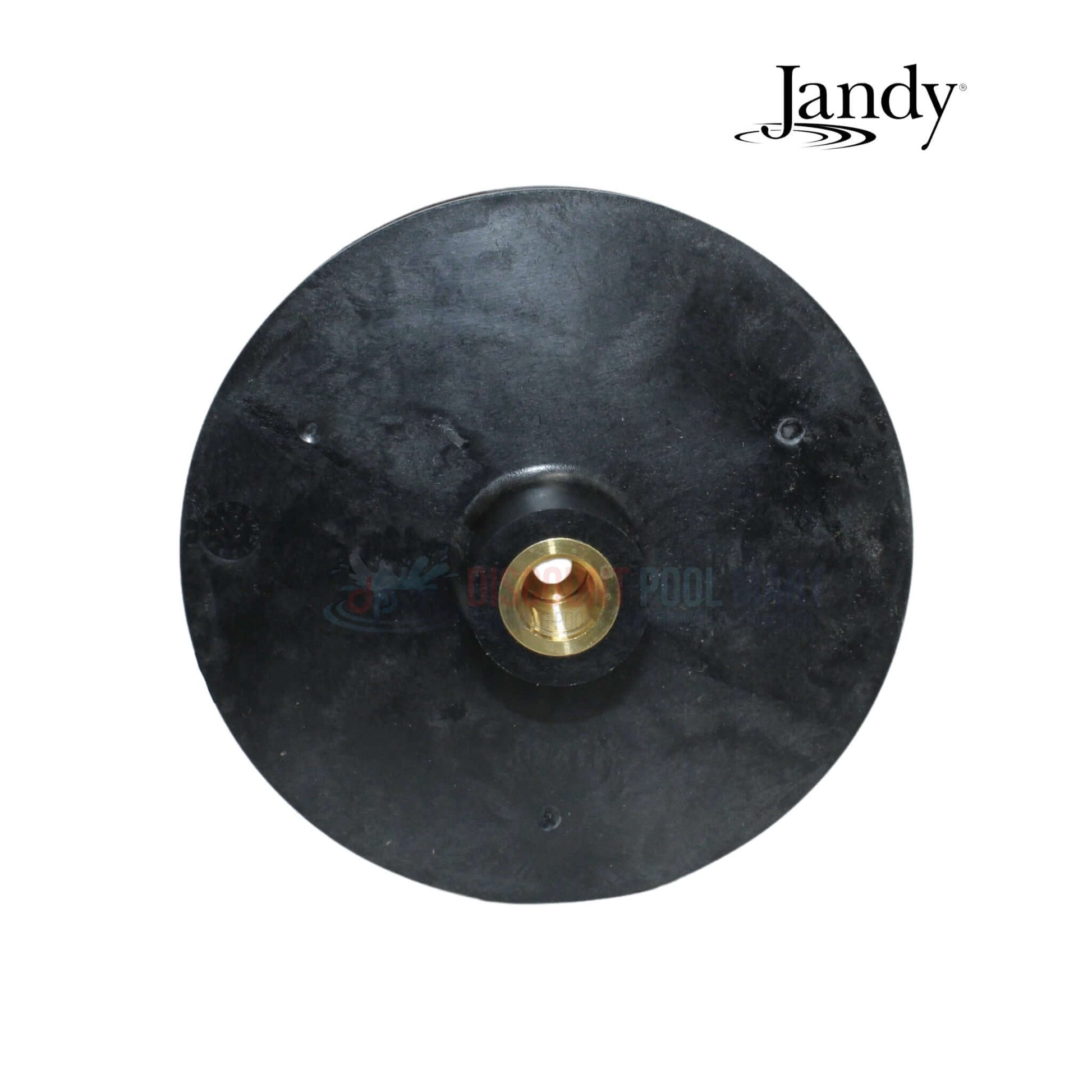

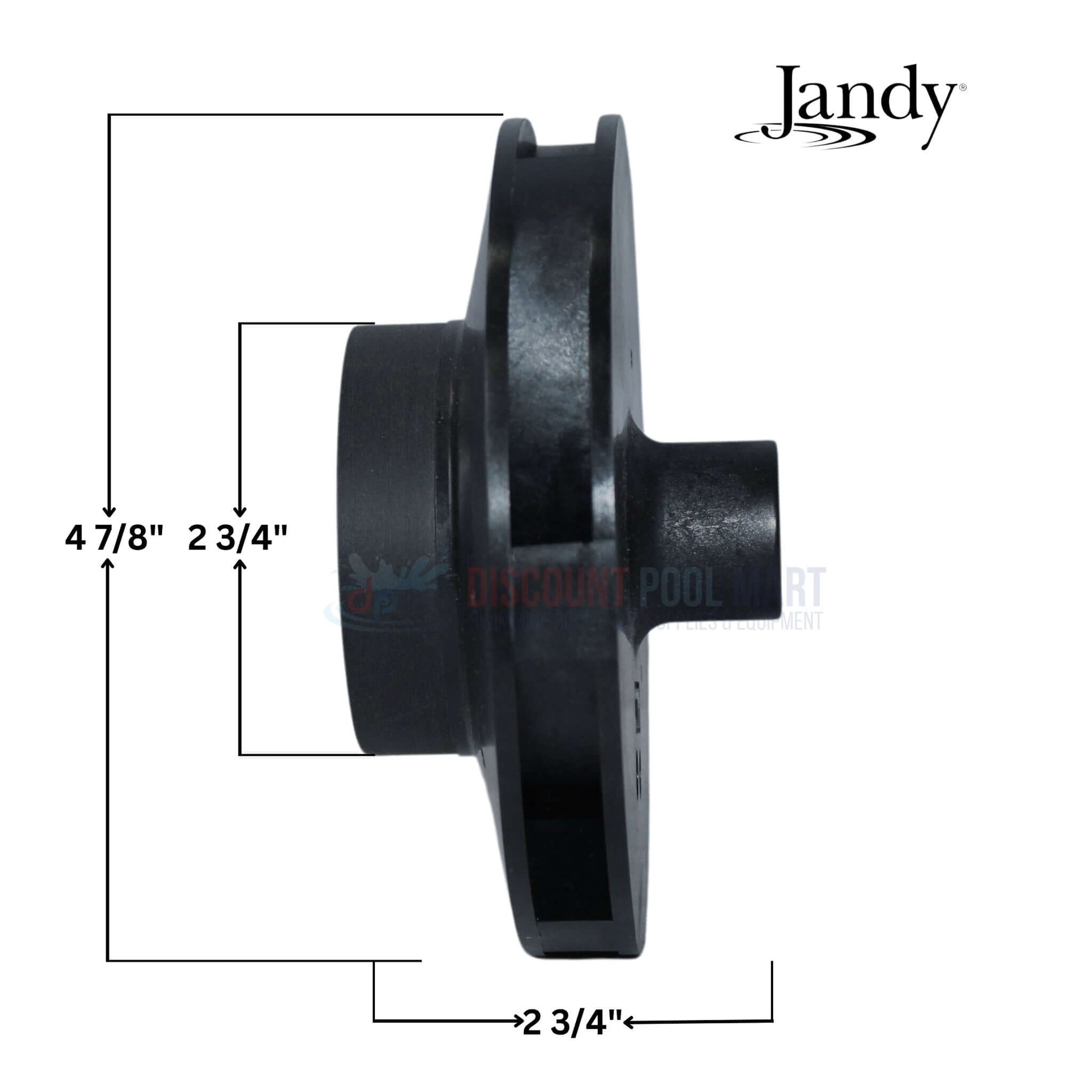

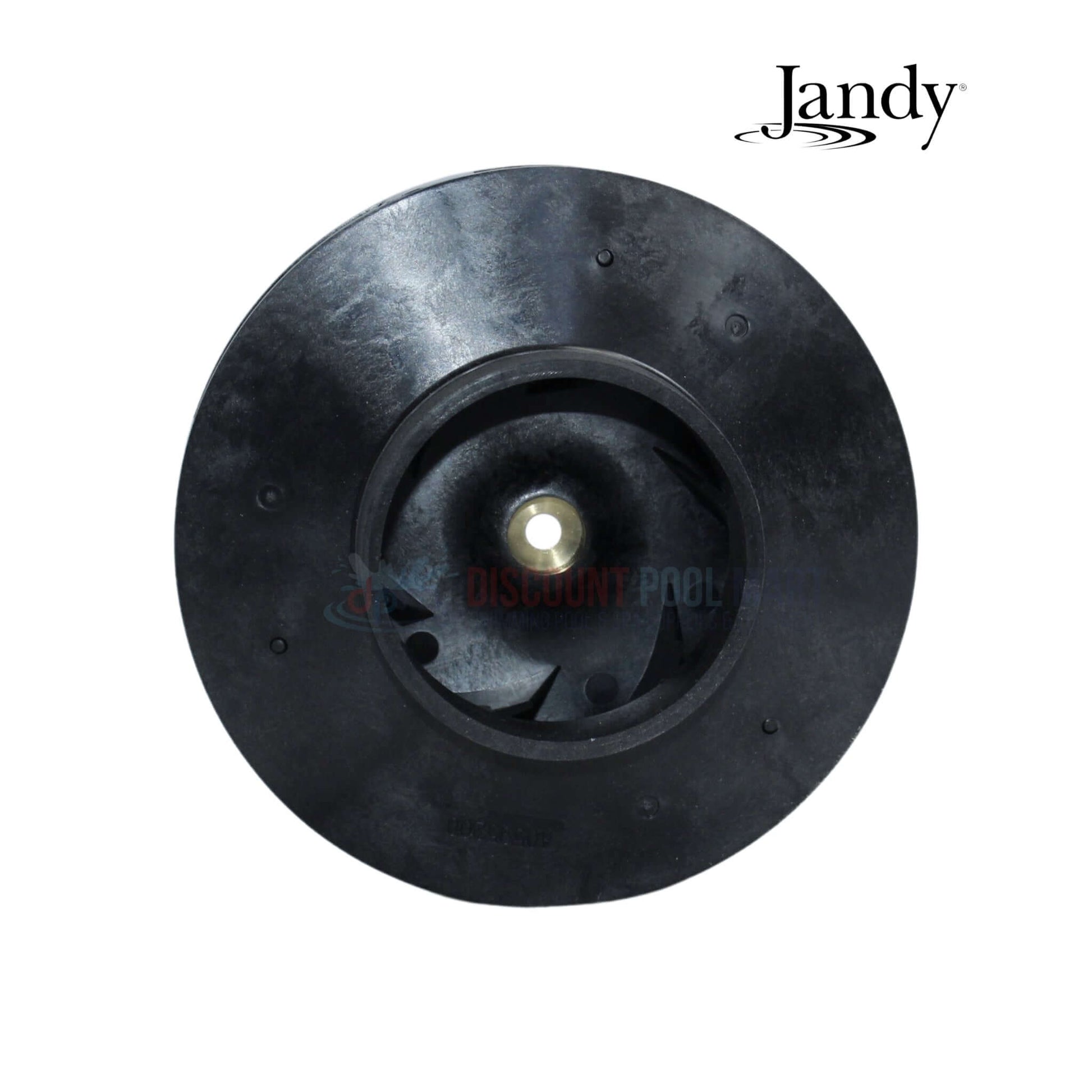

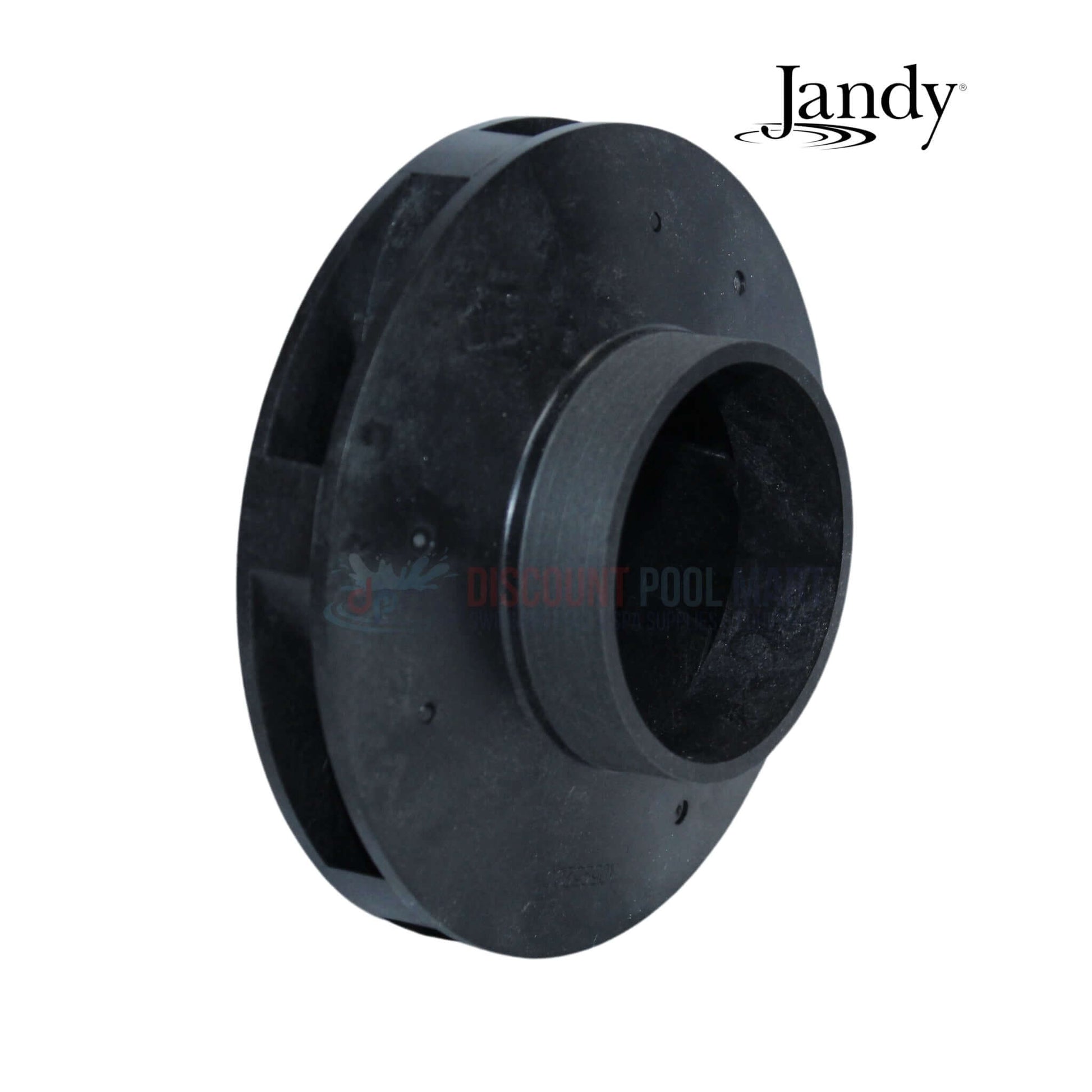

OEM Jandy Impeller Kit R0807207 is engineered for compatibility with Jandy SWF125 0.75HP and SHPF 5.0HP pump models. The kit includes a closed-face impeller, mounting screw, and backplate O-ring, all essential components that help maintain efficient water circulation. Its design supports reliable pump performance in both residential and commercial pool environments. The closed-face impeller ensures smooth operation under higher pressure conditions. With all necessary parts included, this kit plays a vital role in preserving optimal pump function and water flow within your system.
-
Built for SWF125 & SHPF Pumps: Engineered to fit Jandy SWF125 0.75HP and SHPF 5.0HP pumps with guaranteed compatibility
-

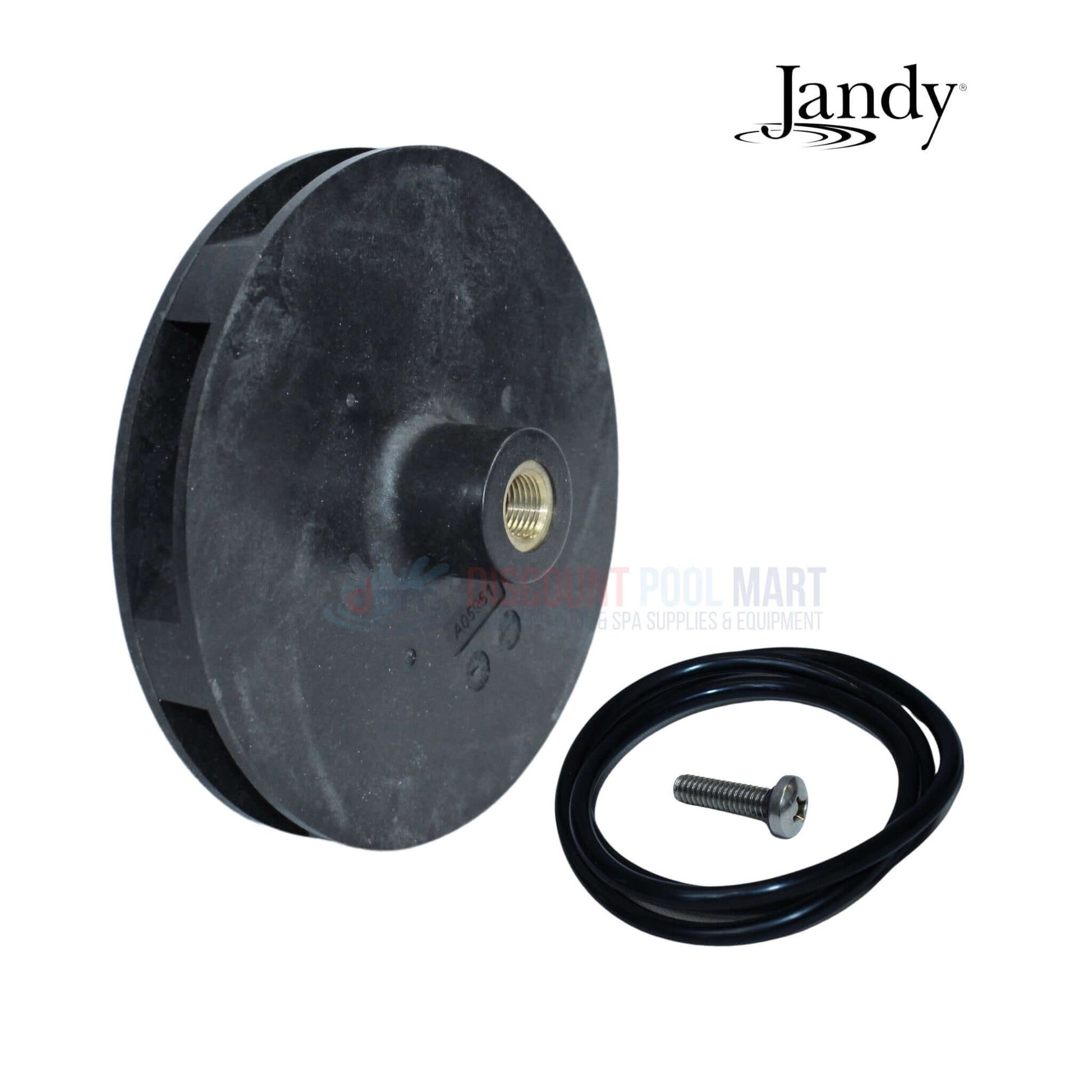

Complete Kit Components: Includes the impeller, screw, and backplate O-ring for a full performance restoration
-
Closed-Face Impeller Design: Ideal for heavy-duty residential and commercial setups requiring consistent pressure and flow
-
Maintains Pump Performance: Supports proper water movement and helps extend pump life through efficient circulation
-
Crucial for Circulation System: Plays a key role in preserving clean, balanced water by ensuring consistent flow
- (1) Impeller
- (1) O-Ring
- (1) Screw
- Jandy Stealth SHPF 5 Horsepower Pumps
- Jandy SWF125 0.75 Horsepower Pumps
