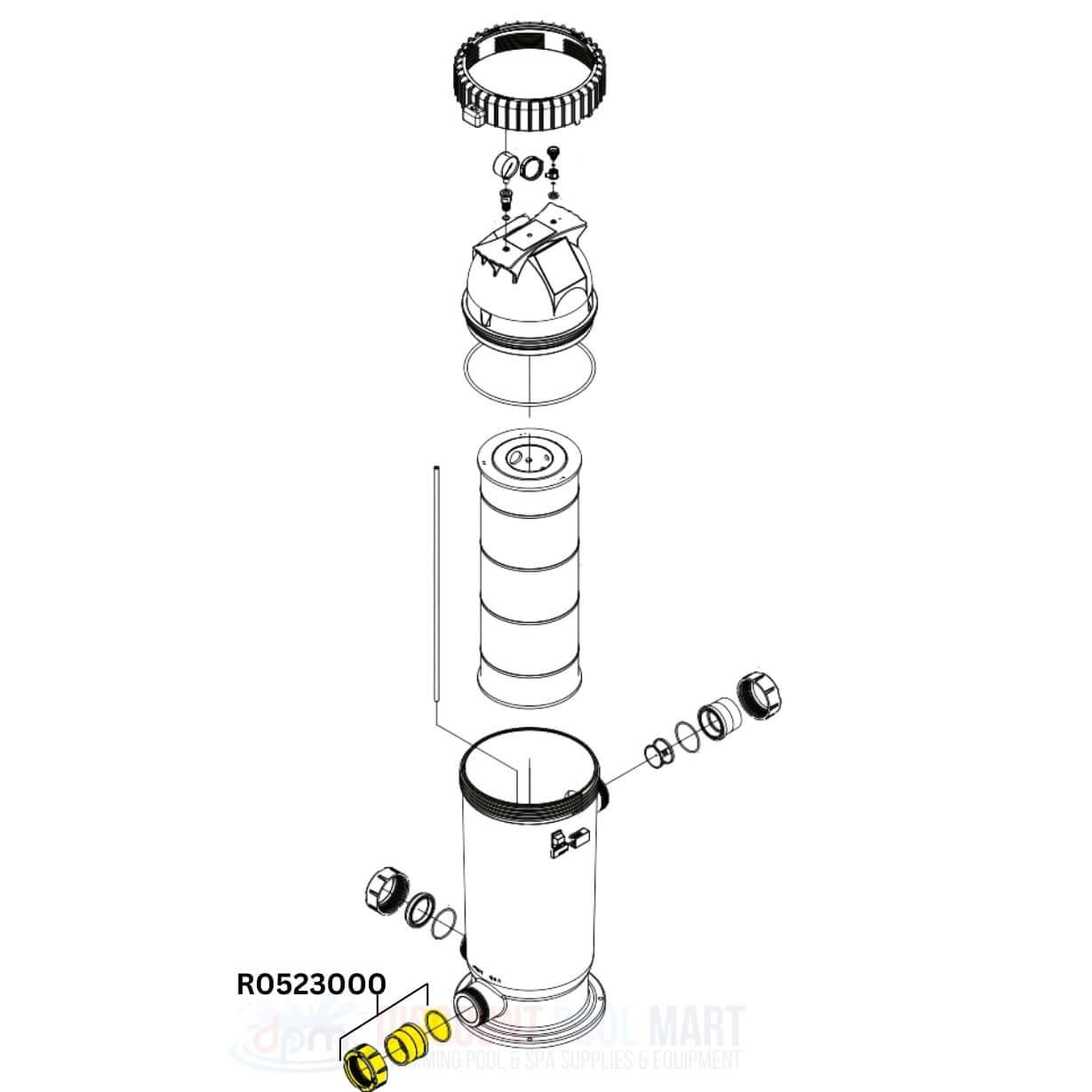

On the Jandy CS Series Cartridge Filter diagram
This part
Open the full interactive diagram →
Other parts on the same Jandy CS Series Cartridge Filter
OEM Jandy DE Filter Complete Grid Assembly for DEV48 and DEL48 is a key replacement part for maintaining the performance and clarity of your pool's filtration system. Designed to fit Jandy DEV series DEL filter models DEV48 and DEL48, this complete assembly includes all required DE grids for a full system refresh. The high-quality grids efficiently capture debris and fine particles, helping to keep pool water clean and balanced. With a durable build and easy installation, this assembly ensures long-term filtration reliability and simplified maintenance.
-
Maintains Filter Efficiency: Crucial for supporting the full operational performance of your DE filter system, keeping your water consistently clean
-
Fits DEV48 and DEL48 Filters: Precision-engineered to match Jandy DEV series DEL filter models for seamless compatibility and secure installation
-
Complete Grid Replacement: Comes with all eight grids and matching components needed to restore full filtration capacity with minimal effort
-
Effective Debris Capture: Designed to trap dirt, leaves, and fine particles to preserve water clarity and reduce the load on your pool's sanitation system
-
Durable and Simple Install: Built from high-strength materials for long-term durability and designed for quick, user-friendly installation

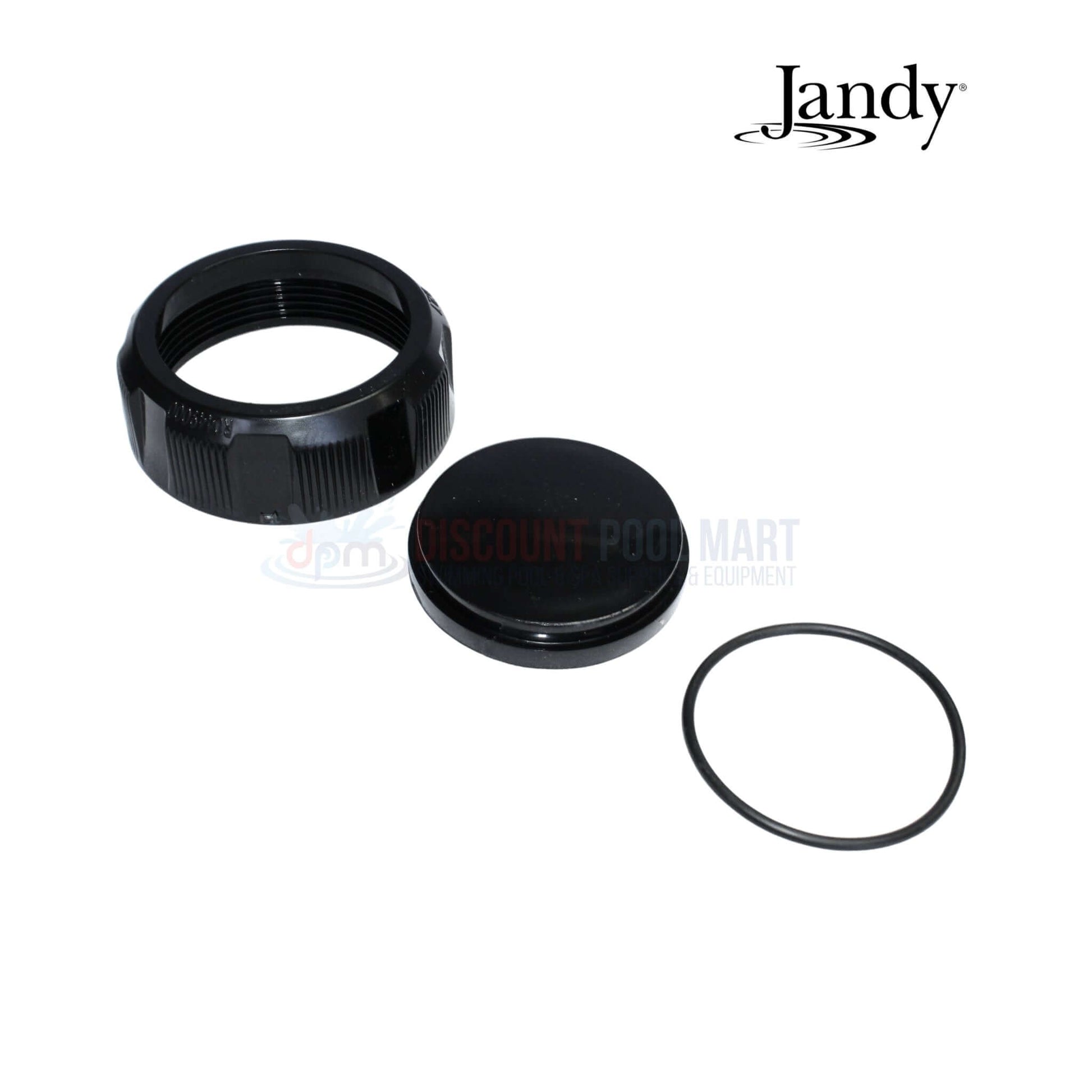

Includes

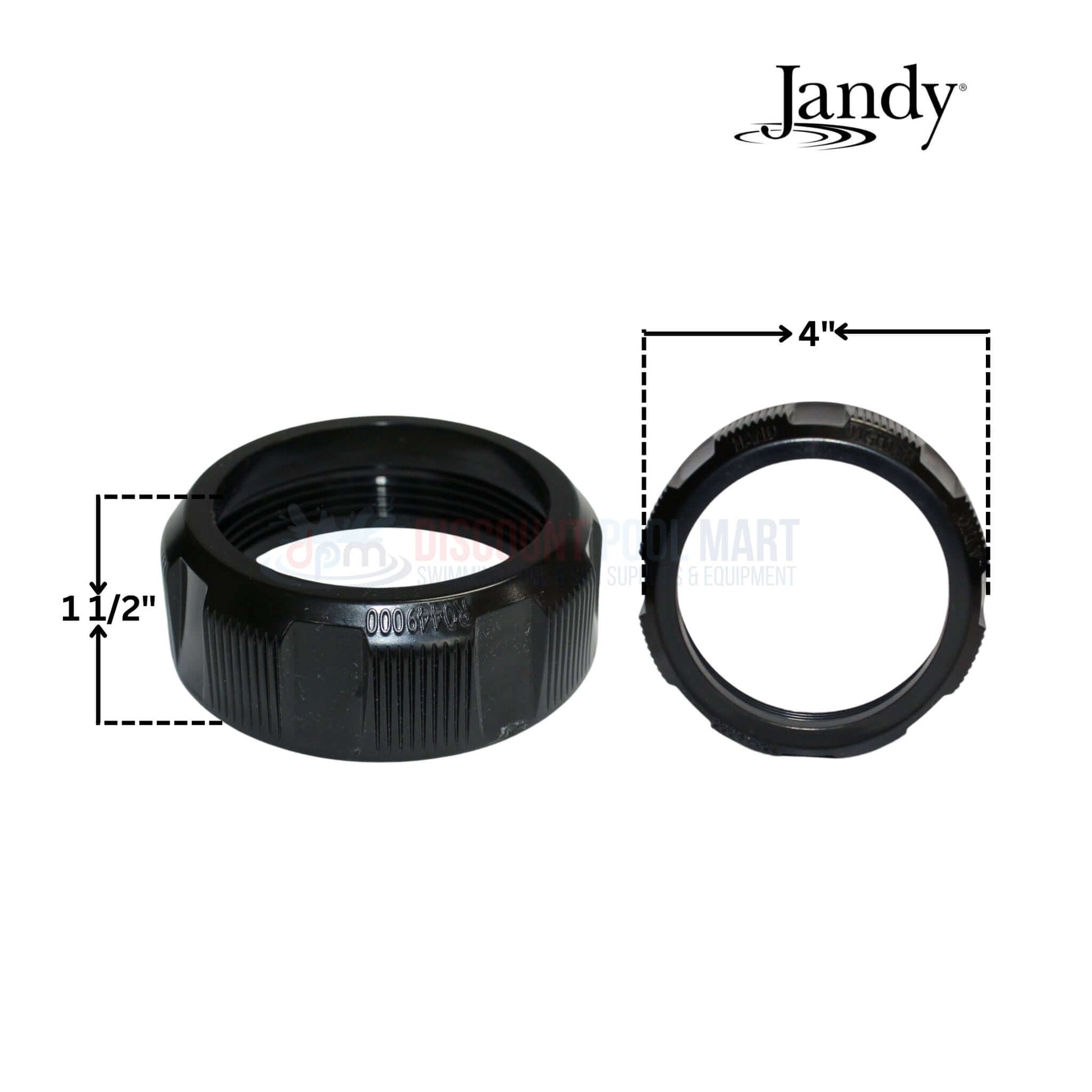

- (1) Connector Nut

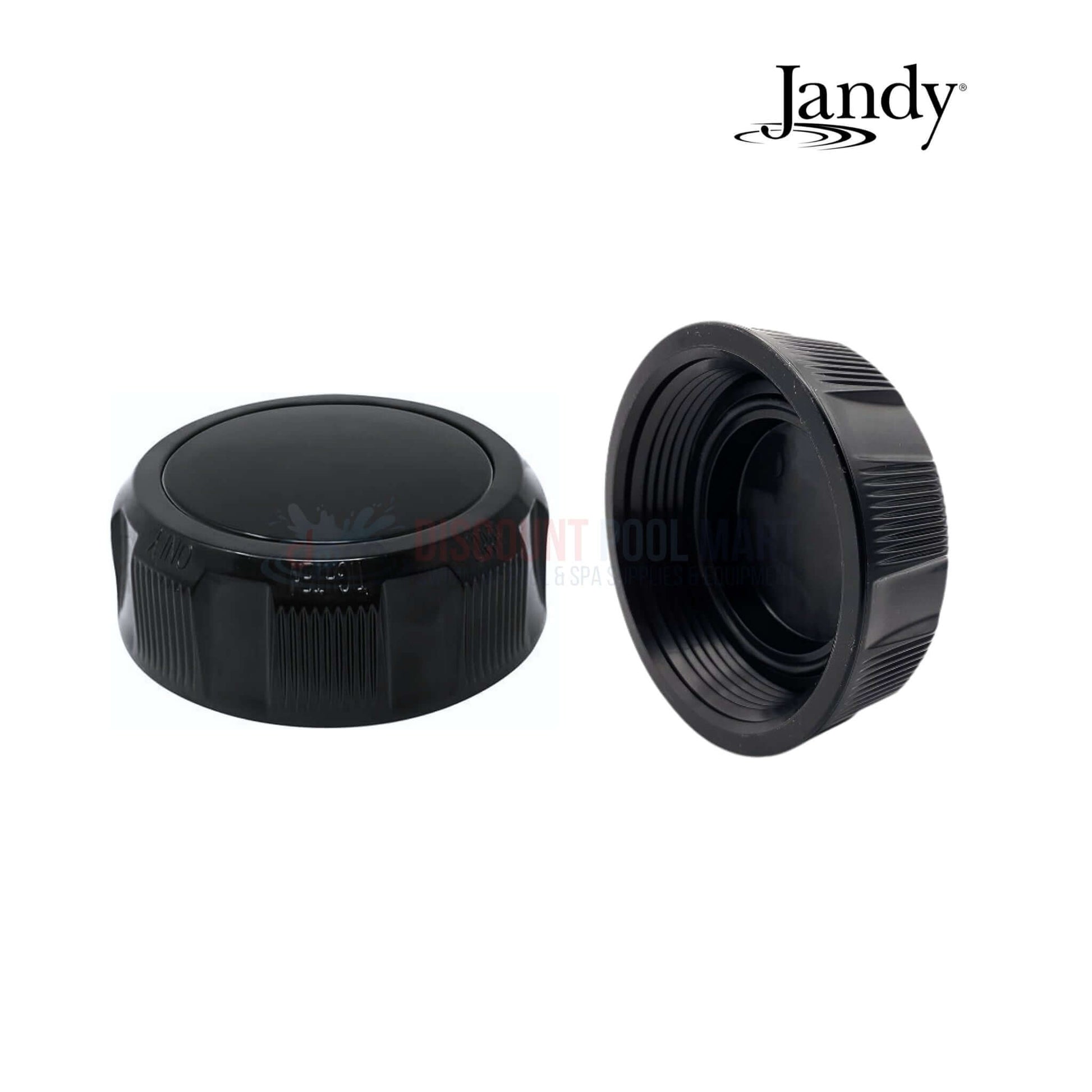

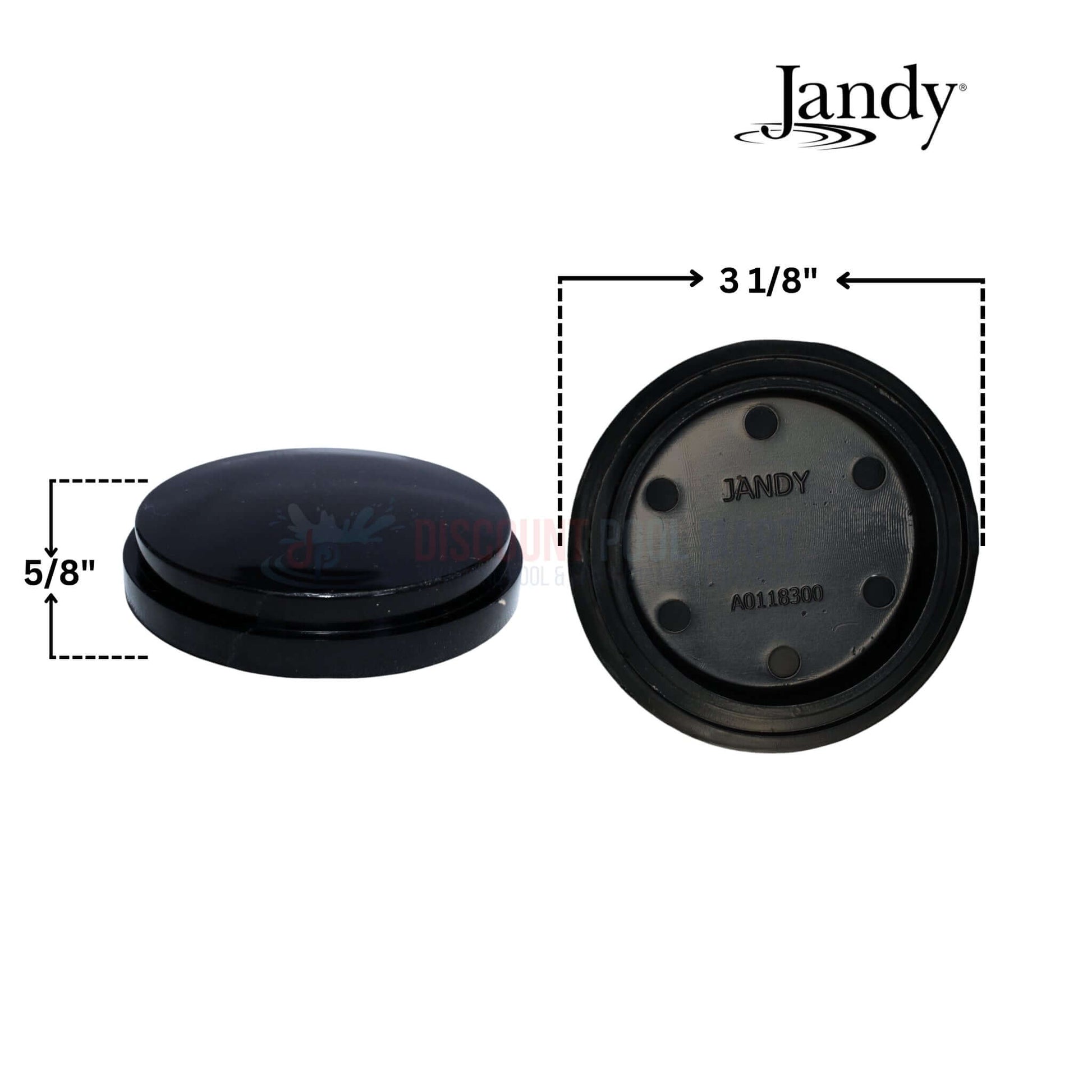

- (1) Drain Plug Cap

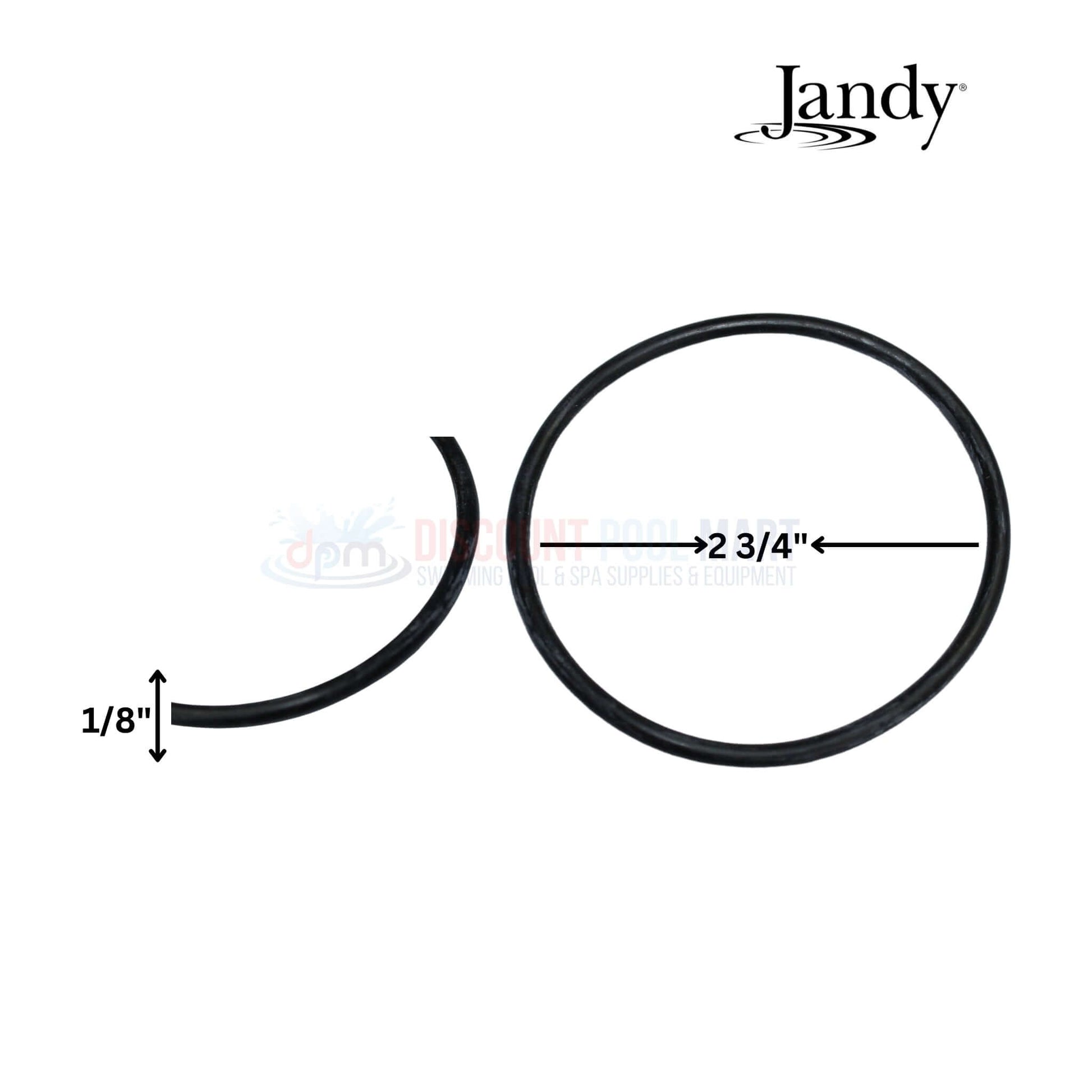

- (1) O-Ring
- Jandy DEV Series D.E. Pool and Spa Filter Models: DEV48, DEV60
- Jandy CV series cartridge pool and spa filter models: CV340, CV460, CV580
- Jandy CL series cartridge pool and spa filter models: CL340, CL460, CL580
- Jandy CS series cartridge pool and spa filter models: CS100, CS150, CS200, CS250
- Jandy JXI Series Propane Heaters: JXI400N, JXI400NK, JXI400NN, JXI260N, JXI260NK, JXI200N, JXI200NK Natural and JXI400P, JXI400PN, JXI400PK, JXI260P, JXI260PK, JXI200P, JXI200PK
