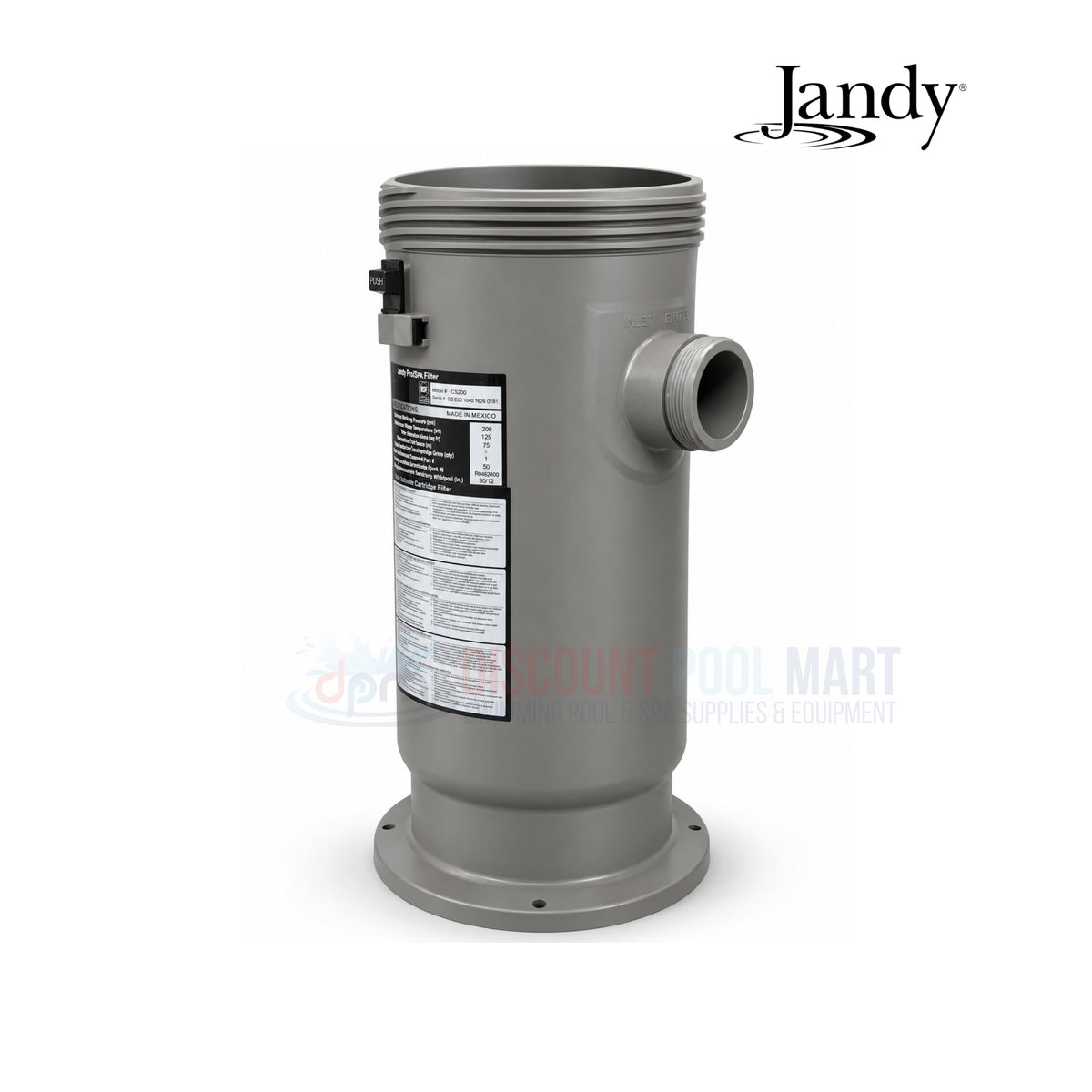

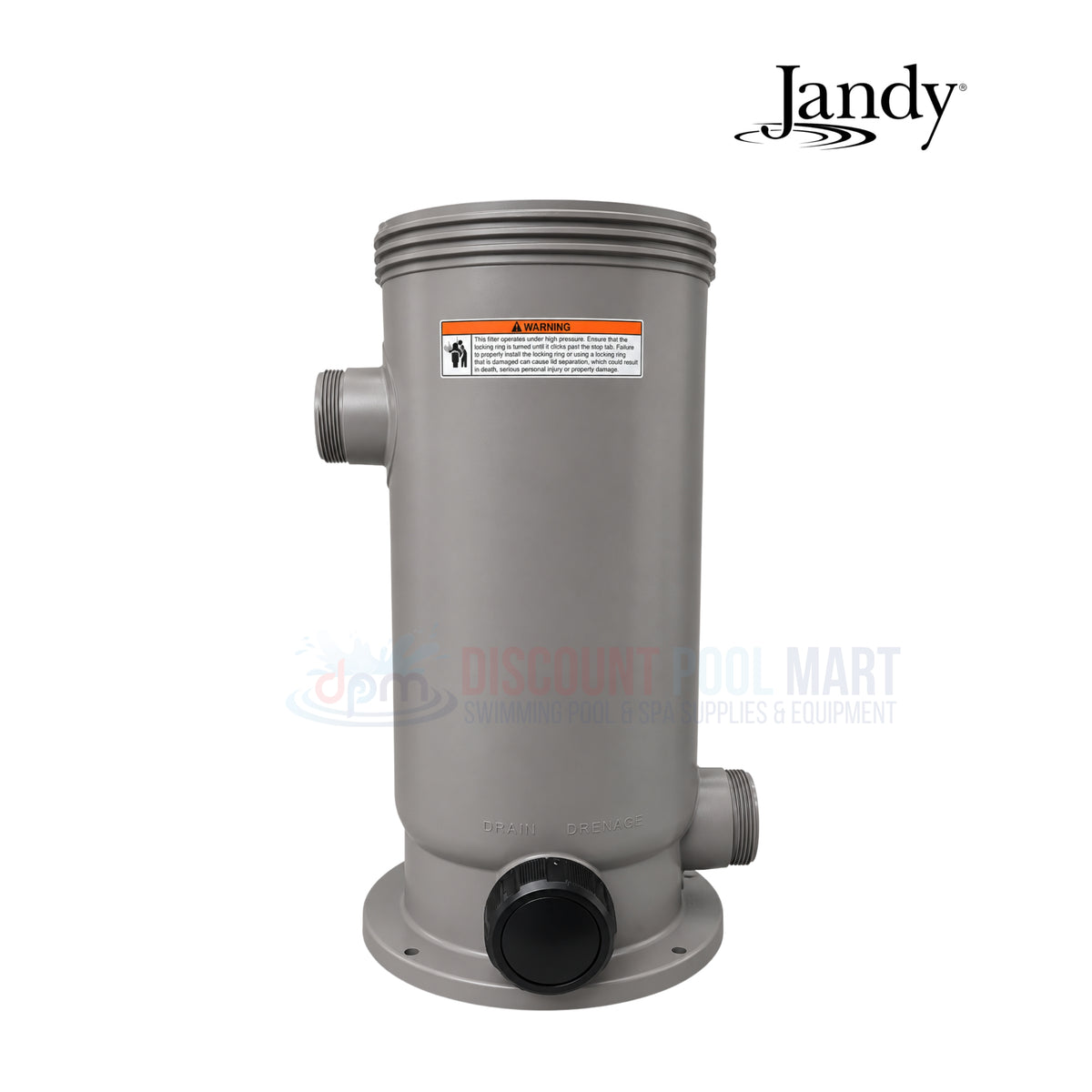

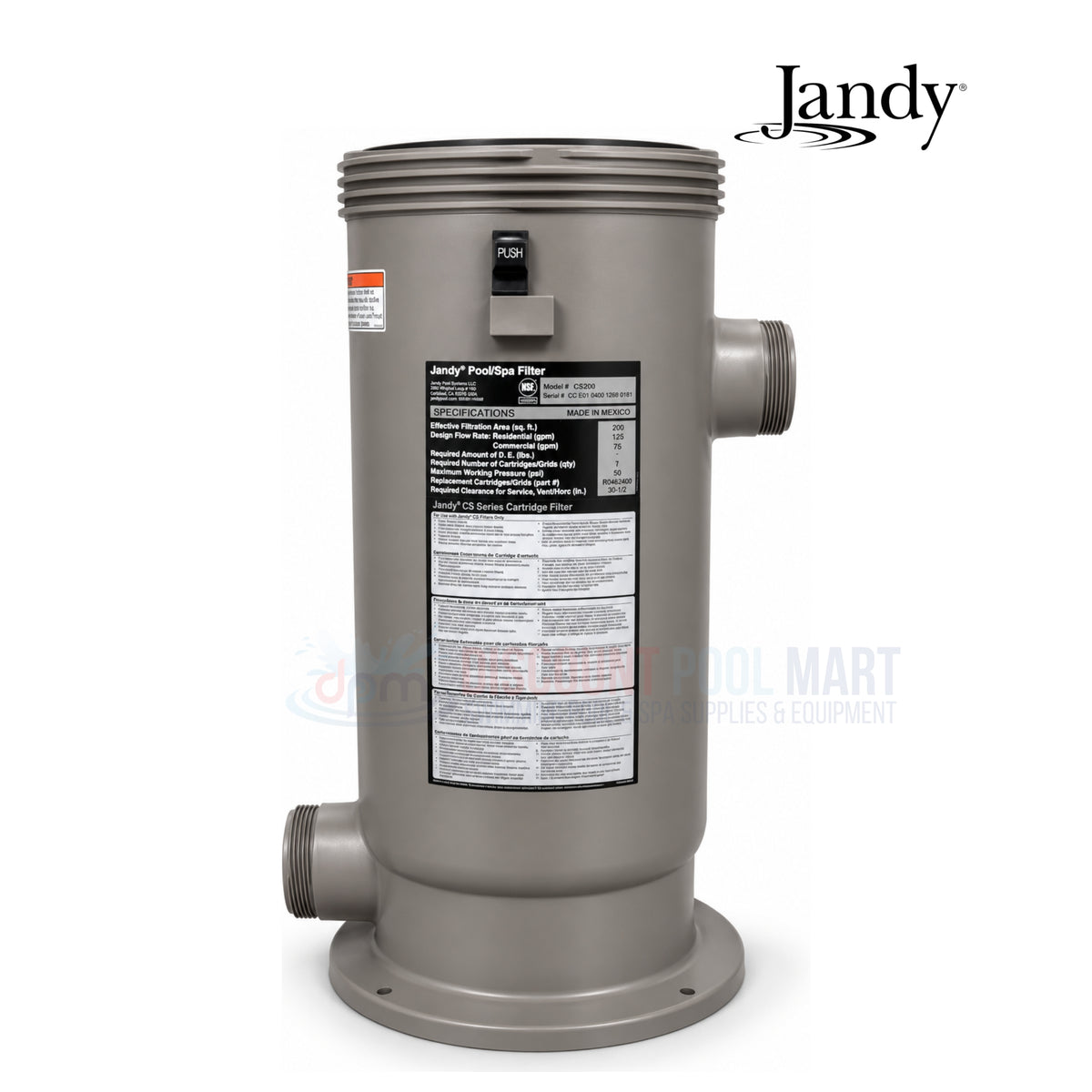

A genuine replacement bottom for your Jandy CS filter. The Jandy R0462900 is the bottom housing assembly (lower tank) for Jandy CS-series cartridge filters. It forms the base of the tank and holds the cartridge standpipe; replace it when the original is cracked or leaking. Genuine Jandy part.
- Replacement bottom housing assembly (lower tank) for Jandy CS cartridge filters.
- Restores a sound, leak-free tank base.

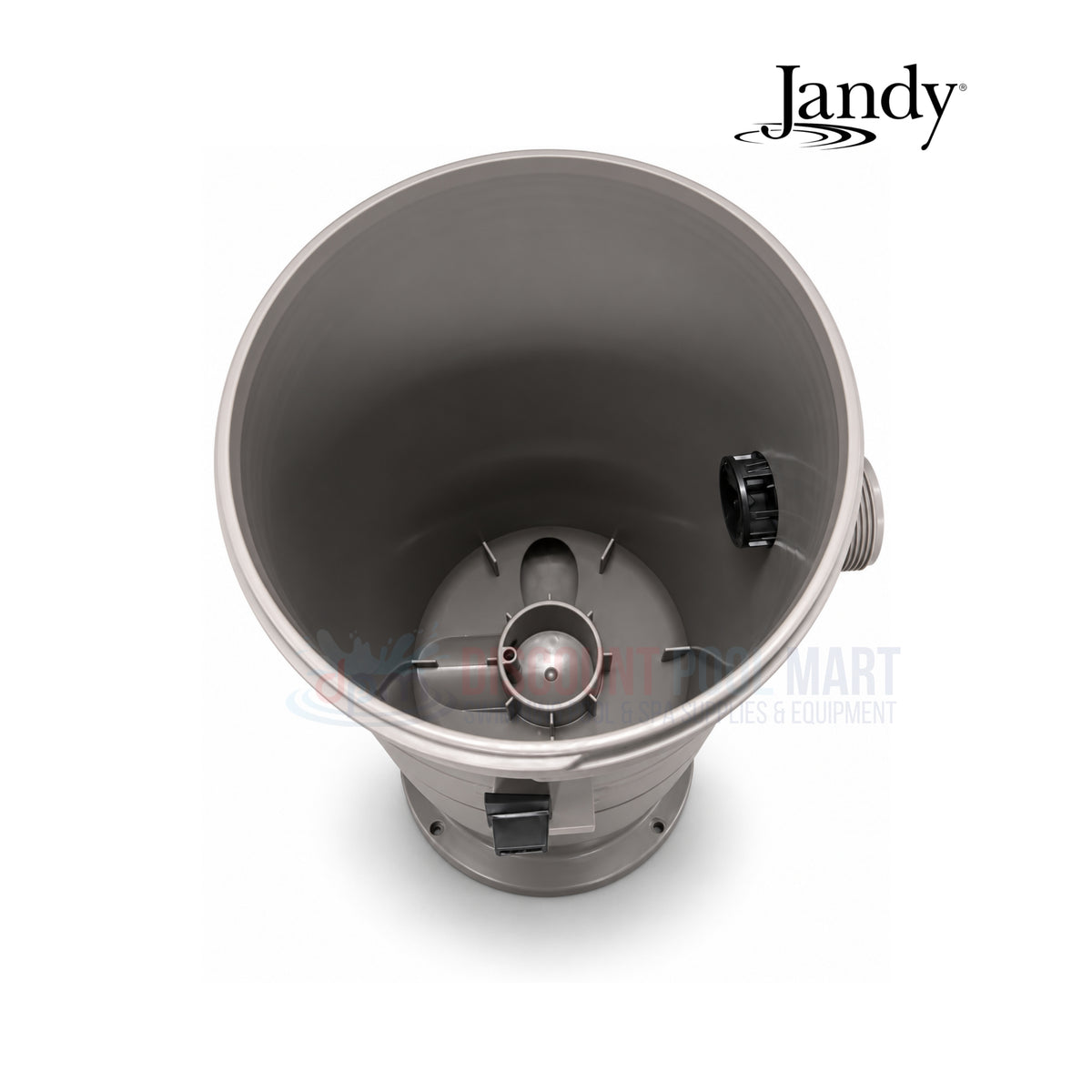

- Lower tank housing with the internal cartridge standpipe/manifold assembly.
- Jandy CS-series cartridge filters (including CS200 and CS250).
- Inlet Diffuser R0462100
- Breather Tube R0462801 / Breather Tube Kit R0462802
- O-Ring Set R0466300
- Top Housing R0462000, Drain Cap Assembly R0523000

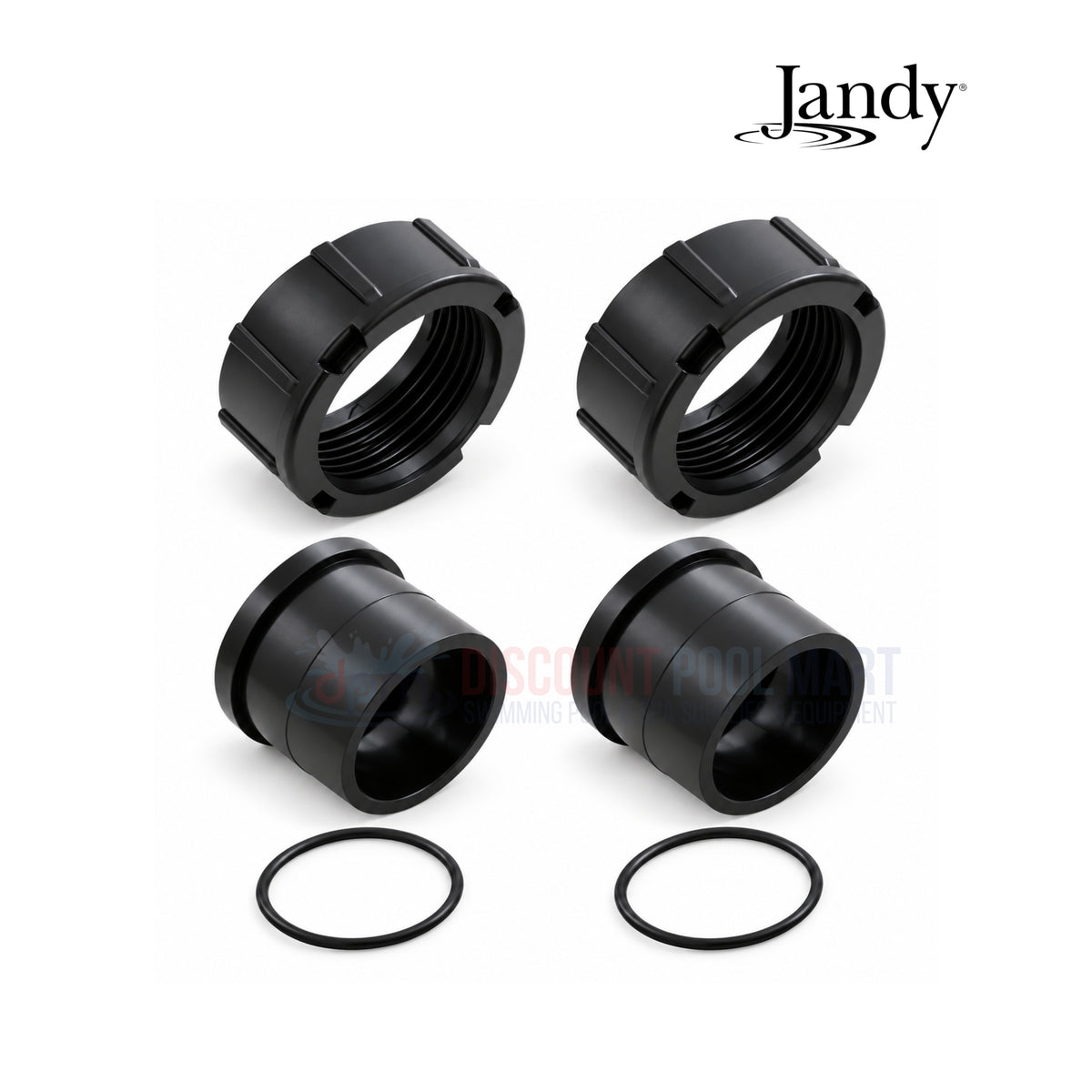

- Union Set 2 in. R0461800 / 1-1/2 in. R0462600
- CS200 Cartridge R0462400
- Turn off the pump and relieve pressure; remove the clamp/union and top housing.
- Transfer the cartridge and internal parts to the new bottom housing as needed.
- Reassemble and purge air on startup.
