  3. Intermatic Time Switch Delay | 24 Hour | T104R3
By Intermatic

Intermatic Time Switch Delay | 24 Hour | T104R3

$137.99
$149.99 $137.99
-$12.00
Shipping calculated at checkout.
Brand: Intermatic
SKU: T104R3

CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

Found In These Collections

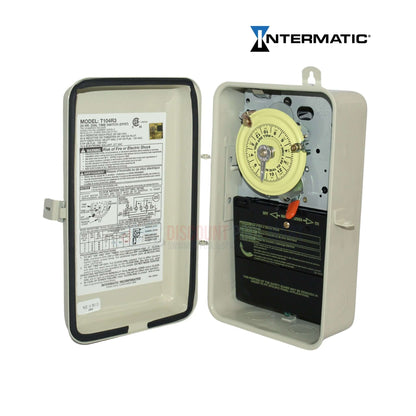

The Intermatic T104R3 Time Switch is a 24-hour mechanical time switch designed for controlling electrical loads such as heaters, pumps, and other pool-related equipment. It features a double-pole, single-throw (DPST) switch configuration, capable of handling up to 40 amps. The time switch offers up to 12 ON/OFF operations per day, with a minimum ON/OFF interval of one hour. It comes housed in a durable Type 3R steel enclosure, making it suitable for outdoor installations.

This time switch operates at 208-277 volts and includes one ON and one OFF tripper. It is known for its heavy-duty build quality, suitable for residential, commercial, and industrial applications that require precise and reliable control of electrical loads over a 24-hour period.

Highlights

  • 24-Hour Mechanical Time Switch: The Intermatic T104R3 provides precise control of electrical loads such as heaters, pumps, and pool equipment, offering up to 12 ON/OFF operations per day with a minimum interval of one hour.

  • Double-Pole, Single-Throw (DPST) Configuration: Capable of handling up to 40 amps, this time switch is designed to control heavy-duty electrical loads, making it ideal for both residential and commercial applications.

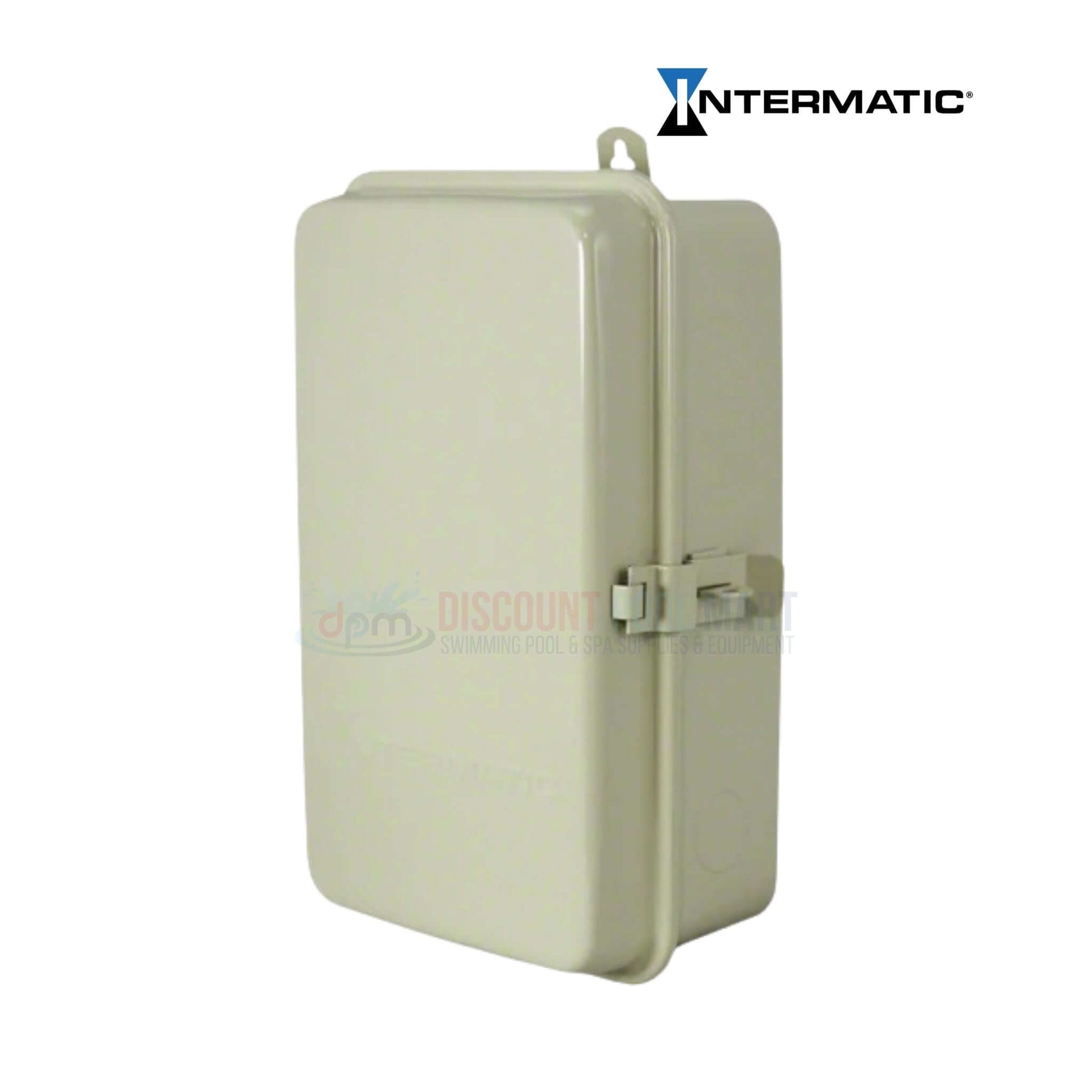

  • Durable Outdoor Enclosure: Housed in a robust Type 3R steel enclosure, the T104R3 is built for outdoor installations, providing weather resistance and long-lasting durability in various conditions.

  • Operates at 208-277 Volts: Designed to accommodate higher voltage systems, this time switch operates efficiently within a range of 208-277 volts, making it versatile for a variety of electrical setups.

  • Heavy-Duty and Reliable: Known for its sturdy build and dependable performance, this time switch is suitable for residential, commercial, and industrial use, offering consistent and reliable control of electrical loads over a 24-hour period.

Specifications

Input Voltage Range(s) 208-277 VAC, 60 Hz Operation Mode 24 hour
Switch Type DPST Application Compatibilities LED
CA Prop 65 Message Please see the Warning @ www.P65Warnings.ca.gov Color Gray
Country of Origin (Intermatic) MEXICO Electronic Ballast 16 A, 120 VAC, 16 A, 208 VAC, 16 A, 240 VAC, 16 A, 277 VAC
Electronic Ballast Load Ratings Ranges 16 A, 120-277 VAC Enclosure Type Outdoor type 3R metal
Heater Control Output 10 A, 250 VAC MAX, 60 Hz Inductive 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz
Inductive Load Ratings Ranges 40 A, 120-277 VAC, 60 Hz Knockout Dimensions Back 1/2" and 3/4" combination
Knockout Dimensions Bottom (2) 1/2" and 3/4" Maximum ON/OFF Operations 12
Maximum Power Consumption (W) 3 W Motor Load Ratings Ranges 2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz
Number Of Circuits 1 Pilot Duty (NO) 1000 VA, 120 VAC, 60 Hz, 1000 VA, 208 VAC, 60 Hz, 1000 VA, 240 VAC, 60 Hz, 1000 VA, 277 VAC, 60 Hz
Pilot Duty Load Ratings Ranges 1000 VA, 120-277 VAC, 60 Hz Resistive 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz, 40 A, 347 VAC, 60 Hz, 40 A, 480 VAC, 60 Hz
Resistive Load Ratings Ranges 40 A, 120-480 VAC, 60 Hz RoHS Certification X
Tungsten (NO) 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz Tungsten Range(s) 40 A, 120-277 VAC, 60 Hz
Warranty Period 1-Year limited Wiring Option Terminals
Operating Temperature Max (°C) 54 Operating Temperature Max (°F) 130
Operating Temperature Min (°C) -40 Operating Temperature Min (°F) -40
Product Depth (in) 3.625 Product Depth (mm) 92.1
Product Height (in) 10.125 Product Height (mm) 257.2
Product Width (in) 6.5 Product Width (mm) 165.1
Unit Carton Height (in) 10.06 Unit Carton Length (in) 6.56
Unit Carton Weight (lb) 3.493 Unit Carton Width (in) 4
Units Per Pallet 162
