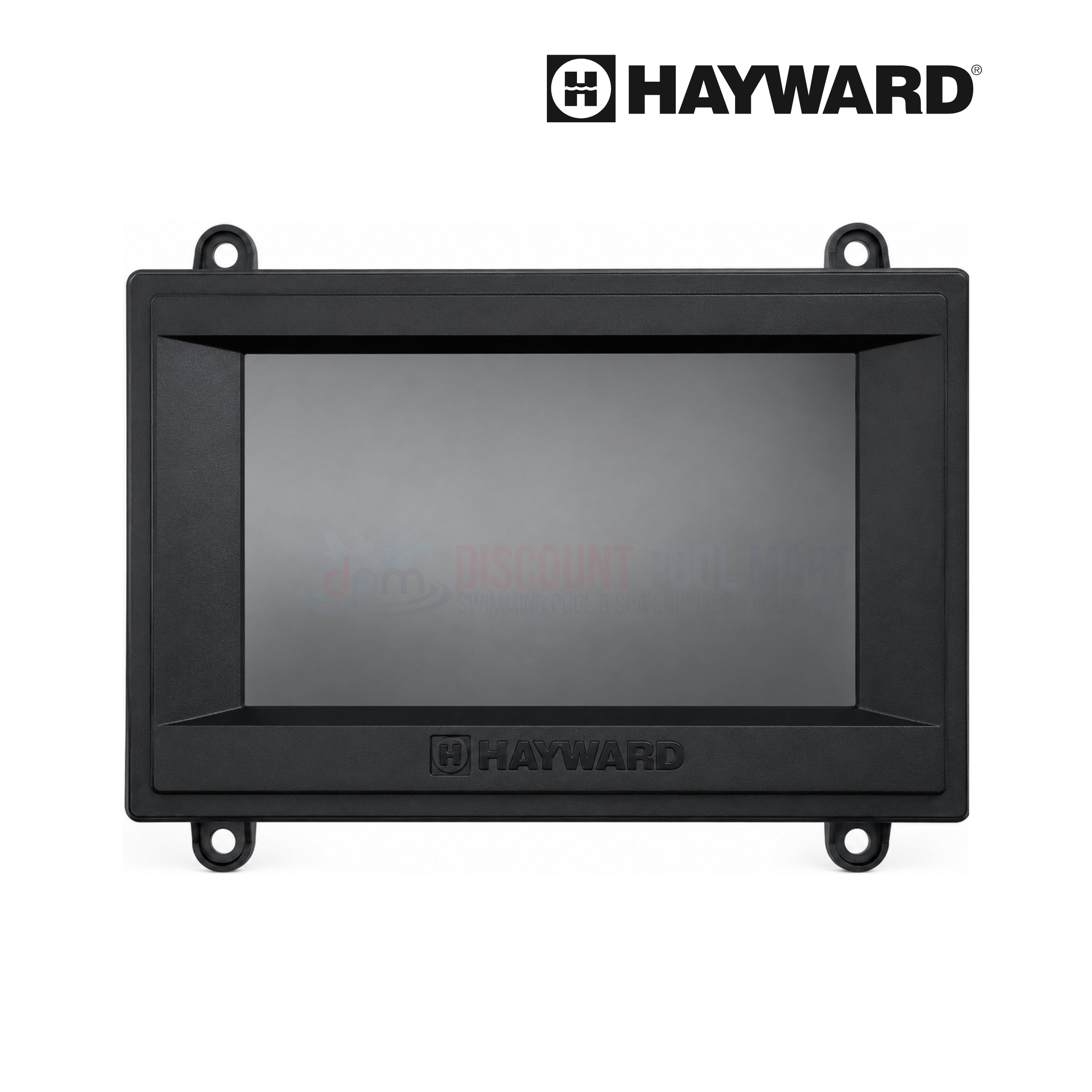

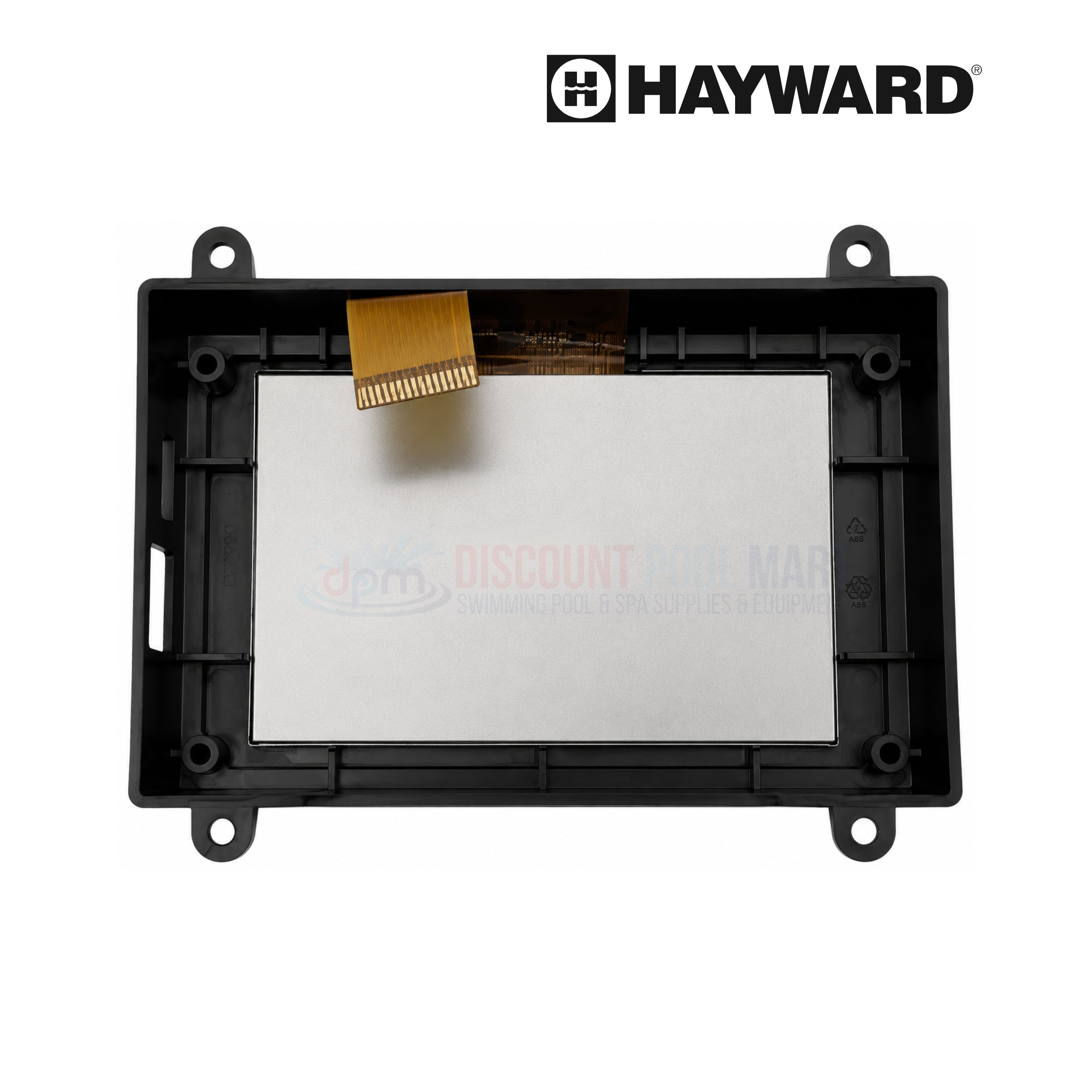

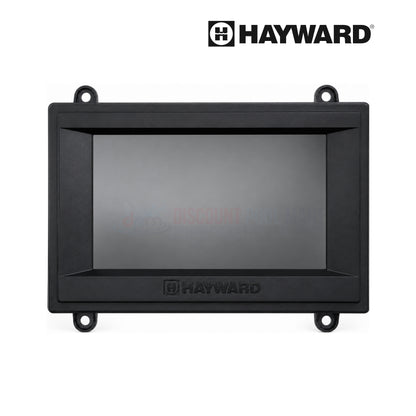

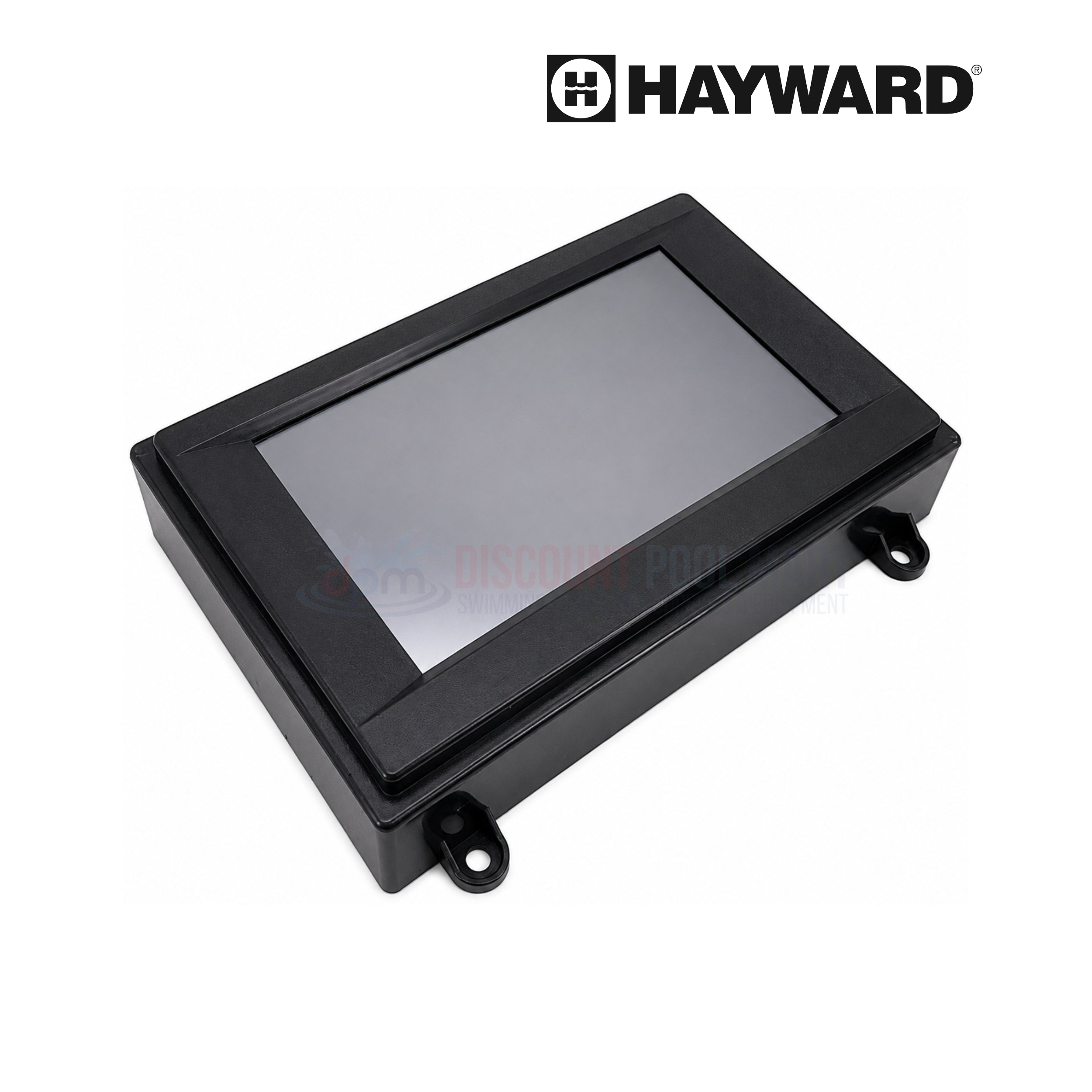

HLX-LCD0520 | Hayward OmniLogic LCD without MSP
Same-day local pickup & delivery across the Los Angeles area
Couldn't load pickup availability
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov
The Hayward HLX-LCD0520 is an OEM replacement LCD display assembly — without the Main System Processor (MSP) — for Hayward OmniLogic and OmniHub pool and spa automation systems manufactured on or after May 11, 2020. The LCD serves as the primary user interface of the OmniLogic control panel, providing the icon-based touchscreen display used to manage pump scheduling, heater control, lighting, water features, chemical automation, and every other piece of connected pool and spa equipment. When the display becomes cracked, unresponsive, or fails to power on, replacing the LCD assembly alone — rather than the full control system — restores full panel functionality at a fraction of the cost of a complete automation system replacement. The HLX-LCD0520 is compatible with both the HLBASE and HLBASE-X288 OmniLogic base systems. Important note on fitment: the HLX-LCD0520 is specifically for systems manufactured May 11, 2020 and later, and for systems manufactured prior to that date, the HLX-LCD is the correct replacement.
- Factory-Authorized OmniLogic LCD: The HLX-LCD0520 display assembly is manufactured by Hayward to exact OmniLogic specifications, providing full compatibility and seamless integration with OmniLogic and OmniHub automation systems manufactured on or after May 11, 2020, rather than an aftermarket display that may lack proper firmware support or touchscreen calibration.
- Date-Specific Fitment Requirement: The HLX-LCD0520 is the version-specific replacement designed for post-May 2020 OmniLogic and OmniHub systems, and for systems manufactured on or before May 10, 2020, the correct replacement part is the HLX-LCD, so customers should always verify the manufacturing date of their system before ordering to ensure proper fitment.
- LCD-Only Assembly Without MSP: This part replaces the LCD display panel only and does not include the Main System Processor (MSP), so when the MSP is operating normally and only the display itself has failed, the HLX-LCD0520 represents the most cost-effective path to restoring full OmniLogic panel functionality without overspending on parts.
- Fits HLBASE and HLBASE-X288 Configurations: Compatible with all Hayward OmniLogic control system configurations, including both the standard HLBASE platform and the expanded HLBASE-X288 platform, covering the full range of residential and light commercial OmniLogic automation installations across pool and spa builds.
- Cost-Effective Automation Restoration: A failed or damaged LCD display is one of the most common service issues encountered on OmniLogic automation systems, and replacing the display assembly alone instead of swapping out the entire automation system saves significant cost while fully restoring the panel's scheduling, monitoring, and control capabilities.
