HH1510 | HammerHead Ultra Fine 28" Volcanic Debris Bag
Pickup, delivery and shipping times are estimates, not guarantees.
Couldn't load pickup availability
● 12 in stock30-day returns Secure checkout
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

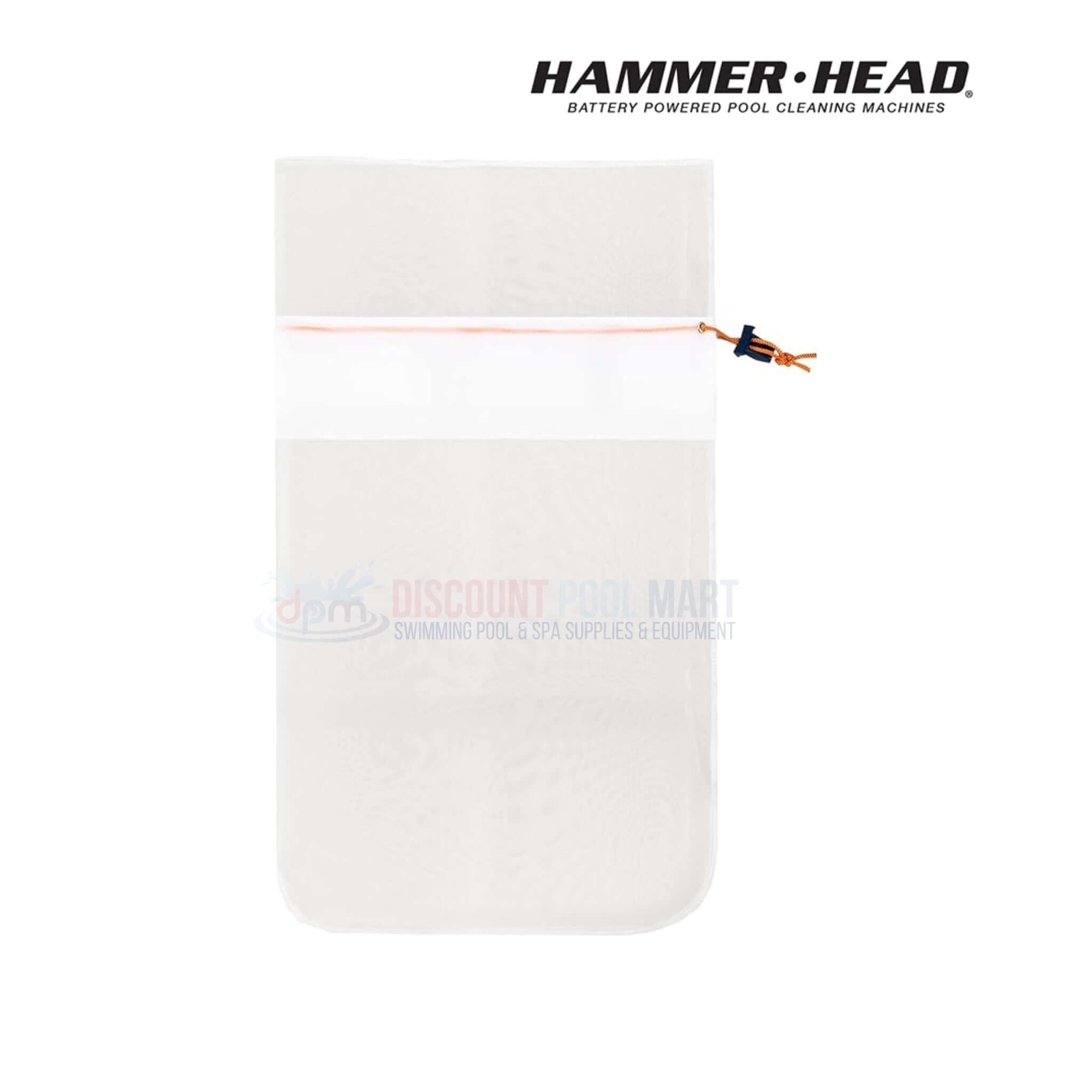

The HammerHead Ultra Fine Volcanic Debris Bag | HH1510 is engineered for precision cleaning in pristine pool conditions. Designed for “special cleanup” use rather than everyday debris, this 28-inch bag features a super-tight 75-micron mesh that captures ultrafine dust, fire ash, and DE powder—about 95% efficiency in lab tests. Its patented no-leak cleat design ensures secure fitment on HammerHead vacuum heads, maintaining consistent suction and preventing blow-through even under fine particulate load.
Constructed from chemical-resistant mesh and reinforced seams, the HH1510 bag is built to perform in demanding pool environments. It’s ideal for finish polishing or removing airborne dust that standard bags cannot trap. While the design is optimized for light-duty use, it pairs perfectly with HammerHead’s full-service vacuums (Service, Resort, etc.) when you need cleanup beyond regular filtration. Because it is extremely fine, it works best when the pool is already mostly clean—using it on extremely dirty water can clog it prematurely.
-
Ultra-Fine Filtration (75 Microns): Tight mesh captures fine particles like ash, dust, and DE powder that escape coarser bags.
-

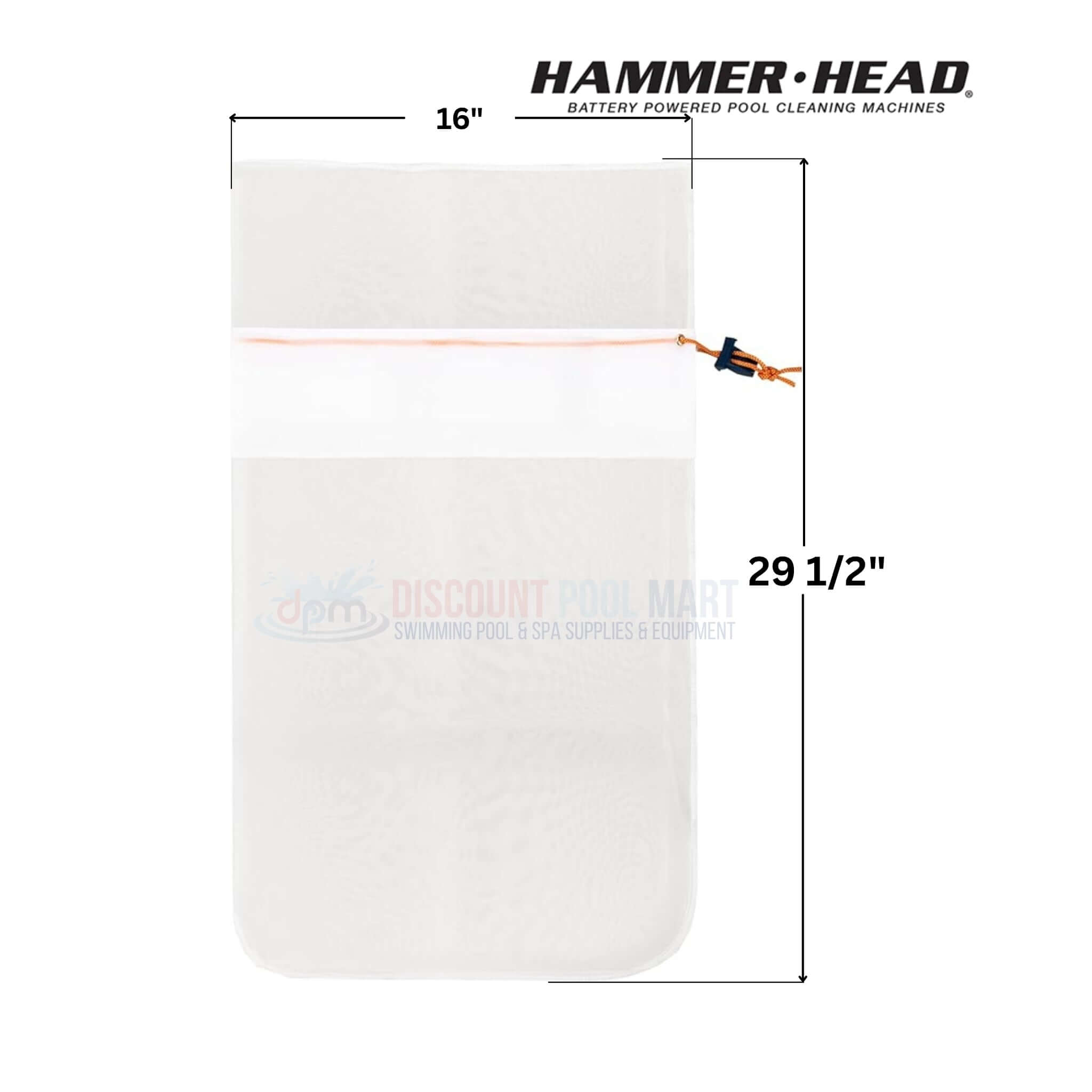

Extra Capacity Design: At 28 inches in length, it holds more debris between drains than shorter ultrafine bags.
-
Patented No-Leak Cleat Attachment: Secure cleat keeps it firmly attached to the vacuum head and prevents slippage or suction loss.
-
Tested Performance: Evaluated to capture ~95% of fire ash and DE powder in controlled tests.
-
Reusable and Durable Construction: Made with robust mesh and reinforced edges to endure repeated cleaning cycles.
-
Best for Final Cleanup: Ideal bag to use when pool is nearly clean—great for polishing surfaces after primary cleaning.
-
Full Compatibility: Works with HammerHead Service, Resort, and standard 21” / 30” heads using compatible attachment systems.

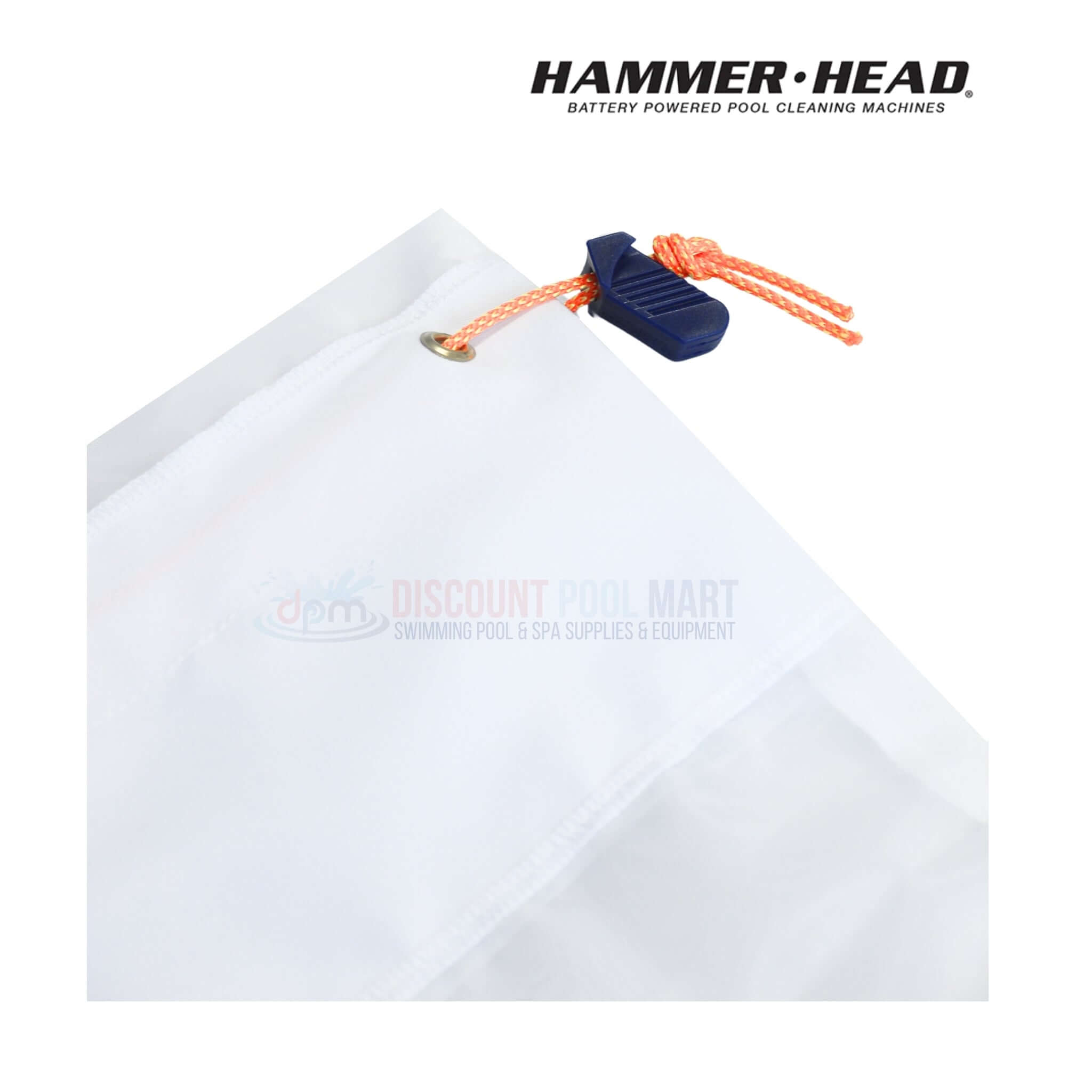

1. Slide the debris bag down over the lip of the vacuum head. Position the clip over the front decal, and stand over the vacuum head to securely tighten the clip.
2. Pull both drawstrings so the clip fits snugly against the vacuum head, then press the strings firmly into the grooves of the clip.
3. To re-tighten the strings, lift one string up and out of the groove to release it, then pull it back down and into the groove to secure.
4. To remove the bag for emptying, pull one string out of the groove while leaving the other string in place.
