Hayward Wall Mount Transformer 300W | LTBUY11300

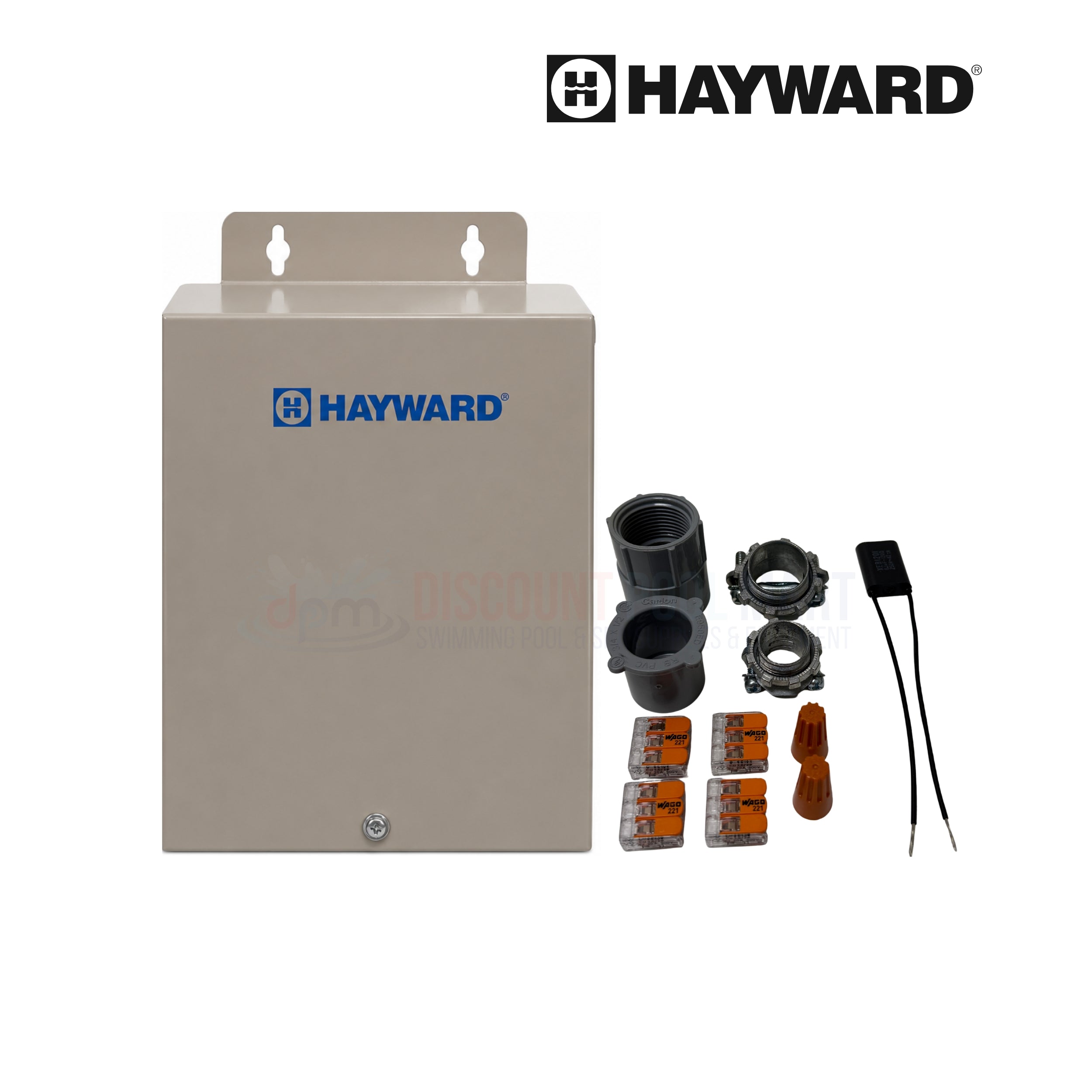

The Hayward LTBUY11300 is a 300-watt wall-mount low-voltage transformer designed for new pool and spa construction lighting installations and 120V to low-voltage system conversions. Compatible with Hayward's Universal CrystaLogic and ColorLogic LED lighting systems, it steps down 120V input power to three selectable output voltages — 12V, 13V, or 14V — allowing installers to fine-tune output based on light type, cable length, and brightness requirements. The compact corrosion-resistant steel enclosure measures 7-1/4 inches high by 5-1/4 inches wide by 4-1/2 inches deep, with top and bottom mounting brackets and ten combination knockouts for flexible conduit entry. An included Snubber Capacitor arc suppressor and built-in split-bobbin circuit protection automatically disconnect power in the event of a defect or overload, ensuring safe, reliable operation in pool and spa environments. Pairs seamlessly with Hayward junction boxes for multi-light new construction installations and includes a direct connection kit for pool and spa lights. UL listed.

Highlights

• Three Selectable Output Voltages — 12V, 13V & 14V: Offers three low-voltage output options to accommodate varying pool and spa light types, cable run lengths, and brightness requirements — ensuring consistent, optimized light performance across all compatible Hayward lighting configurations.
• 300W Capacity for Multi-Light Installations: With a 300-watt maximum output, the LTBUY11300 provides ample power for multi-light new construction installations, pairing seamlessly with Hayward junction boxes to support multiple Universal CrystaLogic and ColorLogic LED fixtures from a single transformer.
• Built-In Split-Bobbin Circuit Protection & Snubber Capacitor: A patented split-bobbin design between the primary and secondary windings ensures safe operation, and the included Snubber Capacitor arc suppressor automatically disconnects power in the event of an overload or defect — protecting both the transformer and connected lighting.

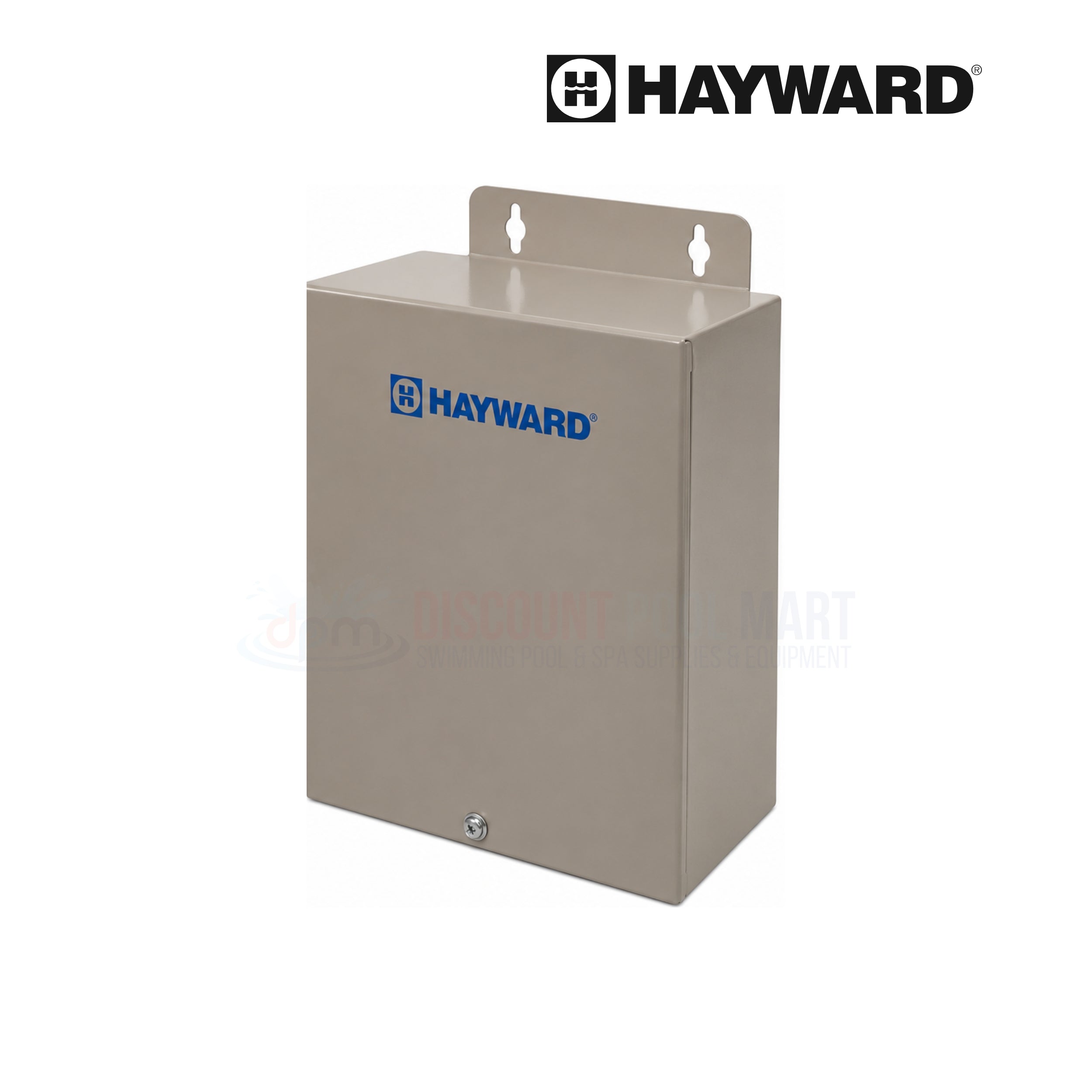

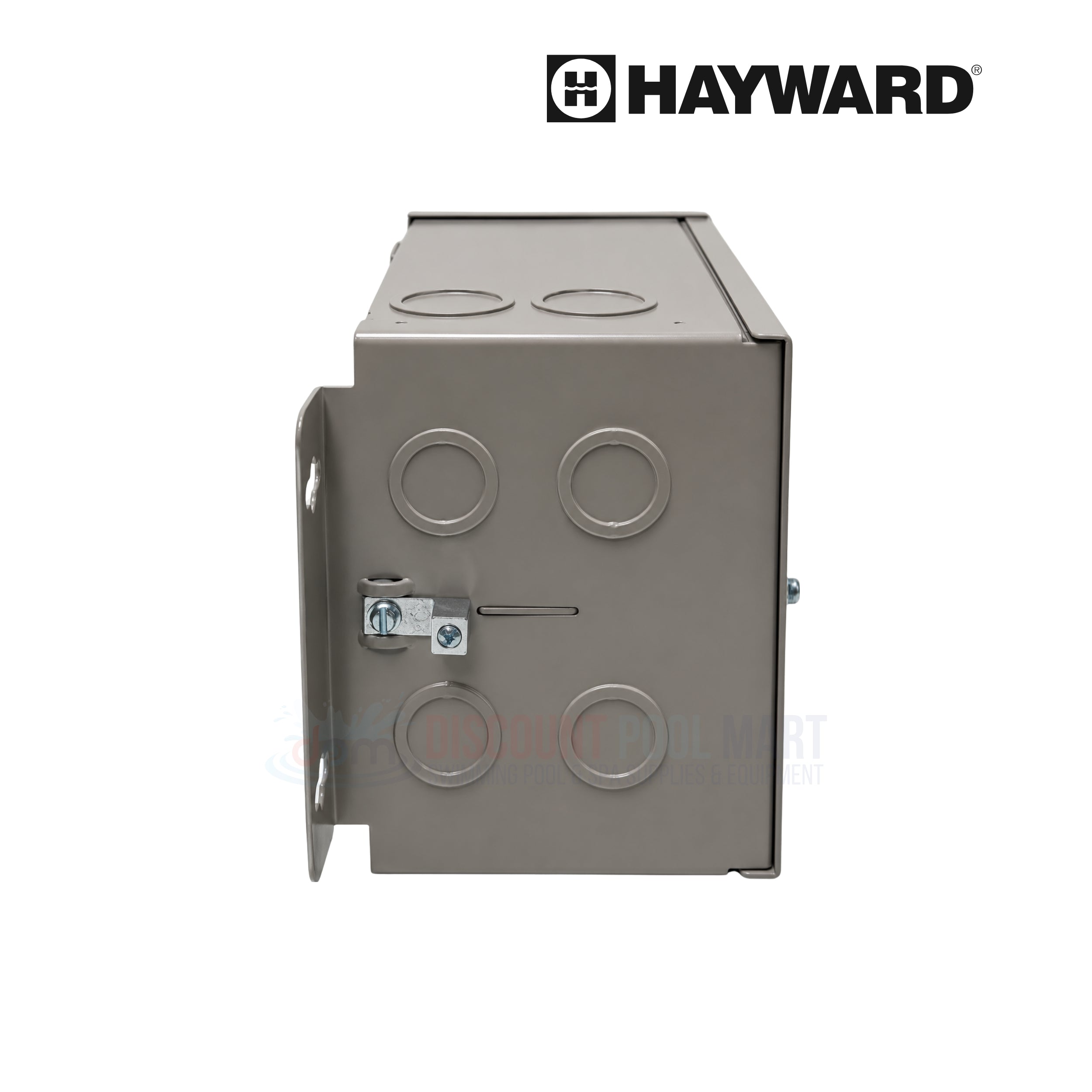

• Corrosion-Resistant Steel Enclosure with Flexible Conduit Entry: The compact 7-1/4" x 5-1/4" x 4-1/2" steel enclosure features an electrostatically applied white coating for corrosion resistance, top and bottom mounting brackets, and ten 1/2"–3/4" combination knockouts for flexible conduit routing on any installation.

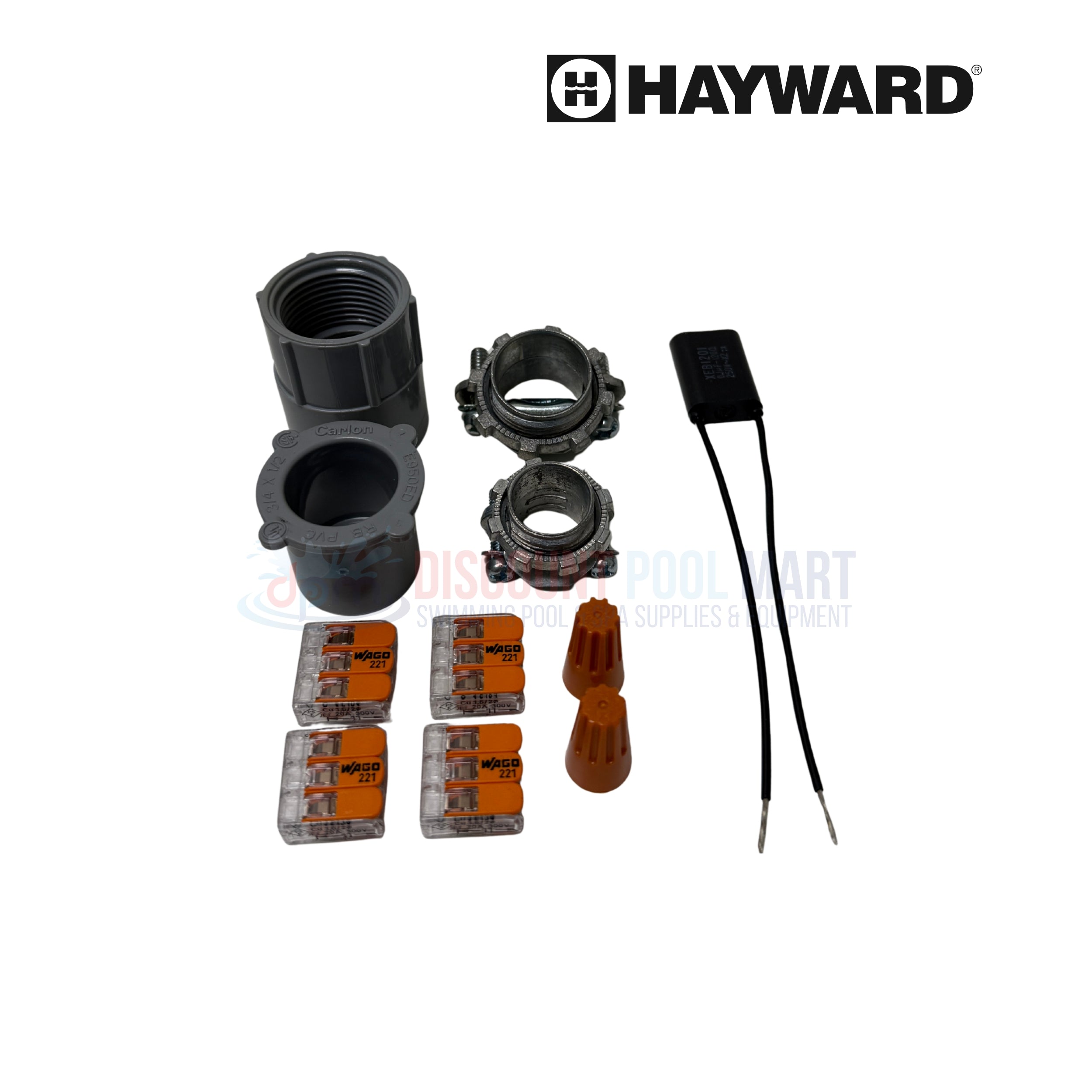

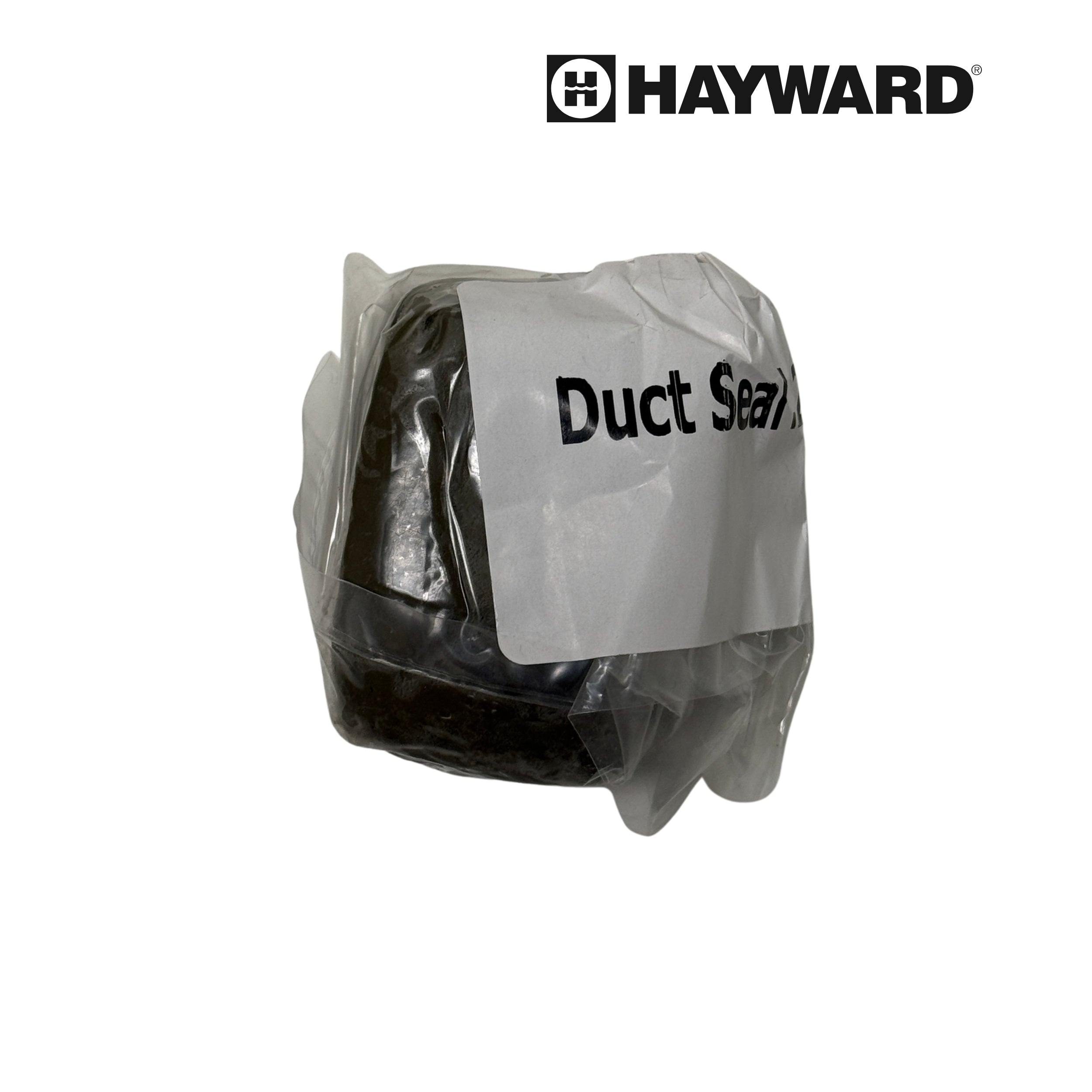

• UL Listed for Safe Pool & Spa Use: Fully UL listed and engineered for direct connection to underwater pool and spa lights when used with the included adapter, clamp, and duct seal — meeting the stringent safety standards required for low-voltage aquatic lighting installations.
