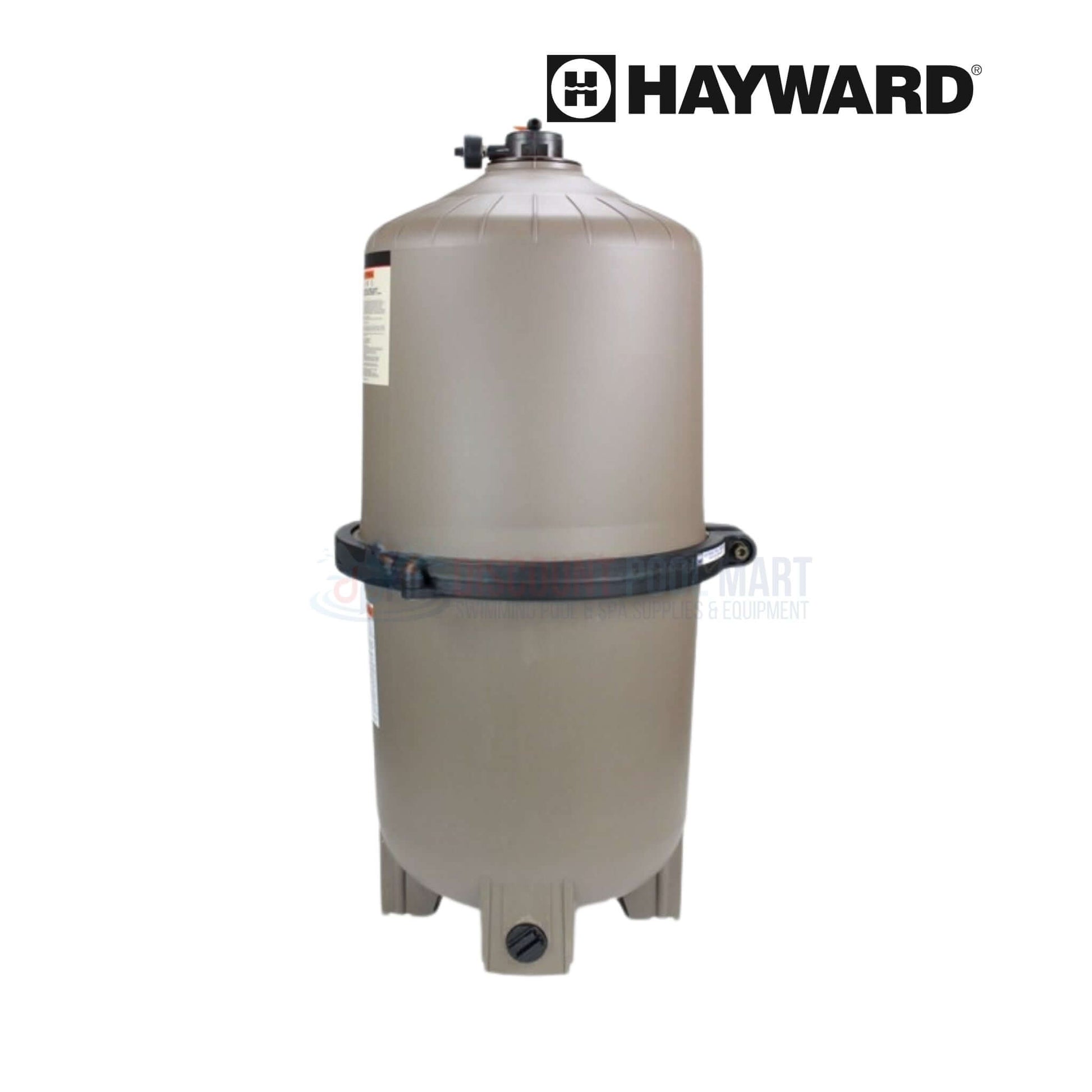

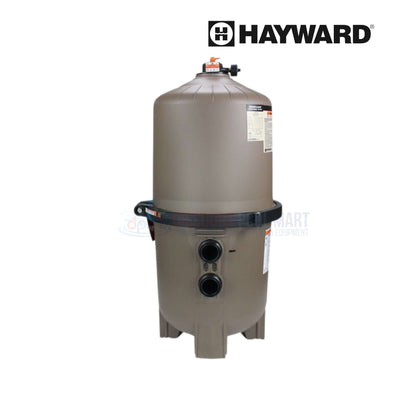

The Hayward SwimClear Multi-Element Cartridge Filter C5030 is a high-performance filtration system designed to keep your pool water crystal clear. With a filtration area of 525 square feet, it provides excellent water clarity and quality. The filter features a durable construction and uses multiple cartridge elements to capture and remove impurities from the pool water. It is easy to clean and maintain, allowing for long-lasting performance. The Hayward SwimClear Filter is compatible with a variety of pool sizes and is a reliable choice for keeping your pool clean and inviting for swimming enjoyment.
- Exceptional Filtration Capacity: The Hayward SwimClear Multi-Element Cartridge Filter C5030 leads the way in filtration efficiency with a generous 525 square feet surface area. This extensive filtration capability ensures unparalleled water clarity, making sure every swim is in crystal clear conditions.
- High-Efficiency Cartridge Elements: Thanks to multiple cartridge elements, this filter excels at removing impurities with precision. The unique design facilitates optimal flow and filtration, consistently providing a clean and healthy swimming environment for all pool types.
- Durable, Low-Maintenance Design: Engineered for durability, the C5030 stands up to the test of time with its sturdy construction. Maintenance is a breeze, with cartridges that are simple to clean and replace, guaranteeing long-lasting performance and minimized downtime.
- Reliable Water Purity Solution: The Hayward SwimClear is synonymous with reliability; it's not just a filter but a cornerstone for maintaining an inviting and enjoyable pool experience. Its continual provision of clean and safe swimming water seals its reputation as a top-tier choice for discerning pool owners.
- Maximum Filtration Size: Filters out particulates as small as 30 microns
- Filtration Area: 525 square feet

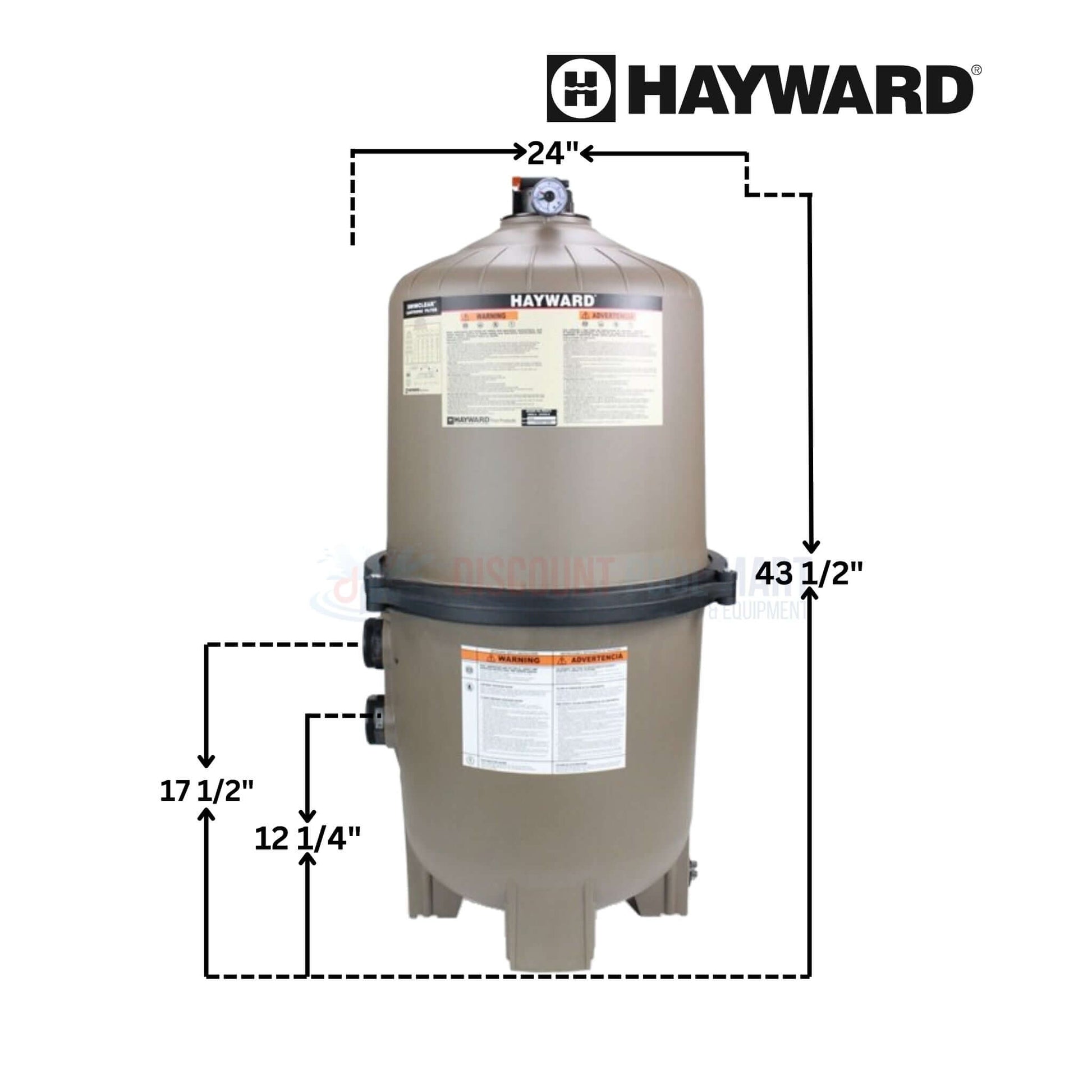

- Dimensions: 24" inches in diameter and 43.5" inches in height
- Vertical Clearance: 68.5"
- Cartridge: 4 Required (Included)
- Weight: Approximately 92 pounds
- Installation: 2 inch plumbing connections
- Flow Rate: Maximum flow rate of 150 gallons per minute (GPM)
- (1) Hayward C5030 SwimClear Cartridge Filter
- (4) Cartridge- CX1280XRE or C-7494
- (1) Manual Air Relief Valve- CCX1000V
- (1) Pressure Gauge- ECX2712B1
- (1) Clamp- DEX2421JKIT
*See manual page 10 for complete list
