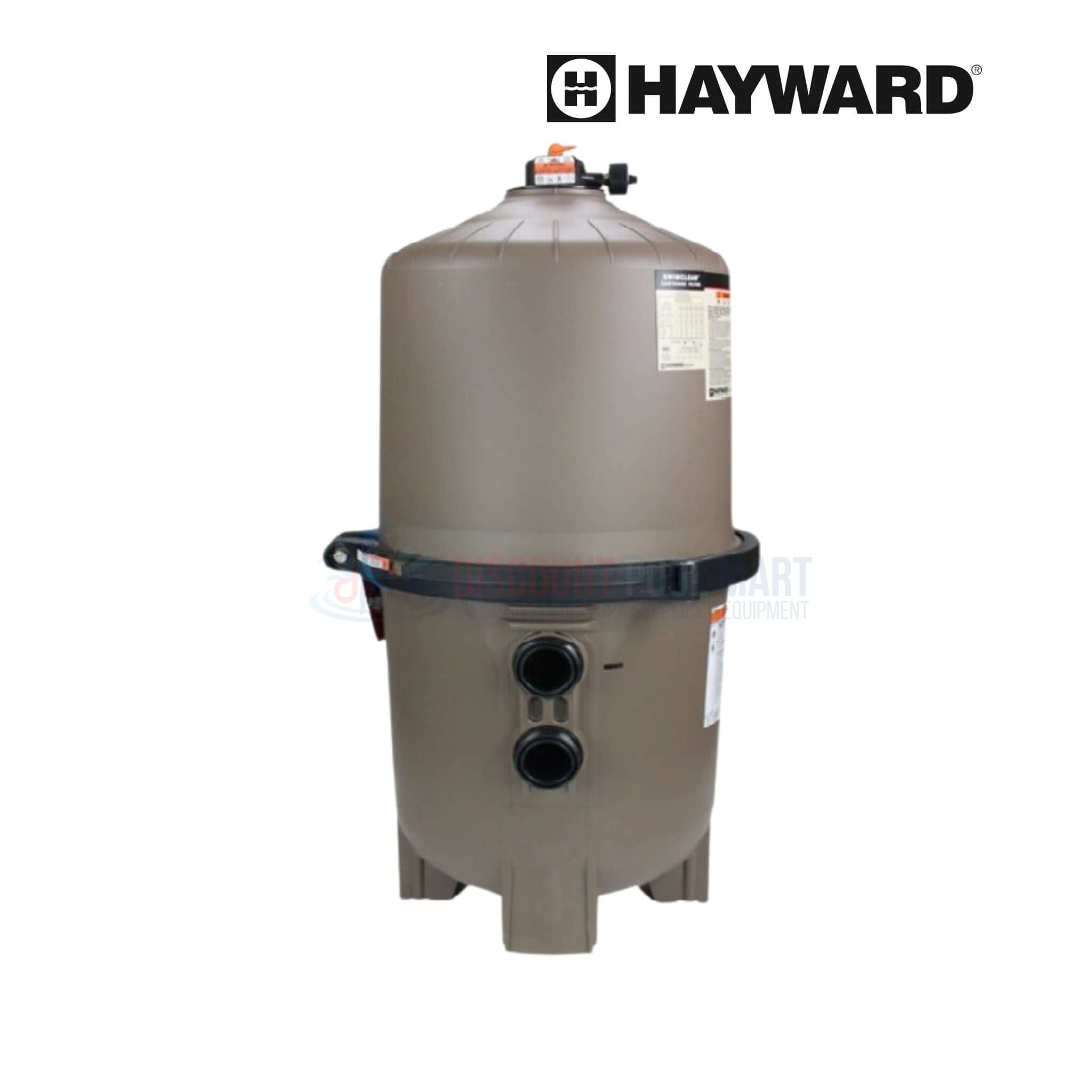

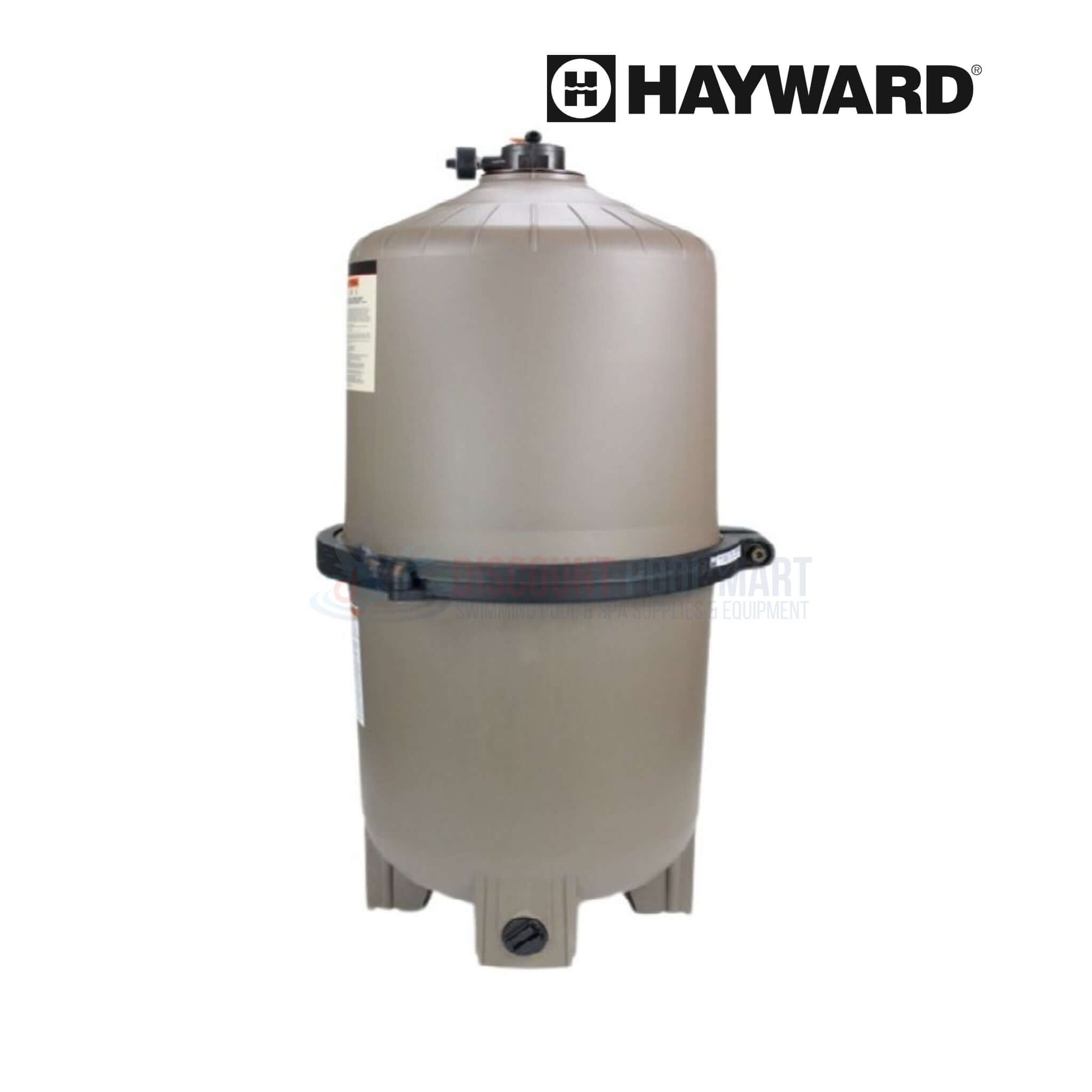

C4030 | Hayward 425 sq ft SwimClear Cartridge Filter

Hayward SwimClear 425 Sq Ft Cartridge Filter System | C4030

The Hayward SwimClear 425 Sq Ft Cartridge Filter | C4030 delivers high-capacity filtration and exceptional water clarity for pools and spas of all sizes. Built with Hayward’s advanced multi-element design, this filter captures more debris without requiring supplemental media or backwashing. Featuring four durable, reusable cartridges, the C4030 provides 425 square feet of total filtration area, maximizing dirt-holding capacity and extending cleaning intervals—often allowing an entire season between cleanings. Its low head loss design reduces energy consumption, helping pool systems run more efficiently while maintaining superior water flow and consistent clarity.

Constructed from heavy-duty, glass-reinforced co-polymer, the SwimClear C4030 filter is engineered for strength, corrosion resistance, and long service life in even the most demanding pool environments. Maintenance is simplified by a rapid-release manual air relief valve, a self-aligning top and bottom tank design, and a tamper-proof one-piece clamp that allows full internal access without disturbing plumbing. The top manifold configuration improves hydraulic performance and ensures even water distribution across all Quad-Cluster™ cartridge elements. With its combination of efficiency, durability, and service-friendly design, the C4030 stands as one of Hayward’s most trusted filtration systems for residential and commercial pools alike.

Key Features of the Hayward C4030 SwimClear Cartridge Filter

• 425 Sq Ft Multi-Element Filtration: Quad-Cluster™ design uses four high-capacity cartridges for extended cleaning cycles and superior debris retention.

• No Backwashing Required: Advanced cartridge system eliminates the need for backwash valves, saving water and reducing maintenance time.

• Low Head Loss Design: Optimized internal flow paths minimize resistance, improving pump efficiency and reducing overall energy costs.

• Durable Glass-Reinforced Tank: Heavy-duty co-polymer construction resists corrosion, UV exposure, and harsh chemical conditions for long-lasting performance.

• Quick Service Access: One-piece clamp allows easy disassembly for cleaning or cartridge replacement without disconnecting plumbing connections.

• Top Manifold Flow Design: Ensures uniform water distribution across all cartridges for even filtration and extended filter life.

• Large Manual Air Relief Valve: Quarter-turn lever releases trapped air quickly for safe, simple operation and maintenance.

• Efficient Drainage System: Integrated 1.5-inch drain enables fast, complete tank flushing during service or seasonal shutdown.

Specifications

• Maximum Filtration Size: Filters out particulates as small as 30 microns
• Filtration Area: 425 square feet
• Dimensions: 24" inches in diameter and 40.5" inches in height
• Vertical Clearance: 58.5"
• Cartridge: 4 Required (Included)
• Weight: Approximately 82 pounds
• Installation: 2 inch plumbing connections
• Flow Rate: Maximum flow rate of 150 gallons per minute (GPM)

Includes

• (1) Hayward C4030 SwimClear Cartridge Filter
• (4) Cartridge- CX880XRE
• (1) Manual Air Relief Valve- CCX1000V
• (1) Pressure Gauge- ECX2712B1
• (1) Clamp- DEX2421JKIT

*See manual page 10 for complete list
