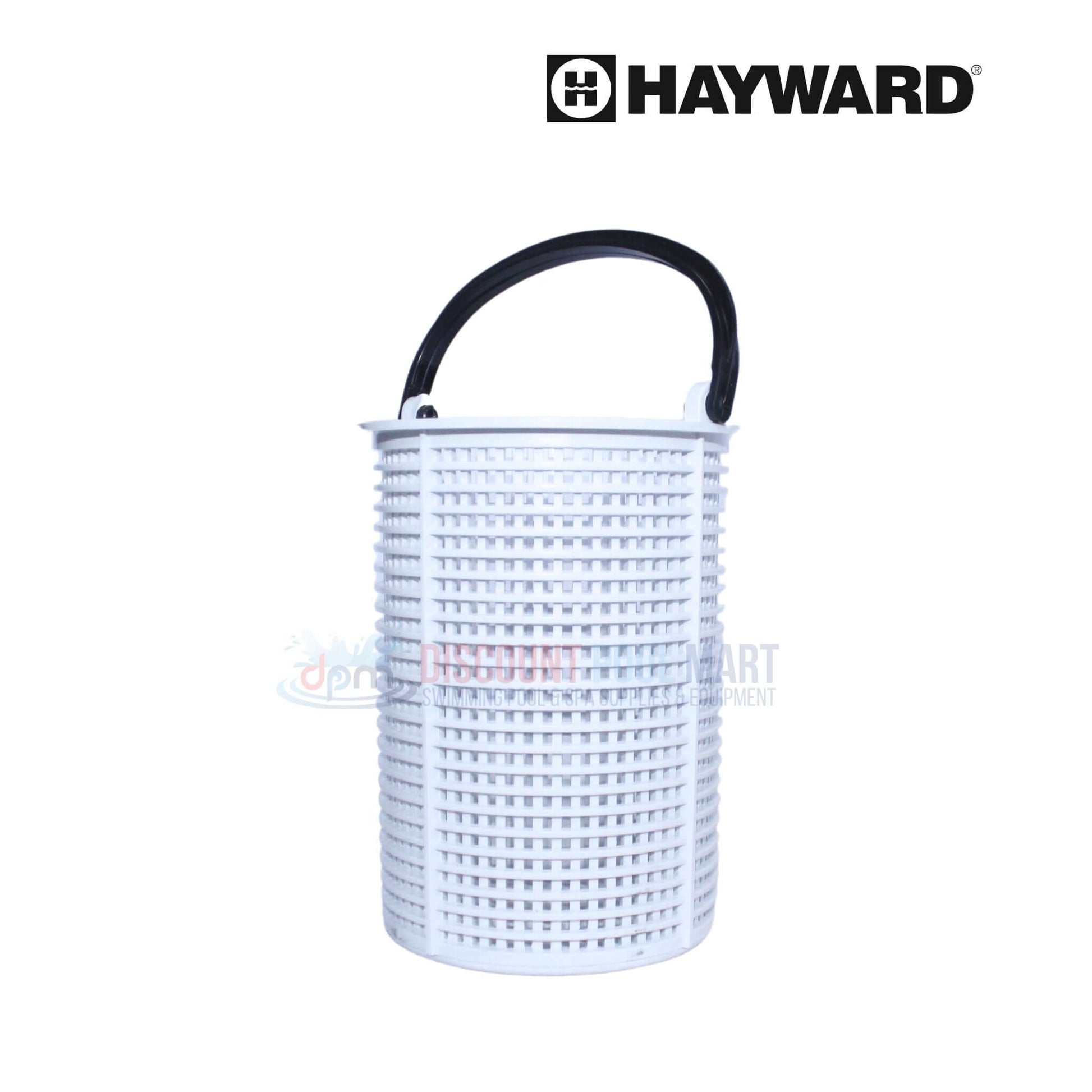

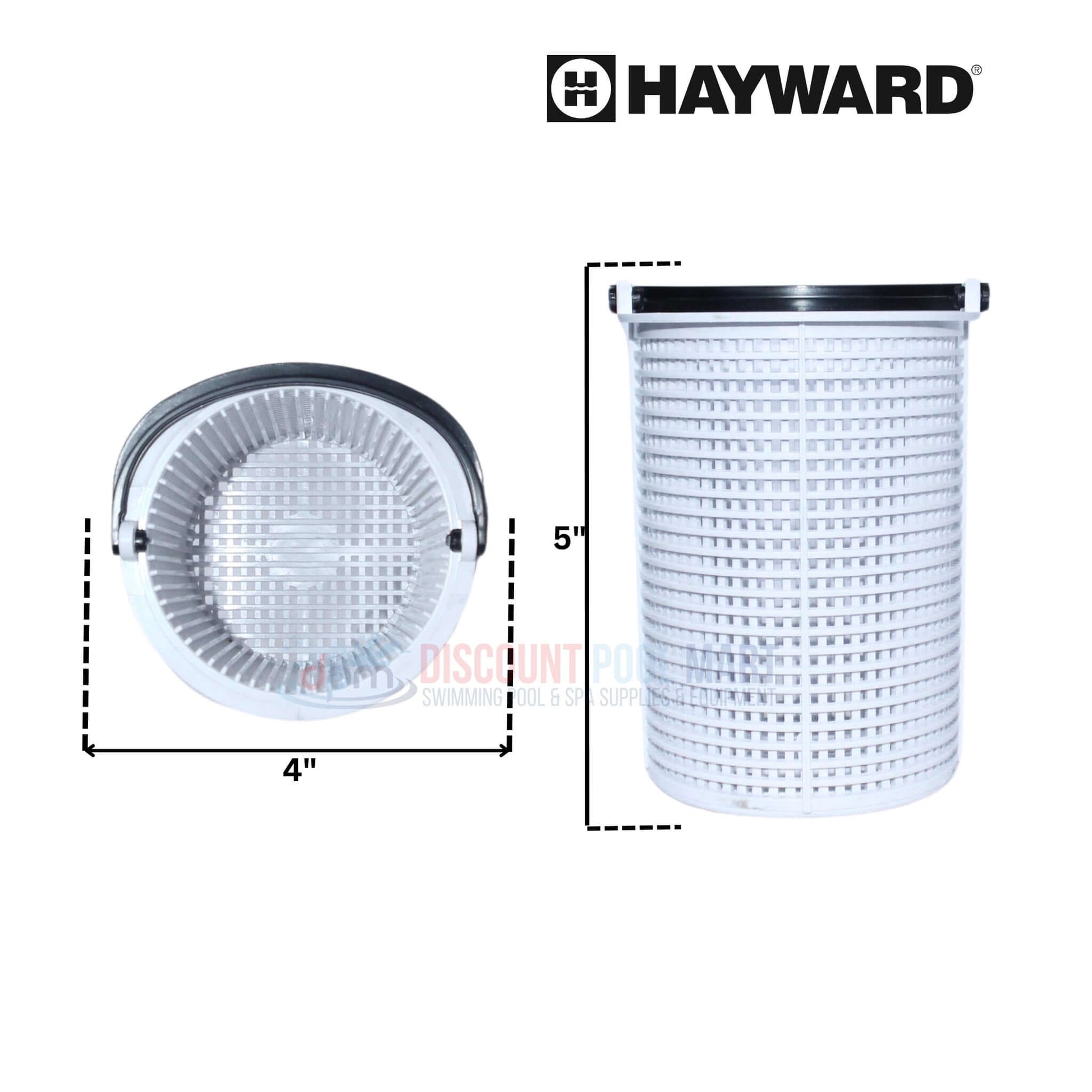

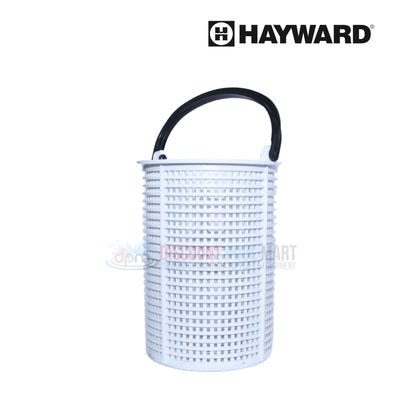

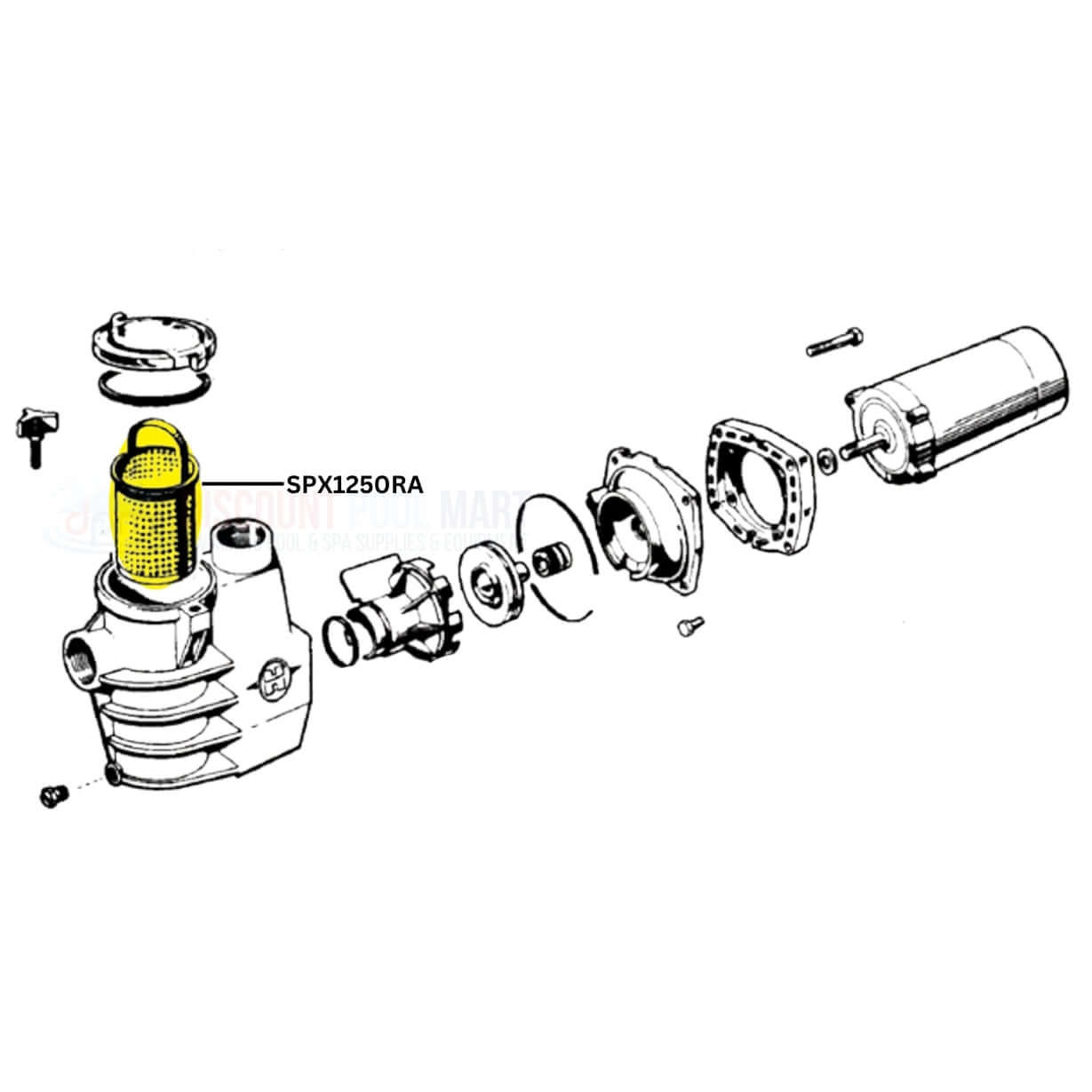

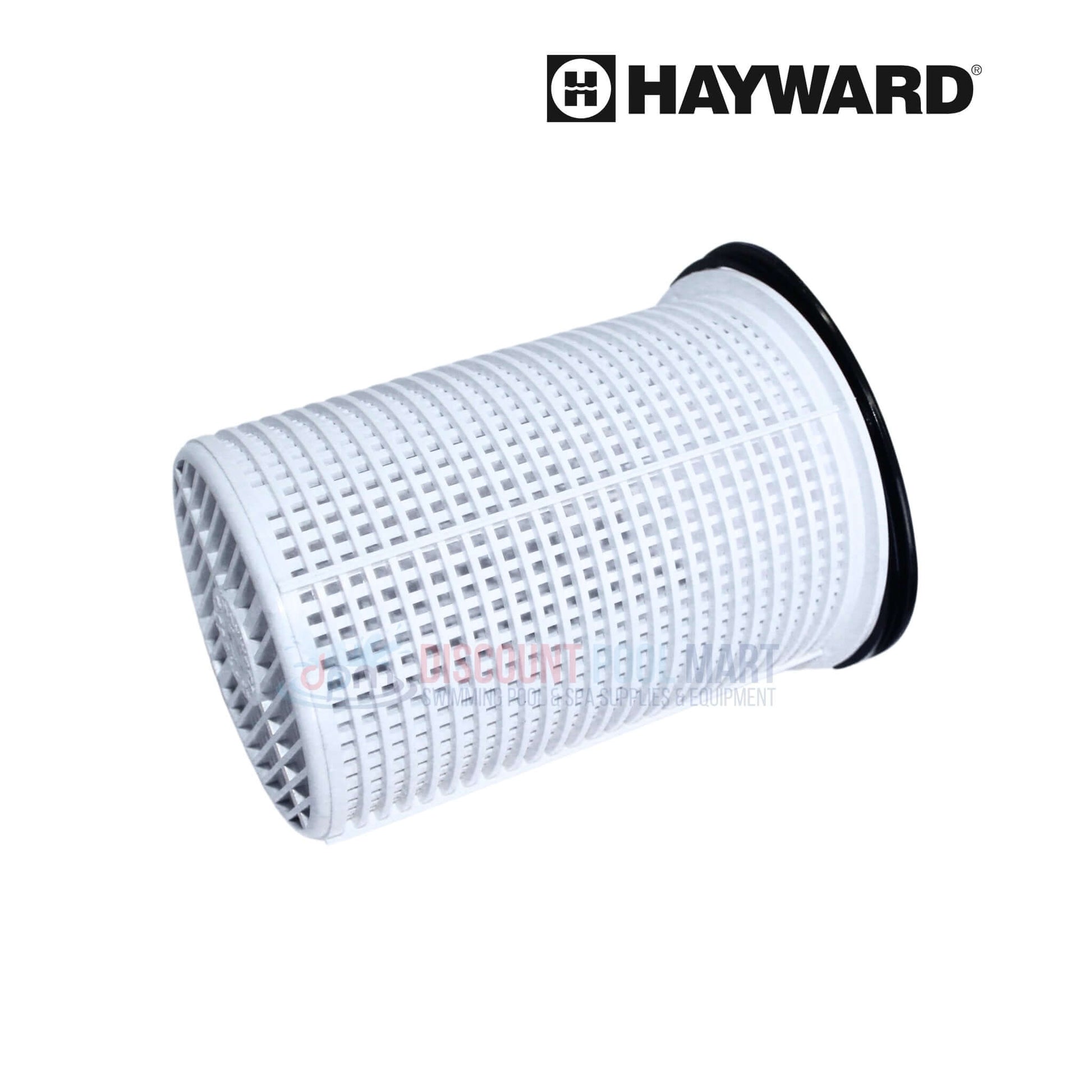

OEM Hayward SPX1250RA Strainer Basket is a high-performance replacement part for Max-Flo and Power-Flo pump models, including SP1800X, SP2800X, SP1500, SP1540C, and Power-Flo II SP1700 series. Designed to fit snugly inside the pump housing, this basket efficiently collects leaves, twigs, and debris before they reach the impeller, helping to prevent clogging and flow disruption. Its pool-grade plastic construction offers excellent resistance to chemicals, pressure, and daily use. Regular inspection and replacement of the SPX1250RA help maintain consistent suction, promote filtration efficiency, and extend the overall life of your Hayward pump system.
-
Fits Multiple Hayward Pump Models: Compatible with Max-Flo SP1800X and SP2800X, Power-Flo SP1500, SP1540C, and Power-Flo II SP1700 series
-
Protects Pump from Debris: Traps larger particles before they reach the impeller, preventing costly blockages or motor strain
-
Engineered for Pool Conditions: Made of rugged plastic built to withstand chlorine, high flow, and long-term pump operation
-
Supports Continuous Water Circulation: Helps maintain optimal flow rates and prevents suction loss caused by clogging
-
Quick Replacement Process: Easy to remove and clean during routine maintenance, keeping your system performing smoothly
- Hayward Max-Flo SP2800X and SP1800X Pump Series Models: SP1800X5, 1805X7, 1807X10, 1808X10, 1810X15, 1811X15, SP2800X5, SP2805X7, SP2807X10, SP2810X15, SP2815X20
- Hayward Power-Flo II and SP1540C Pump Models: SP1540C, SP1750, SP1775, SP1780
- Hayward Power-Flo SP1500 Pump Series Models: SP1500, SP1510, SP1511, SP1550, SP1575, EP1500, SP1516
Note: Power-Flo LX pumps (SP1580, SP1580X15, SW1585, EP1550LX) use strainer basket SPX1500LX.
