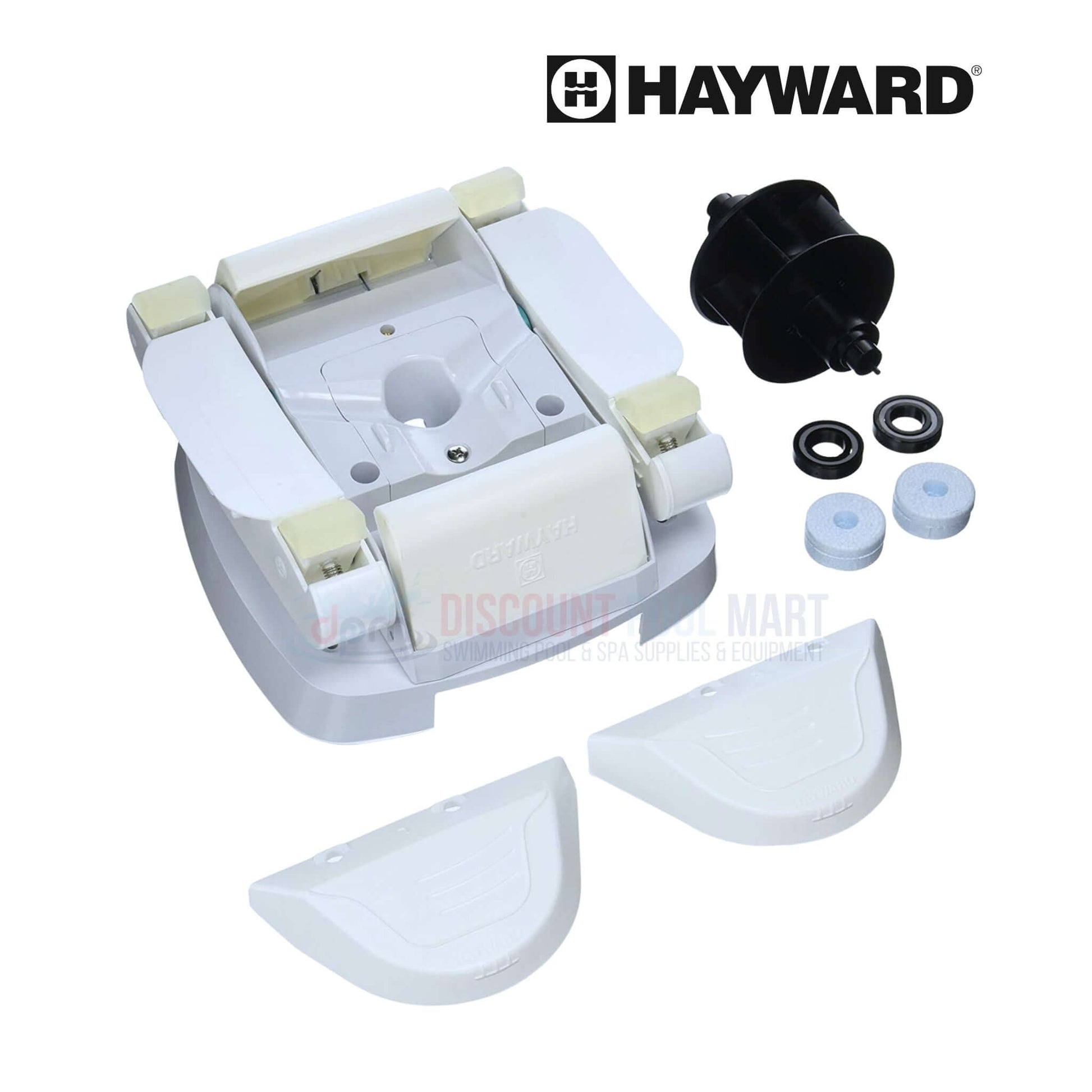

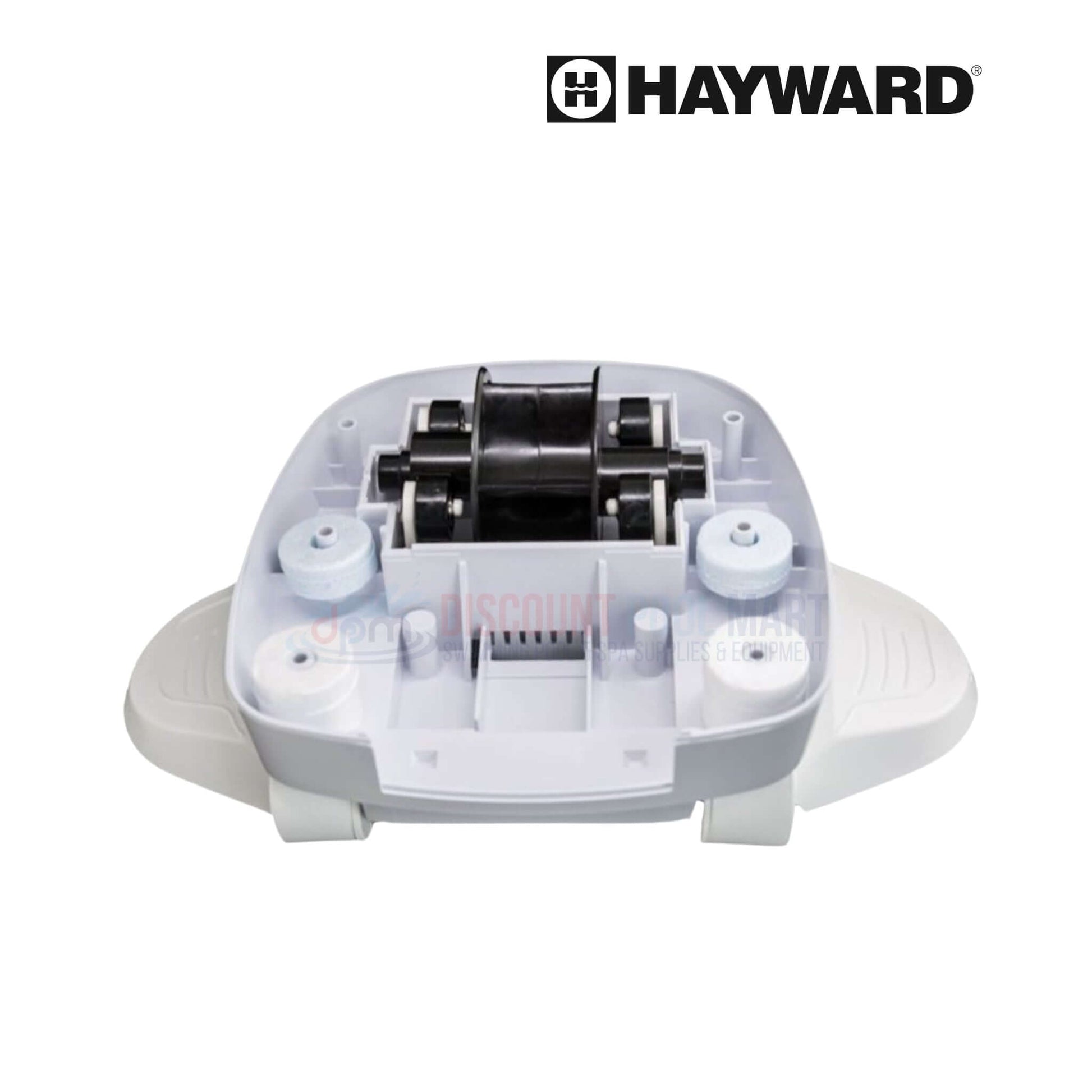

OEM Hayward AXV622604WHP Propulsion and Wing Rebuild Kit is a comprehensive replacement set designed to restore the cleaning power of Hayward Navigator, PoolVac Ultra, PoolVac Plus, and PoolVac XL suction cleaners. This genuine Hayward kit includes critical components such as pod shoes, wings, turbine, bearings, A-frames, flaps, and lower body parts. Built with the same high-grade materials used in the original manufacturing process, it ensures reliable performance and extends the service life of your cleaner. Ideal for reviving worn-out cleaners, the kit is designed to optimize debris pickup, movement control, and suction flow for efficient and consistent pool cleaning.
-
OEM Rebuild Kit for Hayward Cleaners: Engineered to restore Navigator, PoolVac Ultra, PoolVac Plus, and XL models to full functionality
-

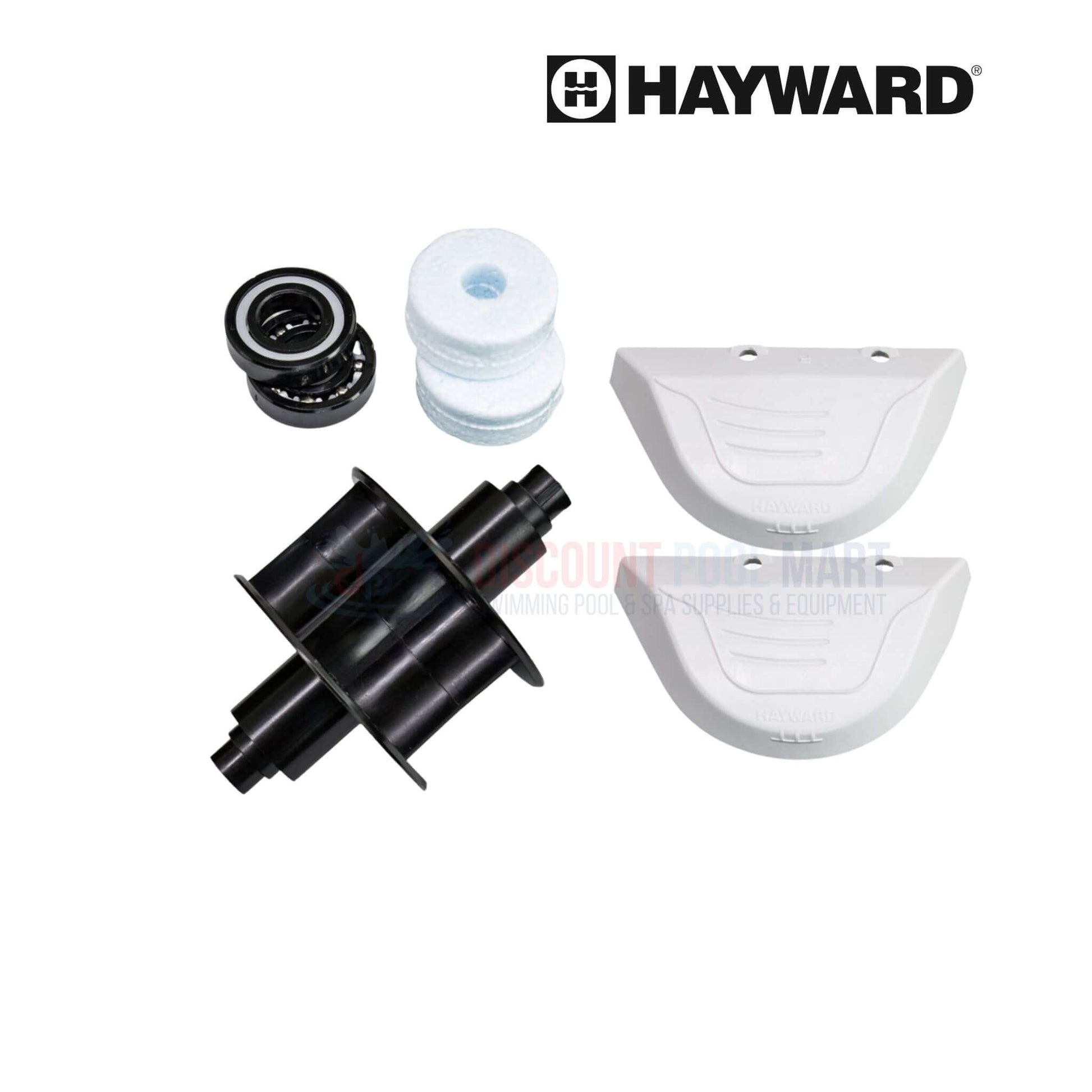

Full Set of Factory-Matched Components: Includes turbine, flaps, A-frames, shoes, wings, body parts, and screws for a complete internal refresh
-
Improves Cleaner Navigation and Suction: Restores directional accuracy and steady propulsion for reliable floor and wall coverage
-
Durable Materials for Long-Term Use: Manufactured using original-spec, chemical-resistant materials to handle harsh pool environments
-
Ideal for Performance Restoration: Replacing worn parts helps extend the cleaner’s life and ensures consistently clean, debris-free pool water

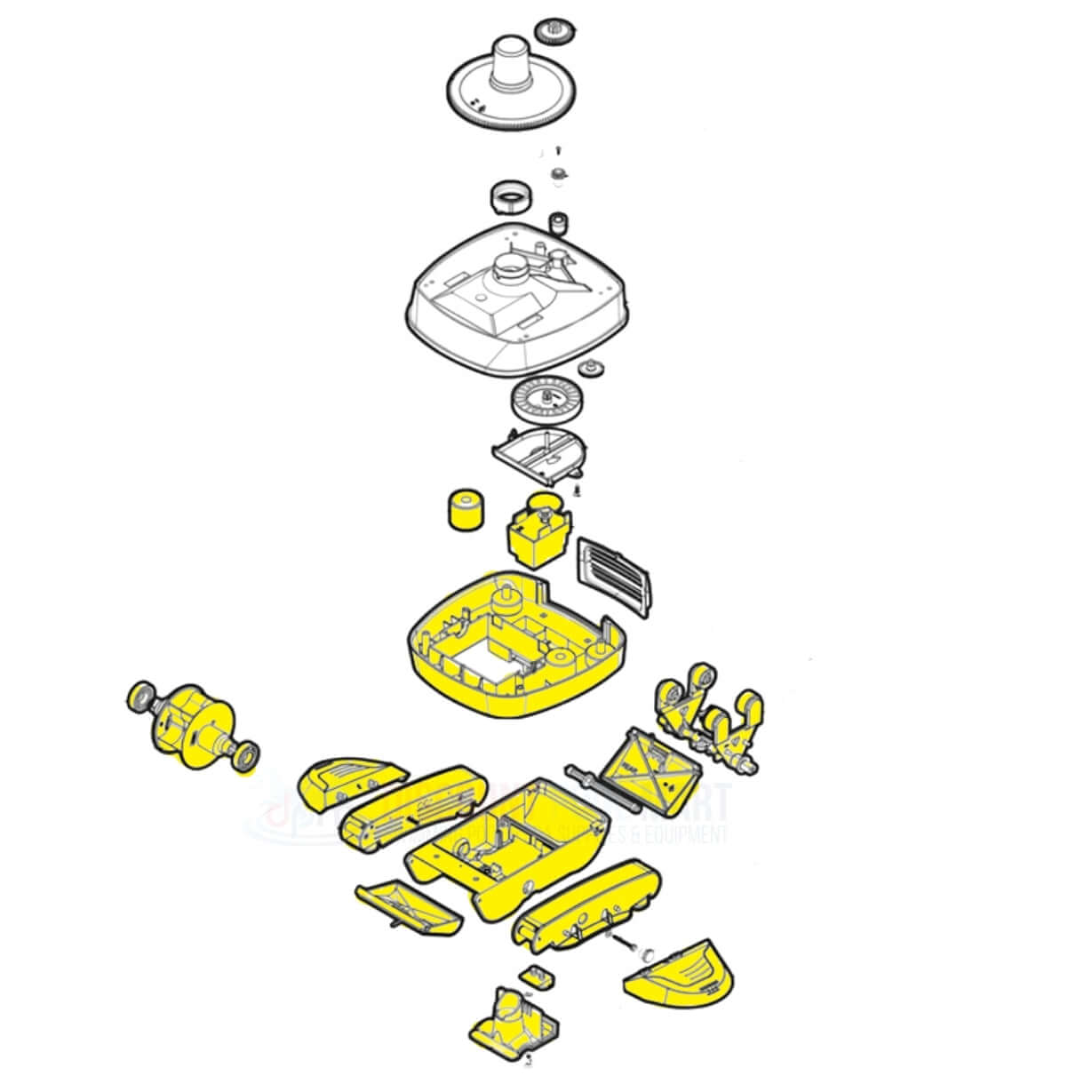

- Access Cover Assembly (1)
- White Lower Body (1)
- Saddle (1)
- Keeper (1)
- Screw and Washer (1)
- Flap Adjuster (1)
- Lower Middle Body (1)
- Straight Throat Assembly (1)
- A-Frames w/ Bushings (2)
- White Pods (2)
- Hex Head Pod Screws and washers (2)
- Light Gray Flaps and Springs (2)
- Wings (2)
- Lower Body Screws (4)
- Pod Shoes (4)
- Hayward Navigator Cleaners
- Hayward Pool Vac XL Cleaners
- Hayward Pool Vac Ultra Cleaners
-
Hayward Pool Vac Cleaners
