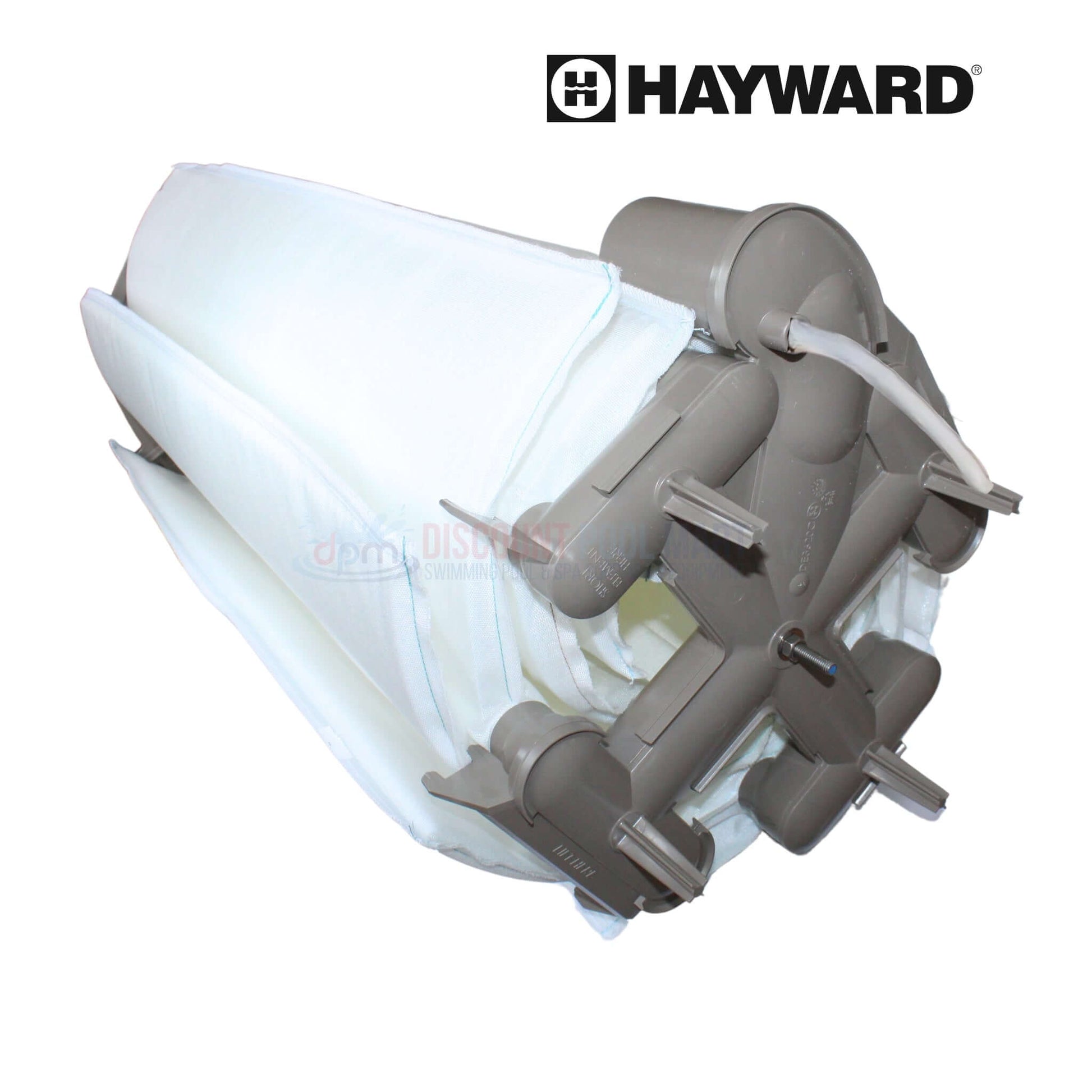

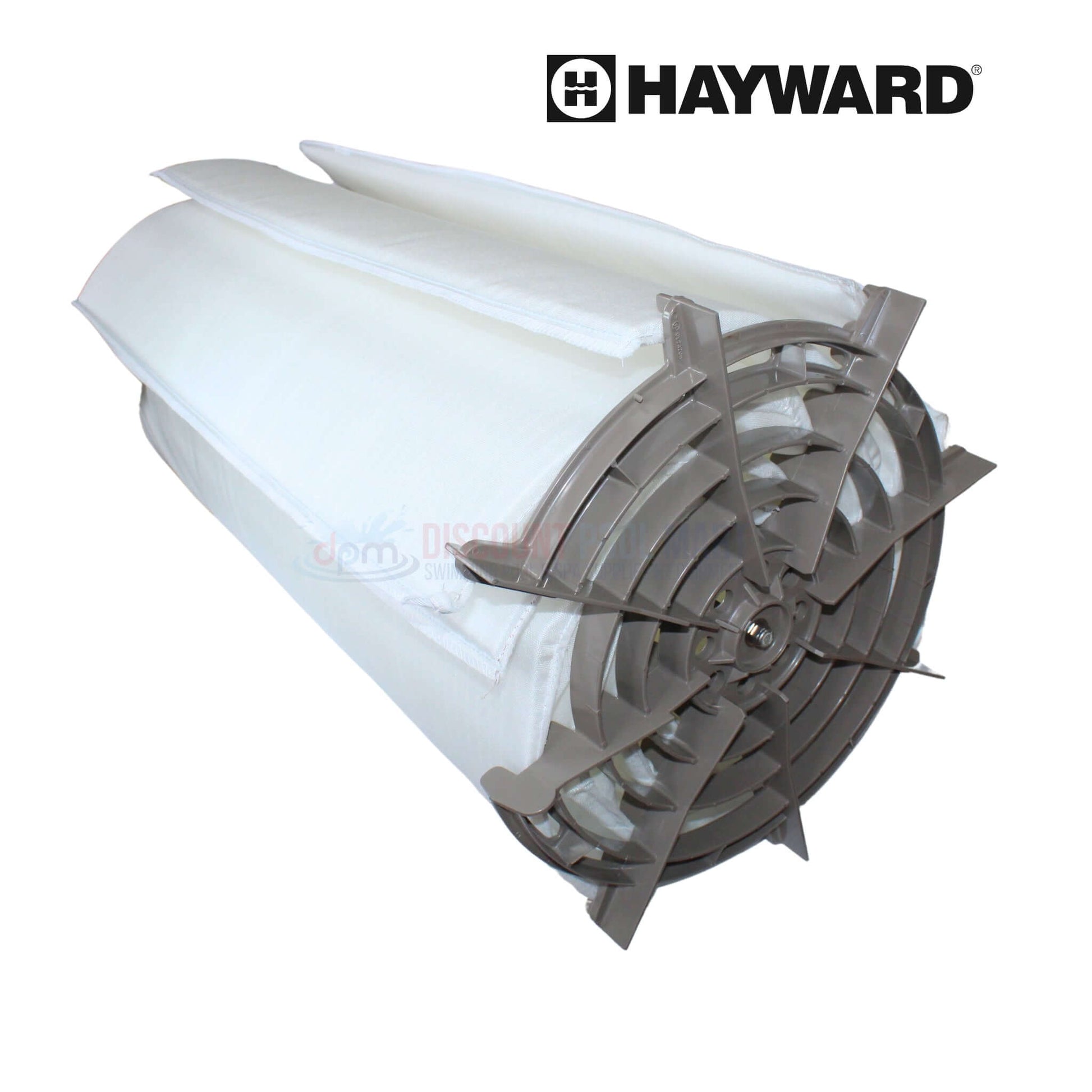

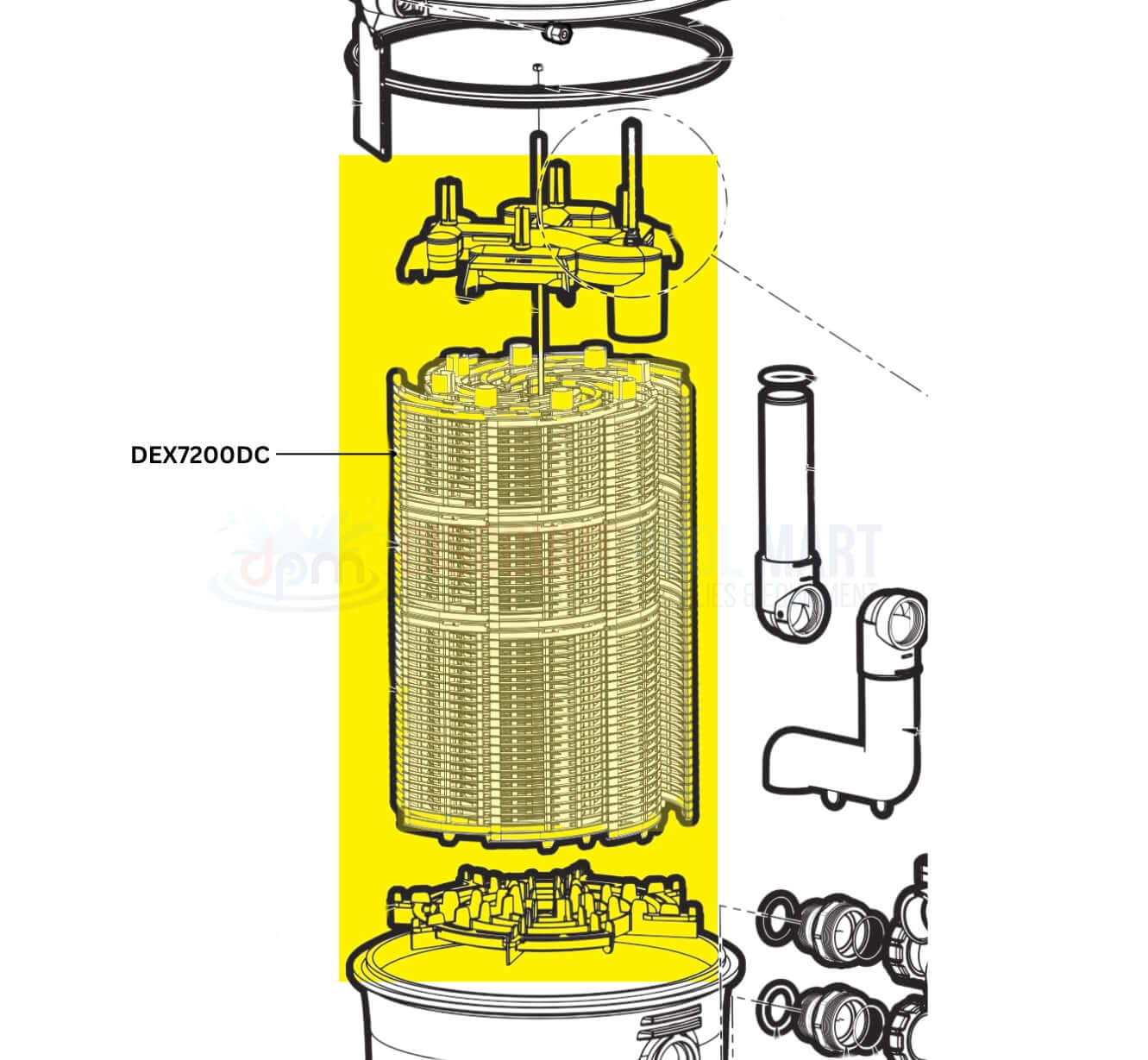

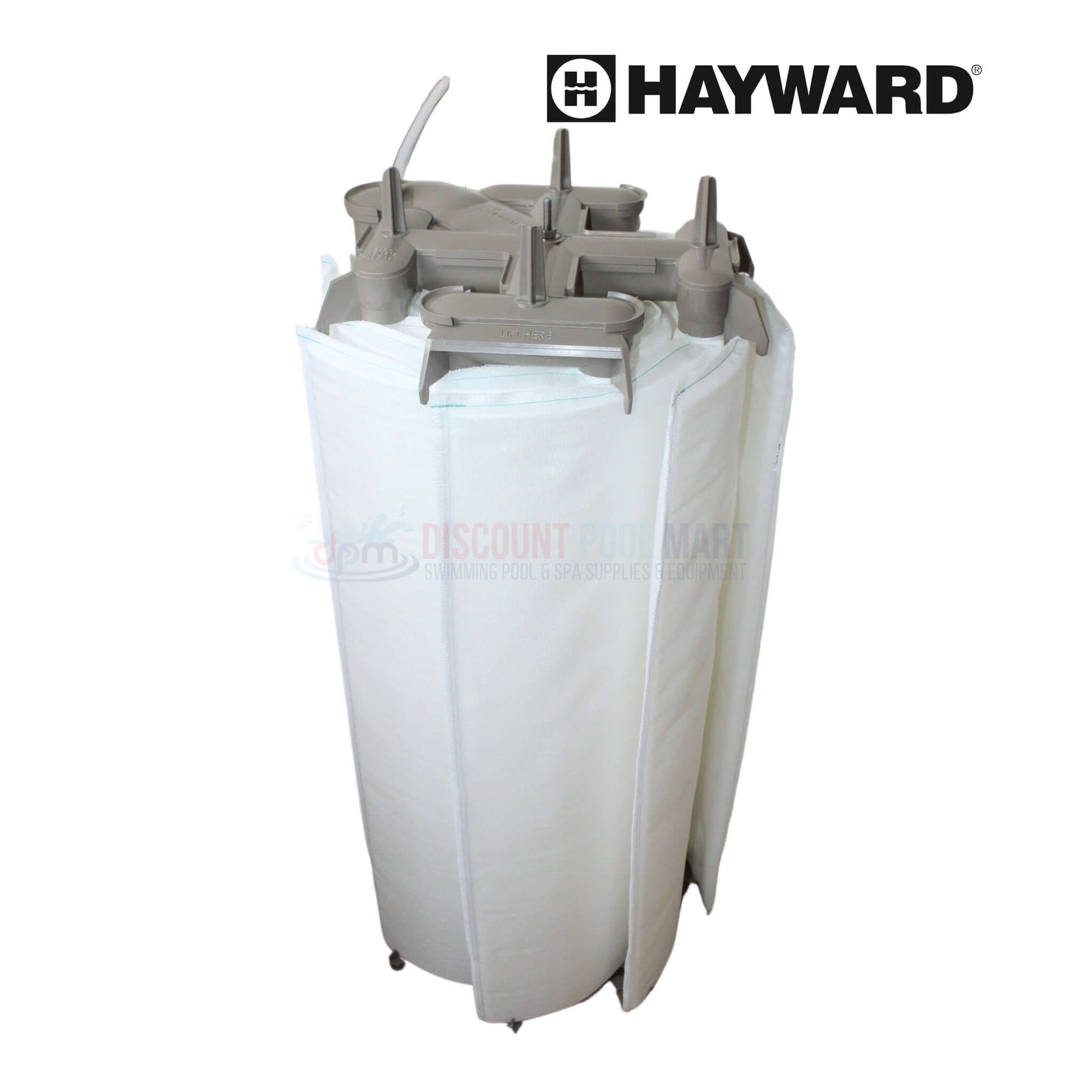

Hayward DEX7200DC Complete Element Cluster is a full replacement grid assembly for the Pro-Grid DE7220 filter, offering 72 square feet of filtration capacity. This unit includes seven full-size DE grids, one partial grid, a top and bottom manifold, retainer rod, air relief, and locator—engineered to restore filtration efficiency and simplify maintenance. The high-impact styrene frames and polypropylene fabric provide long-lasting performance under high flow and pressure. The DEX7200DC offers a fast, one-piece solution for maintaining clean, clear water in large pool systems using the DE7220 filter.
-
Built for Hayward DE7220 Filter: Complete pre-assembled grid cluster designed for Pro-Grid 72 sq ft filter systems for direct fit
-
Full Grid Assembly Included: Comes with 8 DE grids, top and bottom manifolds, retainer components, and air relief for easy installation
-
72 Sq Ft of DE Filtration Surface: Provides expansive filtration area for efficient debris removal and balanced water flow
-
Reinforced Grid Materials: Constructed with impact-resistant styrene and durable polypropylene fabric to withstand pool conditions
-
Streamlined Maintenance Process: Replaces entire internal filter cluster in one step, reducing service time and complexity
This complete assembly comes pre-assembled and ready to install.
- (7) Large 36", 72 Square Foot Grids
- (1) Small 36", 72 Square Foot Grid
- (1) Top Collector Manifold: DEX2400C
- (1) Retainer Rod: DEX7200R
- (1) Retainer Nut: ECX176865
- (2) Washer: ECX1109
- (1) Filter Element Locator: DEX2400H
- (1) Flex Air Relief Assembly: DEX2400CR
- Hayward Pro-Grid 72 sq. ft DE Filters: DE7220

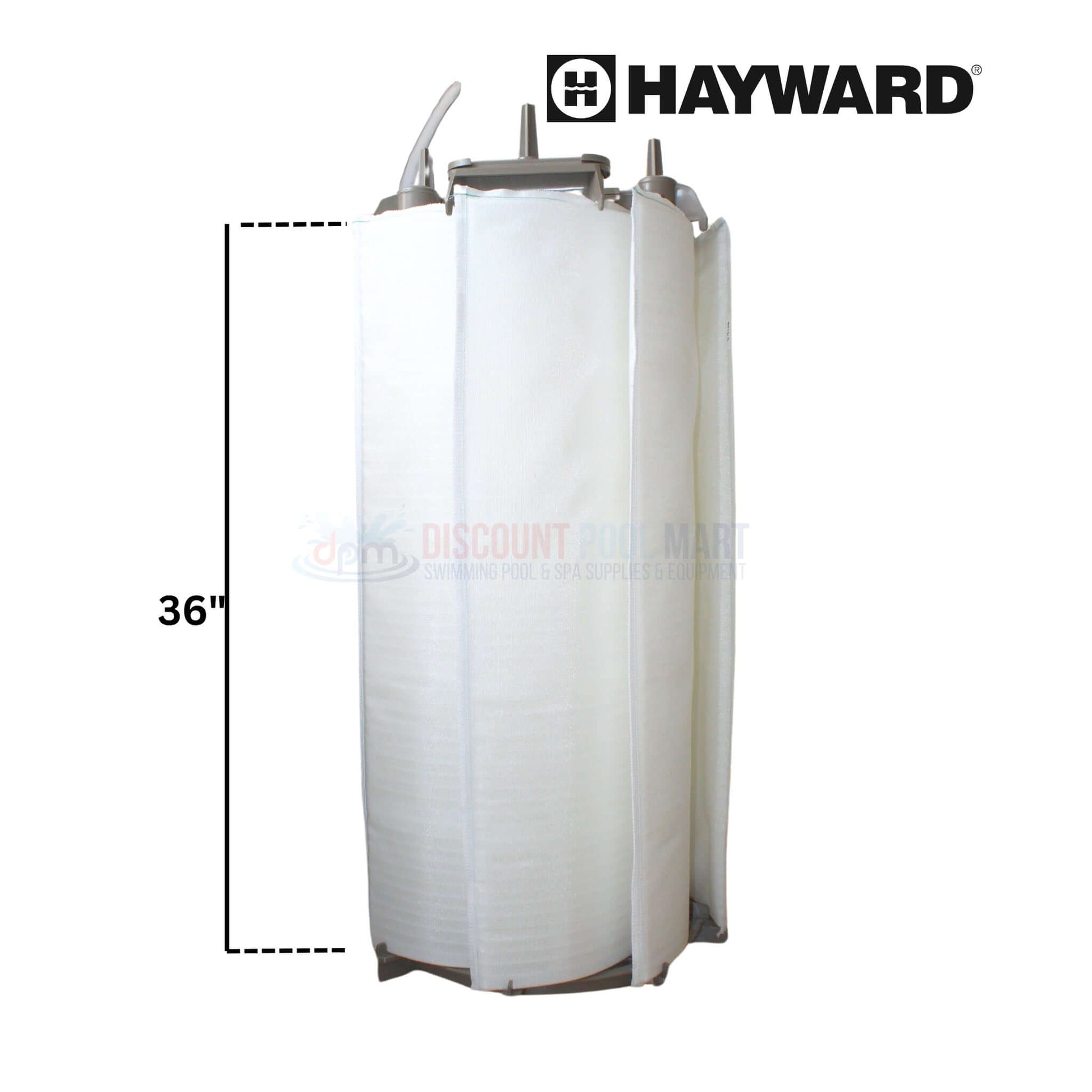

- Large Grids Dimensions: 36" Height - 11" Width
- Partial Grid Dimensions: 36" Height - 9 3/4" Width
