DEX4800DC | Hayward ProGrid Complete Element Cluster | 48 Sq. ft

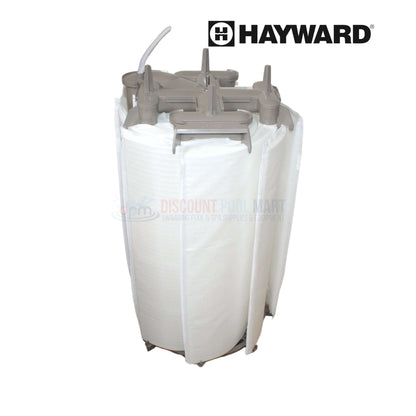

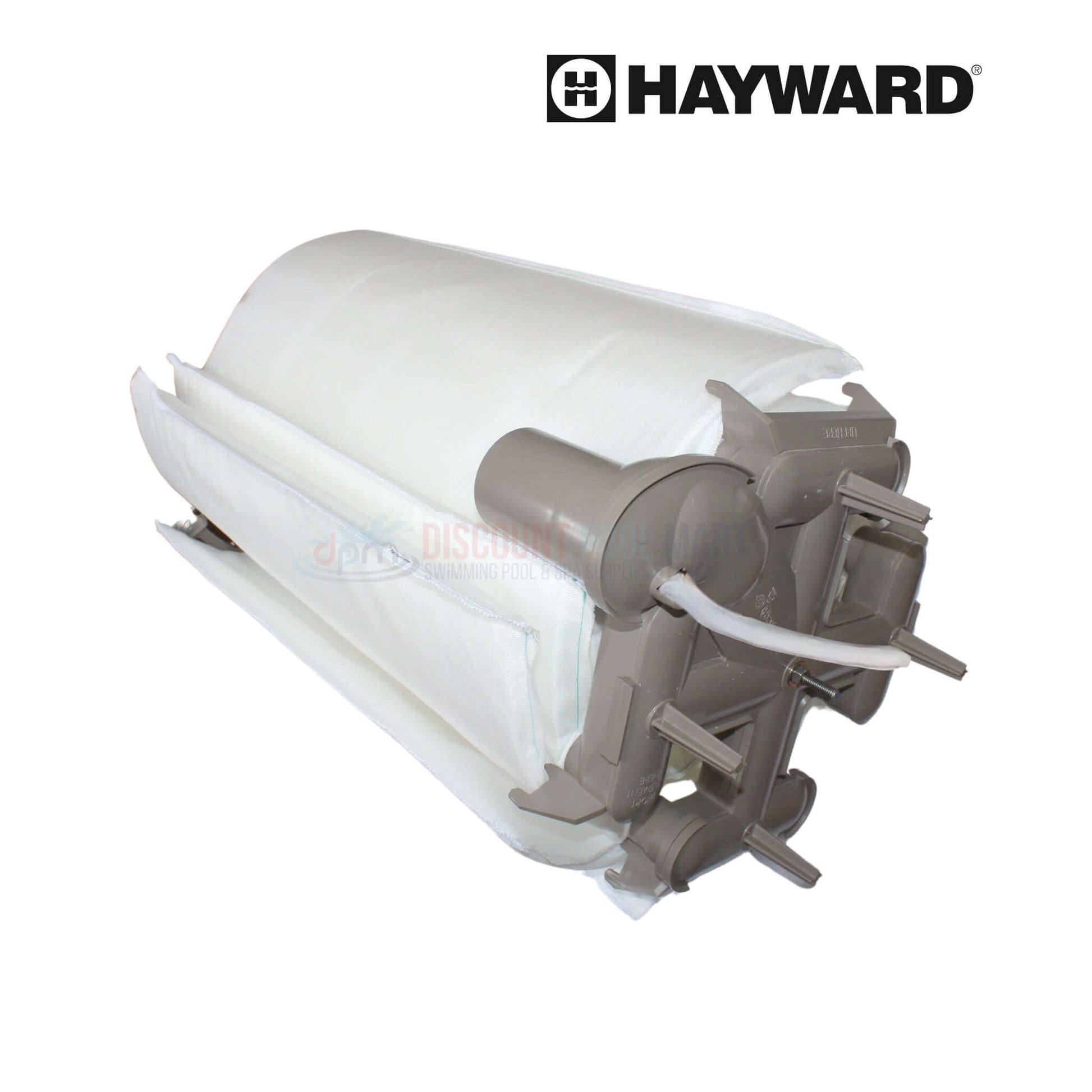

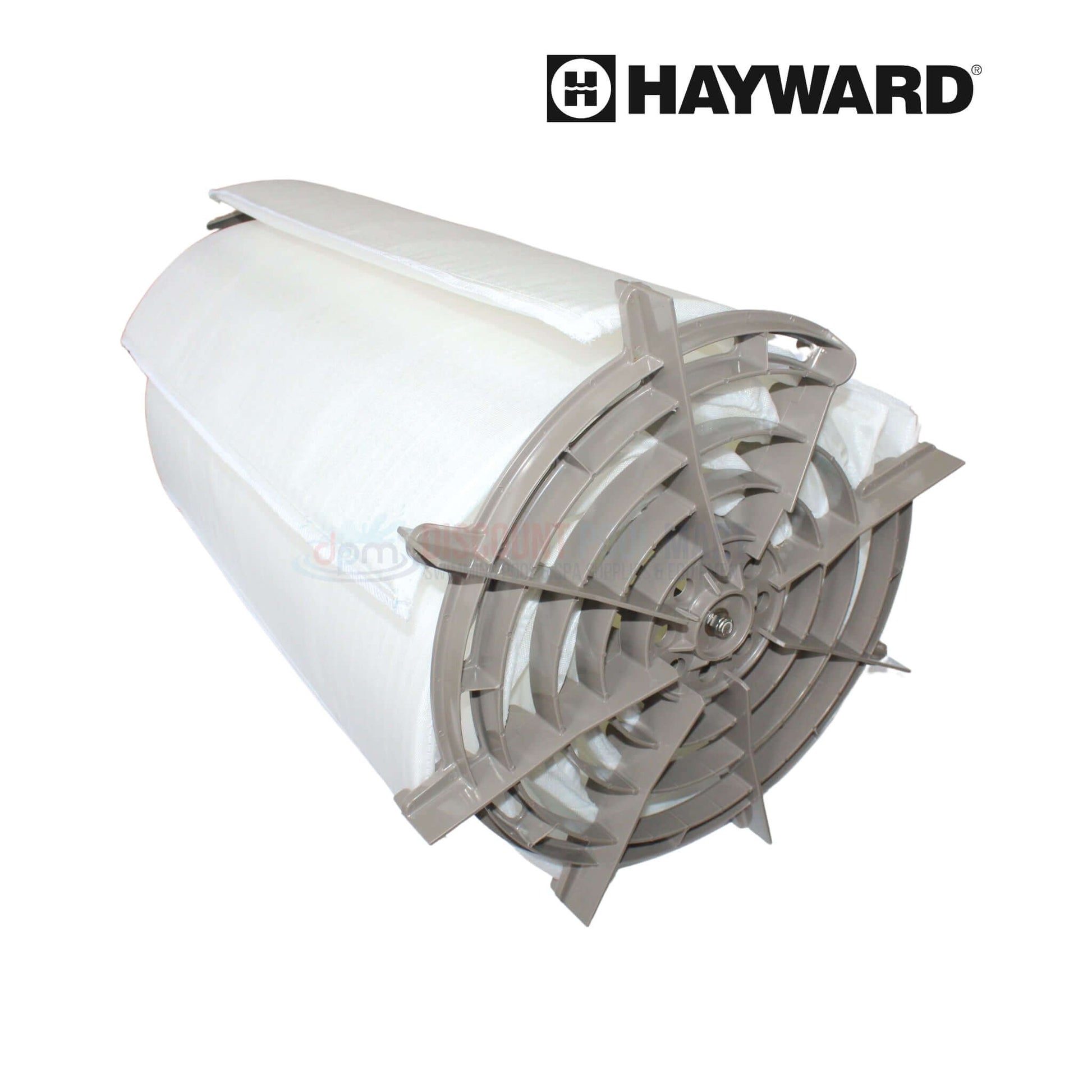

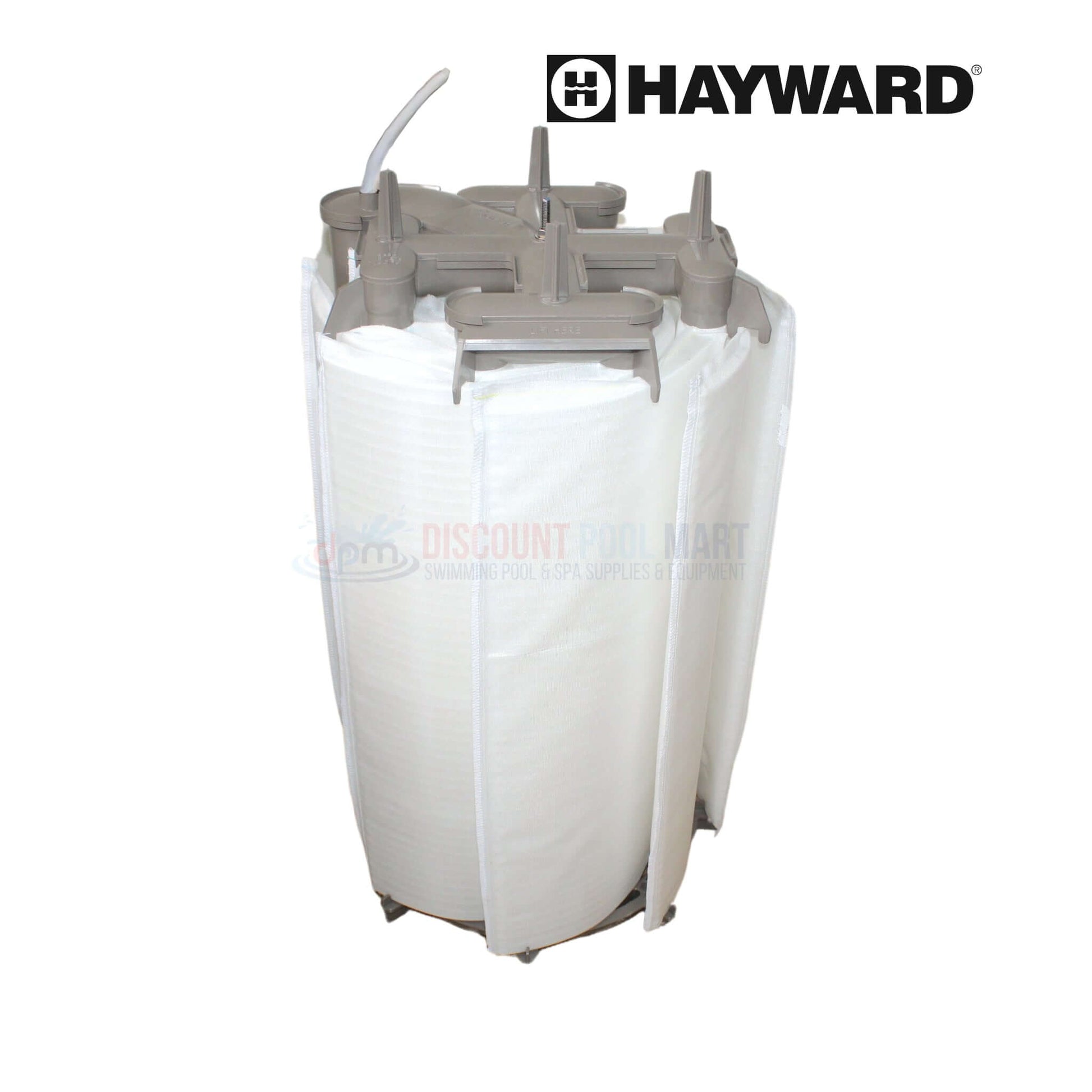

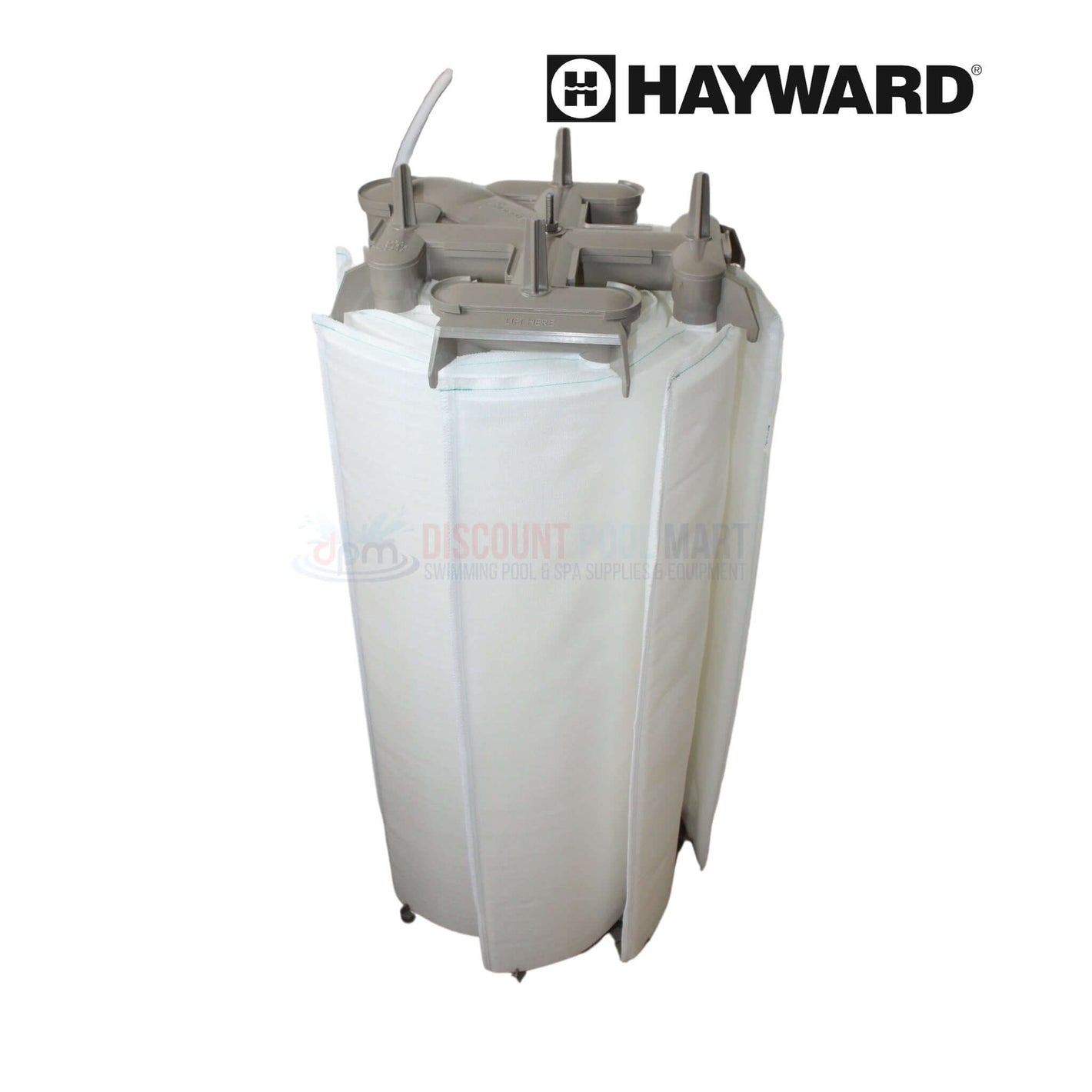

Hayward DEX4800DC Complete Element Cluster is a internal replacement for Pro-Grid DE4820 and MicroClear DE4800 filters, offering 48 square feet of filtration capacity. This unit includes seven full DE grids, one partial grid, top and bottom collector manifolds, flex air relief, locator, and retainer rod. Designed for straightforward installation and long-lasting performance, each grid is constructed from impact-resistant styrene and polypropylene fabric to ensure effective debris removal and durability. Ideal for simplifying internal maintenance, the DEX4800DC restores full filtration functionality with a single, complete assembly.

Highlights

• Fits DE4820 and DE4800 Filter Systems: Replacement assembly for Hayward Pro-Grid and MicroClear 48 sq ft vertical DE filters

• Pre-Assembled Grid Cluster: Includes eight DE grids, top and bottom manifolds, air relief, locator, and mounting hardware

• Delivers 48 Sq Ft of Filtration Surface: Offers broad coverage for capturing dirt and debris efficiently and maintaining clear water

• Engineered for Long-Term Use: Built with styrene frames and polypropylene mesh for resistance to pressure, chemicals, and extended service

• Speeds Up Maintenance: Fully assembled design reduces filter service time and ensures consistent internal component alignment

Includes

This complete assembly comes pre-assembled and ready to install.

• (7) Large 24", 48 Square Foot Grids
• (1) Small 24", 48 Square Foot Grid
• (1) Top Collector Manifold: DEX2400C
• (1) Retainer Rod: DEX4800R
• (1) Retainer Nut: ECX176865
• (2) Washer: ECX1109
• (1) Filter Element Locator: DEX2400H
• (1) Flex Air Relief Assembly: DEX2400CR

Compatibility

• Hayward Pro-Grid 48 sq. ft DE Filters: DE4820

Specifications

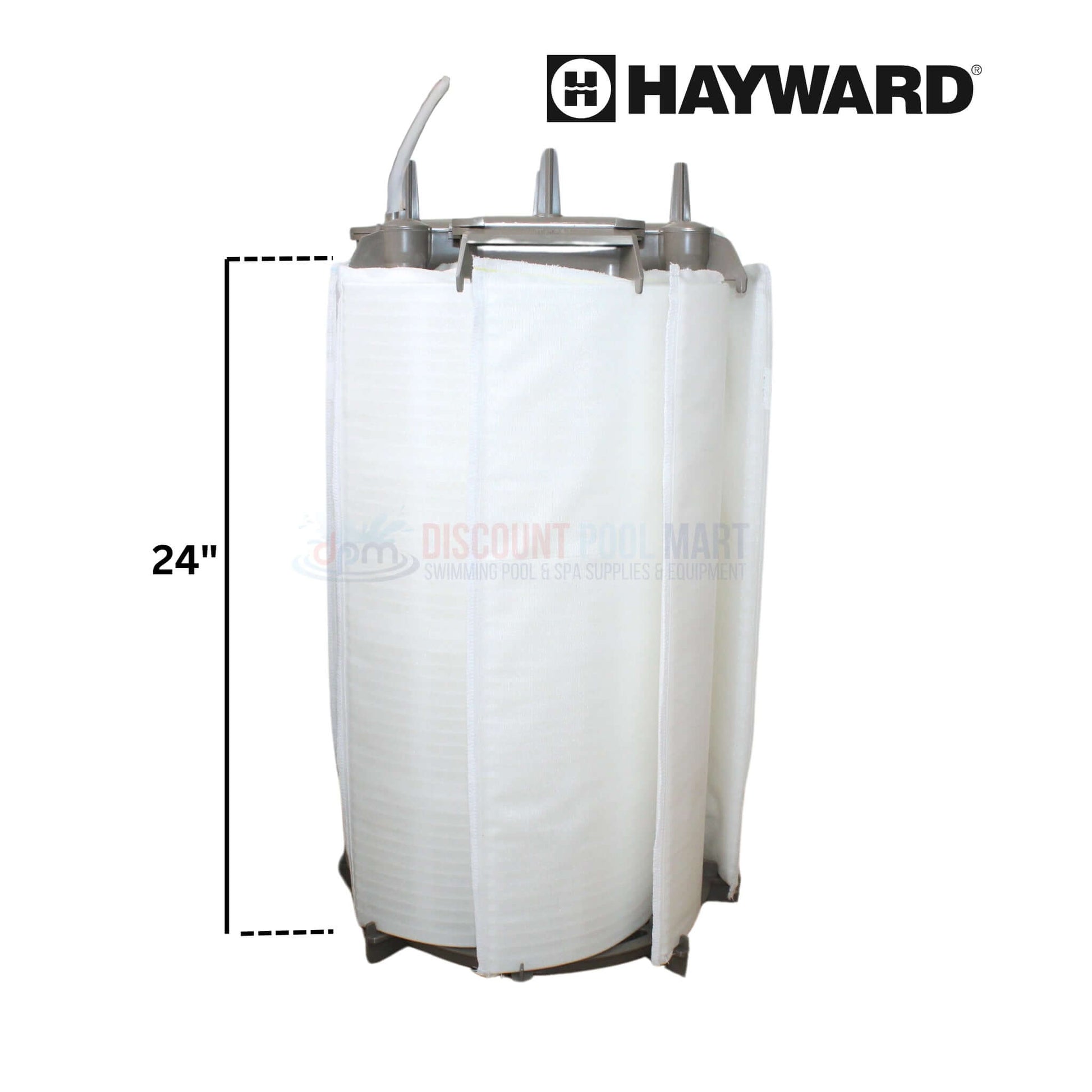

• Large Grids Dimensions: 24" Height - 11" Width
• Partial Grid Dimensions: 24" Height - 9 3/4" Width

Additional Info

Fixing Poor Filtration and Grid Failures

pool still dirty after filtering replace with dex4800dc

de powder leaking back into pool from cracked grids

filter pressure won’t drop after backwash check manifold

broken air relief or locator rod replace full cluster

filter not circulating properly due to old internal grids

In-Store Replacement for Fast Filter Repairs

buy dex4800dc in store for hayward de4820 filter

walk in to get full internal grid assembly locally

where to find hayward de filter cluster near me

same-day pickup for preassembled de grid set

local shop has oem dex4800dc filter cluster in stock

Fitment and Installation Support

does dex4800dc fit hayward micro-clear de4800

correct internal cluster for 48 sq ft de filters

includes grids, manifold, air relief, and rod

is this compatible with de4820 vertical grid system

install guide for preassembled 24 inch de grid pack

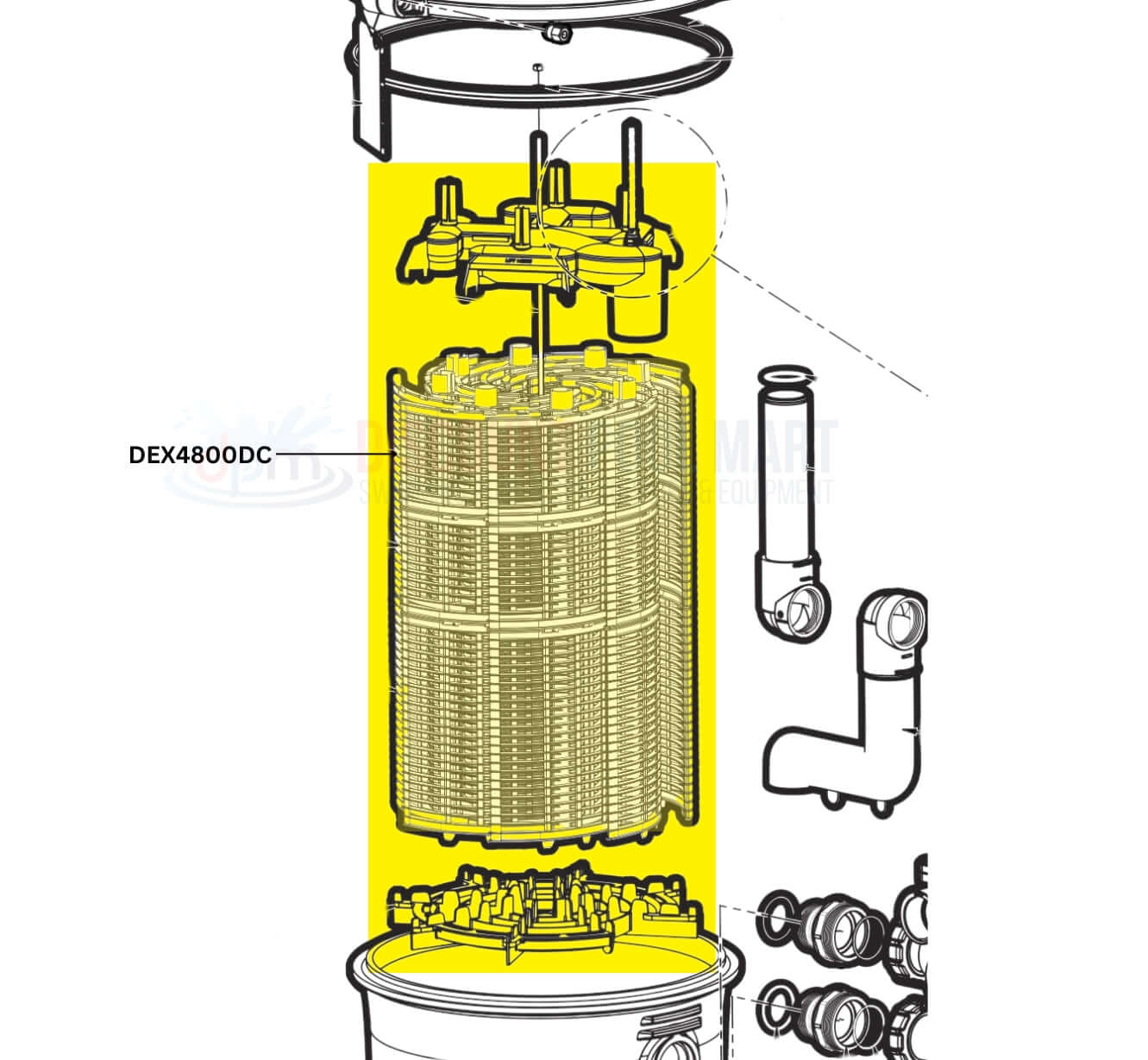

Diagram
