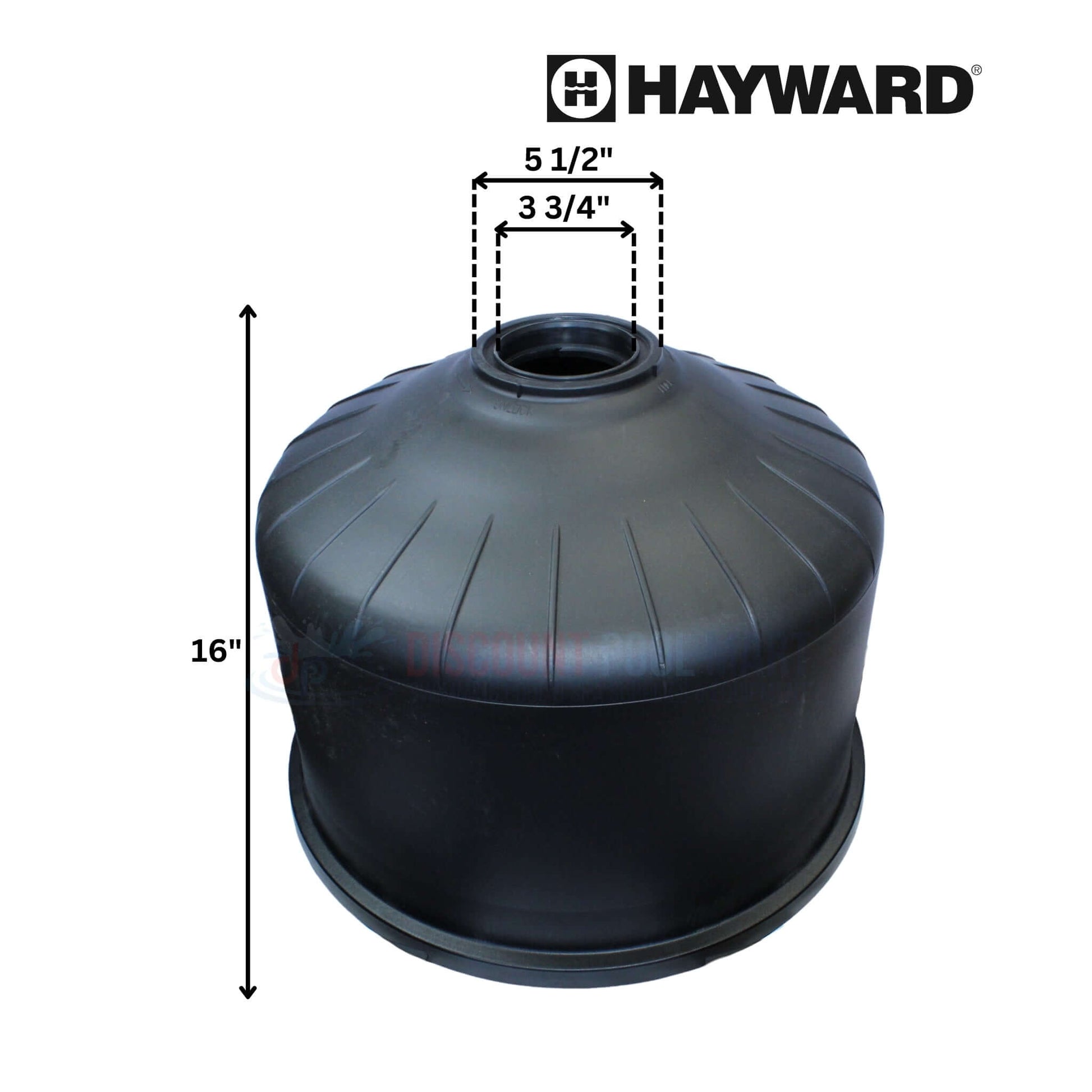

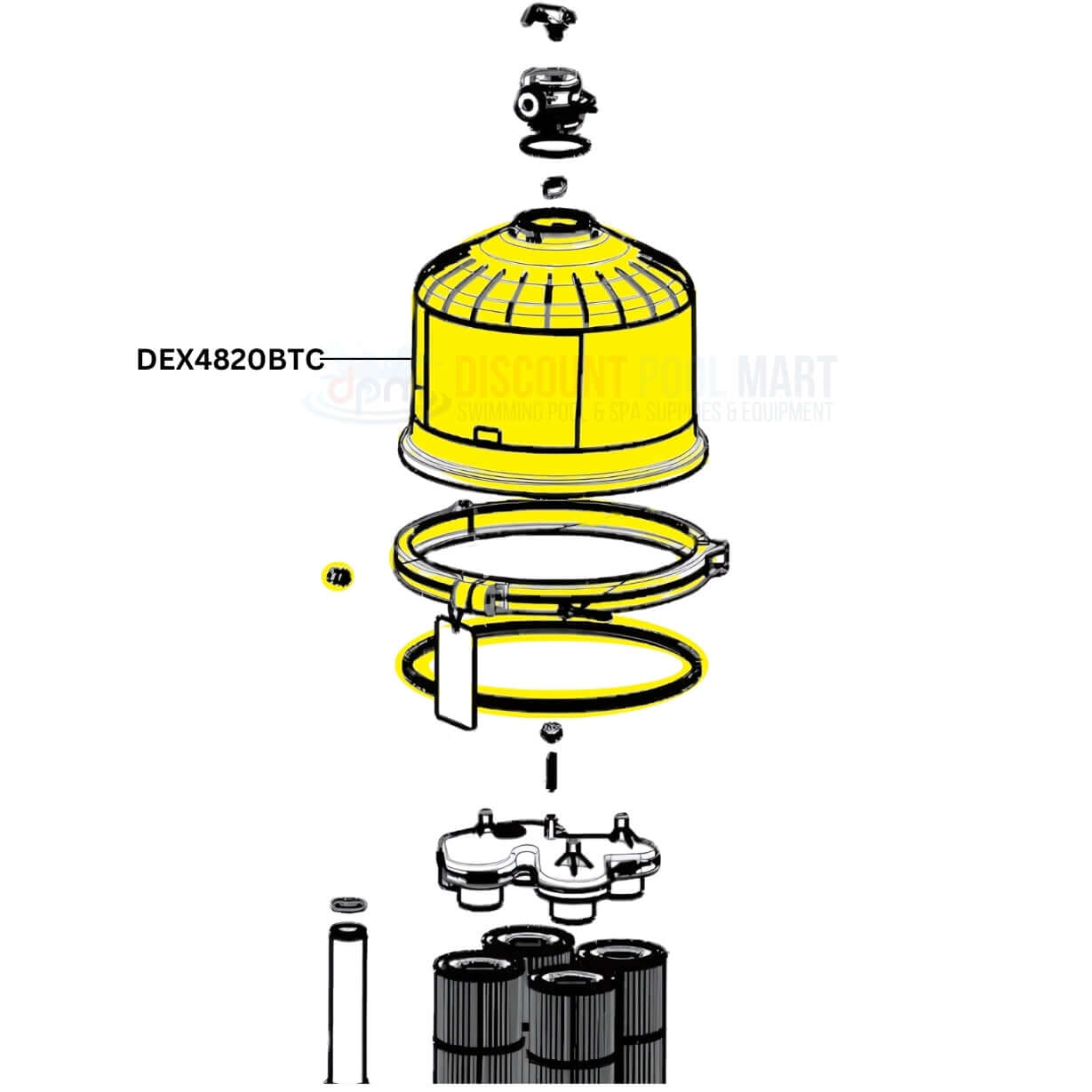

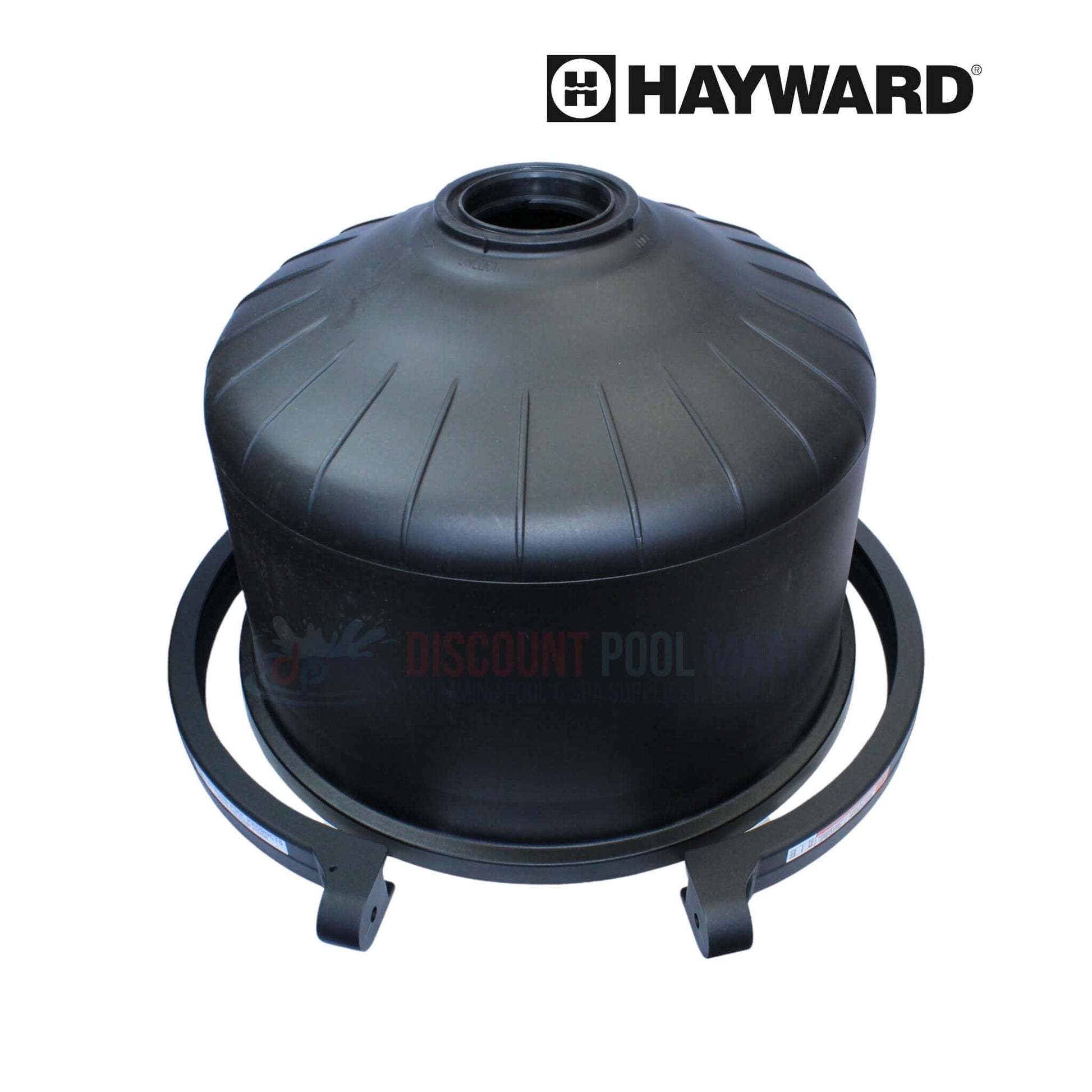

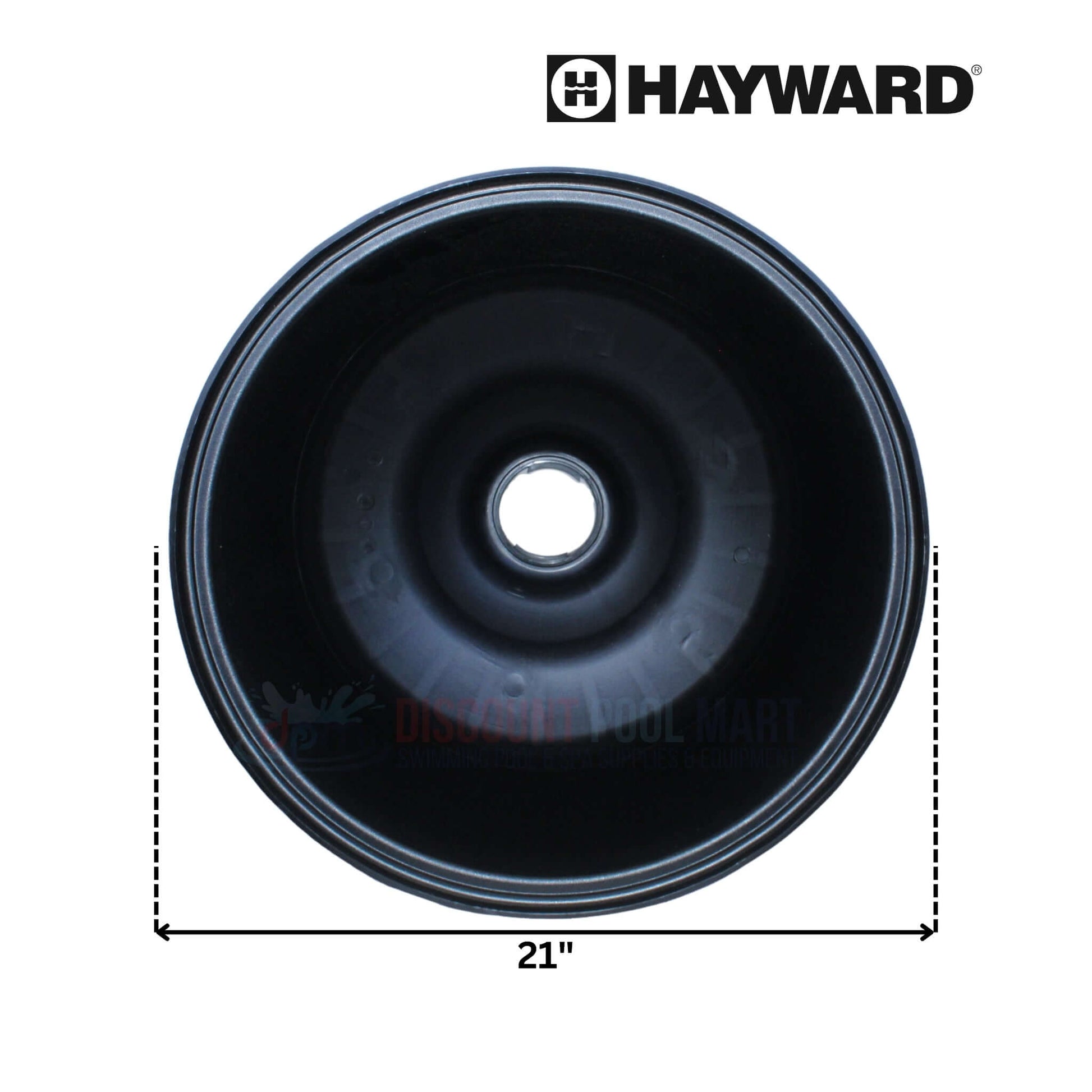

OEM Hayward DEX4820BTC Filter Head with Clamp System is a complete upper tank replacement designed for Hayward Pro-Grid DE4820 and SwimClear C4030, C4025, and C4020 filters. This assembly includes the reinforced upper filter body, aluminum clamp ring, and metal-reinforced tank seal, ensuring a leak-free, pressure-resistant connection between the filter halves. Built from chemical-resistant materials to endure harsh pool environments, the DEX4820BTC simplifies servicing with a clamp design that provides fast access to internal components. Replacing a damaged or leaking filter head helps restore system performance and filtration efficiency.
-
OEM Replacement for DE4820 and C4030 Filters: Designed for exact fit with Pro-Grid and SwimClear mid-size filter systems
-
Includes Clamp, Head, and Gasket: Comes with aluminum clamp, filter top, and metal-reinforced O-ring for a secure tank seal
-
Resistant to Harsh Pool Conditions: Constructed from corrosion-resistant materials built for long-term durability and pressure stability
-
Clamp Design for Easy Maintenance: Enables quick disassembly for cleaning, grid replacement, or internal inspection
-
Restores Pressure and Flow Integrity: Replacing old components supports leak prevention and prolongs filter system lifespan
- Hayward ProGrid Vertical Grid DE Series Filter: DE4820
- Hayward SwimClear Cartridge Filter: C4030
Note: This may be compatible with your filter, please check owners manual to ensure compatibility.
- (1) Filter Head
- (1) Metal Reinforced O-Ring

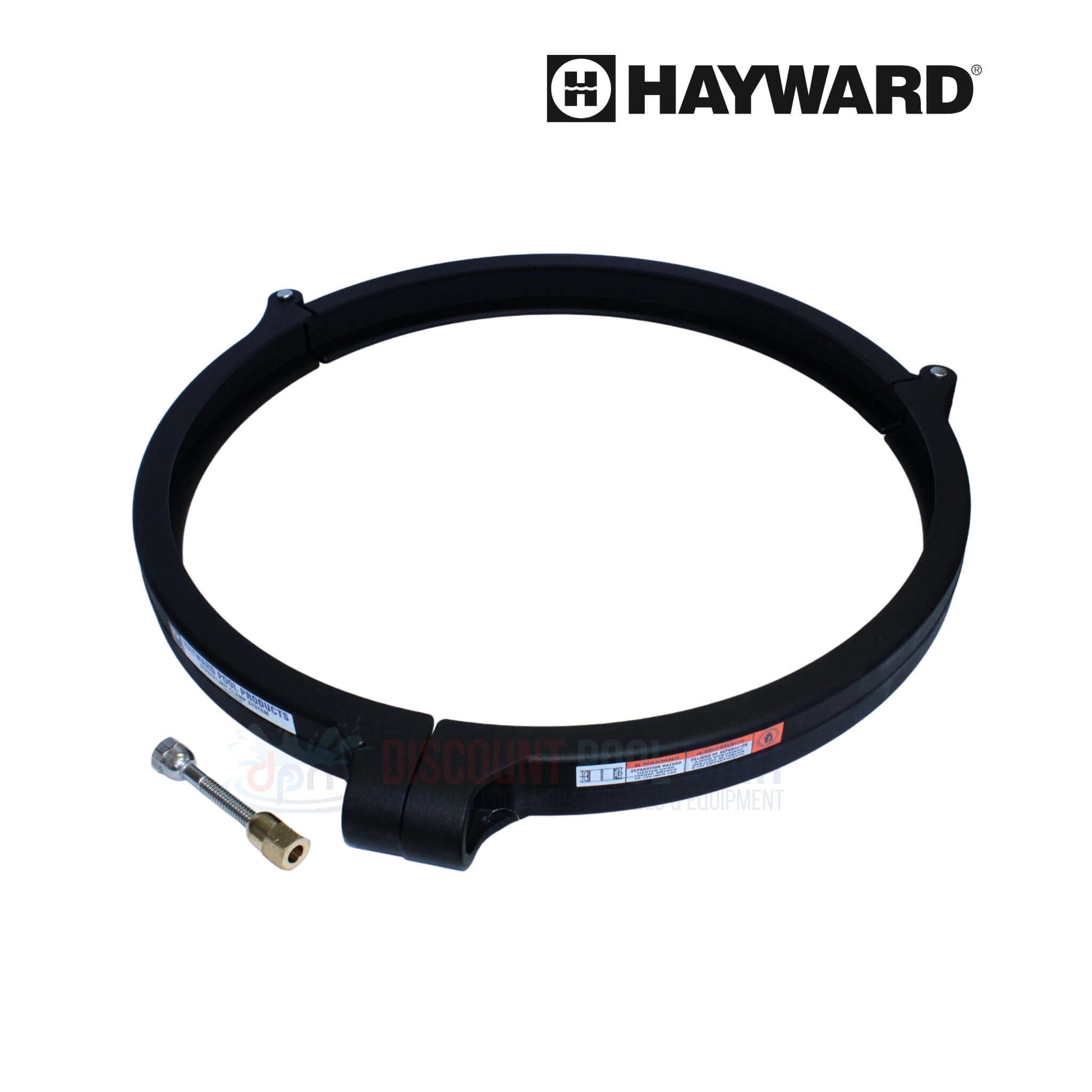

- (1) Aluminum Clamp Assembly
