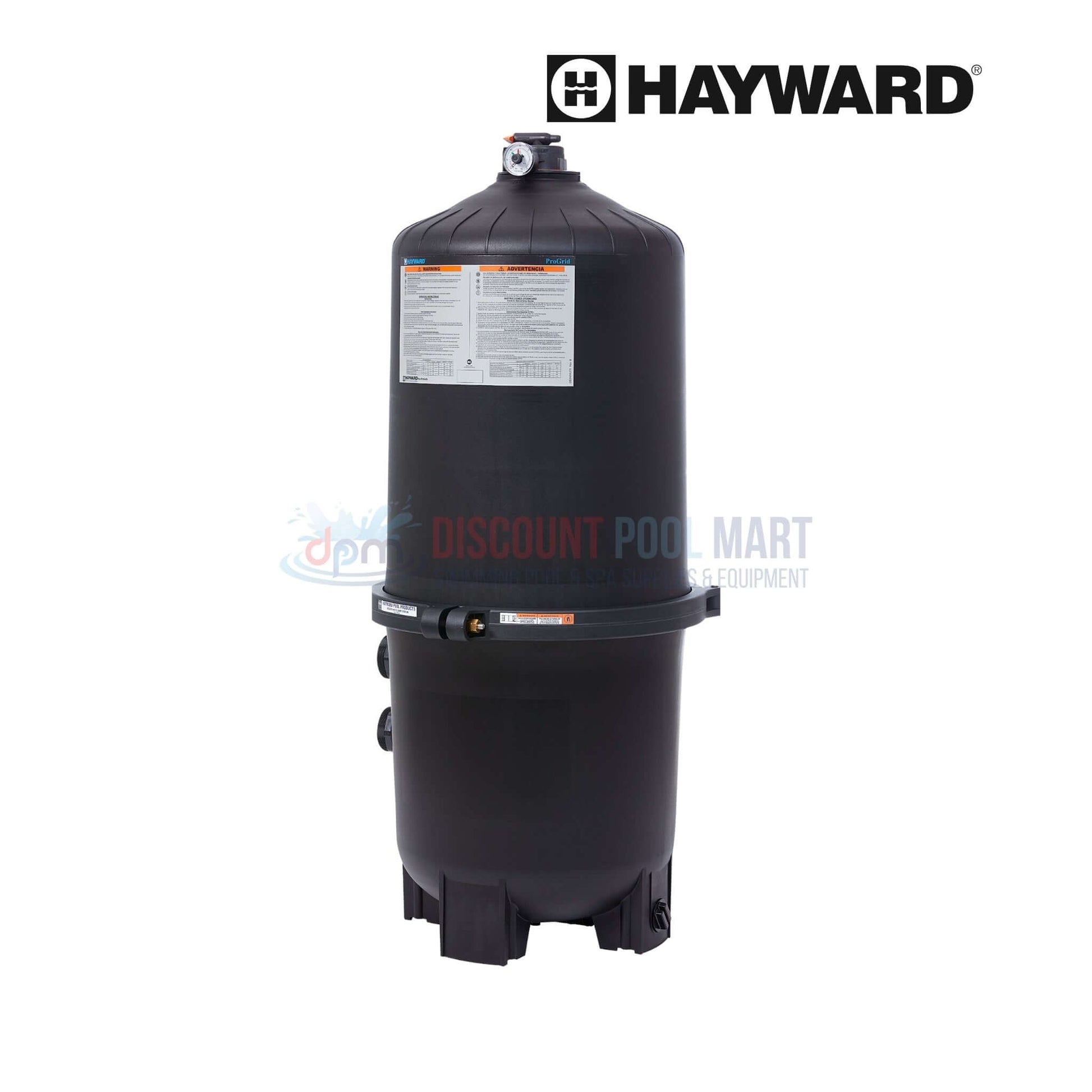

DE7220 | Hayward ProGrid DE Filter 72 sq ft

Hayward ProGrid 72 Sq Ft DE Filter System | DE7220

The Hayward ProGrid 72 Sq Ft DE Filter | DE7220 is engineered to deliver industry-leading water clarity, high flow rates, and superior filtration capacity for large residential and commercial pools. Utilizing diatomaceous earth (DE) media, the ProGrid system provides microscopic filtration that captures particles as small as 5 microns, ensuring pristine, crystal-clear water. Built from glass-reinforced co-polymer, the DE7220 tank is designed for strength, corrosion resistance, and longevity—ideal for pools operating under demanding conditions or equipped with in-floor cleaning systems.

This professional-grade filter features Hayward’s vertical grid design, which maximizes cleaning efficiency and ensures even DE distribution throughout the filter elements. A heavy-duty, tamper-proof flange clamp allows for easy internal access without disturbing plumbing, while the high-capacity air relief valve provides quick, controlled venting of trapped air. The ProGrid’s low-resistance internal piping and precision-engineered diffuser elbow improve hydraulic performance, reducing energy consumption and maintaining consistent flow rates. Designed with serviceability and reliability in mind, the DE7220 combines advanced engineering with the durability expected from Hayward’s premium filtration line.

Note: You may require a backwash valve for this filter which is Not Included and can be purchased separately

Key Features of the Hayward DE7220 ProGrid Filter System

• Expansive 72 Sq Ft Filtration Area: Large-capacity vertical grid design ideal for commercial and high-volume residential pools demanding superior water clarity.

• Micron-Level Filtration Performance: Utilizes DE media to remove fine contaminants down to 5 microns, delivering exceptionally clean and clear water.

• Durable Glass-Reinforced Tank: Constructed from corrosion-resistant co-polymer for years of dependable, leak-free service in harsh pool environments.

• High-Efficiency Hydraulic Flow: 2-inch full-flow internal plumbing minimizes resistance, maximizing water circulation and reducing system energy usage.

• Tool-Free Maintenance Access: Heavy-duty one-piece flange clamp allows for quick access to internal grids without disconnecting plumbing lines.

• Rapid Air Relief System: Manual air release valve bleeds trapped air with a quarter-turn lever, simplifying startup and operation.

• Even DE Distribution: Integrated diffuser elbow evenly channels unfiltered water to each grid, optimizing filtration and extending cleaning cycles.

• Ideal for Large Installations: Perfect for large residential, resort, and commercial pools requiring high-capacity, noncorrosive, trouble-free performance.

Product Specifications

• Maximum Filtration Size: Filters out particulates as small as 5 microns
• Filtration Area: 72 square feet
• Dimensions: 26" inches in diameter and 52.5" inches in height
• Vertical Clearance: 77"
• Grid: 1 Required (Included)
• Weight: Approximately 94 pounds
• DE Required: 6 pounds
• Installation: 2 inch plumbing connections
• Flow Rate: Maximum flow rate of 144 gallons per minute (GPM)

Includes

• (1) Hayward DE7220 Pro-Grid DE Filter
• (1) Filter Grid
• (1) Manual Air Relief Valve- CCX1000V
• (1) Pressure Gauge- ECX2712B1
• (1) Clamp- DEX2421JKIT

*See manual page 10 for complete list

Compatibility

Compatible with the following valves

• Selecta-Flo 2" SKT- SP0740DE
• Vari-Flo 1 1/2" NPT- SP0710XR50
• Vari-Flo 2" NPT- SP0715XR50
• Slide Valve 2" SKT- SP0410X5025
