Hayward Pro-Grid 60 sq. ft DE Filter Unicel Replacement Grids | 7 Large & 1 Partial | Made in USA | FS-2005
Fits these models
Pickup, delivery and shipping times are estimates, not guarantees.
Couldn't load pickup availability
● 209 in stock30-day returns Secure checkout
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

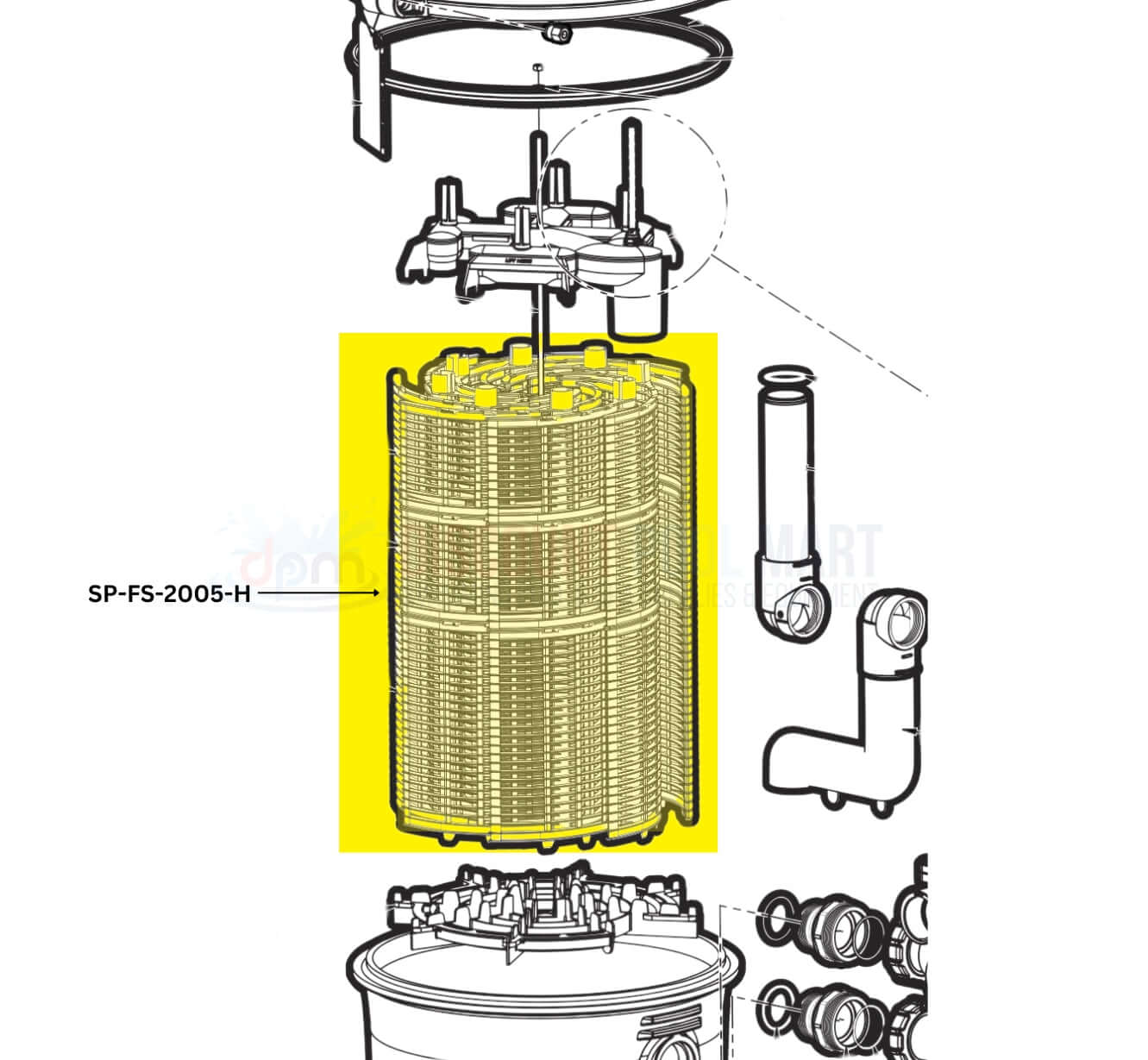

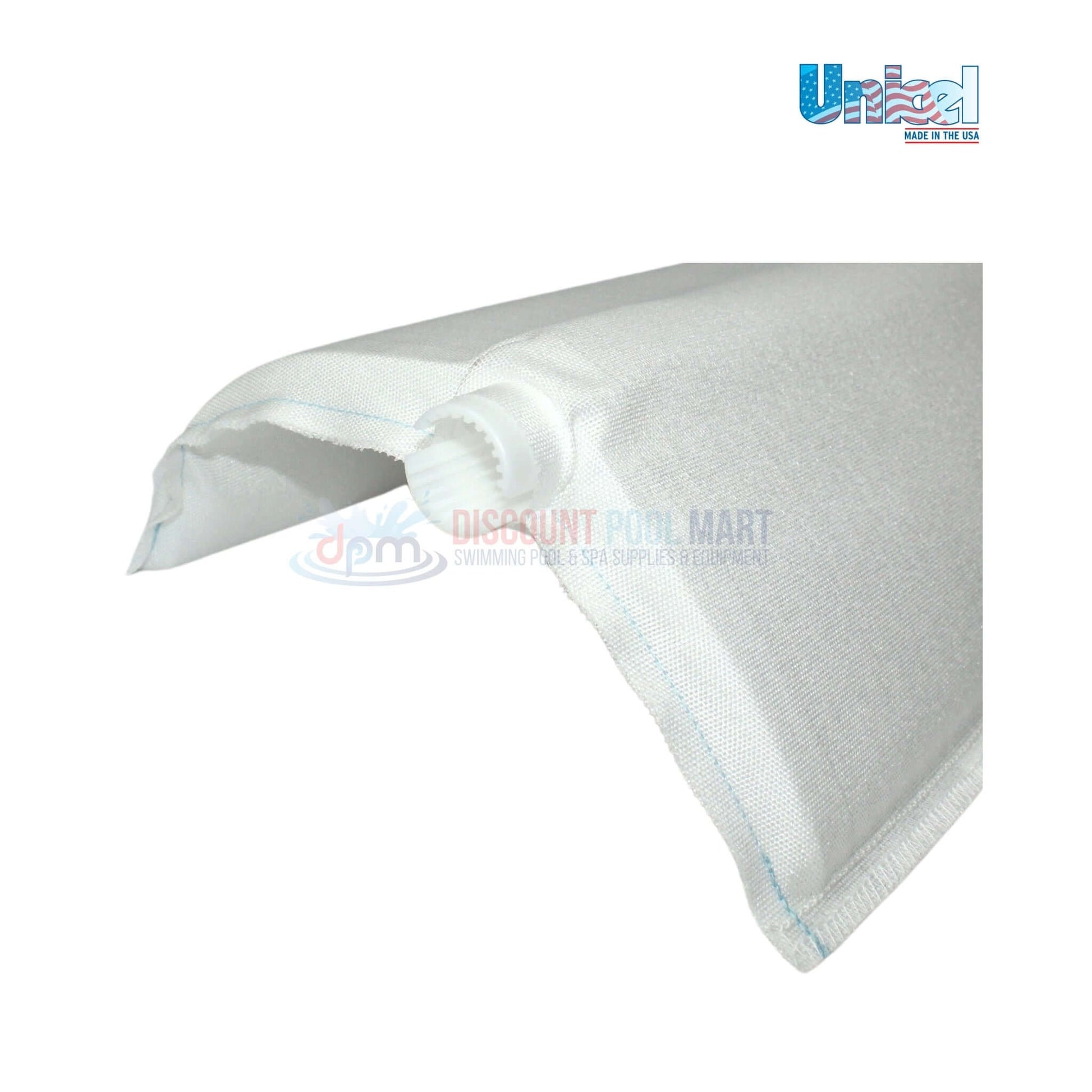

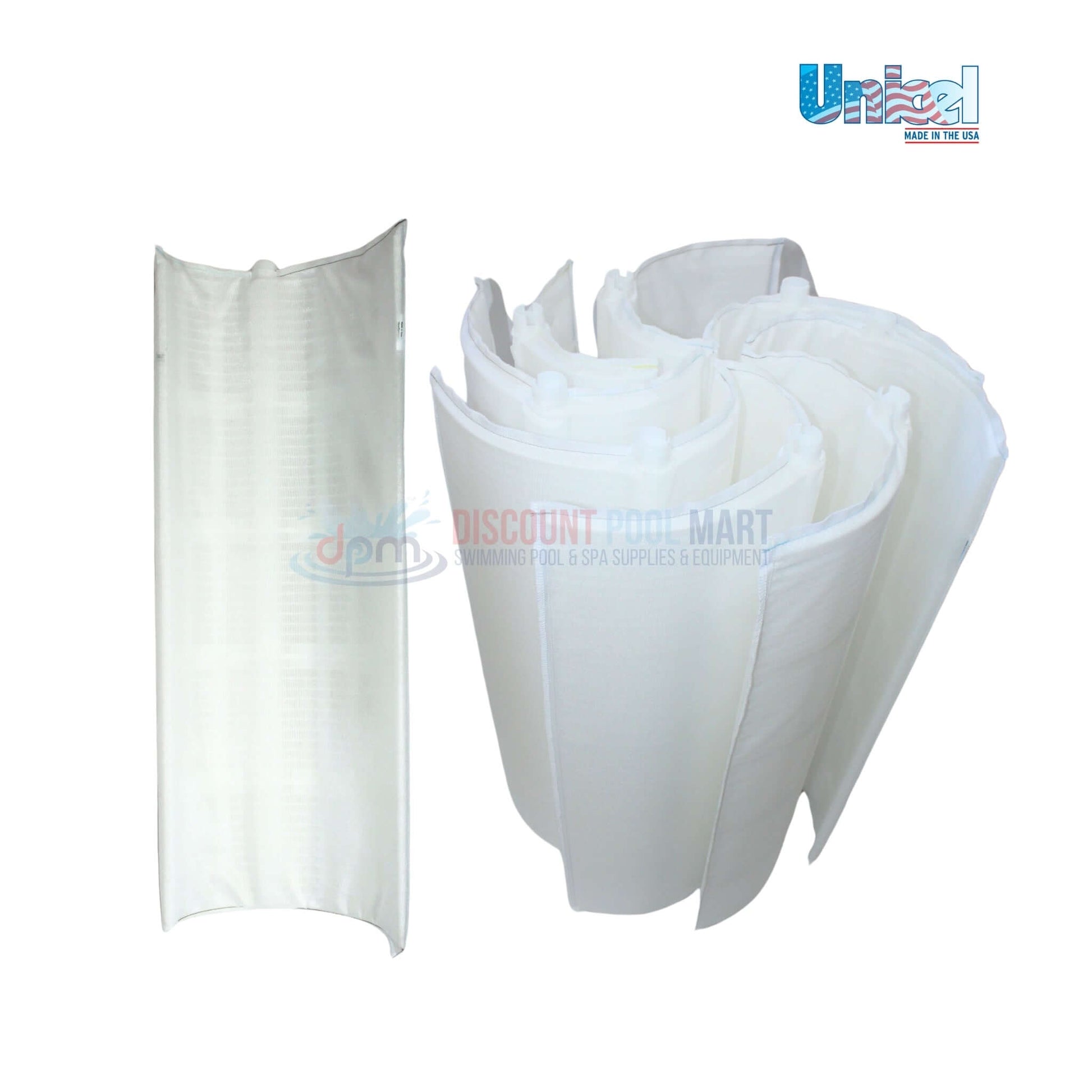

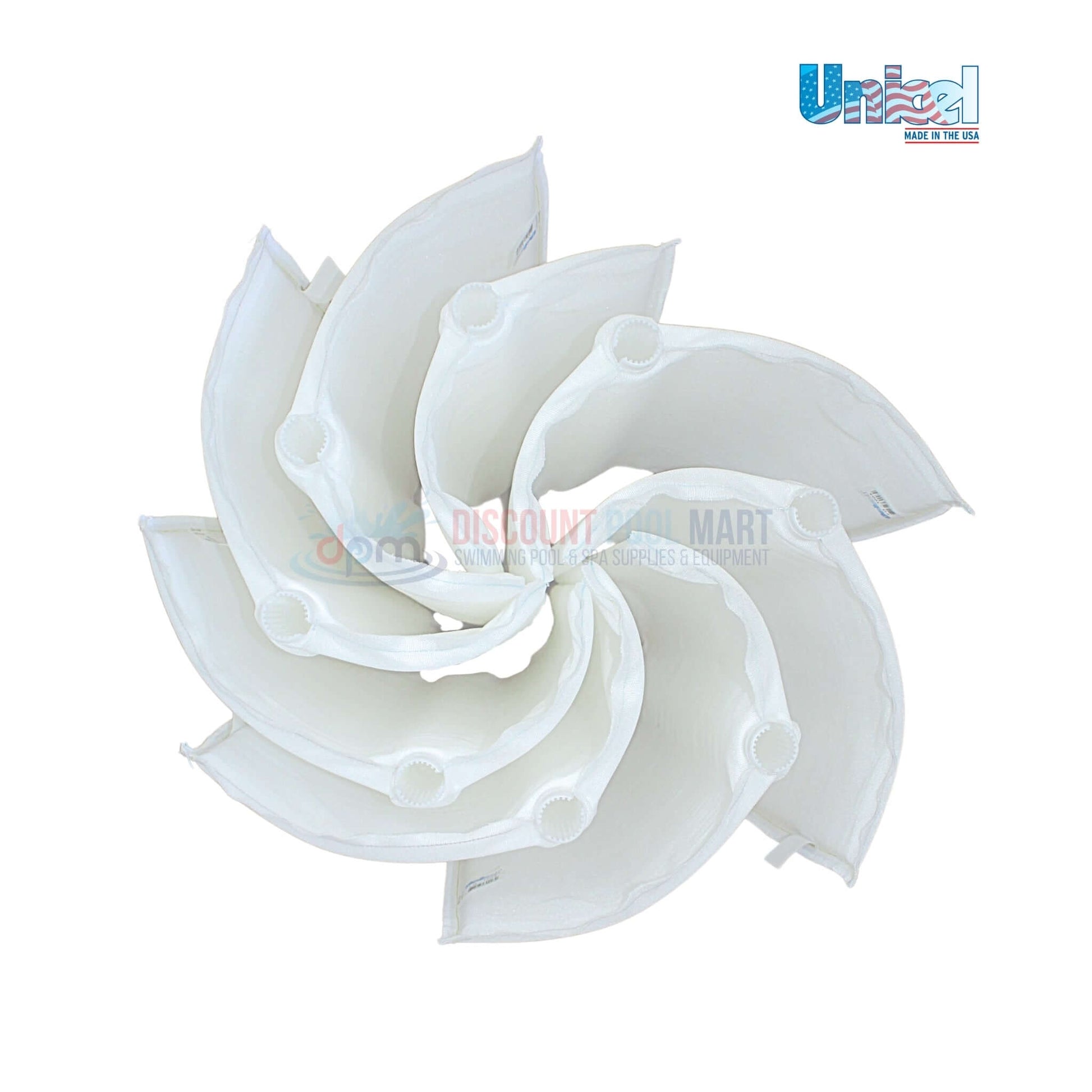

This exclusive replacement grid set from Unicel, manufactured in California, is specifically engineered to replace your Hayward Pro-Grid 60 sq. ft DE Filter. This set includes 7 large grids and 1 partial grid, totaling 8 grids necessary for proper functionality. With these grids, you ensure optimal filtration for your pool or spa, keeping the water clean and clear.
- Origin: Made in USA replacement grid set for Hayward Pro-Grid DE Filter.
- Filtration Efficiency: Efficient water filtration for cleaner and safer swimming water.
- Durability: Equipped with a heavy-duty reinforced core for added stability and durability.
- Chemical Resistance: Chemical-resistant fabric exceeds OEM specifications.
- Thorough Filtration: Synthetic filter media ensures thorough water filtration.
- Set Completion: Requires 8 (7 Large and 1 Partial. ) 60 sq. ft. individual filter girds to complete the set.

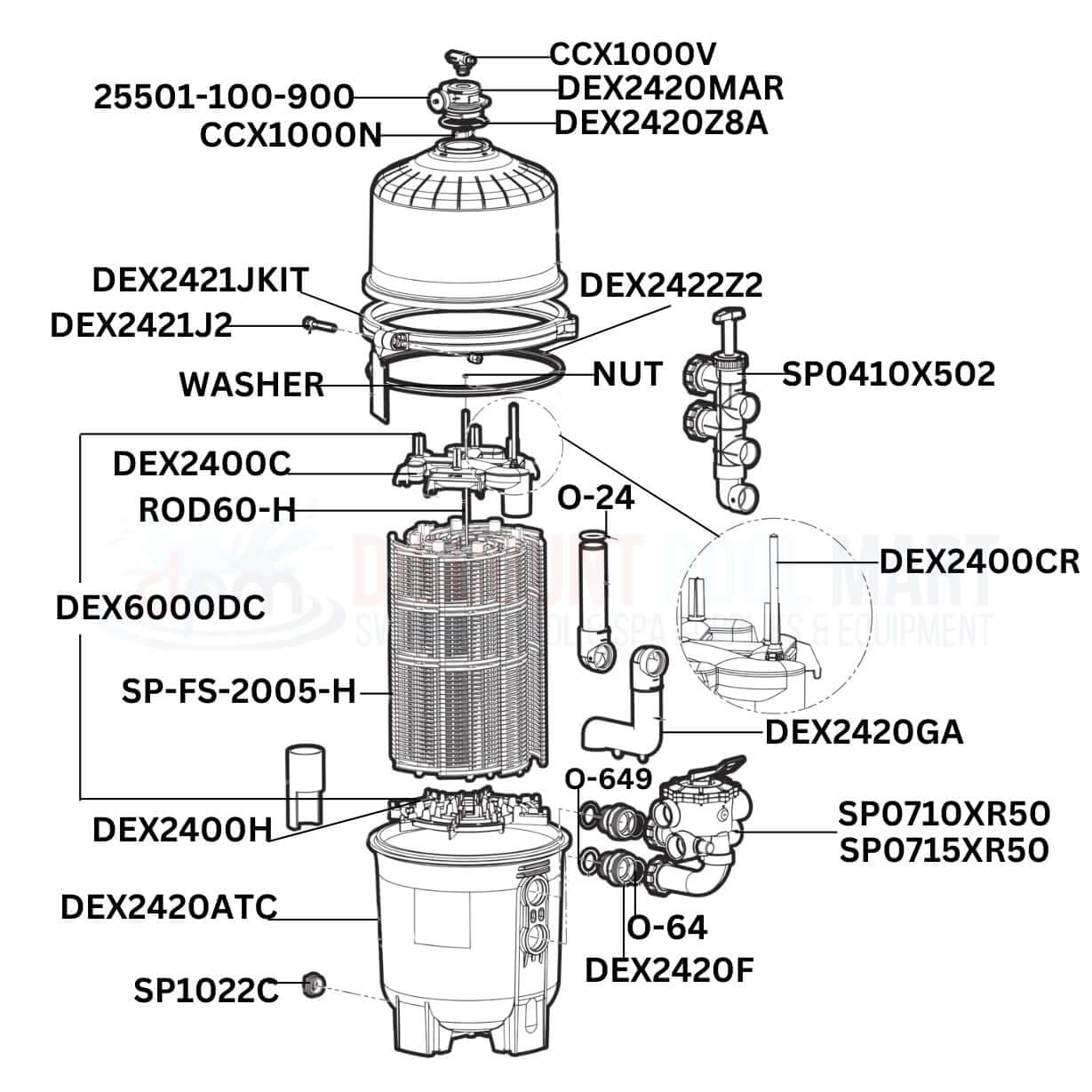

- Hayward Pro-Grid 60 sq. ft DE Filters: DE6020

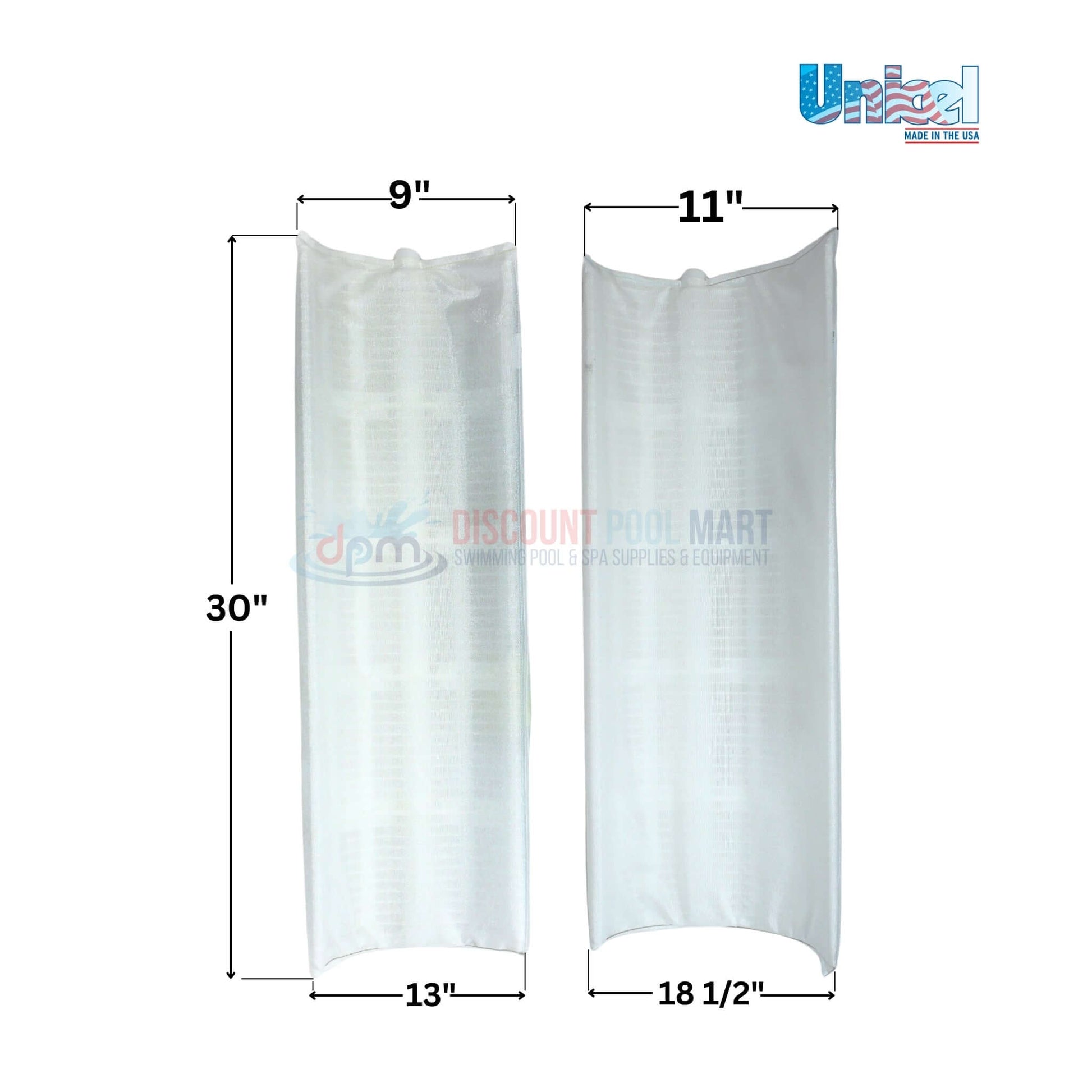

- Large Grids Dimensions: 30" Height - 11" Width
- Partial Grid Dimensions: 30" Height - 9 3/4" Width
