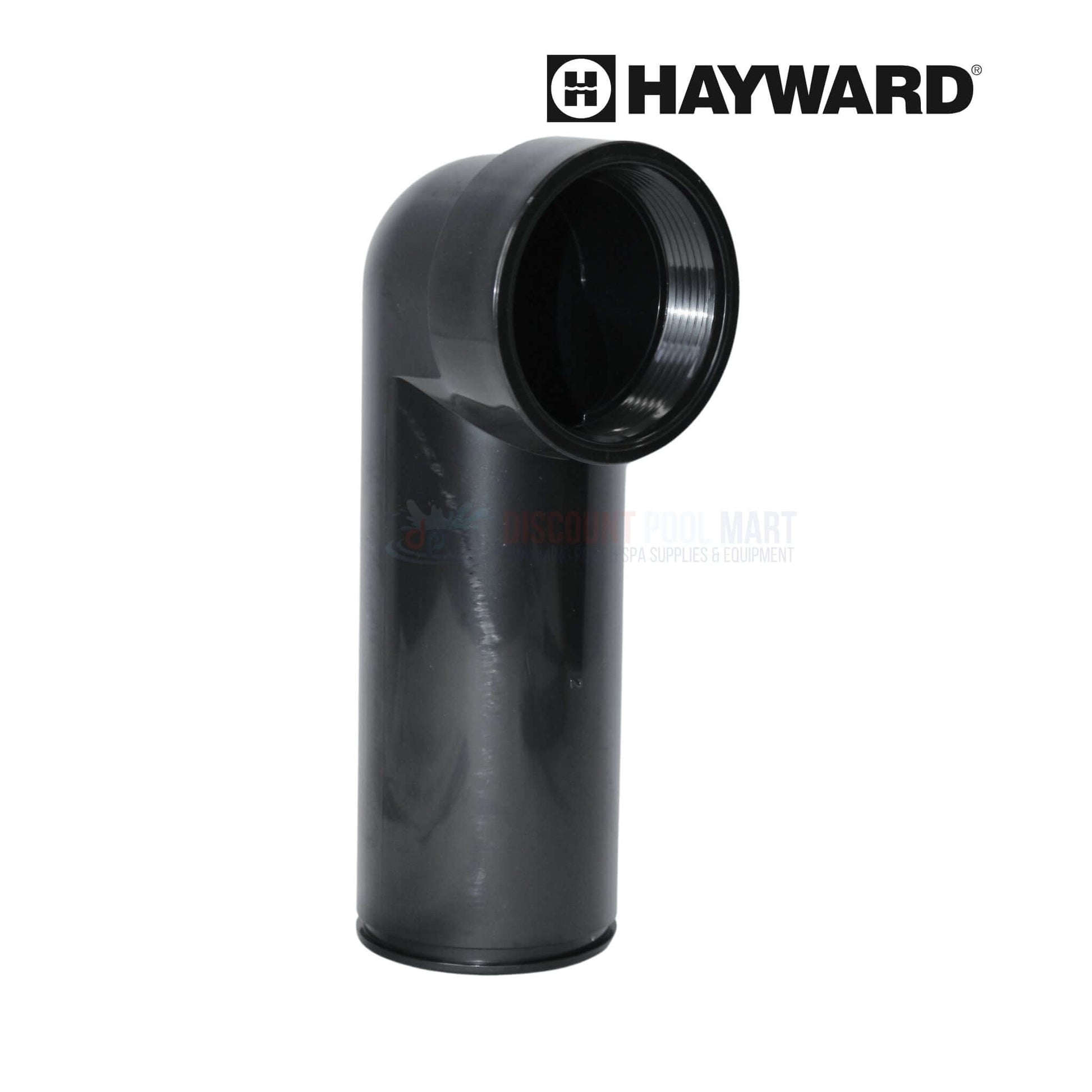

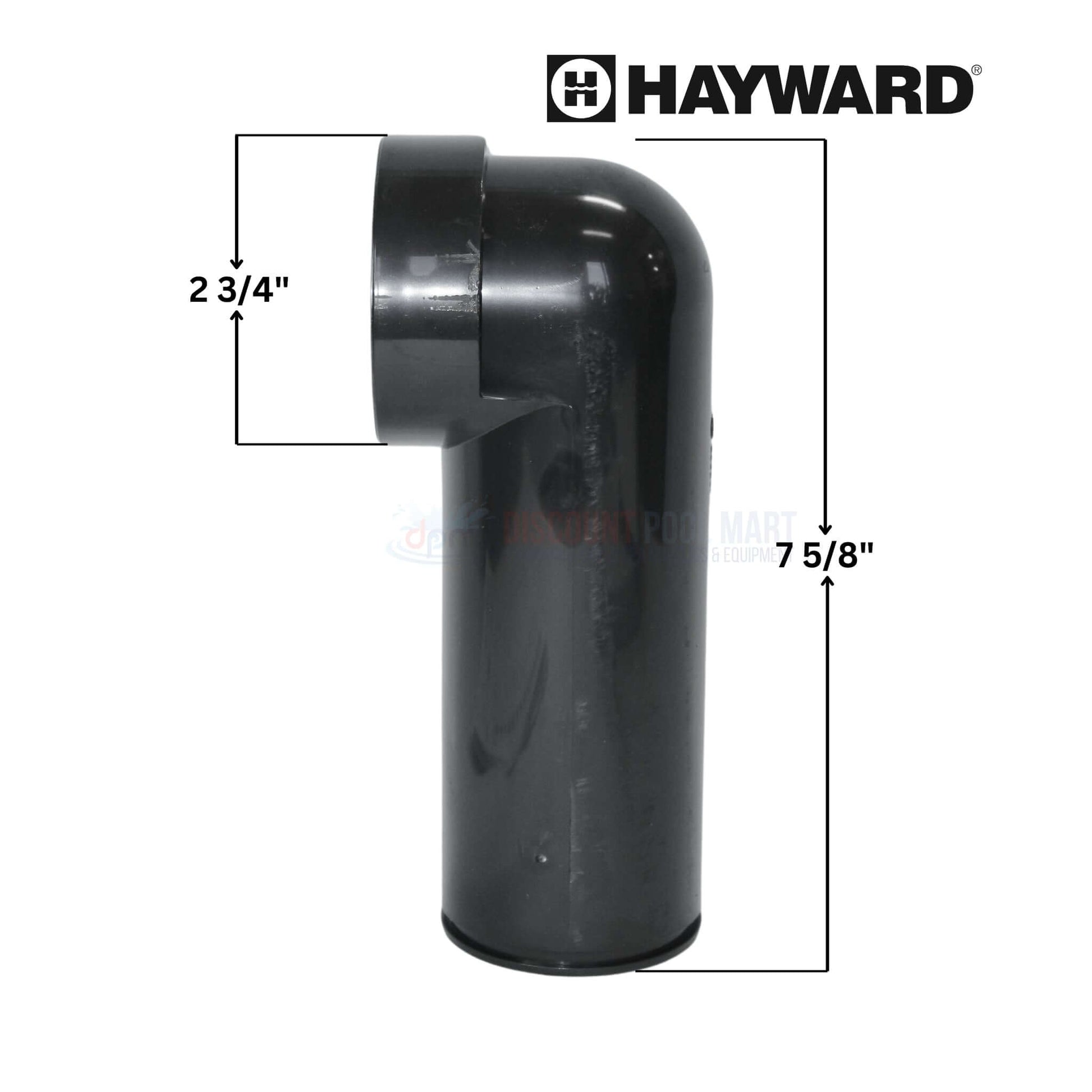

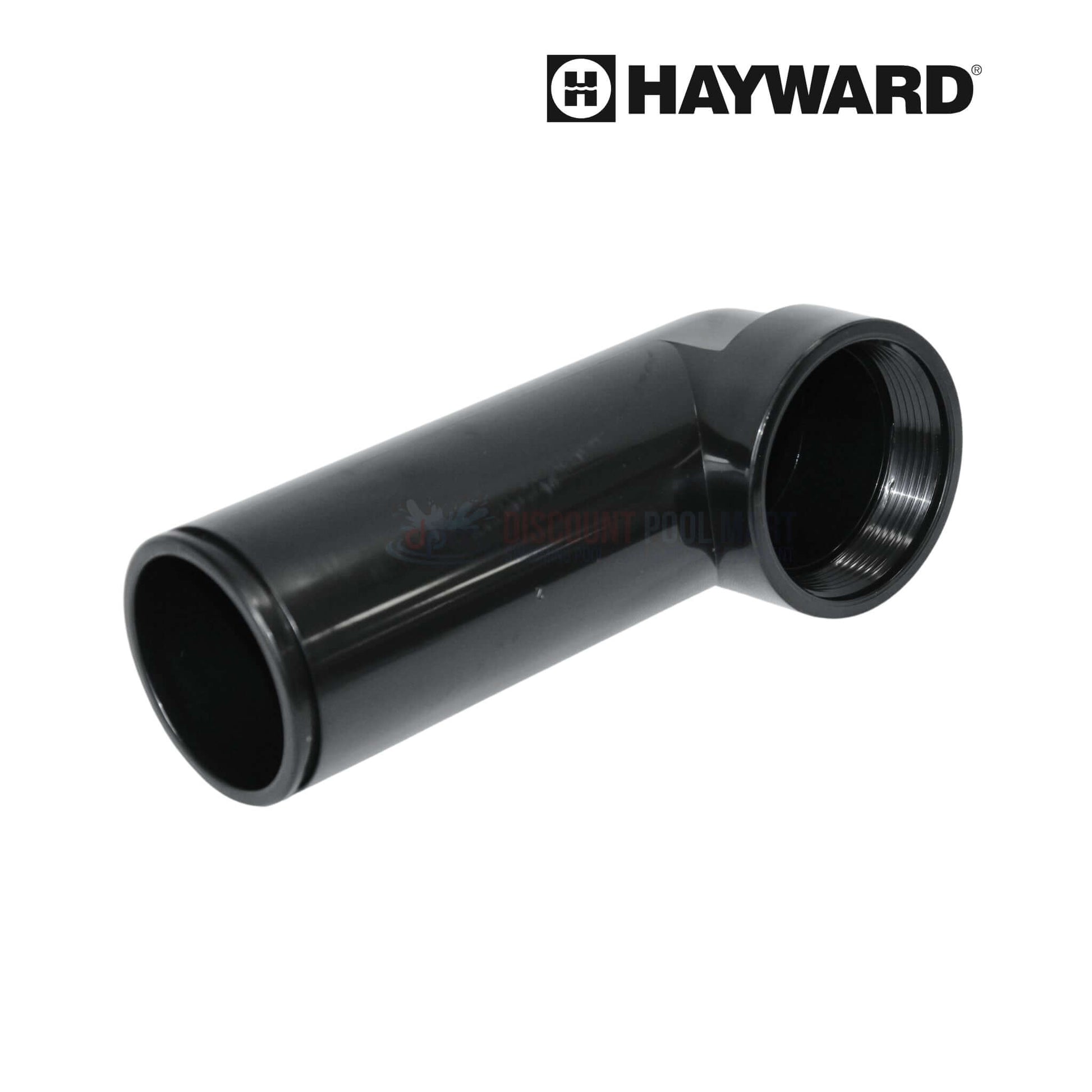

OEM Hayward Outlet Elbow CX3020FB is a genuine replacement part engineered for Hayward SwimClear cartridge filters, designed to direct filtered water back into the pool’s circulation system, ensuring optimal water flow and consistent filtration performance. Constructed from high-quality, chemical-resistant materials, this outlet elbow withstands demanding pool environments and supports reliable operation over time. Replacing a worn or damaged CX3020FB outlet elbow restores proper water movement, maintains filtration efficiency, and helps extend the operational lifespan of your SwimClear system.
-
Genuine Hayward Outlet Elbow Replacement: Specifically designed for SwimClear cartridge filter models C2030, C3030, C4030, C5030, and C7030
-
Supports Consistent Water Flow Efficiency: Directs filtered water into the pool’s system to maintain strong circulation and filtration
-
Durable, Chemical-Resistant Build: Made to withstand pool chemical exposure and frequent maintenance conditions
-
Restores Optimal Filtration System Performance: Replacing a worn elbow enhances system functionality and supports clear water quality
-
Essential for Regular Filter Maintenance: Helps preserve the overall reliability and longevity of your SwimClear filtration system
- (1) Outlet Elbow
- Hayward SwimClear Cartridge Filter Models: C2030, C3030, C4030, C5030, C7030
Note: This part may be compatible with your system, please refer to your owners manual to ensure compatibility.
