The MaxFlo VS 420 with OmniX combines elevated horsepower, efficient variable-speed performance, and modern app-based automation for streamlined control and dependable in-ground pool operation.

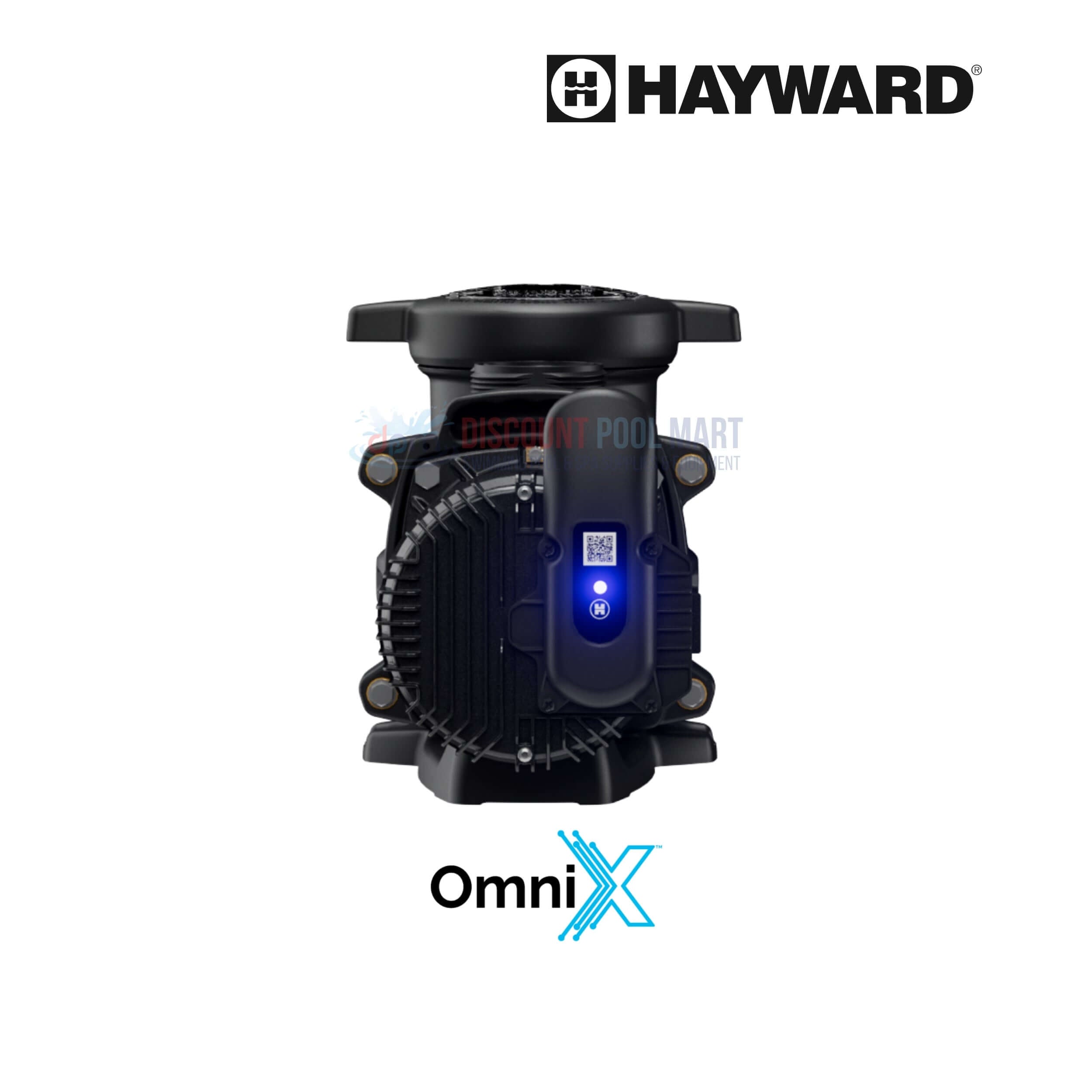

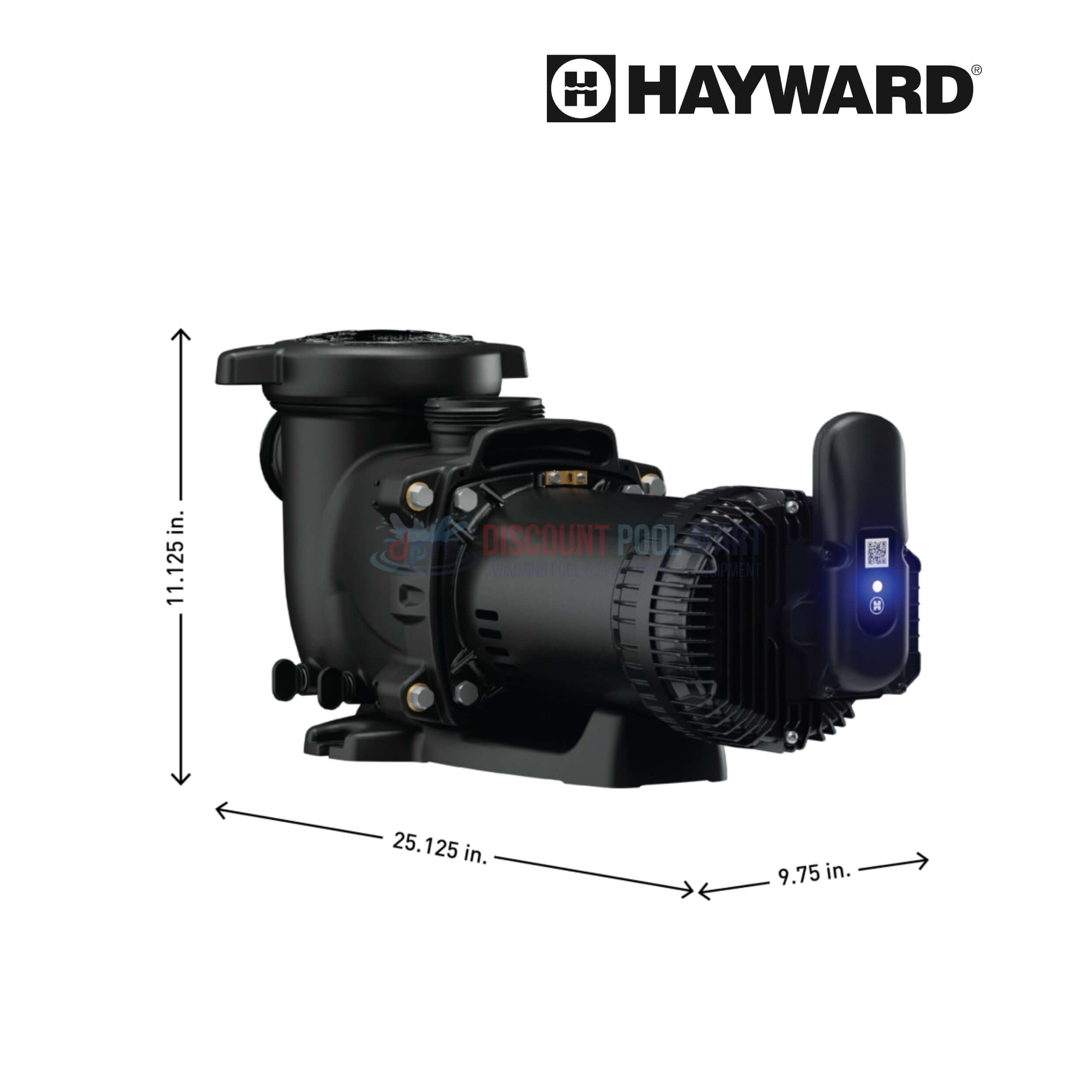

MaxFlo VS 420 Variable Speed Pump with OmniX

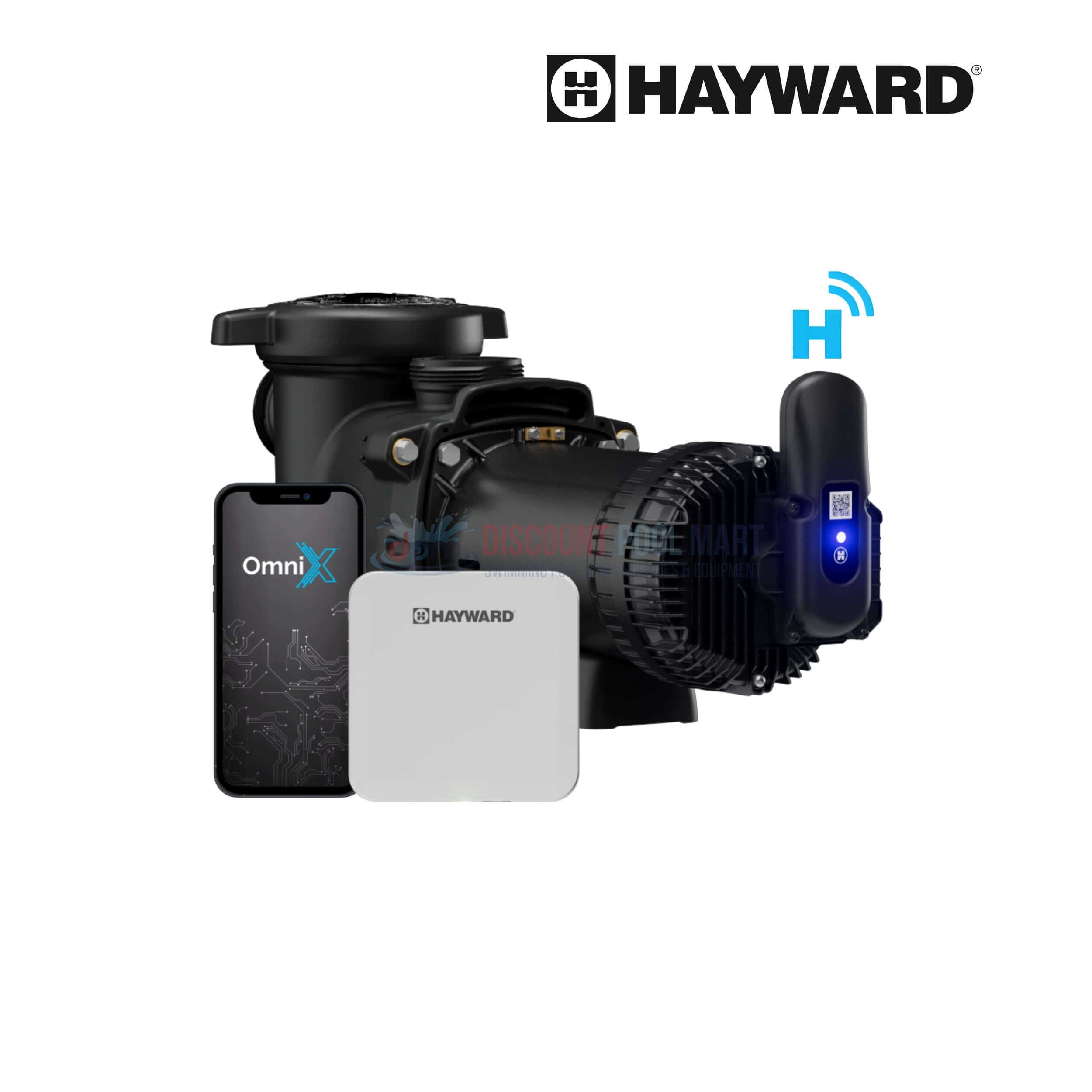

The Hayward MaxFlo VS 420 with OmniX delivers advanced variable-speed performance with integrated smart automation. As part of the latest VS Series platform, it includes onboard OmniX mobile app control, removing the need for a separate wall-mounted automation system.
Designed as a compact drop-in replacement for many in-ground pool installations, the VS 420 improves scheduling flexibility, operational efficiency, and overall usability while retaining the proven hydraulic performance associated with the MaxFlo platform.
