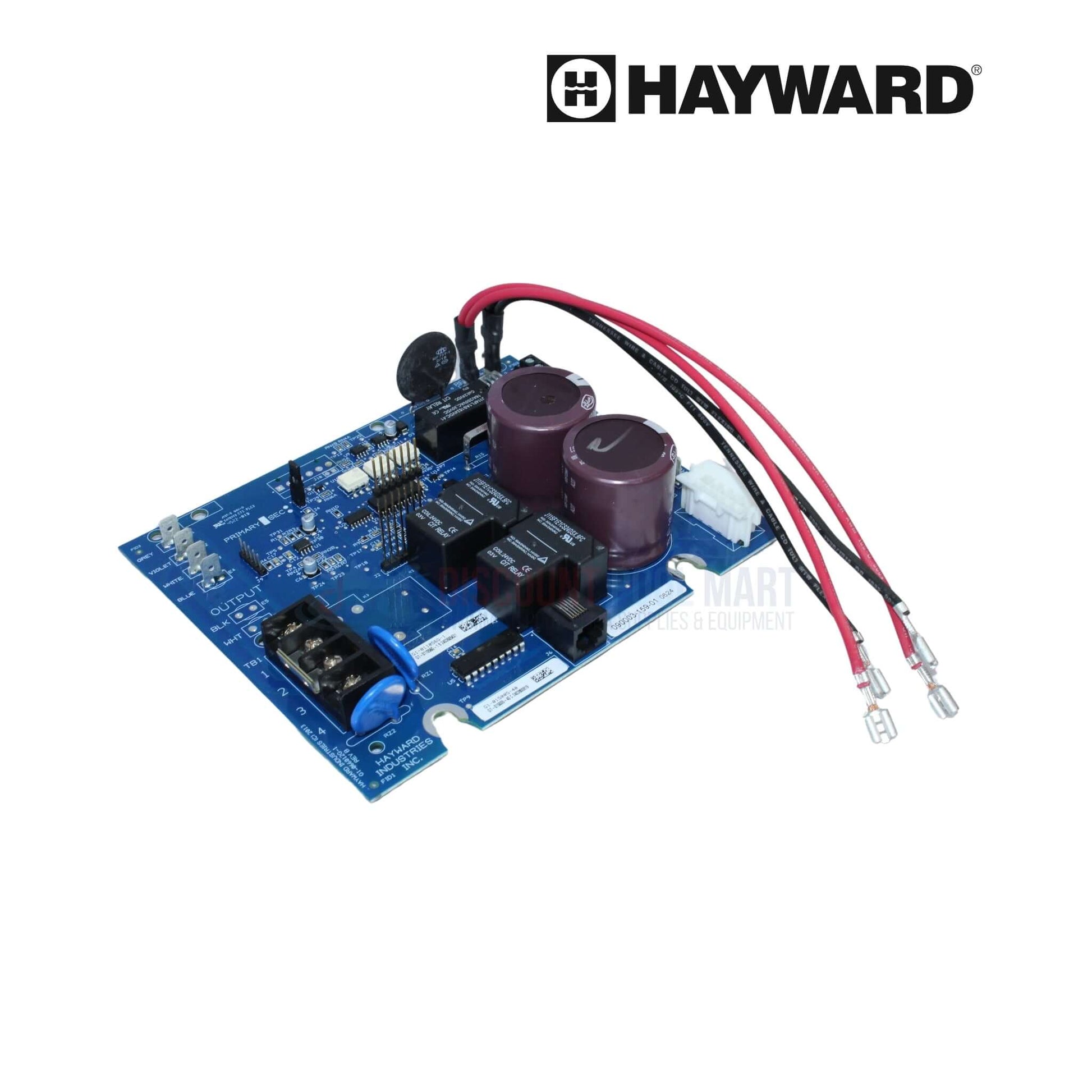

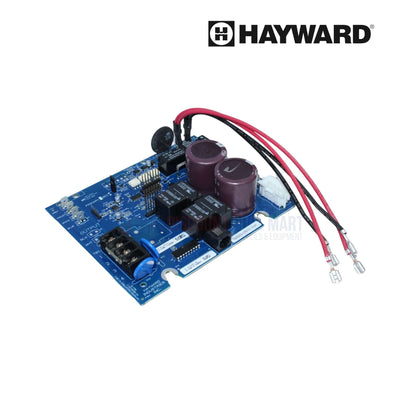

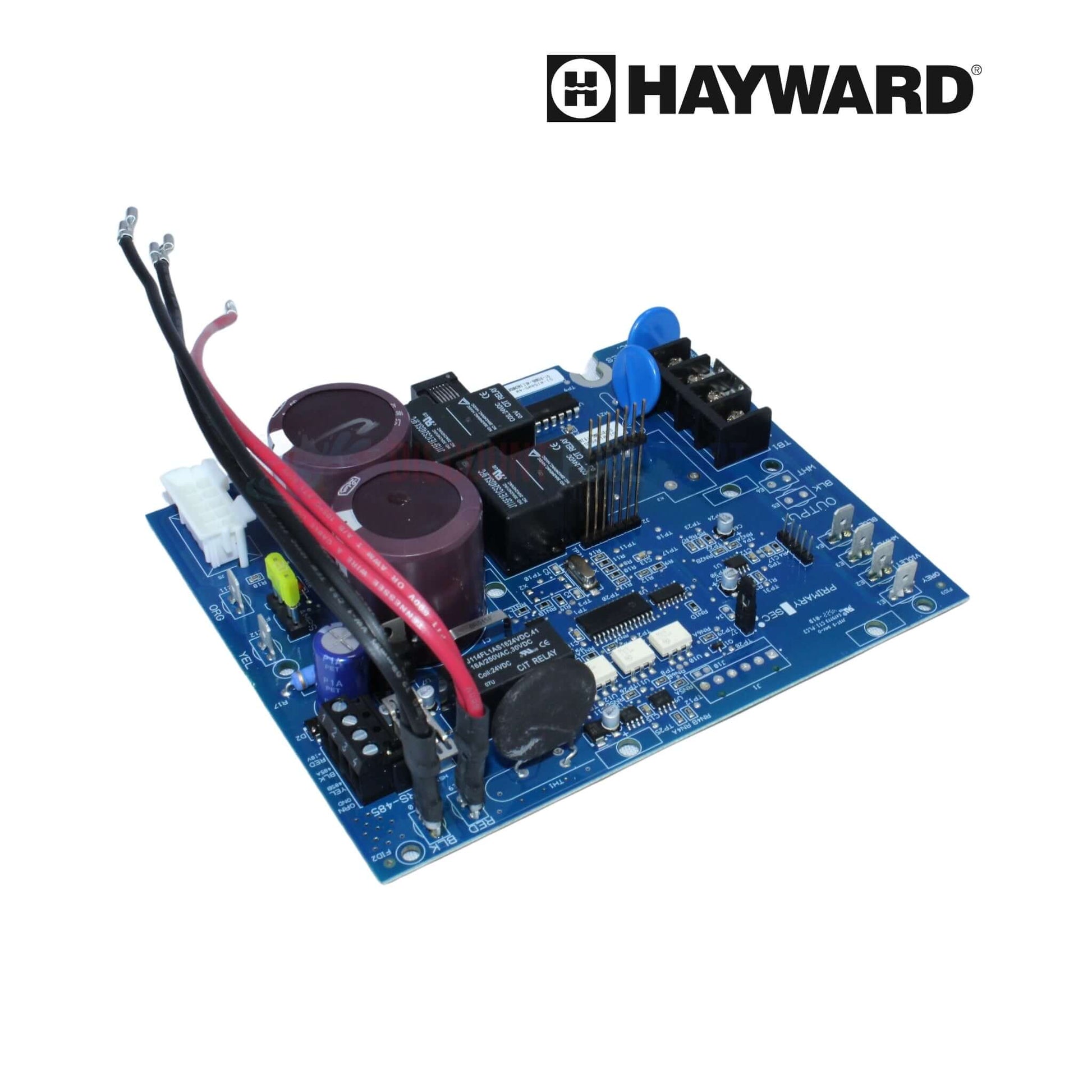

GLX-PCB-RITE | Hayward Main PCB Circuit Board For AquaRite
Couldn't load pickup availability
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov
Found In These Collections
OEM Hayward GLX-PCB-RITE is a main circuit board replacement designed for AquaRite salt chlorine generators, helping regulate chlorine output and pool system performance. This board monitors salt level, water temperature, and flow, ensuring proper operation under varying pool conditions. Made for durability in harsh pool environments, it serves as a direct replacement for existing systems and supports Turbo Cell configuration upon installation. Proper setup is required to match the cell type, ensuring accurate readings and reliable chlorine production.
Note: Because this replacement mainboard is used to replace various models, it must be configured to operate your pool's Turbo Cell before operation. After installing the board, refer to the steps below to correctly configure the board for use with the installed Turbo Cell. Failure to perform this step may result in inaccurate salt readings, improper operation, and possible system shutdown.
Determine the model of the installed Turbo Cell which can be found on its colored label. Refer to the following information and steps below to set the Turbo Cell type.
"t-3" = T-CELL-3, GLX-CELL-3-W
"t-5" = GLX-CELL-5, GLX-CELL-5-W
"t-9" = T-CELL-9, GLX-CELL-9-W
"t-15" = T-CELL-15, Gl::K-CELL-15-W-
Highlights
-
Regulates Pool System Functions: Controls chlorine generation, salt level detection, water flow, and temperature for balanced pool chemistry.
-
Designed for AquaRite Generators: Specifically built for Hayward Goldline AquaRite salt systems and compatible with multiple Turbo Cell models.
-
Requires Turbo Cell Configuration: Must be configured to match T-CELL-3, T-CELL-5, T-CELL-9, or T-CELL-15 upon installation to ensure accurate operation.
-
Installs as a Direct Replacement: Drops into existing AquaRite units with minimal modification, helping reduce system downtime.
-
Built for Harsh Pool Conditions: Manufactured for long-term reliability in environments exposed to heat, humidity, and chemical exposure.
Compatibility
- Hayward Goldline AquaRite Salt Chlorine Generators
- T-CELL-3, T-CELL-5, T-CELL-9 and T-CELL-15 Turbo Cells
Directions
- Slide the Main Switch to the "Auto" position.
- Push the Diagnostic button repeatedly until "t-xx" appears on the display ("t-15" is the factory defauIt) If the desired cell type Is displayed skip to step 4.
- To change to a different cell type, slide the Main Switch from "Auto" to "super chlorinate" and back to "Auto" Repeat this process until the desired cell type is displayed
- Push the Diagnostic button to exit.
- The GLX-PCB-RITE has now been configured and is ready to start normal operation
