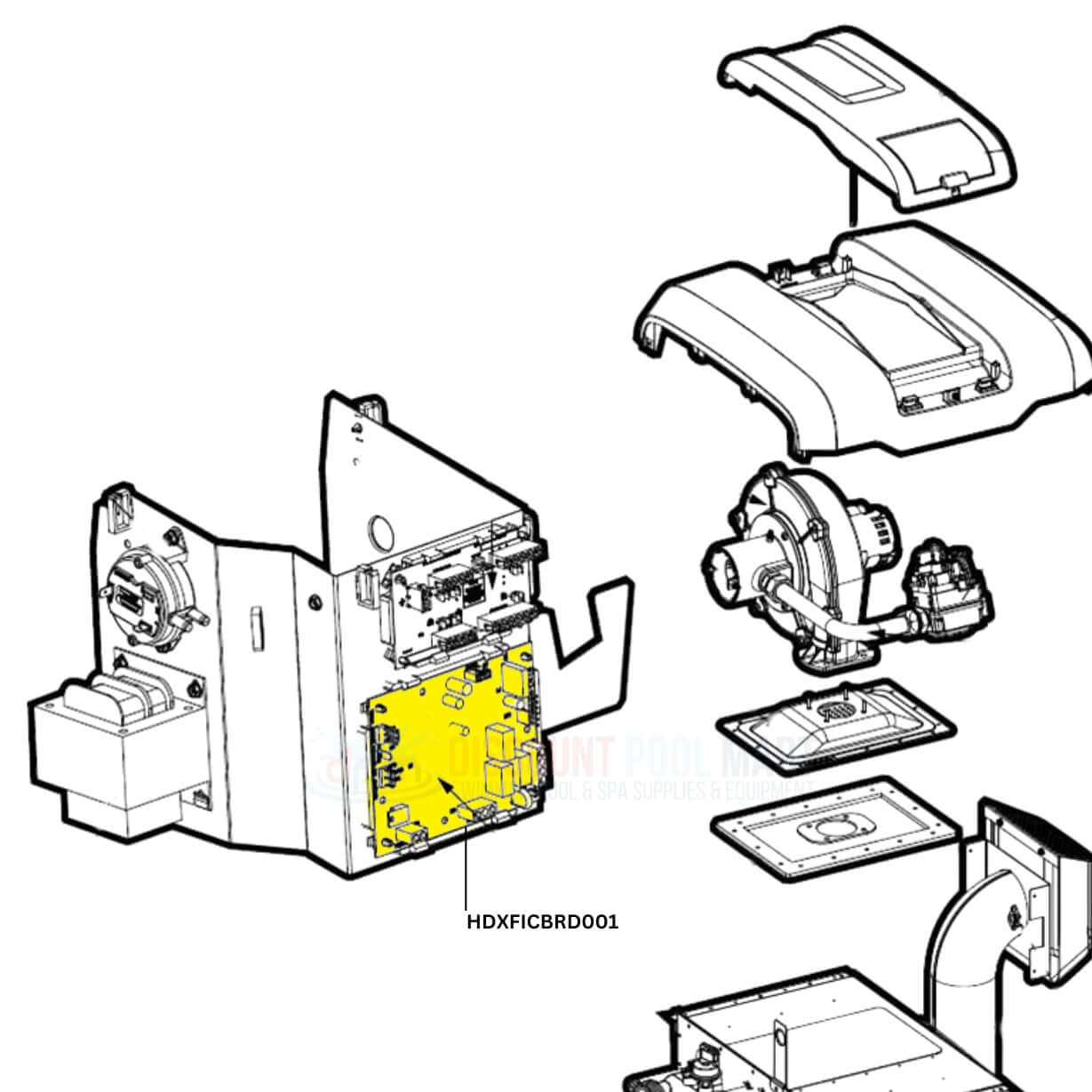

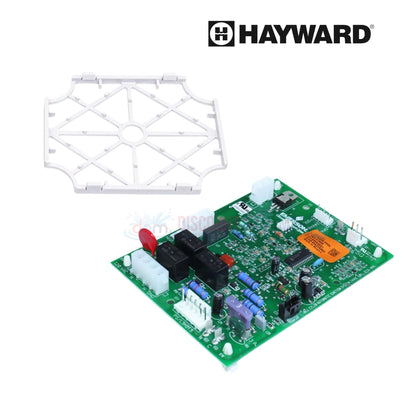

HDXFICBRD001 | Hayward Ignition Control Board For HDF400
Pickup, delivery and shipping times are estimates, not guarantees.
Couldn't load pickup availability
● 53 in stock30-day returns Secure checkout
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov
OEM Hayward HDXFICBRD001 Ignition Control Board is engineered for the Universal HC Series Dual-Fuel HDF400 heater, providing precise regulation of the ignition cycle for both natural gas and propane systems. This advanced board plays a vital role in ensuring safe startup, continuous monitoring, and reliable combustion control across varying fuel types. Designed with robust, cutting-edge electronics, it enhances overall heater performance and minimizes operational faults. Whether used for a system upgrade or as a replacement part, this board supports consistent efficiency and extends the heater’s service life.
-
OEM Control for HDF400 Ignition: Delivers accurate fuel ignition timing to ensure safe and efficient startup in HC-Series heaters
-
Dual-Fuel Compatibility: Supports both natural gas and propane systems with seamless transition and performance stability
-
Built with Advanced Circuitry: Features modern, durable control electronics that manage ignition and monitor heater function continuously
-
Improves System Performance and Reliability: Helps maintain consistent combustion and reduces the risk of heating disruptions
-
Ideal for Replacement or System Upgrade: Essential for restoring or enhancing heater reliability through maintenance or modernized components
Possible error codes that may require you to replace your Ignition Control Board are:
|
EE |
EEPROM error |
An error was detected in the ignition control board. |
|
b1 |
Ignition control board data error |
If the ignition control board does not satisfy self-diagnostic on power up or initial trial for ignition, the ignition control board will lockout until error condition is corrected. |
