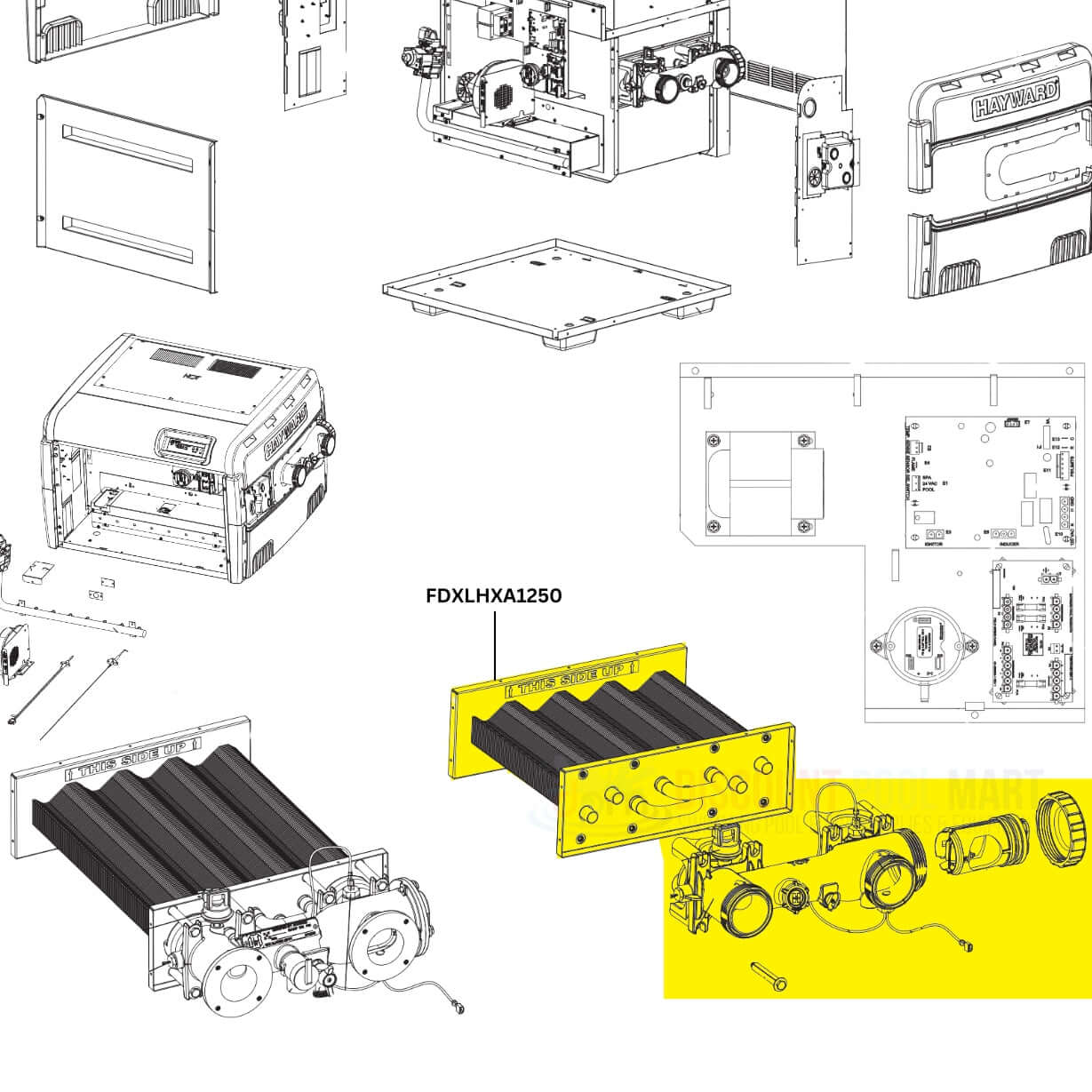

FDXLHXA1250 | Hayward Heat Exchanger Assembly For H250FD
Fits these models
Pickup, delivery and shipping times are estimates, not guarantees.
Couldn't load pickup availability
● 9 in stock30-day returns Secure checkout
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

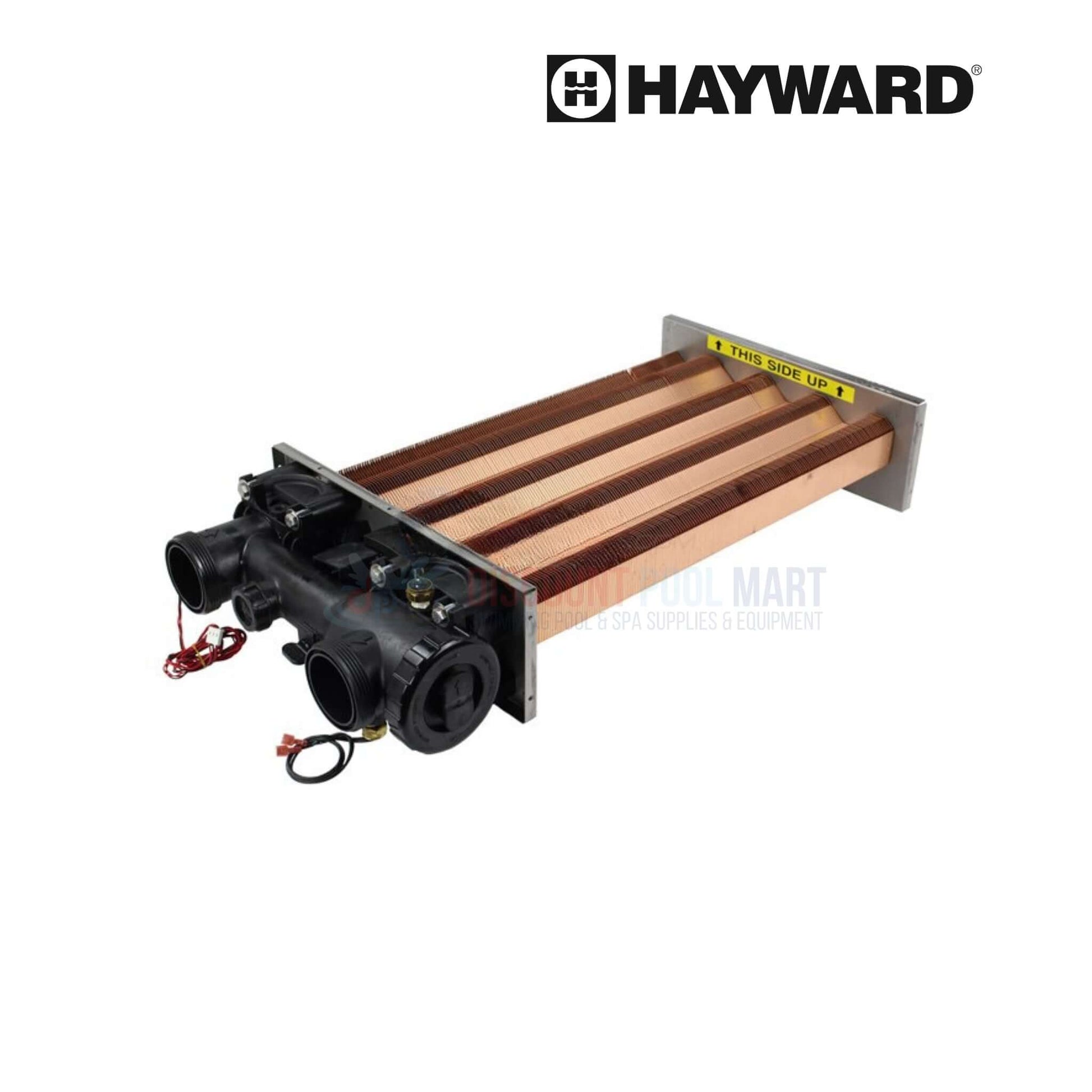

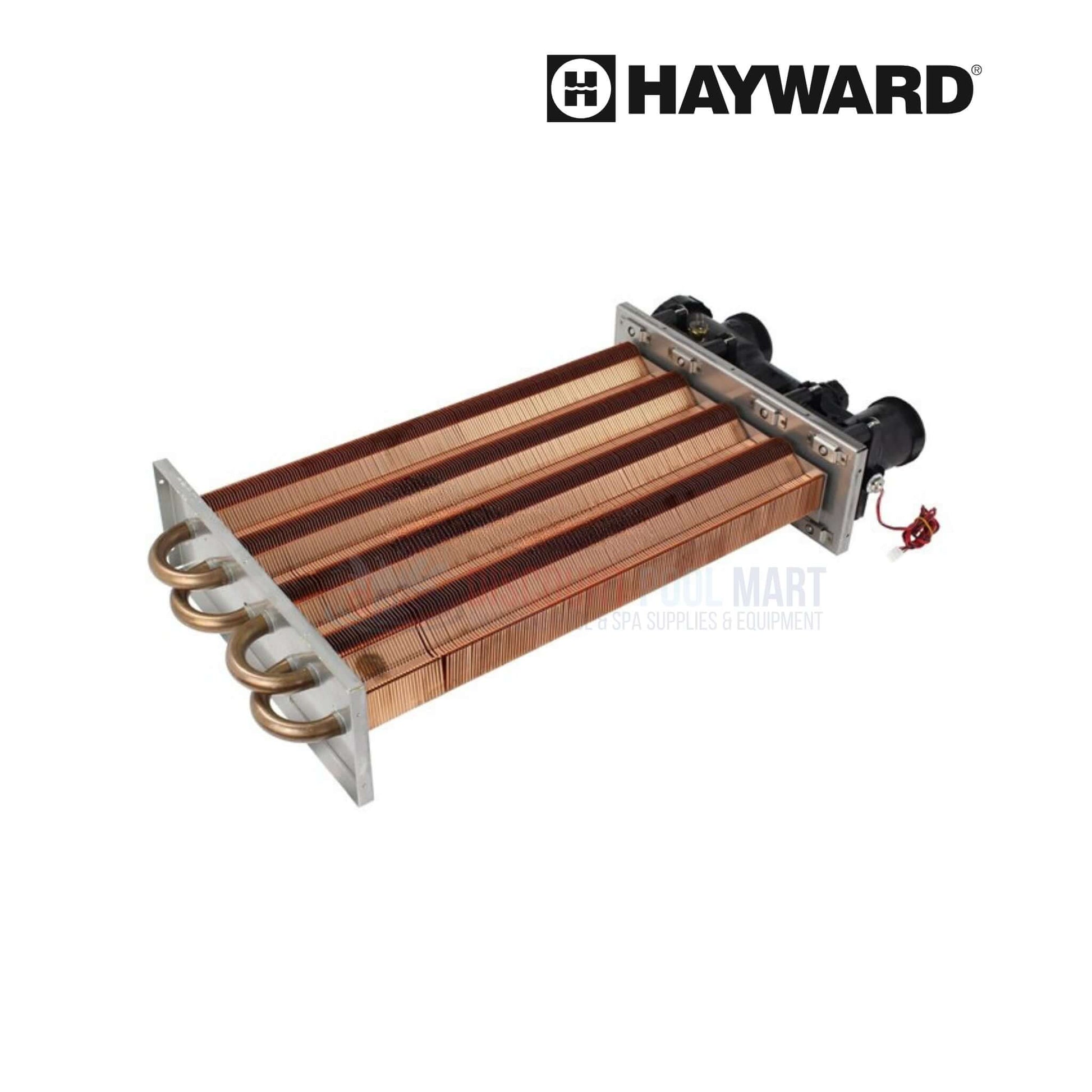

OEM Hayward Heat Exchanger Assembly FDXLHXA1250 is a key heating component for the Hayward Universal H-Series Low NOx pool heater model H250FD. It ensures proper water heating while complying with low NOx emission standards, supporting environmentally responsible operation. Built from highly durable materials, this heat exchanger is engineered to resist corrosion and maintain performance under harsh poolside conditions. As a genuine replacement part, it ensures seamless integration and helps extend the lifespan of your heating system.
-
Precision Fit for H250FD Heaters: Specifically made for Hayward Universal H-Series Low NOx H250FD models to ensure a direct and secure fit
-
Boosts Heating System Output: Helps the heater deliver consistent warmth by efficiently transferring heat to circulating water
-
Complies with Air Quality Standards: Meets low NOx emission limits, making it a cleaner, greener solution for pool heating
-
Constructed for Longevity: Manufactured from premium-grade materials that perform reliably in chemically treated and high-moisture settings
-
Essential for Consistent Performance: Restores full heating capacity and maintains optimal functionality throughout the heating season
- Hayward H-Series H250FD Heaters
