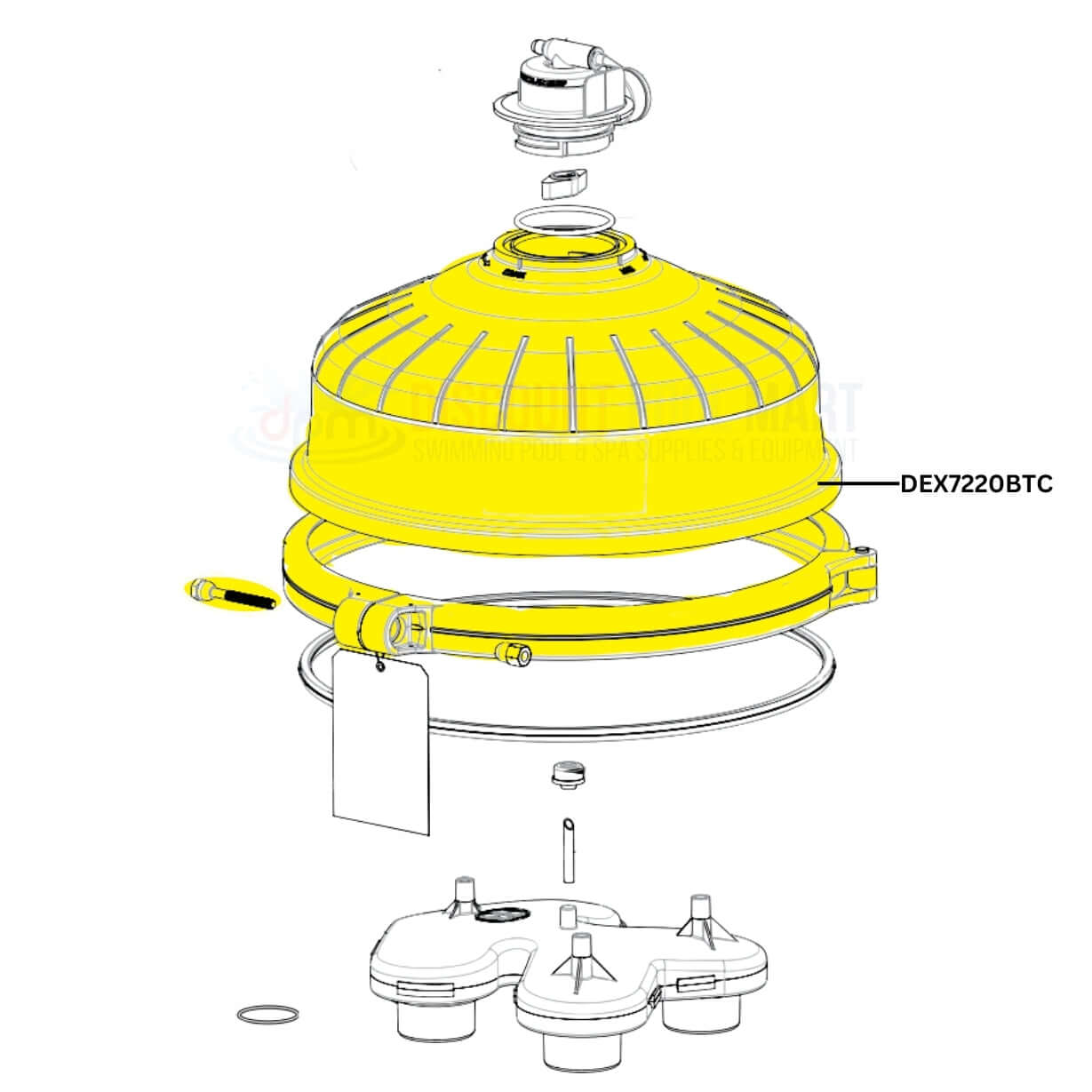

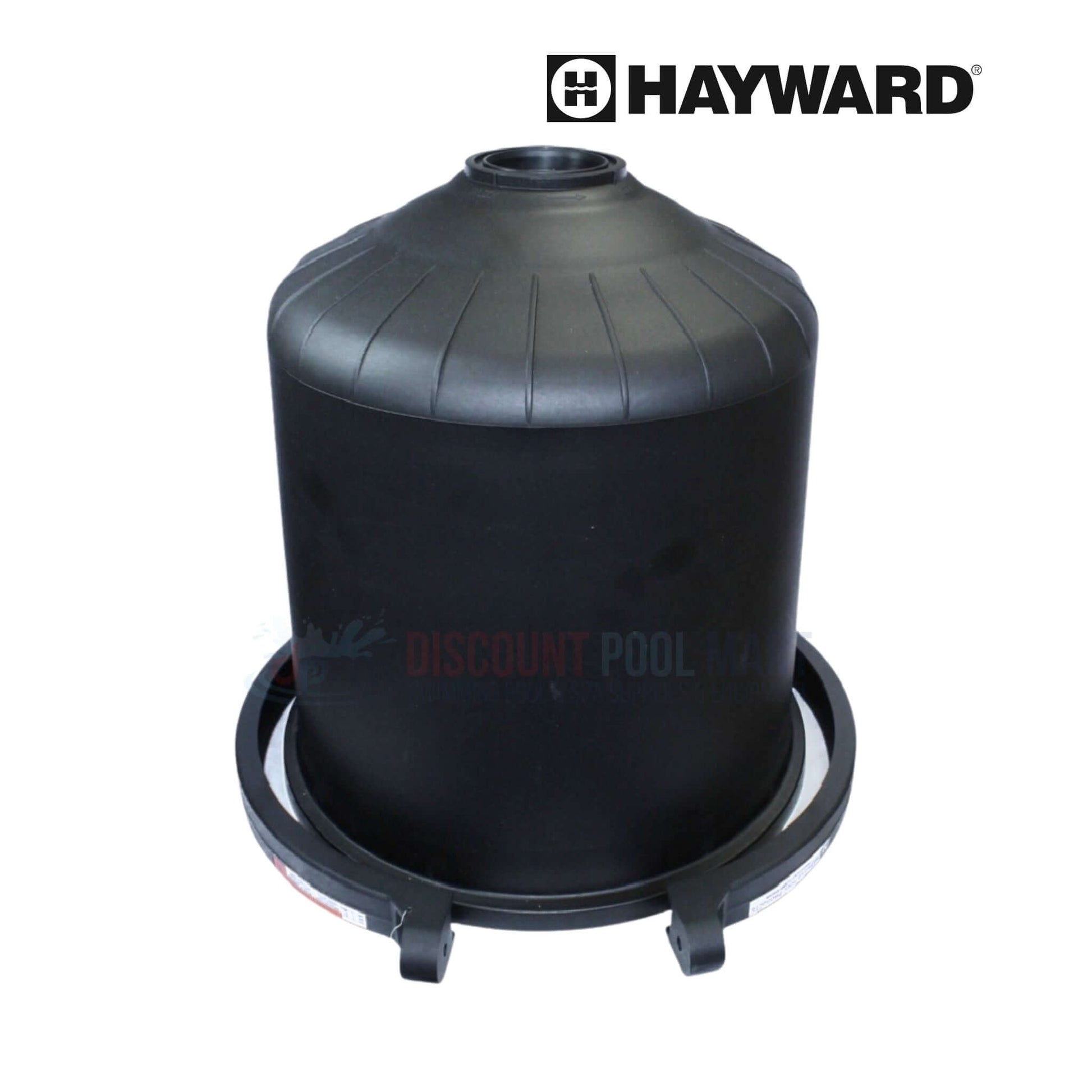

OEM Hayward DEX7220BTC Filter Head with Clamp Assembly is a complete replacement top body kit for Hayward Pro-Grid DE7220 and SwimClear C7030 filters. This unit includes the reinforced upper tank, aluminum clamp ring, and metal-reinforced tank seal, forming a secure, leak-proof seal between the filter halves. Made from chemical-resistant, high-strength materials, the DEX7220BTC is engineered to handle the pressure and exposure typical of pool environments. Its clamp-style system provides quick access for internal cleaning and inspection, restoring structural integrity and sustaining filtration performance.
-
OEM Top Body for Hayward Filters: Fits Pro-Grid DE7220 and SwimClear C7030 filters for seamless system integration
-
Includes Clamp and Tank Seal Kit: Comes with upper filter head, aluminum clamp ring, and metal-reinforced O-ring gasket
-
Chemical-Resistant Construction: Built to withstand high pressure, chlorine exposure, and seasonal use without degradation
-
Simplifies Routine Filter Maintenance: Clamp system allows easy opening for grid cleaning and internal inspections
-
Restores Seal and Structural Stability: Replaces worn or damaged components to prevent leaks and maintain efficient flow
- Hayward ProGrid Vertical Grid DE Series Filter: DE7220
- Hayward SwimClear Cartridge Filter: C7020, C7025, C7030
Note: This may be compatible with your filter, please check owners manual to ensure compatibility.

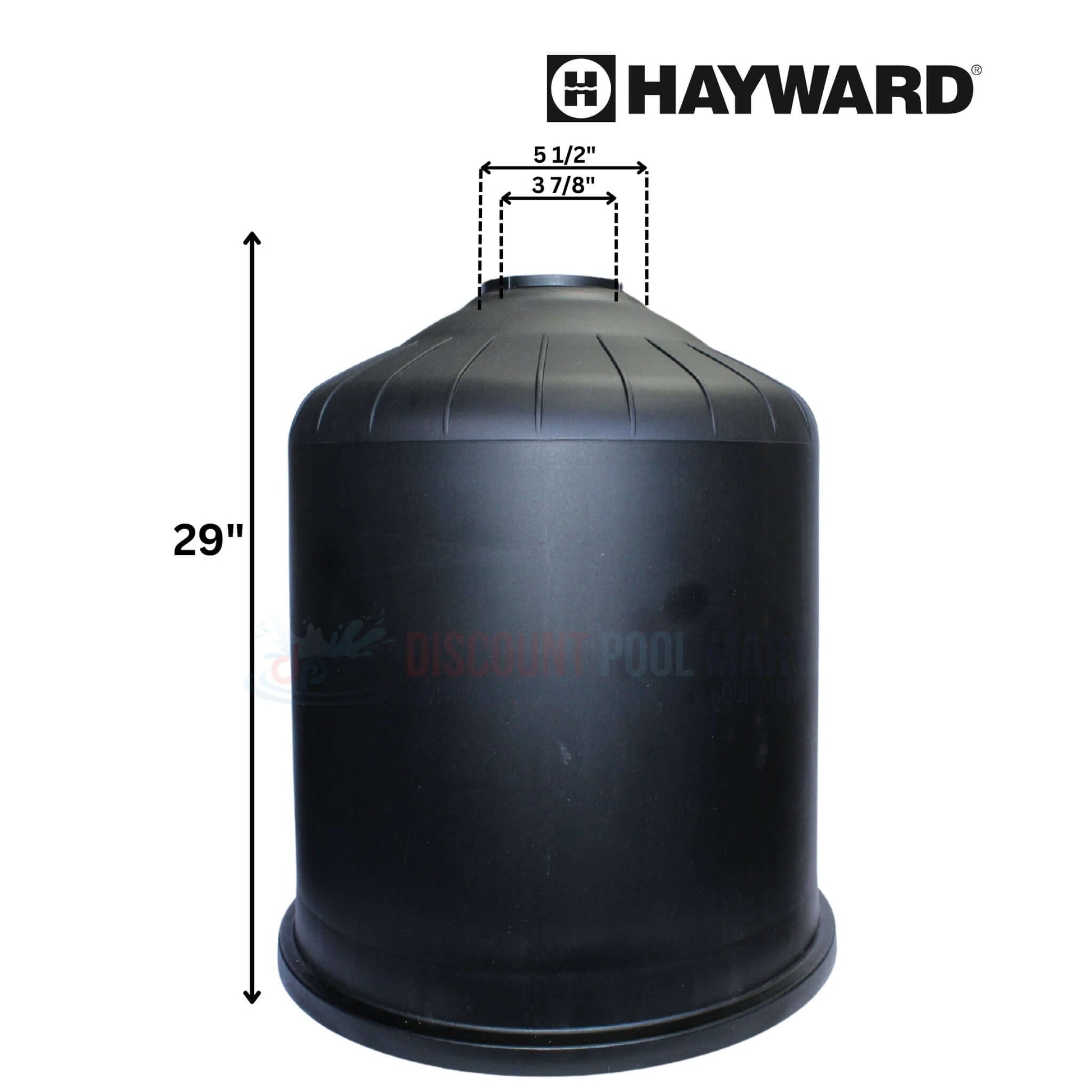

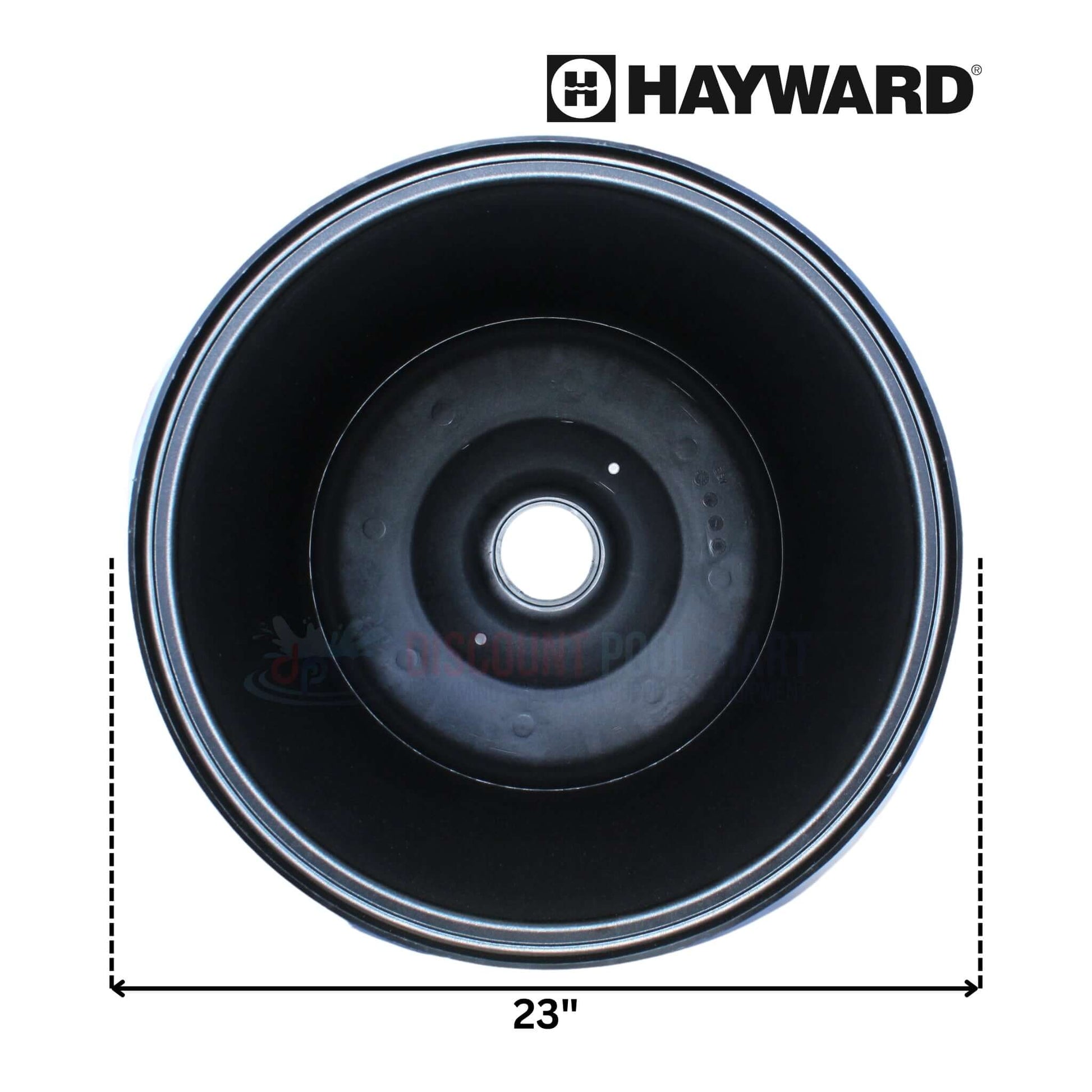

- (1) Filter Head
- (1) Metal Reinforced O-Ring

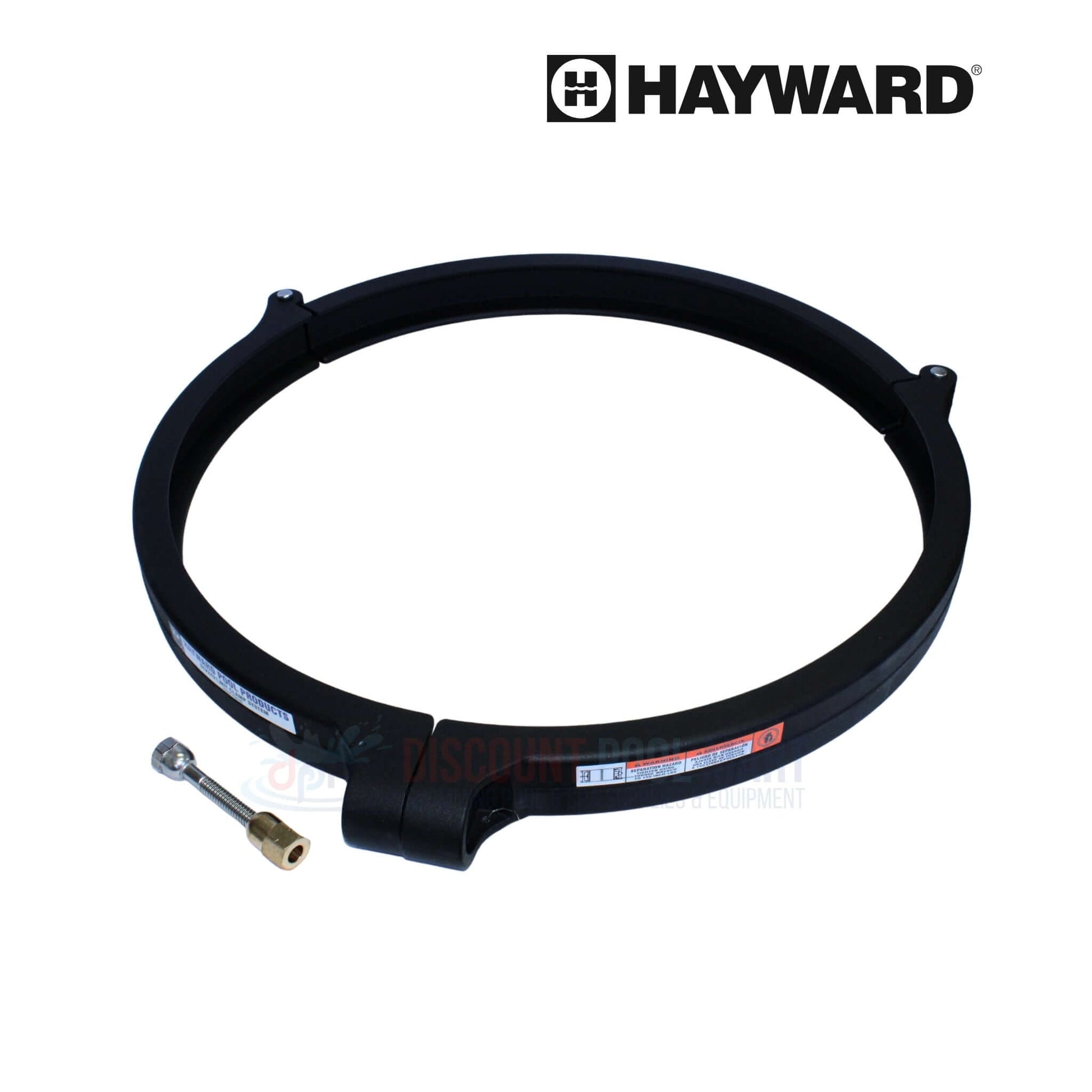

- (1) Aluminum Clamp Assembly
