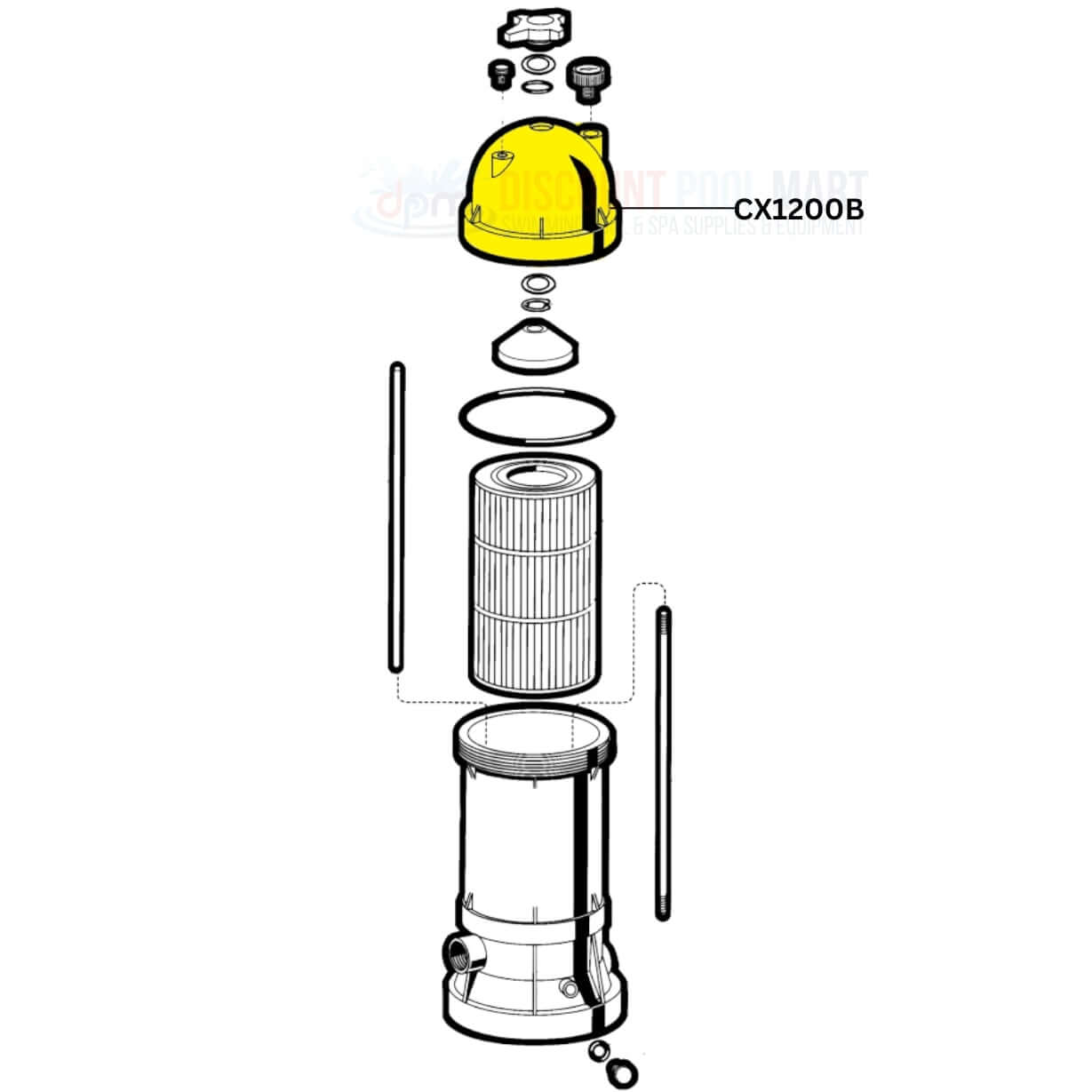

On the Hayward StarClear Plus Filter diagram
This part
Open the full interactive diagram →
Other parts on the same Hayward StarClear Plus Filter

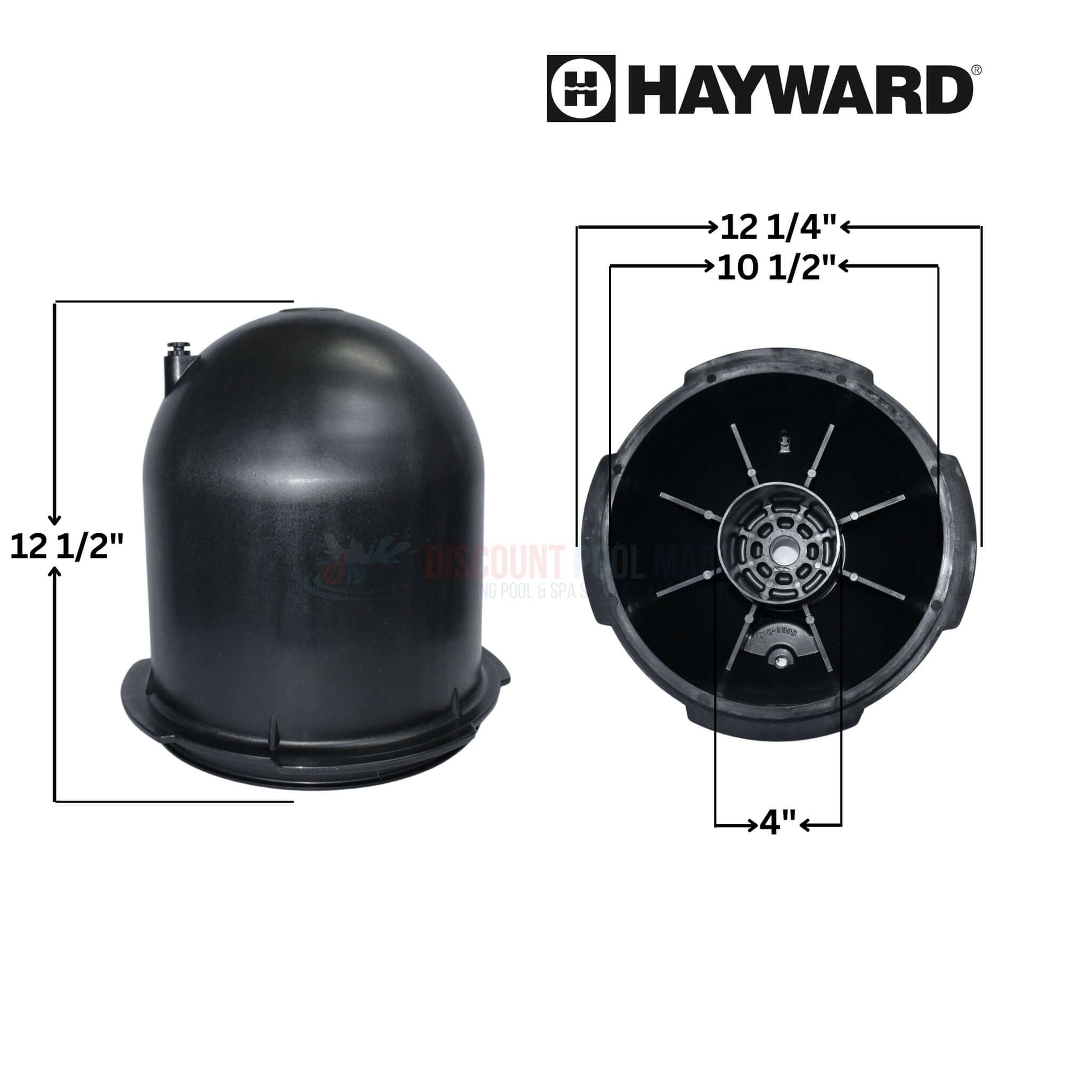

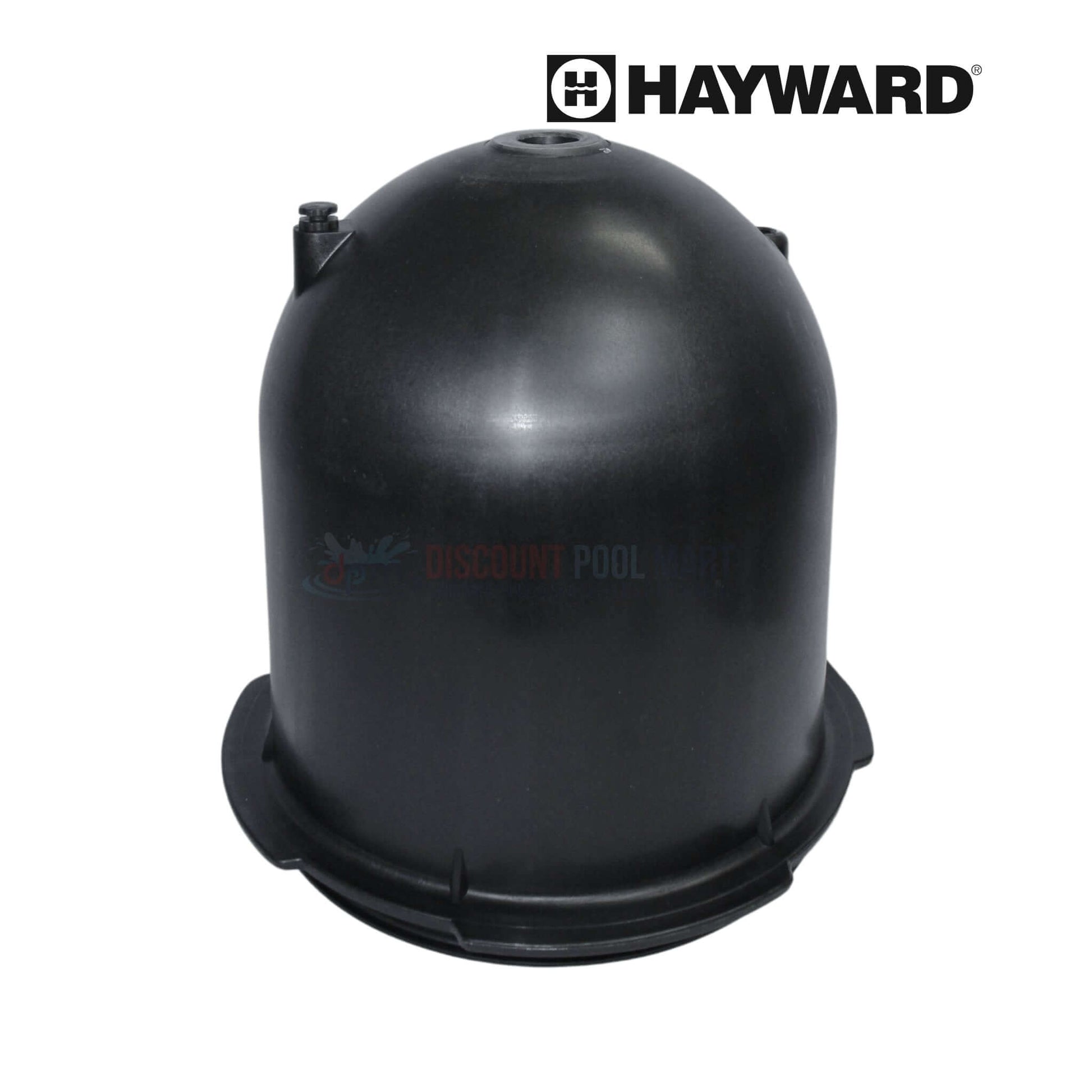

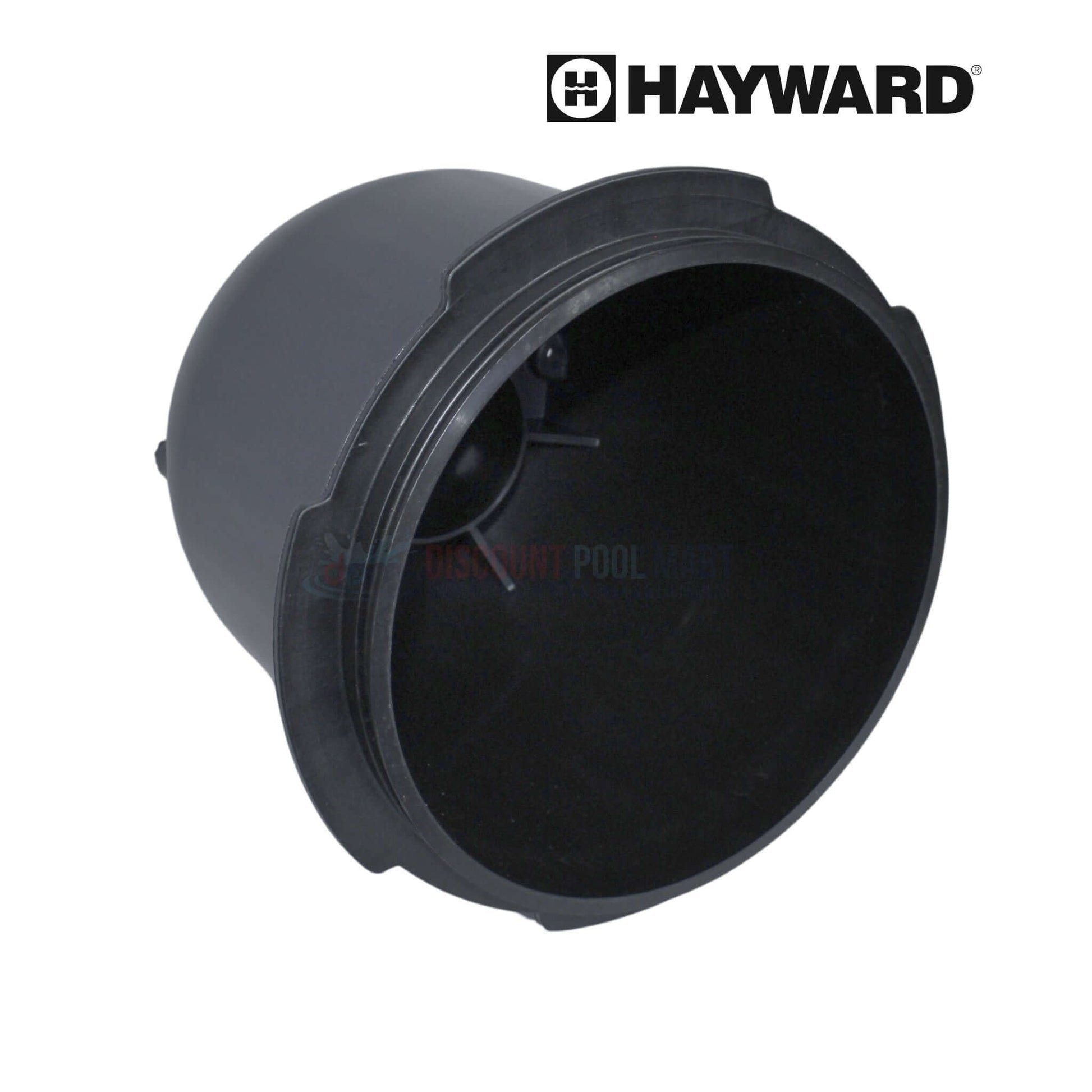

OEM Hayward Filter Head CX1200B is a genuine replacement component specifically designed for Star-Clear Plus C1200 cartridge filters. This durable filter head secures the cartridge in place while facilitating efficient air release through its integrated directional vent valve. Built for long-term use, it maintains filtration system integrity and helps preserve water clarity. Ideal for restoring worn or damaged filter assemblies, the CX1200B ensures your Hayward system continues operating at peak performance.
-
Engineered for Star-Clear Plus C1200: Specifically designed to fit and function with Hayward’s C1200 filter series for reliable integration
-
Built-In Air Relief Valve: Features a directional vent valve that improves filter performance by expelling trapped air efficiently
-
Supports Stable Cartridge Placement: Helps maintain proper alignment of the filter cartridge for consistent filtration flow
-
Constructed for Longevity: Made from high-strength, pool-grade materials that withstand pressure, chemicals, and regular use
-
Restores Filter System Performance: Essential for replacing cracked or damaged filter heads, restoring system efficiency and water clarity
- Hayward Star-Clear Plus C1200 Filters
