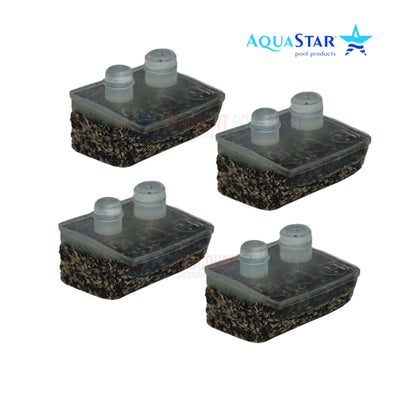

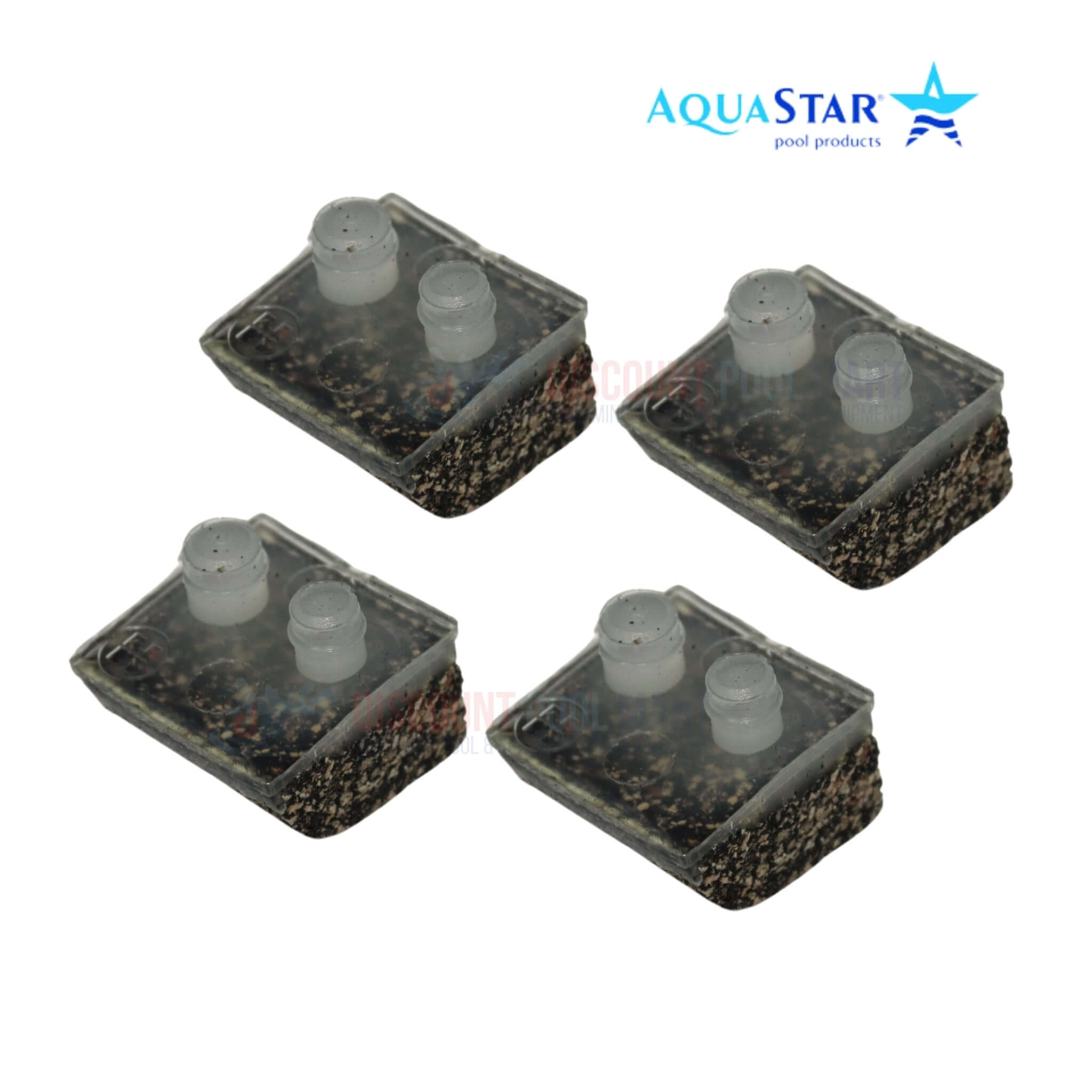

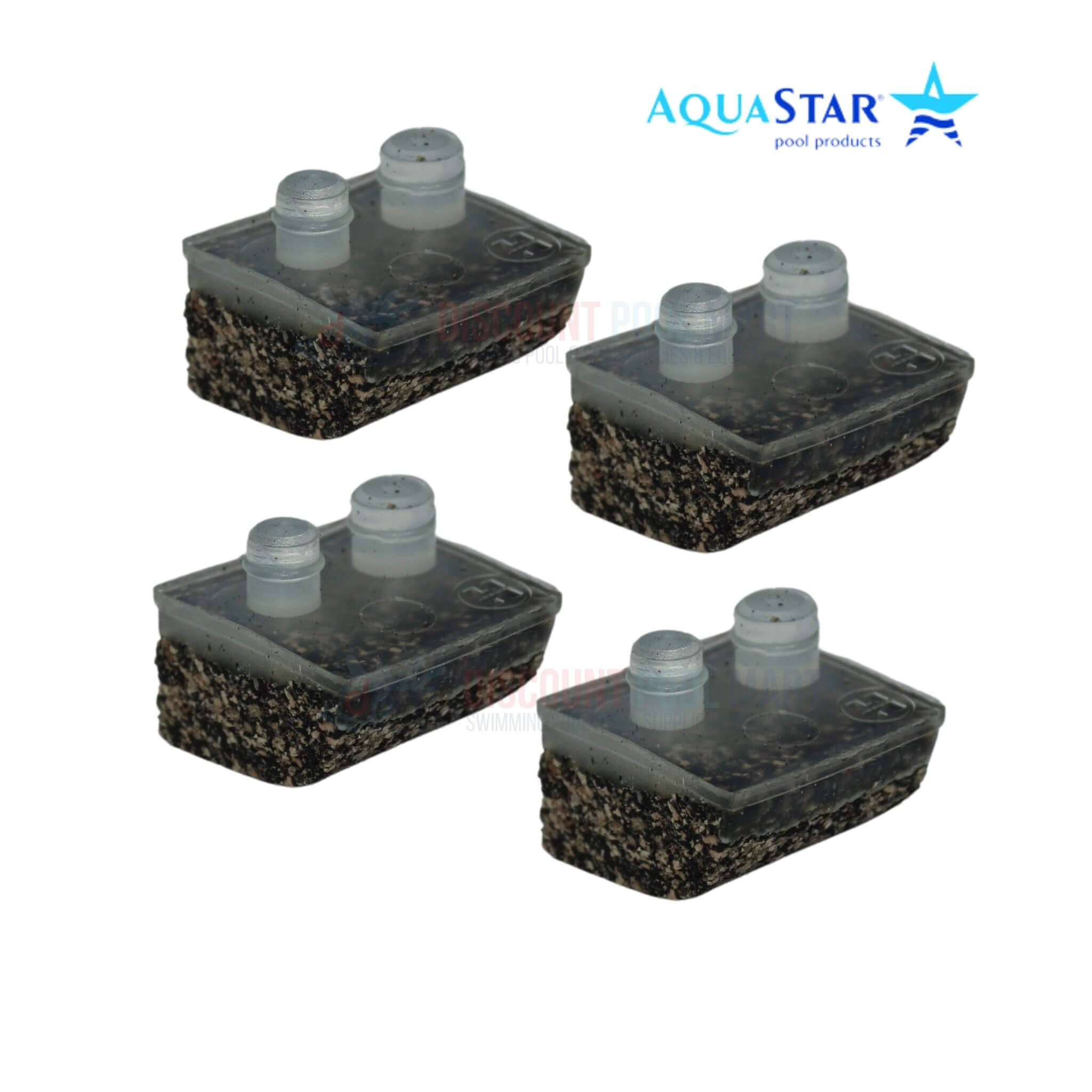

OEM Hayward Cork Pod Shoe Kit AXV014FNP includes four replacement cork pod shoes designed for use with Hayward automatic pool cleaners on vinyl pool surfaces. These shoes are compatible with Pool Vac, Navigator, AquaBug, Diver Dave, and Wanda the Whale models, offering reliable traction without damaging delicate pool liners. The cork construction enhances the cleaner's grip and maneuverability while promoting thorough dirt and debris removal. Easy to install, this kit helps maintain optimal cleaner performance and extends its operational life.
-
Made for Vinyl Pool Liners: Designed to deliver safe, effective traction on soft vinyl pool surfaces without causing abrasion or damage.
-
Compatible with Multiple Cleaners: Fits Hayward Pool Vac, Navigator, AquaBug, Diver Dave, and Wanda the Whale models for broad use.
-
Improves Cleaner Movement: Cork material promotes smooth, consistent navigation for improved cleaning coverage across the pool floor.
-
Simple Installation Process: Each set includes four cork pod shoes that can be quickly installed to restore your cleaner’s effectiveness.
-
Supports Long-Term Operation: Helps preserve the life and functionality of your automatic cleaner by maintaining proper surface contact.
- (4) Hayward Cork Pod Shoes
- Hayward Pool Vac Cleaners
- Hayward Navigator Cleaners
- Hayward AquaBug Cleaners
- Hayward Diver Dave Cleaners
- Hayward Wanda the Whale Cleaners
1. Check the condition of the “shoes, wings and flaps” periodically. The shoes and wings have wear indicators on their sides and should be checked occasionally to determine if they need replacing. The shoe wear indicator is a line on the side of the shoe that appears as a difference in texture. When this texture difference is no longer visible at the
bottom of the shoe when viewed from either side, the shoes must be changed. Also on the side, the wing wear indicator is a horizontal line which has three (3) vertical lines above it. When you can no longer see the horizontal line, the wings must be changed. The Hayward Tune-Up Kit is available from your dealer.
Shoes, wings and flaps may also be purchased separately.
2. SHOE REPLACEMENT:
a) Turn unit upside down.
b) Insert screwdriver between foot and shoe on one of the pads (see Figure 8).
c) Using a lifting motion, remove the shoe from the foot.
d) Dip a new shoe in water and attach the shoe to the foot, making sure to put the small
post into the small hole and the large post into the large hole. These posts and holes
are different sizes to prevent the shoes from being improperly installed.
e) Repeat Steps b,c, and d for each shoe.
