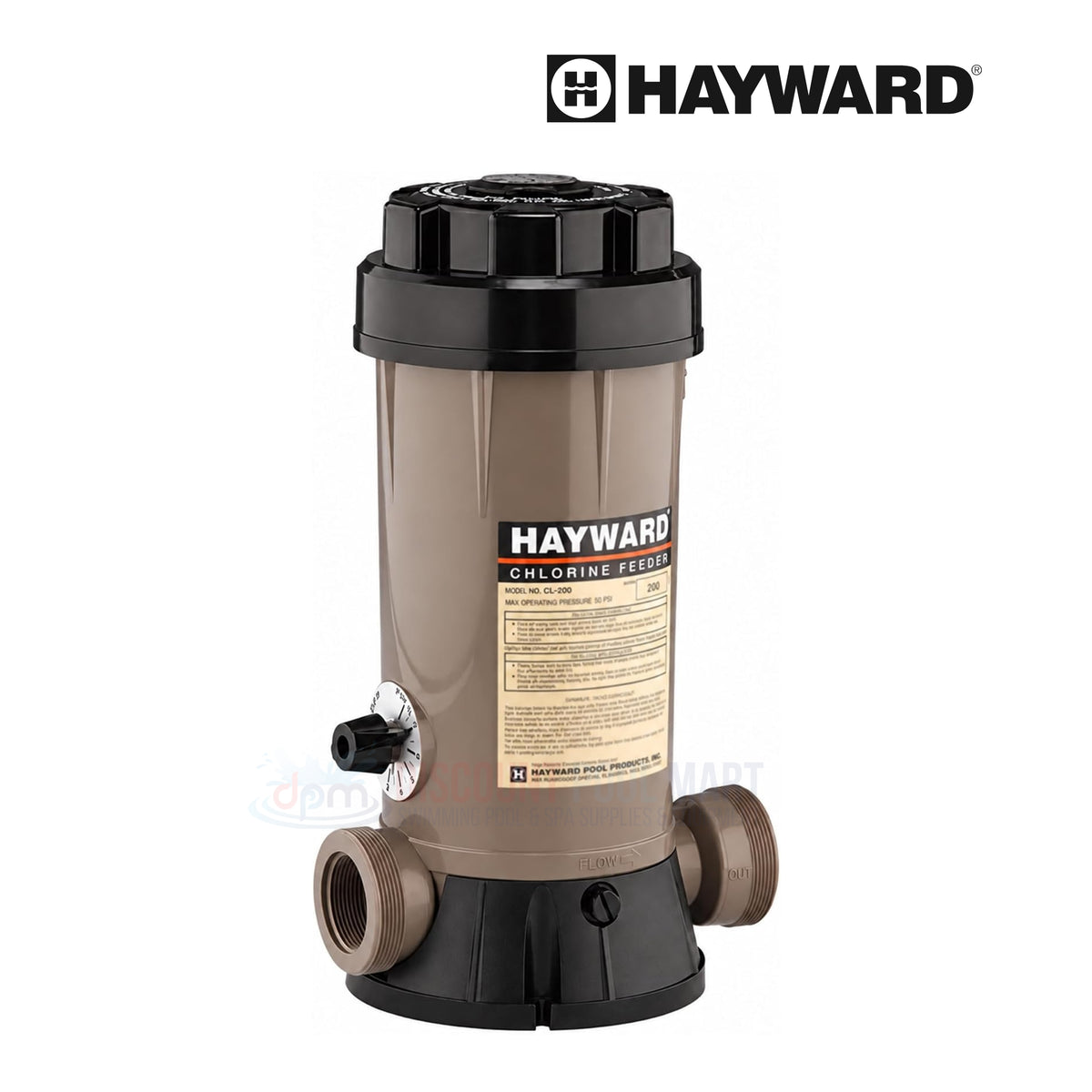

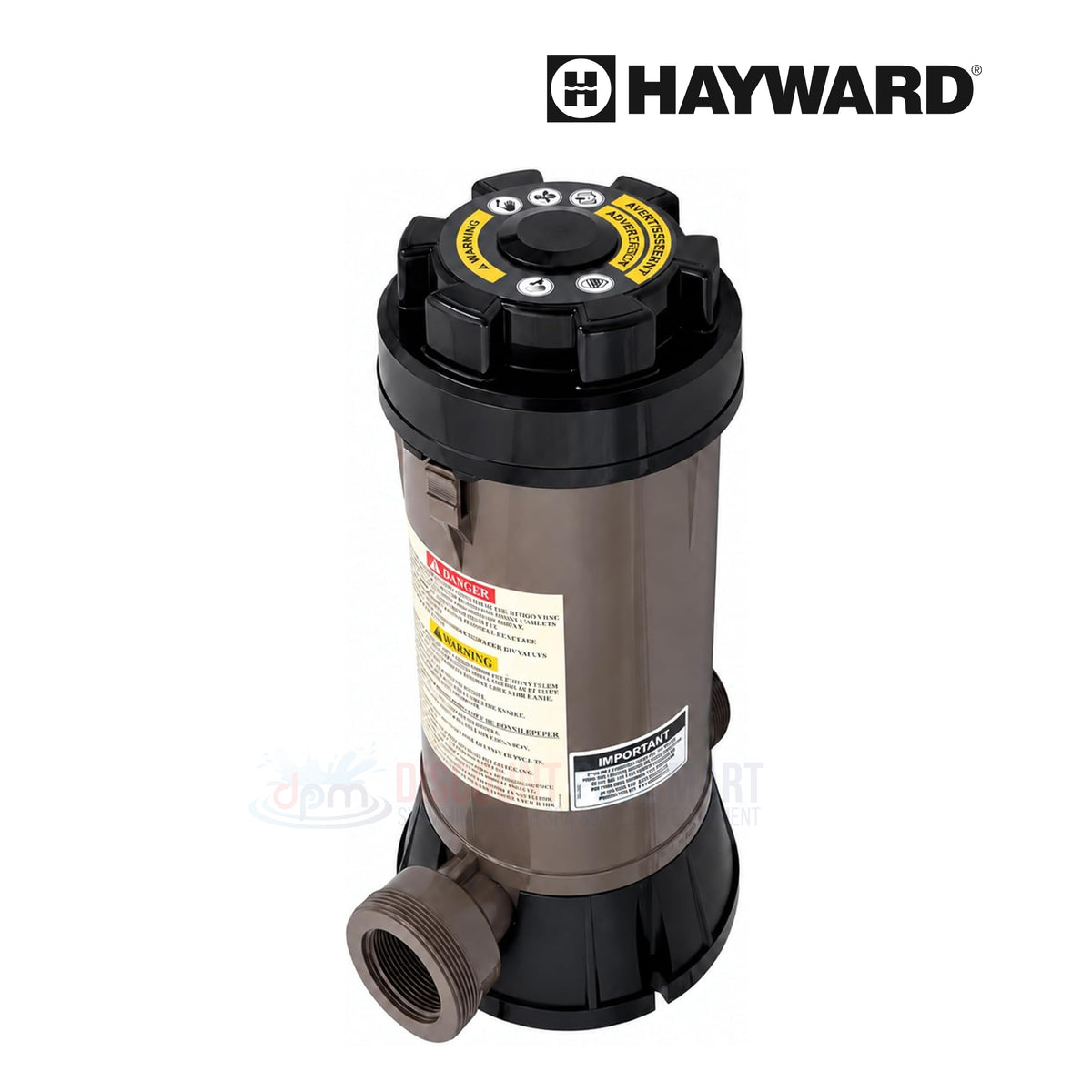

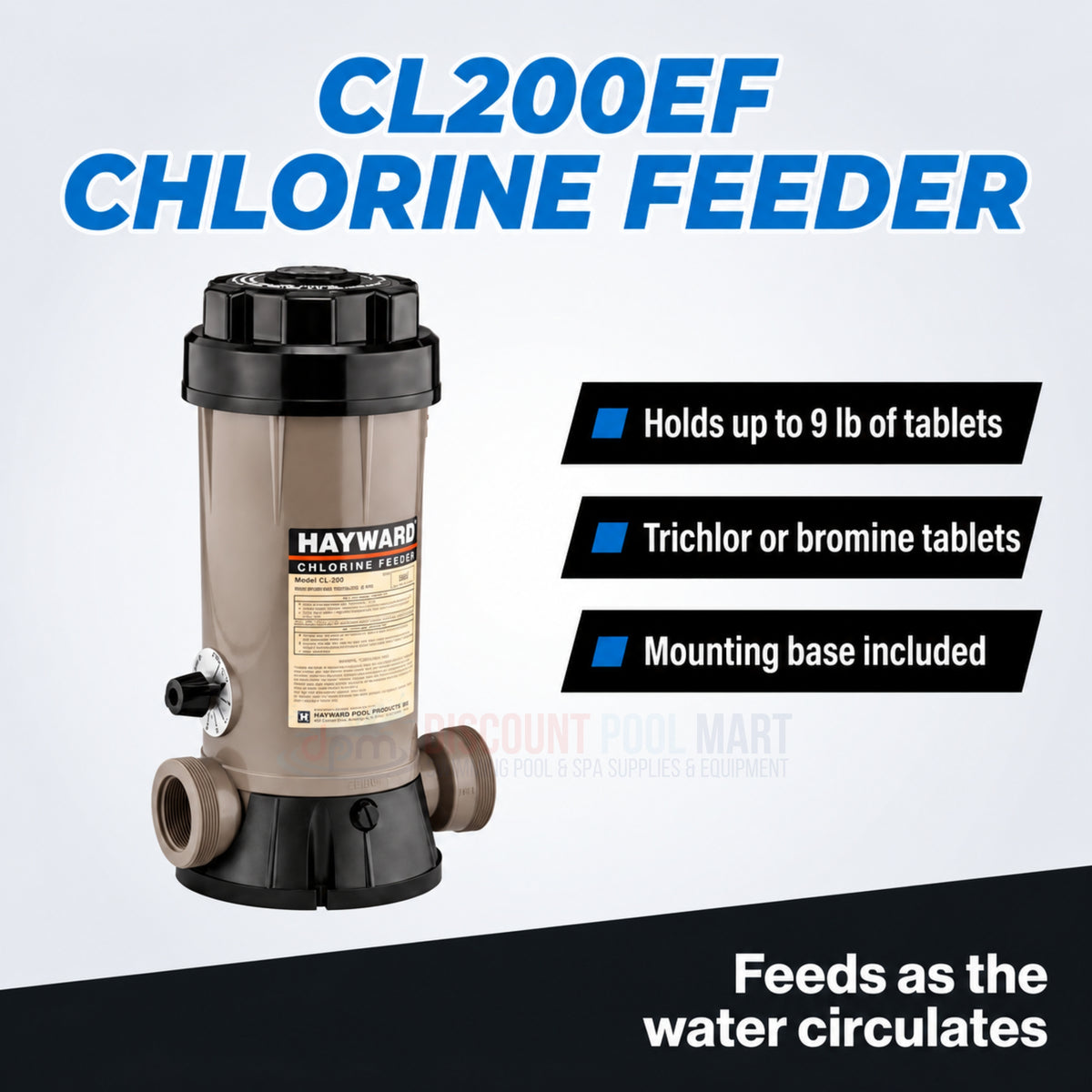

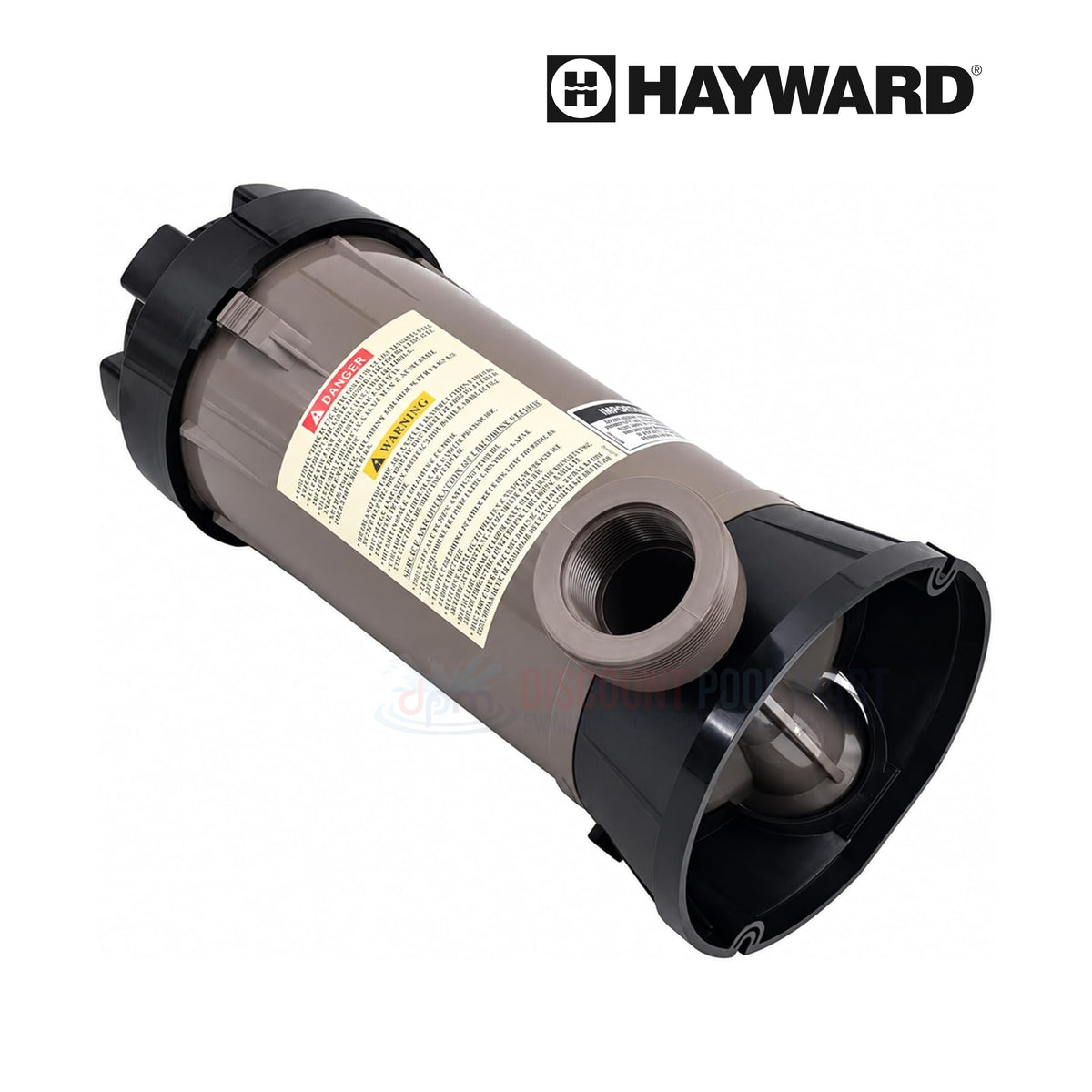

Hayward CL200EF Automatic In-Line Chlorine Tablet Feeder, 9 lb | CL200EF
Pickup, delivery and shipping times are estimates, not guarantees.
Couldn't load pickup availability
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov
Set-it-and-forget-it chlorination. The Hayward CL200EF is an automatic in-line tablet feeder that doses chlorine (or bromine) into your pool water steadily so you are not hand-adding tablets. It holds up to 9 lbs of 1 in. or 3 in. tablets, and a simple control dial sets how fast they dissolve. This is Hayward's current CL200 in-line model, with an X-ring seal for a reliable, leak-resistant cap. Genuine Hayward part.
- Automatically feeds chlorine or bromine tablets into the return line.
- Holds up to 9 lbs of 1 in. or 3 in. tablets.
- Adjustable control dial sets the feed rate; X-ring cap seal.
- In-line design plumbs on the return side, after the filter and heater.
- Plumb the feeder into the return line after the filter and heater (last equipment before the pool).
- Load tablets, set the control dial, and let it feed automatically.
- Refill as tablets dissolve; always use tablets, never liquid, in a tablet feeder.
Note: unions are not included - if you are replacing an older CL200, you can reuse your existing unions. Always install the feeder after the heater to protect equipment.
