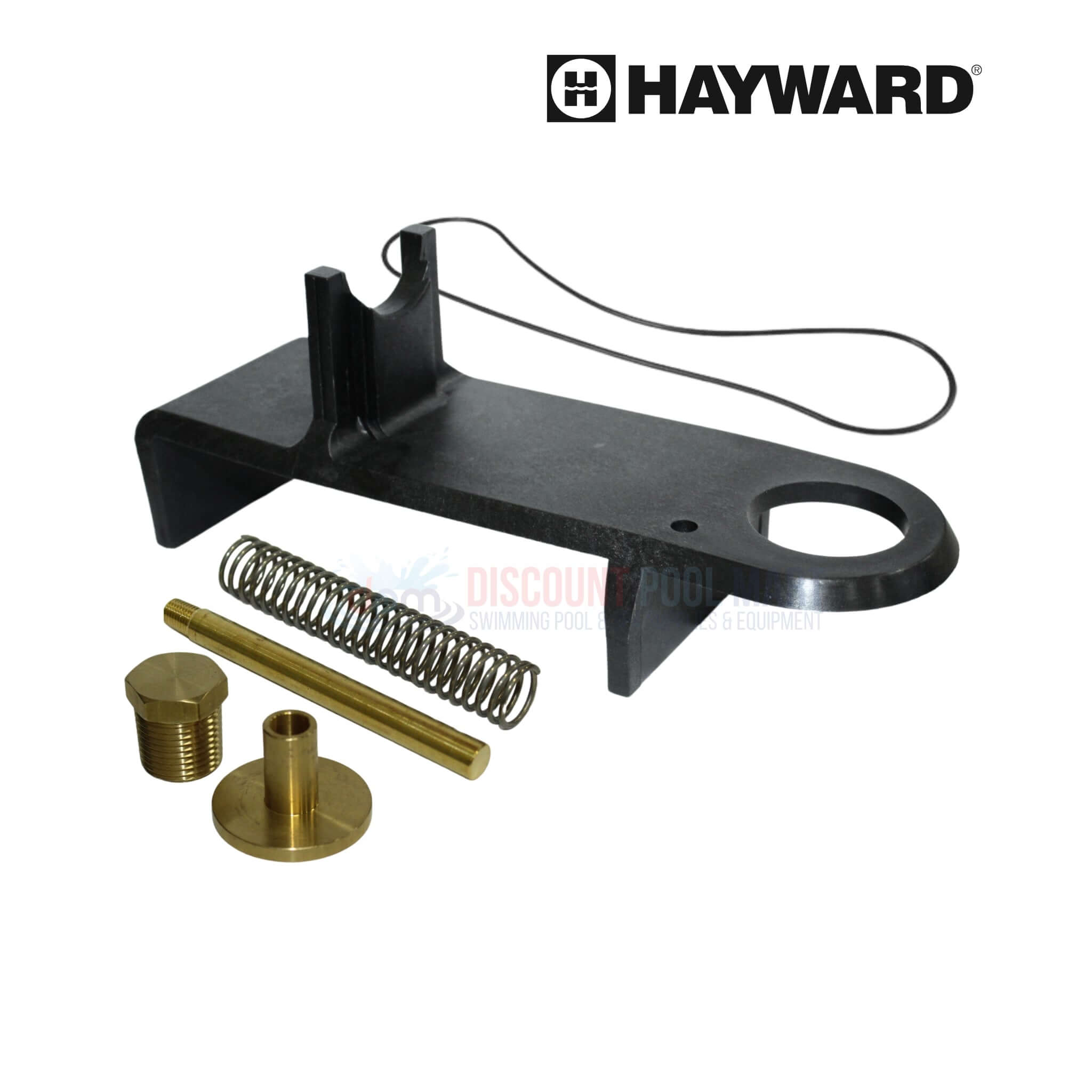

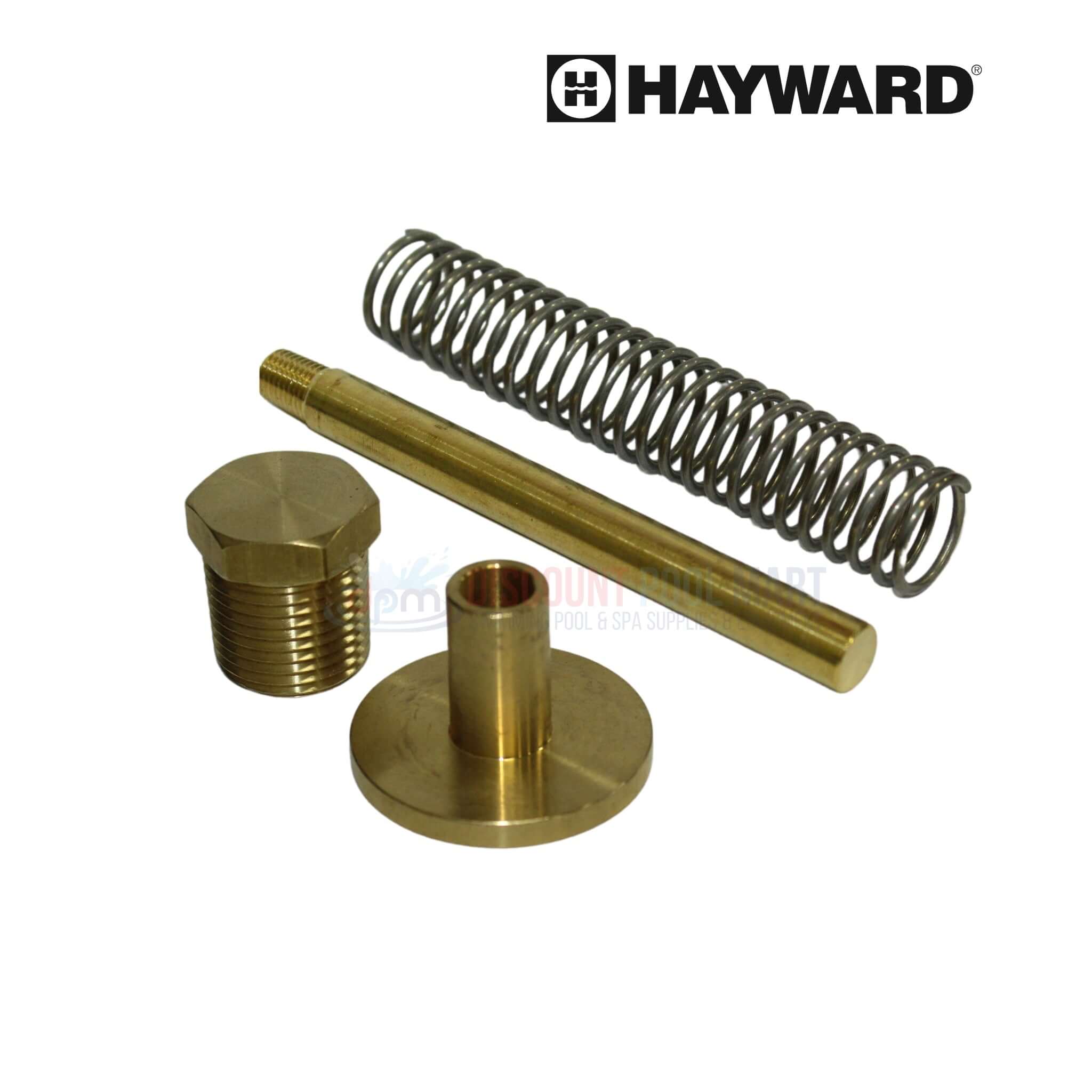

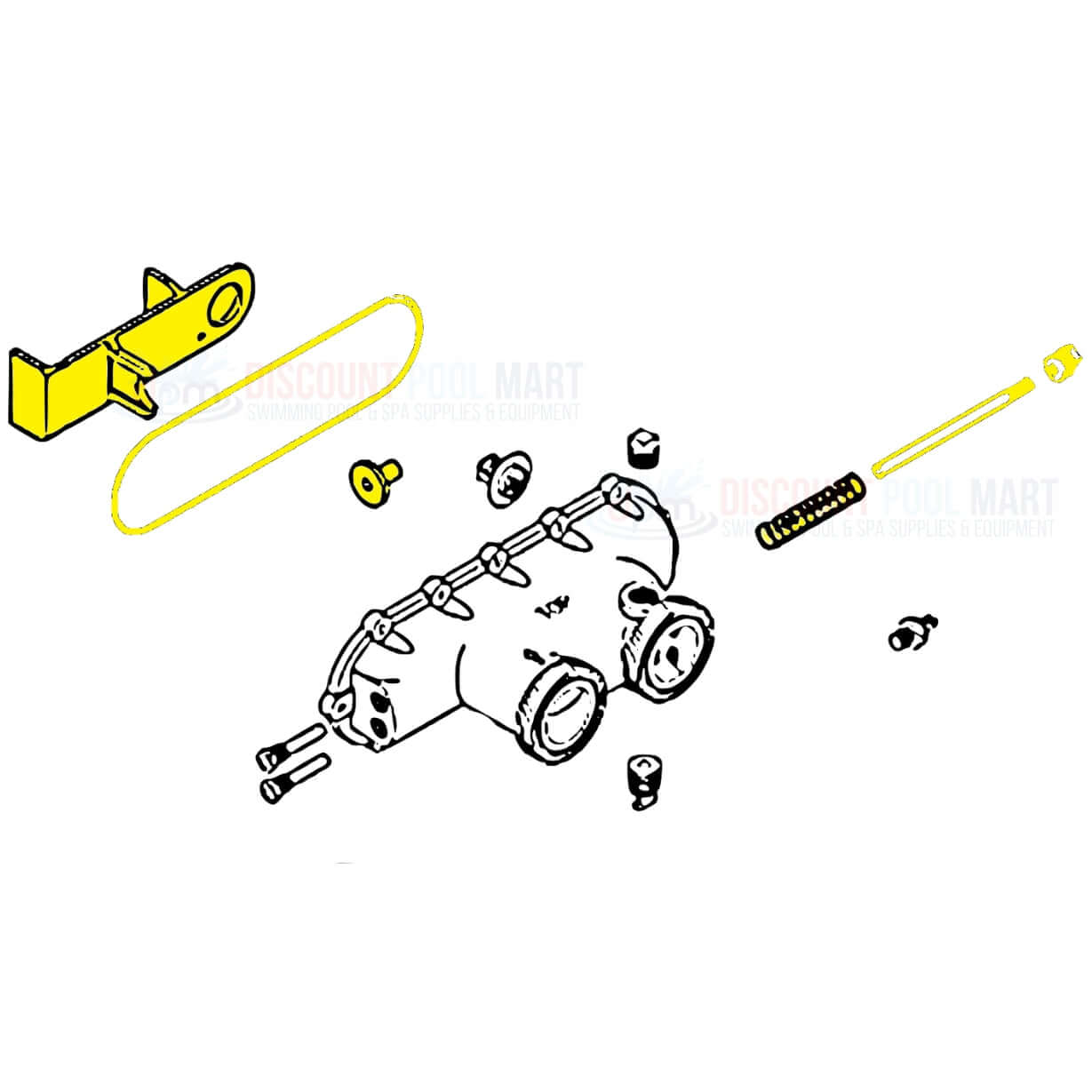

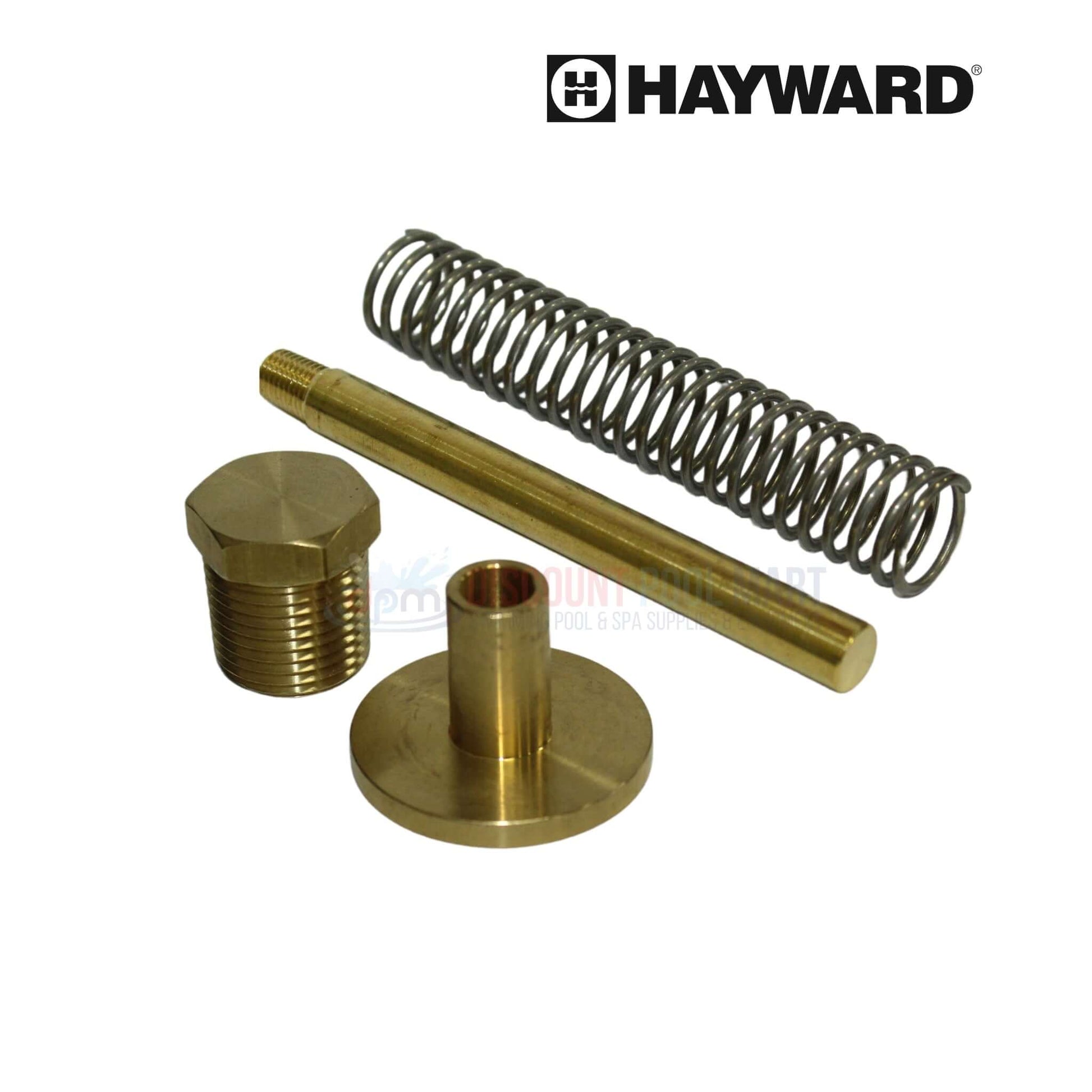

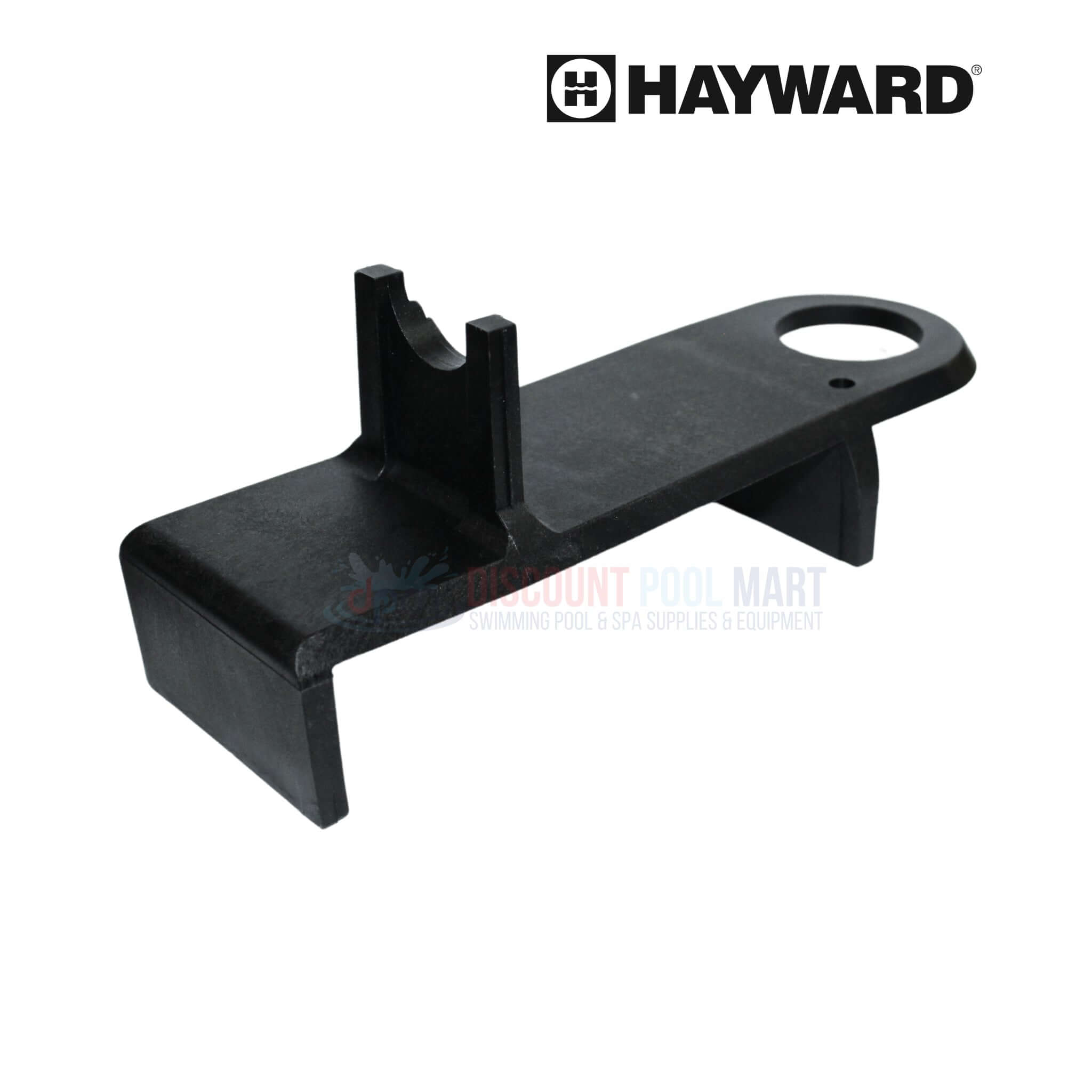

OEM Hayward Bypass Valve Kit HAXBPK1931 is a genuine replacement kit designed for Hayward H-Series pool heaters manufactured before October 28, 2000. Specifically engineered for compatibility with Millivolt and Electronic ED1 style heaters, this kit includes the essential bypass valve, which regulates internal water flow to ensure safe and efficient heater performance. Constructed to Hayward’s original specifications, this replacement part helps prevent overheating and maintains optimal heating function for older H-Series units. Regular replacement is essential to prolonging heater life and preserving reliable operation.
-
Replacement Kit for Older Models: Designed for H-Series heaters made before October 28, 2000 for proper fit and functional compatibility
-
Supports Millivolt & ED1 Heaters: Tailored for use in Millivolt and Electronic ED1 heater systems in legacy Hayward setups
-
Includes Critical Flow Control Components: Comes with a bypass valve that manages water flow to prevent overheating and maintain consistent operation
-
Genuine Hayward Engineering: Matches OEM specifications to ensure a reliable fit and restoration of original heating performance
-
Maintains Safe Heater Function: Helps your older heater run efficiently and safely by regulating water passage through the system
- Hayward H-Series Heaters
- Hayward H-Series ED1 Heaters
Note: Compatible with heater models manufactured before 10/28/2000
