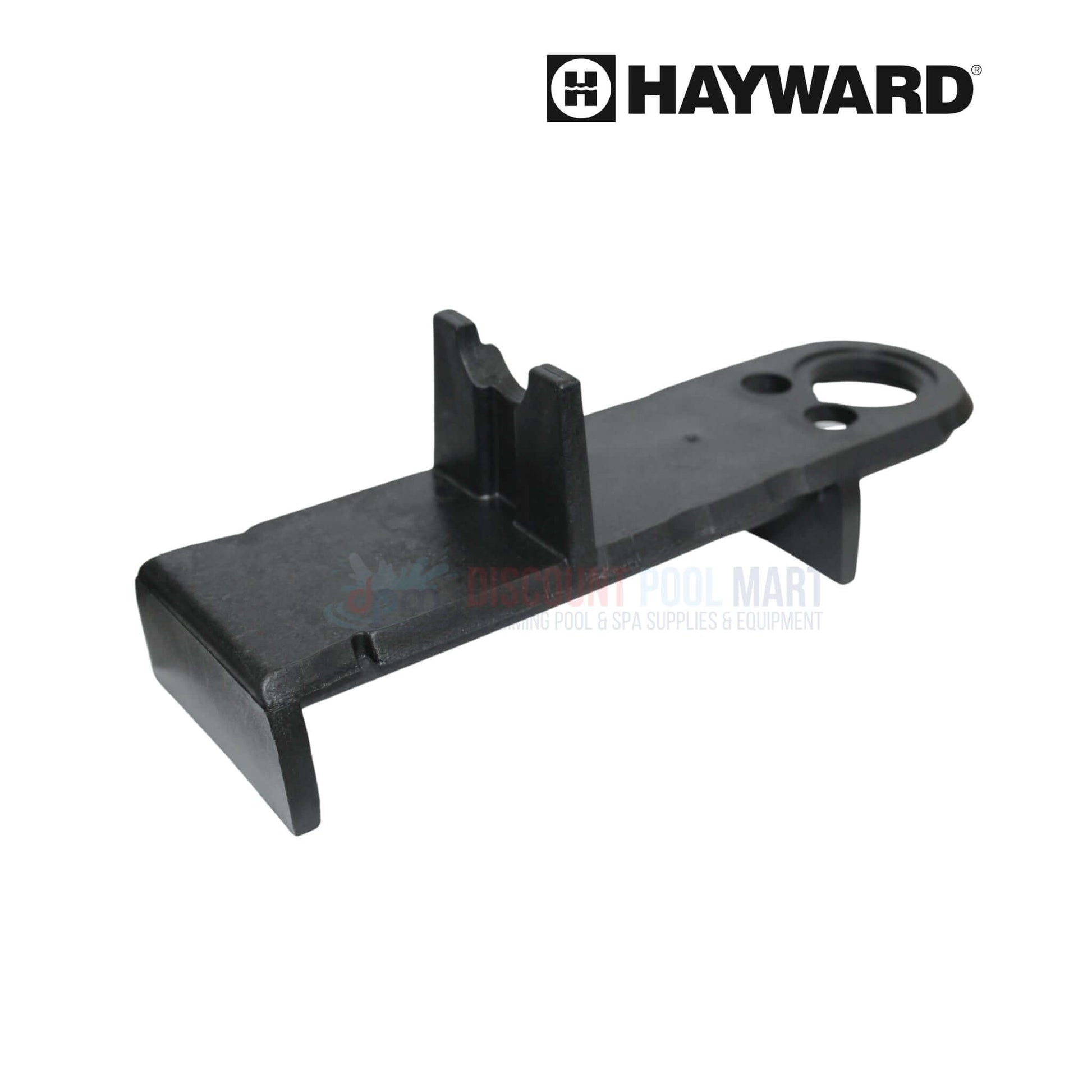

OEM Hayward Bypass Valve Kit HAXBPK1932 is a factory replacement part designed to support proper water flow management in Hayward H-Series heaters. This kit is compatible with a wide range of models, including Low NOx Induced Draft heaters, Electronic ED2 Style heaters, and Millivolt or Electronic ED1 Style heaters. It includes a bypass valve and other essential internal components that regulate internal flow, prevent overheating, and help maintain system efficiency. Manufactured by Hayward, this kit ensures reliable fitment and long-term operational performance for your pool heater.
-
OEM Heater Compatibility: Designed for Hayward H-Series heaters including Induced Draft Low NOx, ED2 Electronic, and ED1 Millivolt or Electronic units
-

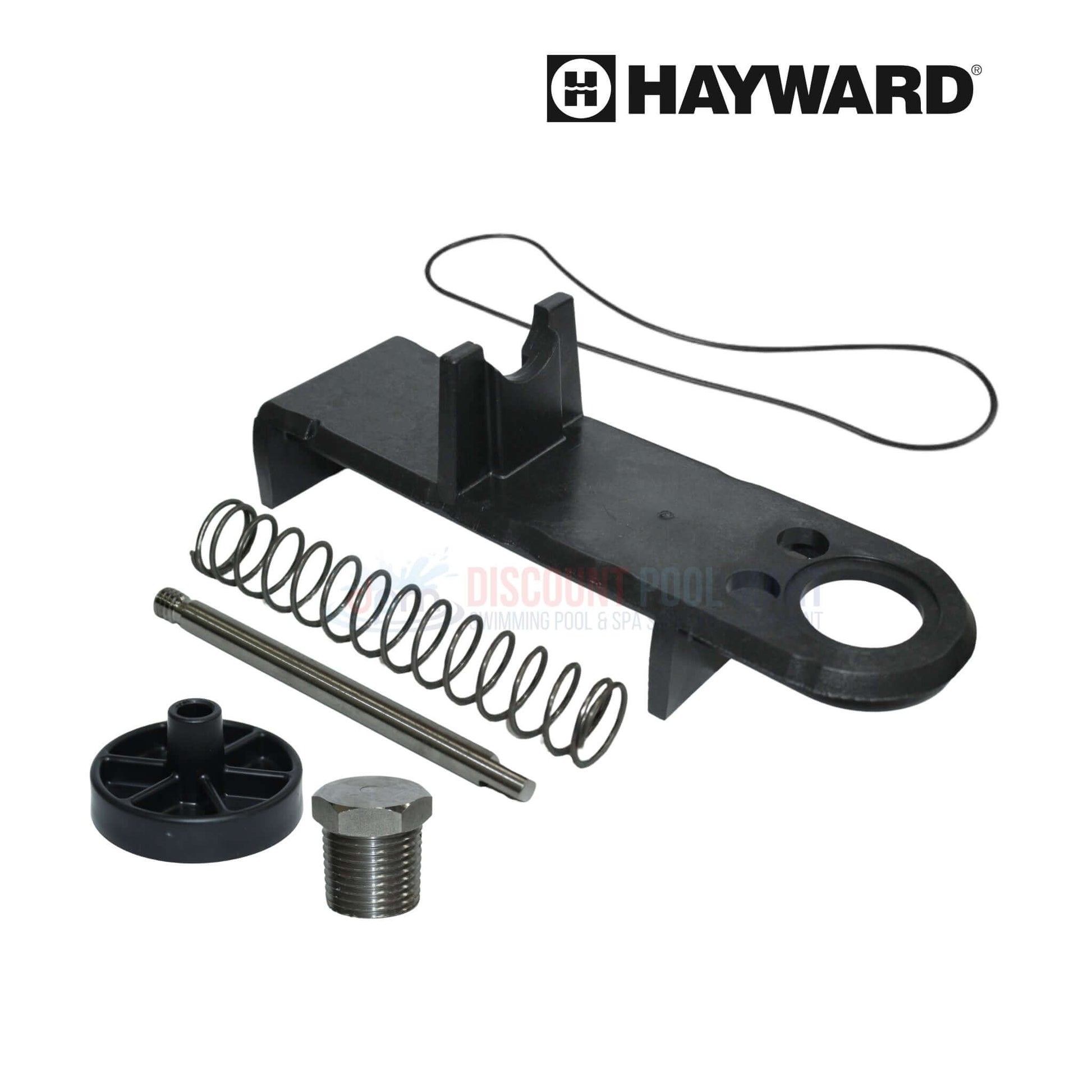

Includes Bypass Valve Assembly: Comes complete with key parts such as the bypass valve to regulate internal water flow for safety and performance
-
Overheat Protection: Prevents dangerous overheating conditions by maintaining balanced flow through critical heater components
-
Enhances Heater Reliability: Supports efficient water circulation to maintain steady temperature output and system performance
-
Durable Genuine Parts: Manufactured by Hayward for lasting compatibility, reliability, and easy integration into your existing system
- Hayward H-Series Heaters
- Hayward H-Series ED1 Heaters
- Hayward H-Series ED2 Heaters
- Hayward H-Series Induced Draft Heaters
