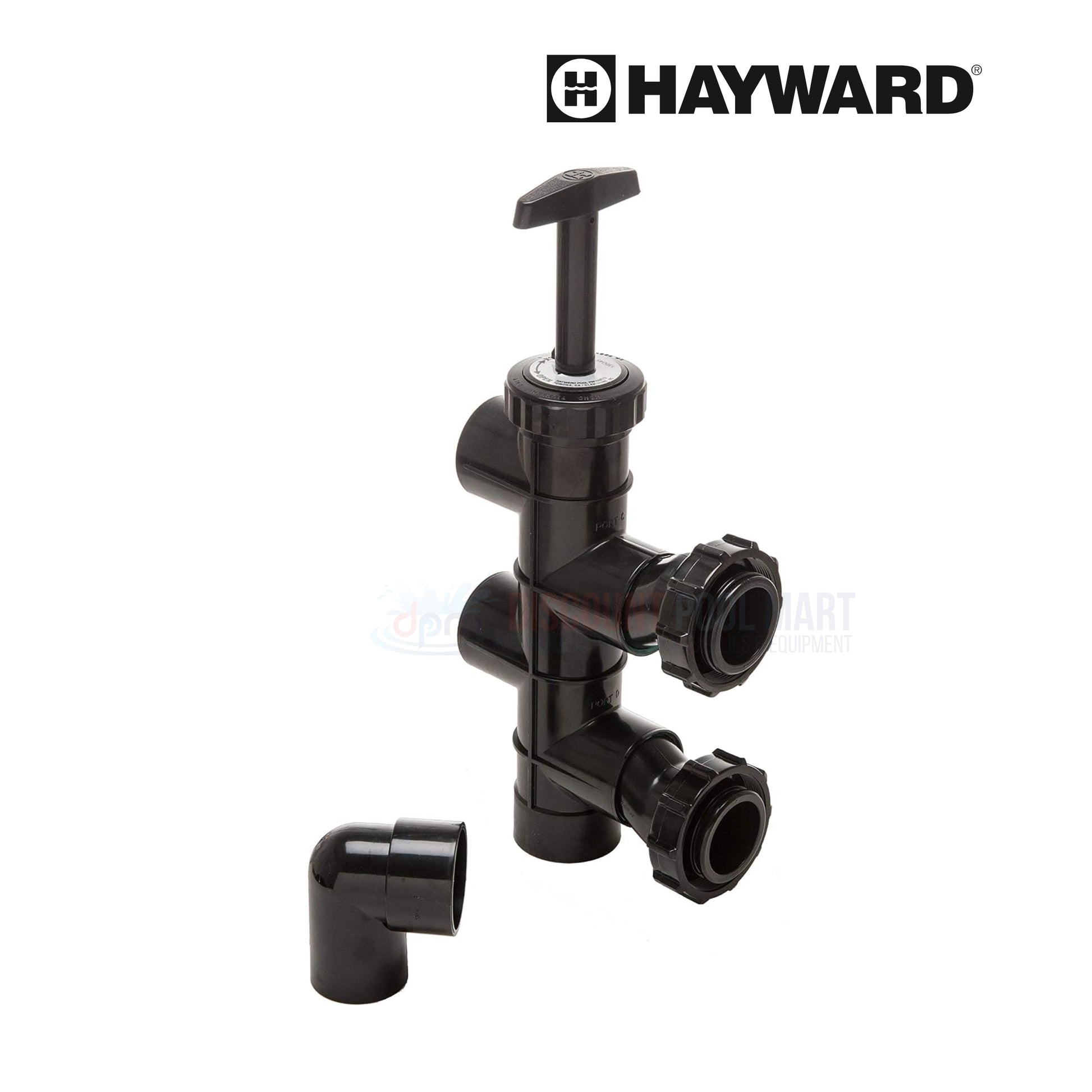

The Hayward SP0410X602S is a genuine 2-inch Vari-Flo push-pull slide valve designed for use with Hayward Pro Series and Pro Series Plus side-mount sand filters. Functioning as the filter's backwash valve, it allows pool owners to effortlessly switch between standard filtration and backwash modes with a simple push or pull of the handle — no tools required. Rated at 150 GPM and constructed from Hayward's durable PermaGlass XL material, this valve is built to withstand continuous pool water exposure and operating pressure season after season. Featuring 2-inch socket weld (slip) female connections and an included waste port with elbow fitting, the SP0410X602S installs quickly into standard plumbing and is compatible with a wide range of Hayward S-Series side-mount sand filter models. Backed by a one-year limited warranty, it is the trusted standard for performance and reliability in pool sand filtration systems.

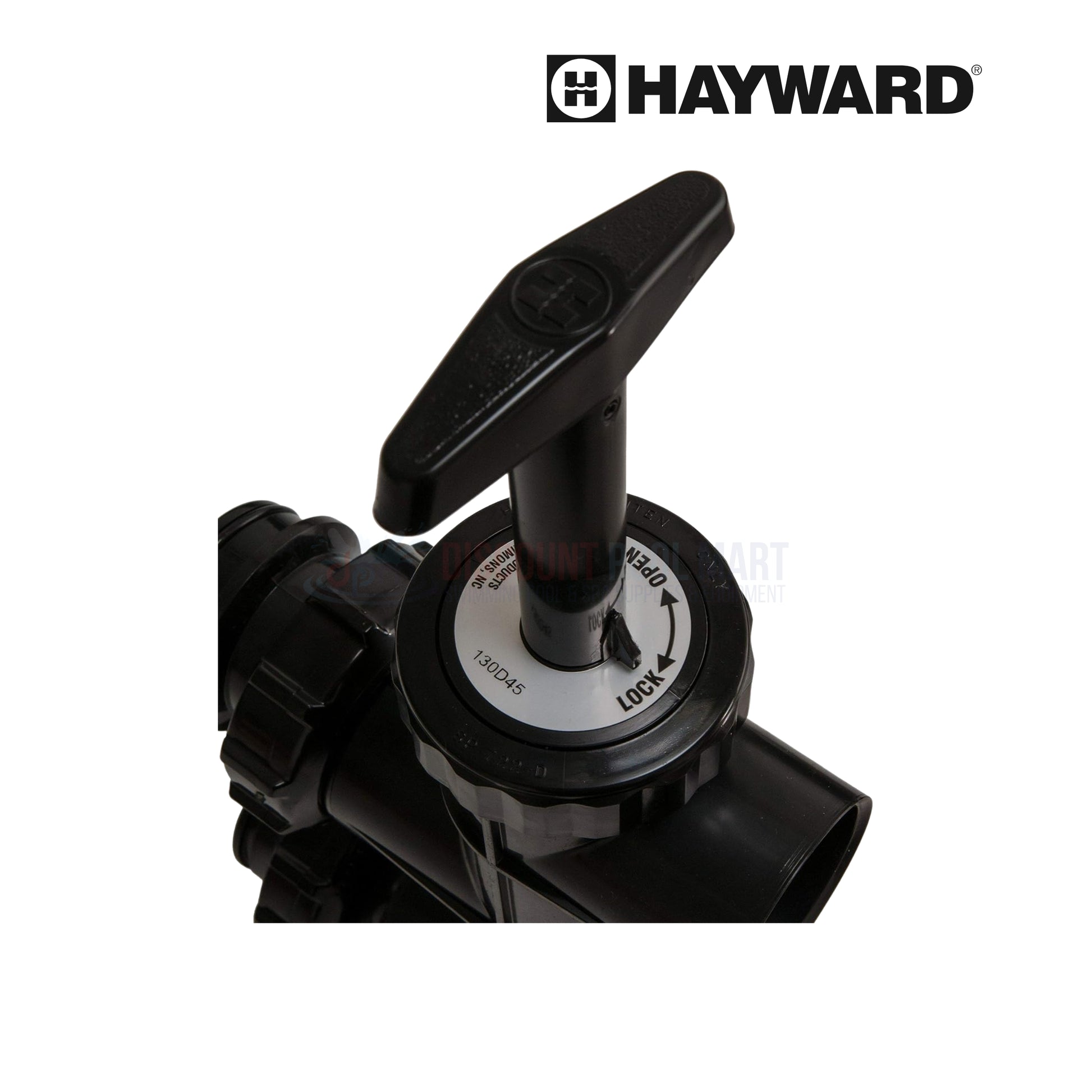

- Simple Push-Pull Backwash Operation: The two-position push-pull handle allows effortless switching between filter and backwash modes without tools, making routine sand filter cleaning fast, straightforward, and accessible for any pool owner.
- 150 GPM Flow Rate for High-Performance Filtration: Rated at 150 gallons per minute, the SP0410X602S is engineered for maximum flow efficiency, ensuring the filter operates at full capacity without restricting water circulation through the sand filter system.
- PermaGlass XL Construction for Long-Term Durability: Built from Hayward's proprietary PermaGlass XL material, this valve resists UV exposure, pool chemicals, and sustained water pressure — delivering reliable performance and a long service life in both residential and commercial applications.

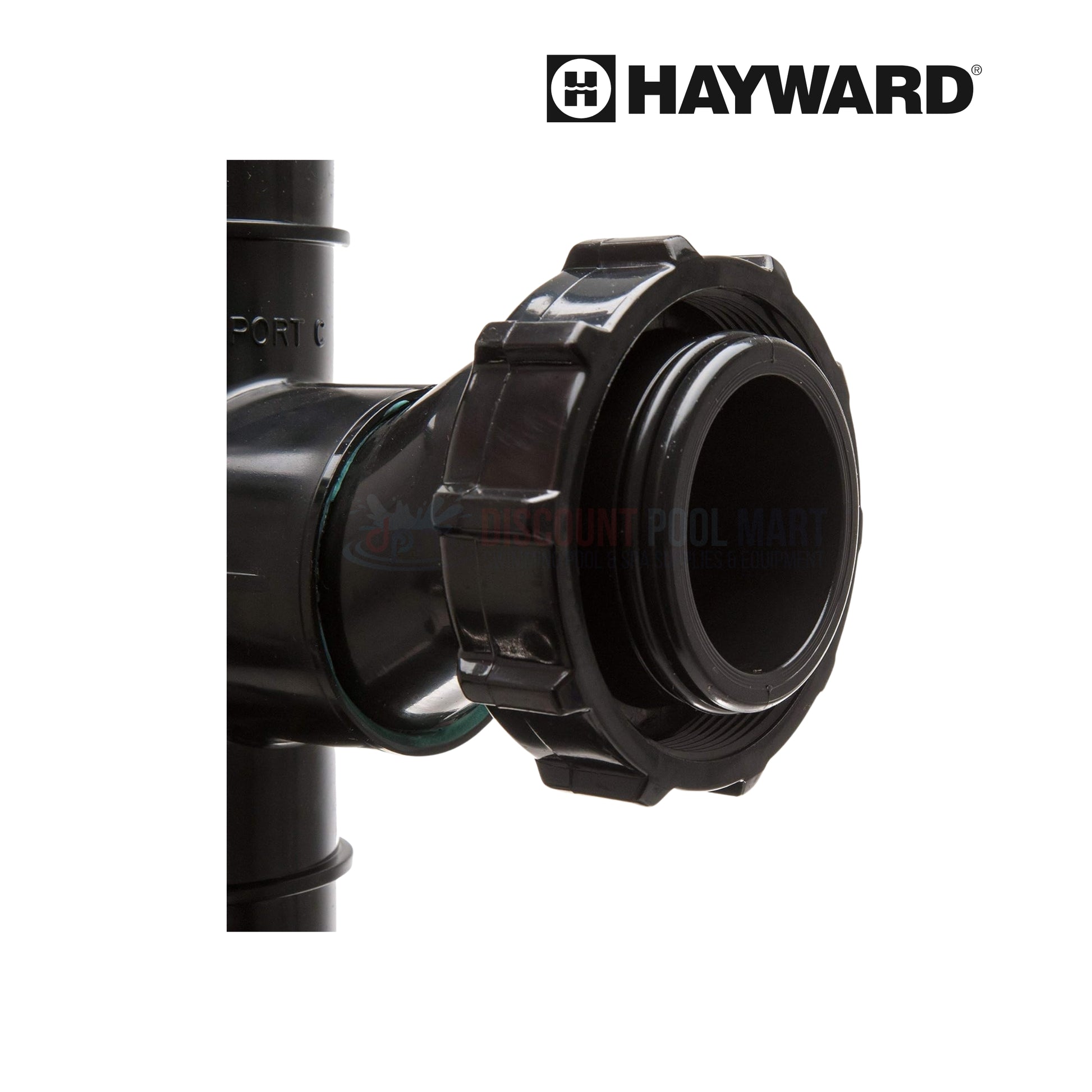

- 2" Socket Connections with Waste Port & Elbow Fitting: Features 2-inch slip (socket weld) female inlet and outlet connections along with an included waste port and elbow fitting, allowing for quick, standard plumbing integration on most Hayward Pro Series and Pro Series Plus side-mount sand filters.
- Broad Pro Series Compatibility: Compatible with a wide range of Hayward S-Series side-mount sand filter models including the Pro Series Plus S311SX, S311SXV, and S360SX, as well as many additional Hayward sand filter models with 2-inch side-mount plumbing configurations.
