Hayward DEP 500 Series Pleated Element DE Filter | 100 Sq Ft | DEP100

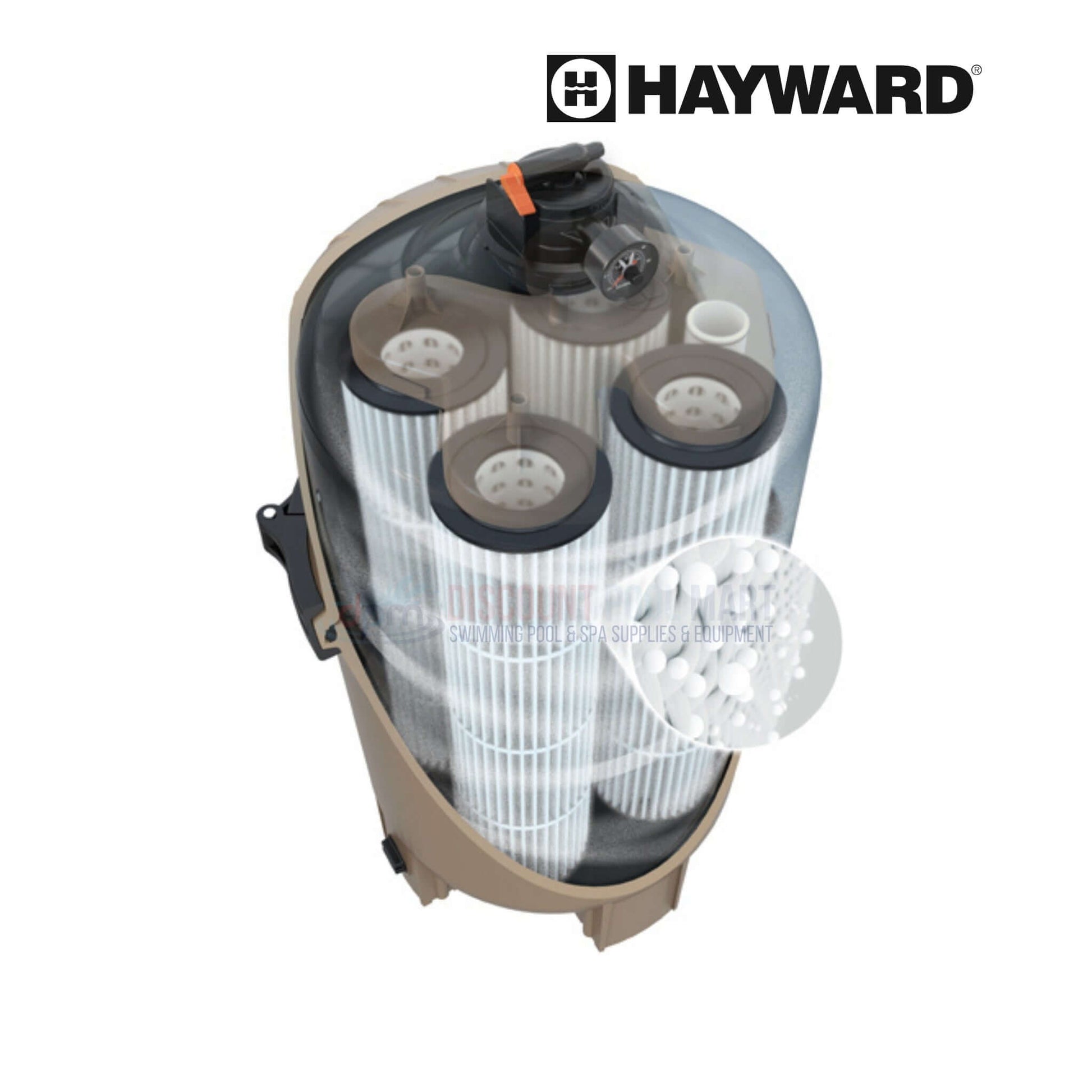

The Hayward DEP100 100 Sq Ft Pleated Element DE Filter combines the convenience of cartridge maintenance with the superior water clarity of diatomaceous earth (DE) technology. As part of Hayward’s innovative DEP 500 Series, this advanced hybrid filter delivers professional-grade filtration efficiency while dramatically simplifying maintenance. Its long-lasting pleated elements can be easily backwashed or removed and rinsed, eliminating the hassle of traditional grid-style DE systems. Designed for both new installations and retrofits, the DEP100 provides top-tier clarity, longer cleaning intervals, and energy-efficient performance for in-ground pools and spas.

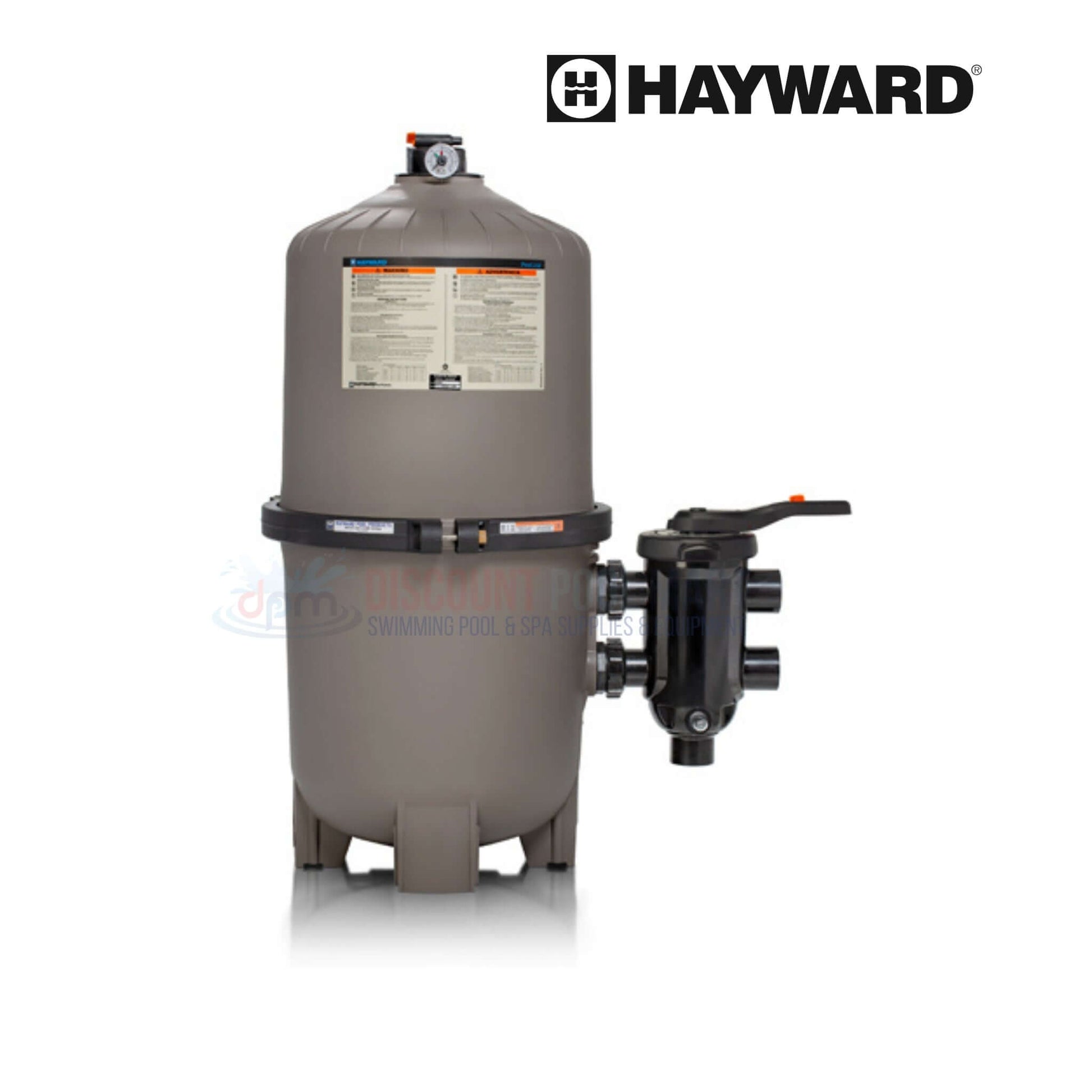

Constructed from durable, glass-reinforced co-polymer, the DEP100 tank withstands high pressure, heat, and chemical exposure without warping or corrosion. The system features a rapid-release air relief valve, a heavy-duty tamper-proof clamp for quick internal access, and a self-aligning tank top and bottom for easy servicing. With a 2-inch full-flow hydraulic design, the DEP 500 Series reduces resistance and improves pump performance, making it an ideal upgrade for both DE and cartridge filter systems. Whether you’re replacing an older filter or installing a new one, the Hayward DEP100 offers exceptional durability, ease of use, and the finest water clarity available.
Key Features of the Hayward DEP100 Pleated Element DE Filter
-
Hybrid DE & Cartridge Technology: Combines DE’s microscopic filtration capability with cartridge-style maintenance simplicity for best-in-class water clarity.
-
100 Sq Ft Filtration Surface Area: High-capacity pleated elements maximize debris capture while extending the time between cleanings.
-
Quick & Easy Maintenance: Pleated elements can be backwashed or quickly removed and rinsed for minimal downtime and reduced maintenance effort.
-
Rugged Glass-Reinforced Tank: Heavy-duty co-polymer construction resists corrosion, UV exposure, and pressure for long-lasting, dependable performance.
-
Tool-Free Internal Access: One-piece tamper-proof clamp allows fast servicing of internal components without disturbing plumbing connections.
-
Efficient Hydraulic Flow Design: 2-inch full-flow internal plumbing reduces restriction for improved pump efficiency and greater system performance.
-
Even Water & DE Distribution: Integrated diffuser elbow directs water uniformly across the pleated elements for balanced filtration and longer media life.
-
Simple Retrofit Installation: Flow rating and plumbing compatibility make it easy to replace existing DE or cartridge filters with minimal adjustment.
Specifications
-
Brand: Hayward
-
Effective Filtration Area: 100 ft²
-
Filter Type: DE
-
Parts Warranty: 3-year
-
Pressure Gauge: No
-
Product Dimensions: 46.5" x 24" x 24"
-
Product Weight: 92 lb
-
Series Filters: DEP 500
-
Turnover 10 Hours: 90,000 GPM
-
Turnover 8 Hours: 72,000 GPM
-
Number of Filter Elements: 4
-
Valve Included: Not Included
-
D.E. Capacity: 10 lb
