  3. CCW25 | Clear Comfort AOP System Pack For Portable Spa & Hot Tub Sanitations
By Clear Comfort

CCW25 | Clear Comfort AOP System Pack For Portable Spa & Hot Tub Sanitations

$2,160.00
$2,160.00
Shipping calculated at checkout.
Brand: Clear Comfort
SKU: CCW25

CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

AOP Spa Sanitation System
MODEL: CCW25 · PORTABLE SPAS & HOT TUBS

Clear Comfort AOP System for Portable Spas & Hot Tubs

Patented hydroxyl-based AOP — drinking-water-level chlorine for cleaner, softer spa water

The CCW25 generates powerful hydroxyl radicals that rapidly oxidize contaminants and organic waste — reducing traditional chemical use to drinking-water chlorine levels and eliminating the odors, irritation, and harmful by-products commonly associated with spa sanitation.

Drinking-water chlorine levels
Patented hydroxyl-based AOP
<1 min cartridge swap
Annual — no tools required
Up to 30 GPM
Compact 11" × 5" × 5" design
Clear Comfort CCW25 AOP System for Portable Spas
Drinking-Water Clean
hydroxyl-based AOP technology maintains spa water at drinking-water chlorine concentration levels
up to 30 GPM flow rate · annual cartridge replacement · no tools needed · compact 11" × 5" × 5"
Clear Comfort CCW25 AOP hydroxyl technology

The power of hydroxyl oxidation.

The CCW25 uses patented Hydroxyl-Based AOP Technology to generate powerful hydroxyl radicals that rapidly oxidize contaminants and organic waste — maintaining balanced, sanitized water with dramatically fewer chemicals than traditional spa sanitation.

PATENTED AOP TECHNOLOGY
Hydroxyl radical generation
Powerful hydroxyl radicals rapidly oxidize contaminants, oils, and organic waste directly within the circulating spa water.
LOW CHEMICAL OPERATION
Drinking-water chlorine levels
Maintains spa sanitation at drinking-water chlorine concentrations — significantly reducing traditional chemical demand.

Softer water. Less irritation. Better breathing.

By reducing harsh chemical levels, the CCW25 helps eliminate strong odors, skin and eye irritation, and the disinfection by-products that can irritate lungs and airways — producing water that looks cleaner, feels softer, and is more comfortable to be in.

IMPROVED WATER COMFORT
Softer, silkier spa water
Advanced oxidation produces noticeably softer water while helping eliminate the harsh chemical odor and skin irritation of conventionally treated spas.
IMPROVED BREATHING COMFORT
Fewer harmful by-products
Reduces the disinfection by-products commonly associated with chlorine sanitation that can irritate lungs, airways, and mucous membranes.
Clear Comfort CCW25 water comfort and clarity

Simple to install. Easier to maintain.

The CCW25 is compact, tool-free to service, and designed to integrate easily into existing portable spa and hot tub systems.

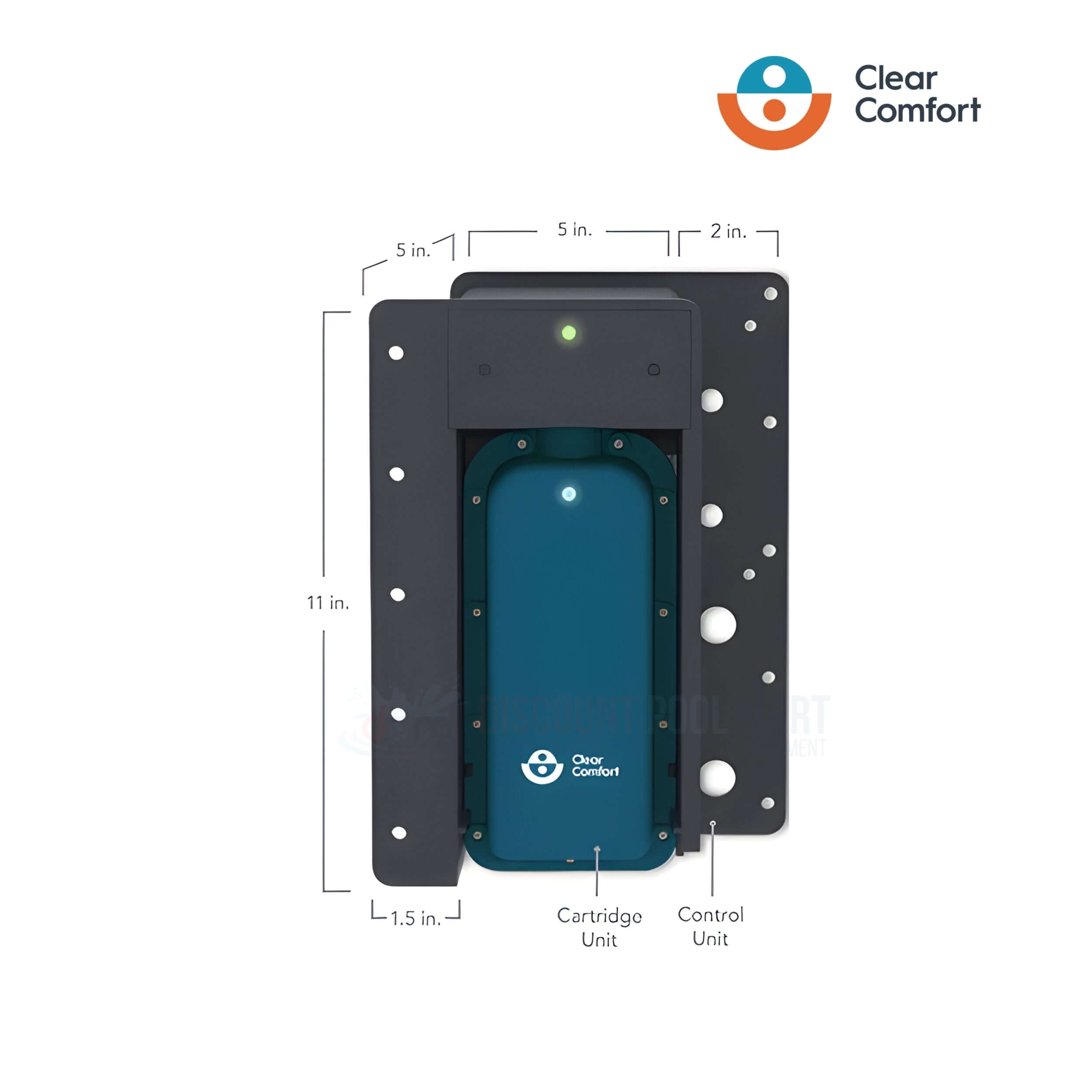

COMPACT DESIGN
11" × 5" × 5"
Small footprint allows easy integration into existing spa equipment compartments without major modifications.
ANNUAL MAINTENANCE
Under one minute
Cartridge replacement takes less than one minute and requires no special tools or technical training — once per year.
FLEXIBLE INTEGRATION
Flow meters & accessory pumps
Designed to connect easily with flow meters and accessory pumps based on your specific spa system requirements.
Clear Comfort CCW25 installation and design
MAX FLOW RATE
Up to 30 GPM
Supports spa water flow rates up to 30 gallons per minute for effective whole-system AOP treatment.
SPA COMPATIBILITY
Portable, swim & plunge
Designed for residential portable spas, swim spas, plunge pools, and personal hot tubs of all sizes.
SAFER HANDLING
Less toxic chemical contact
Dramatically reducing harsh chemical use means less handling, storage, and exposure to toxic spa sanitizers.

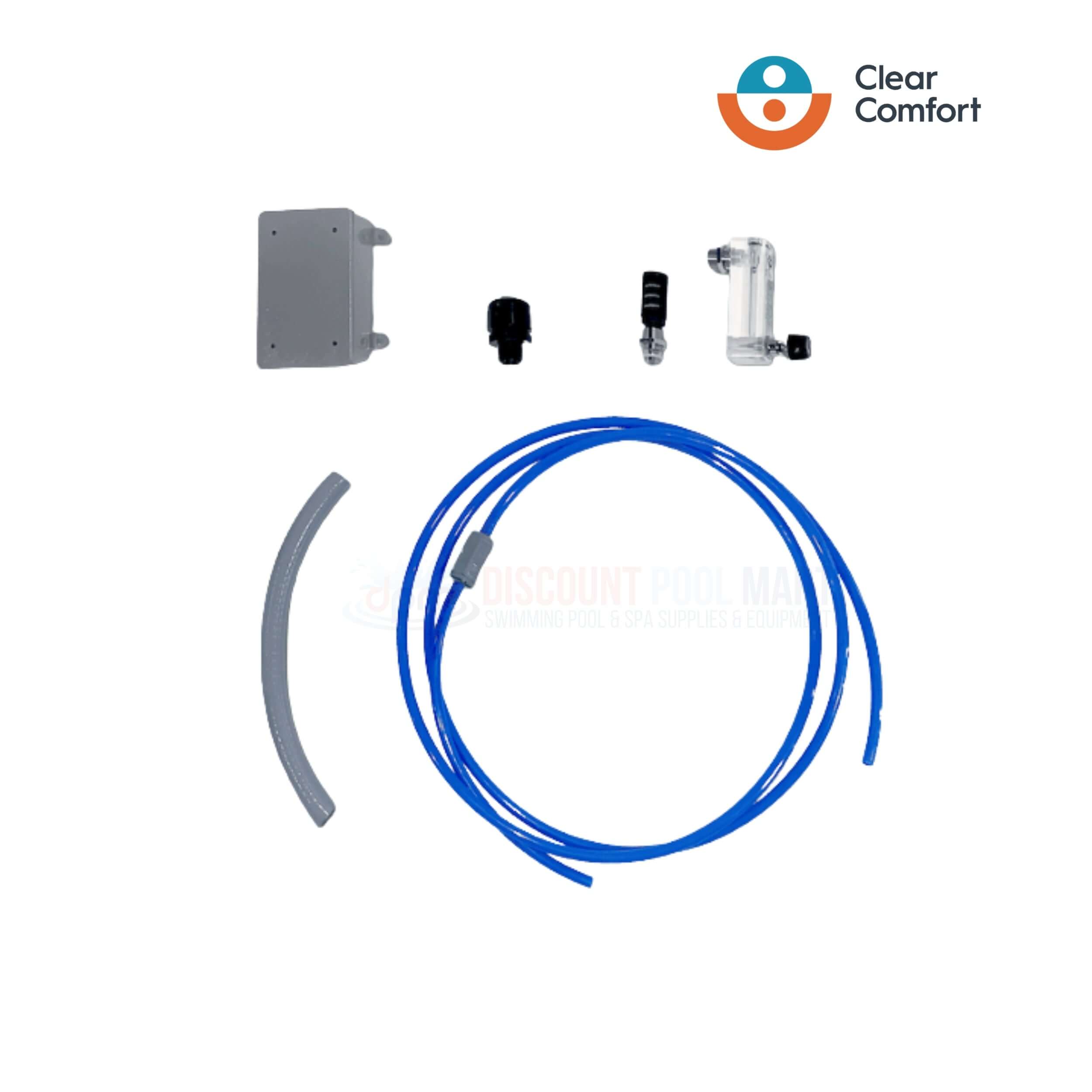

What's included.

Everything needed for installation comes in the box. Note: air pump is not included.

CCW25 Control & Cartridge Unit
4-Pin Y-Harness Connector AMP Plug
Air Flow Meter
IL-Barbed Connectors
Short Air Tubing
Long Air Tubing

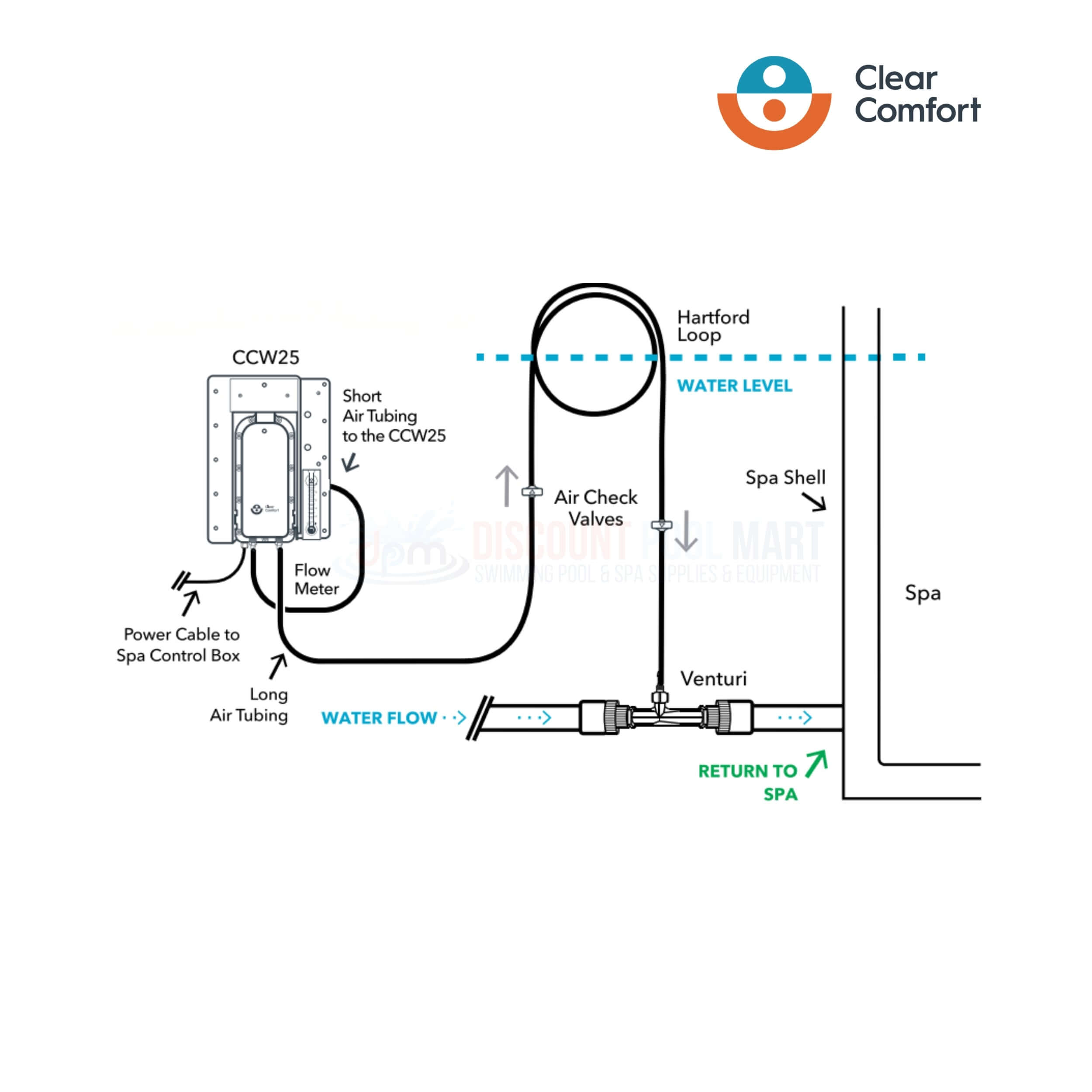

Installation overview.

Five key steps to get the CCW25 up and running in your portable spa or hot tub system.

1
SECURE MOUNTING
Mount the CCW25 unit
Mount the CCW25 using the integrated mounting tab with at least two screws to ensure proper support and stability in the equipment compartment.
2
AIR LINE CONNECTION
Connect long air tubing with check valves
Connect the long air tubing with air check valves to the right L-barbed connector on the CCW25 unit.
3
CHECK VALVE DIRECTION
Verify check valve orientation
Ensure the arrows on both check valves point away from the CCW25 toward the venturi to maintain correct airflow direction.
4
HARTFORD LOOP SETUP
Create a loop above the waterline
Form a Hartford Loop with the long air tubing above the water line to prevent backflow into the CCW25 system.
5
VENTURI CONNECTION
Connect to the spa's venturi system
Connect the long air tubing to the spa's existing venturi system to complete the installation and enable proper AOP operation.

Clear Comfort AOP System for Portable Spas & Hot Tubs | CCW25 details

The Clear Comfort CCW25 AOP System is a hydroxyl-based advanced oxidation sanitation system designed for portable spas, swim spas, plunge pools, and personal hot tubs. Using patented Hydroxyl-Based AOP Technology, it generates powerful hydroxyl radicals that oxidize contaminants while maintaining drinking-water-level chlorine concentrations.

Technology & water quality

Hydroxyl radicals rapidly oxidize contaminants and organic waste, eliminating strong chemical odors, skin and eye irritation, and harmful disinfection by-products. Produces softer, cleaner, and more comfortable spa water with dramatically reduced traditional chemical demand.

Design & specifications

Compact unit measuring approximately 11 inches high by 5 inches wide by 5 inches deep. Supports flow rates up to 30 gallons per minute. Designed to integrate easily with flow meters and accessory pumps based on spa system requirements. Air pump not included.

Maintenance

Annual cartridge replacement takes less than one minute and requires no special tools or technical training. Includes: CCW25 Control & Cartridge Unit, 4-Pin Y-Harness Connector AMP Plug, Air Flow Meter, IL-Barbed Connectors, short and long air tubing.
