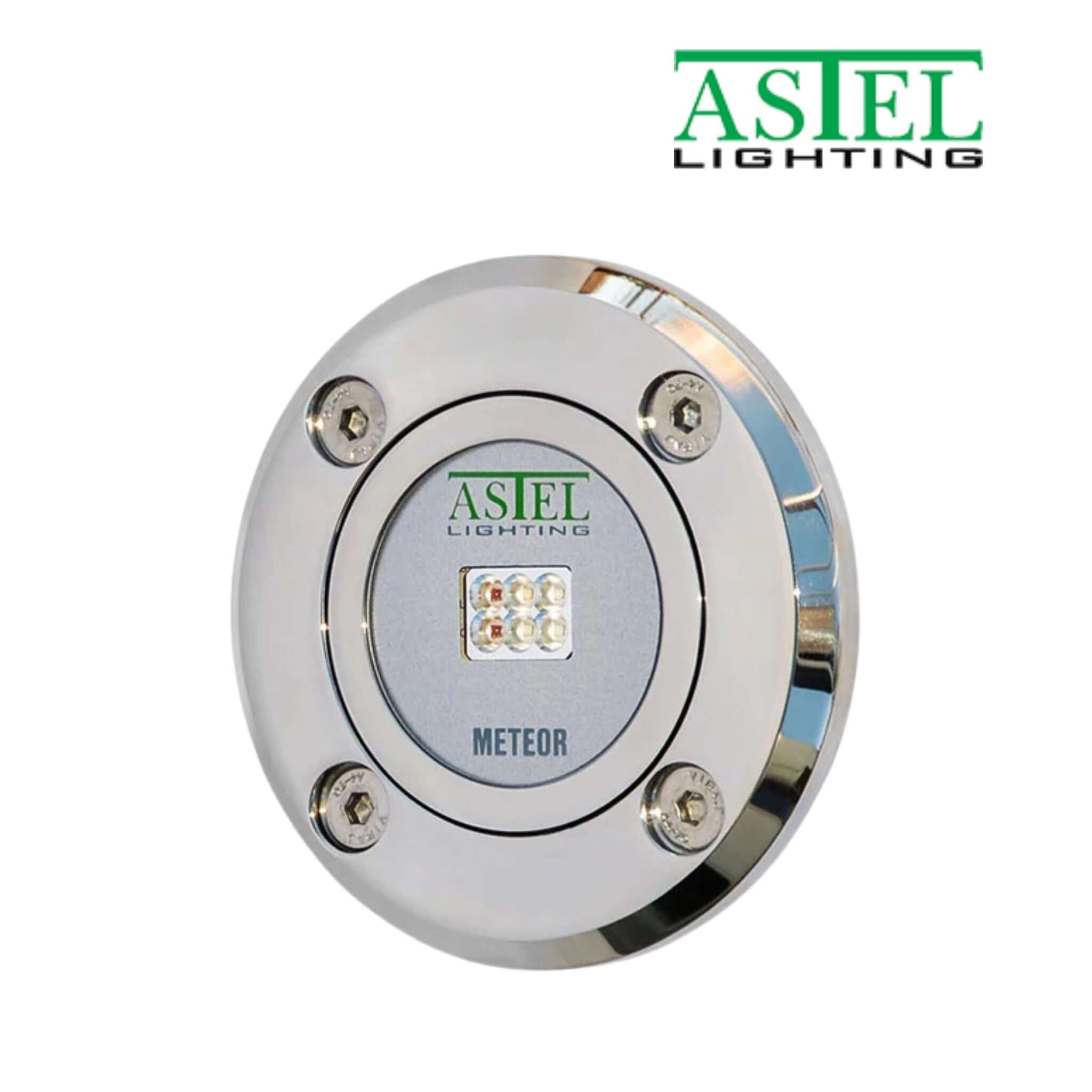

Astel Meteor Series Underwater LED Pool Lights

Astel Meteor Series Ultra-Thin Surface-Mount Underwater LED Pool Lights

The Astel METEOR Series is a compact, ultra-thin UL® certified LED underwater pool lighting solution engineered for effortless installation and professional-grade performance. Designed with a fully integrated built-in driver, the METEOR series mounts directly to flat pool surfaces without requiring niche housings or extensive surface preparation during construction. With a slim profile measuring just 0.39 inches thick and requiring a maximum wall penetration of only 2/5 inch for cable routing, these lights provide powerful illumination while minimizing structural impact.

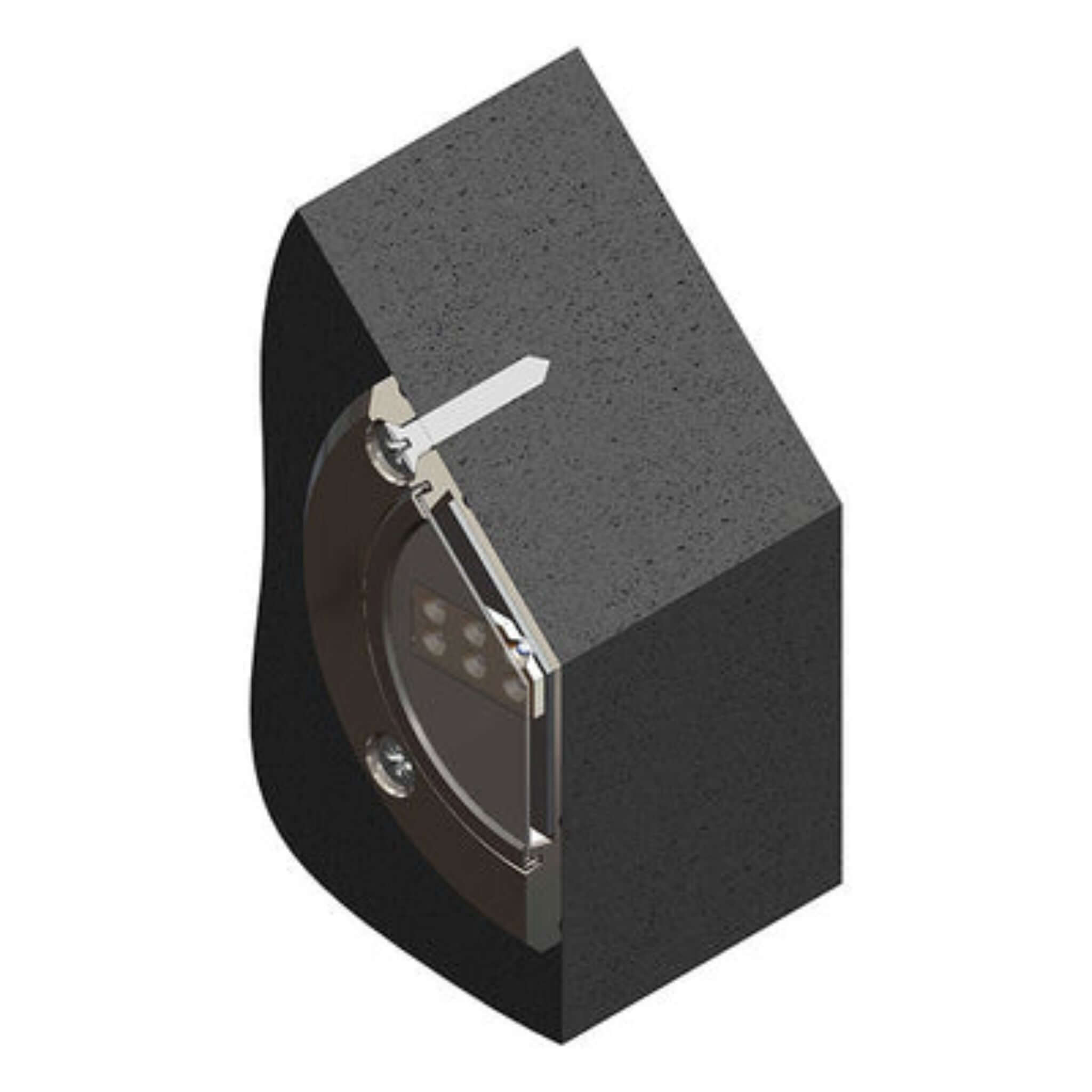

Constructed for durability and long-term reliability, each METEOR model features a stainless steel SAE316L casing and IP68 waterproof protection. Whether installed in new builds or retrofitted into existing finished pools, the ultra-thin surface-mount design allows installation below the waterline using just four mounting screws and a small cable opening, significantly reducing construction time and complexity.

Available Models & Performance Specifications

METEOR LSR0640

• Power Consumption: Max. 10 W
• Luminous Flux: Up to 950 lumens (cool white)

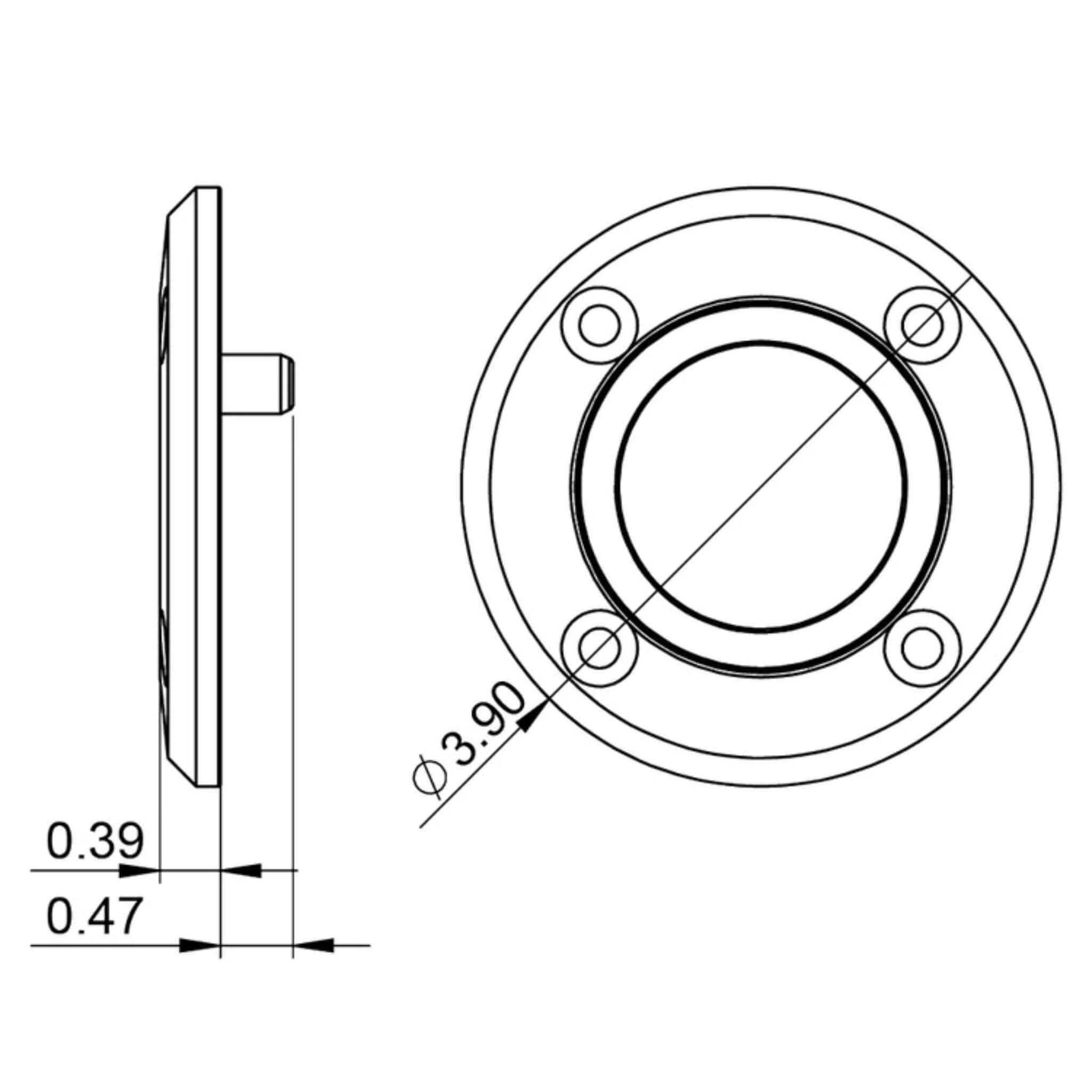

• Dimensions: Ø3.9 × 0.39 inches
• Weight: 0.88 lbs
• Color Options: White, Blue, Green, RGB, WGB, RGBW

METEOR LSR1280

• Power Consumption: Max. 18 W
• Luminous Flux: Up to 1,900 lumens (cool white)
• Dimensions: Ø4.69 × 0.39 inches
• Weight: 1.32 lbs
• Color Options: White, Blue, Green, RGB, WGB, RGBW

METEOR LSR36240

• Power Consumption: Max. 51.5 W
• Luminous Flux: Up to 5,700 lumens (cool white)
• Dimensions: Ø5.47 × 0.39 inches
• Weight: 1.76 lbs
• Color Options: White, Blue, Green, RGB, WGB

Note: Wattage indicated represents maximum output for models equipped with 6.56 ft cable lengths and may vary slightly depending on color configuration.

Advanced Lighting Control & Color Customization

The multi-color versions of the METEOR Series allow users to cycle manually or automatically through the full rainbow spectrum using a simple momentary switch. For more advanced installations, the system supports DMX512 network control, enabling synchronized group lighting, dimming, and centralized management of multiple fixtures.

An integrated microprocessor-based electronic design allows networking capabilities for precise brightness control and coordinated light shows. Whether installed individually or as part of a larger lighting array, the METEOR series offers flexible control for residential and commercial pool applications.

Engineering & Technical Specifications

• Power Supply: 12–24 Vdc, max. 840 mA at 12 Vdc or 410 mA at 24 Vdc
• Beam Angle: 60° standard or 100° wide distribution
• Optical Window: High-grade polycarbonate glass
• Operating Temperature: 14°F to 122°F
• Casing Material: Stainless Steel SAE316L
• Protection Rating: IP68 waterproof

By utilizing high-efficiency Cree LEDs and a precision-engineered optical window, the METEOR series achieves strong luminous output while maintaining low energy consumption. The ultra-thin patented design enables clean, flush aesthetics and versatile mounting configurations for a modern underwater lighting effect.

Key Advantages

• Ultra-thin 0.39 inch surface-mount design
• Minimal 2/5 inch wall penetration requirement
• Stainless steel marine-grade construction
• UL® certified LED pool lighting
• RGB and multi-color lighting options
• DMX512 network control compatibility
• Easy retrofit for existing finished pools
